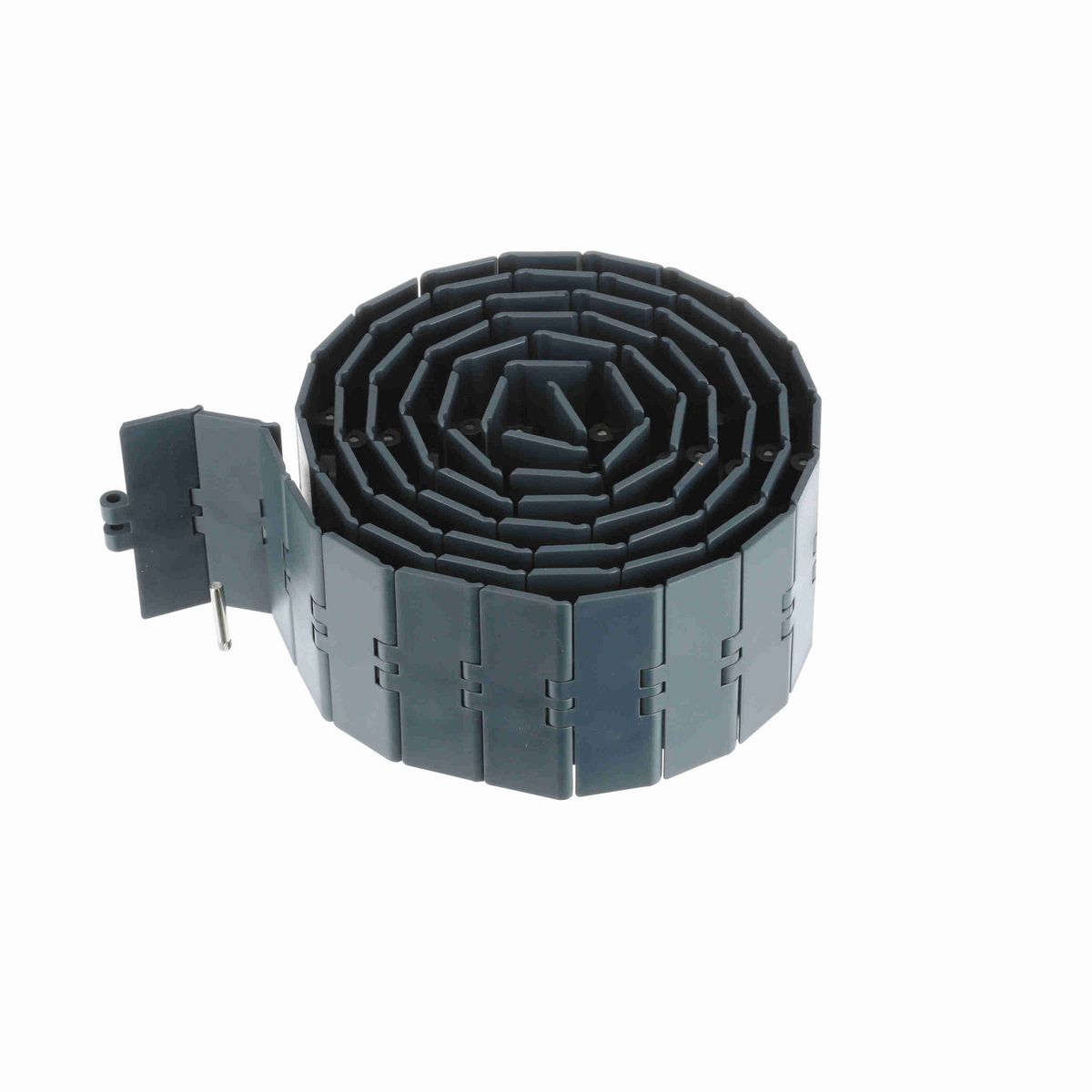

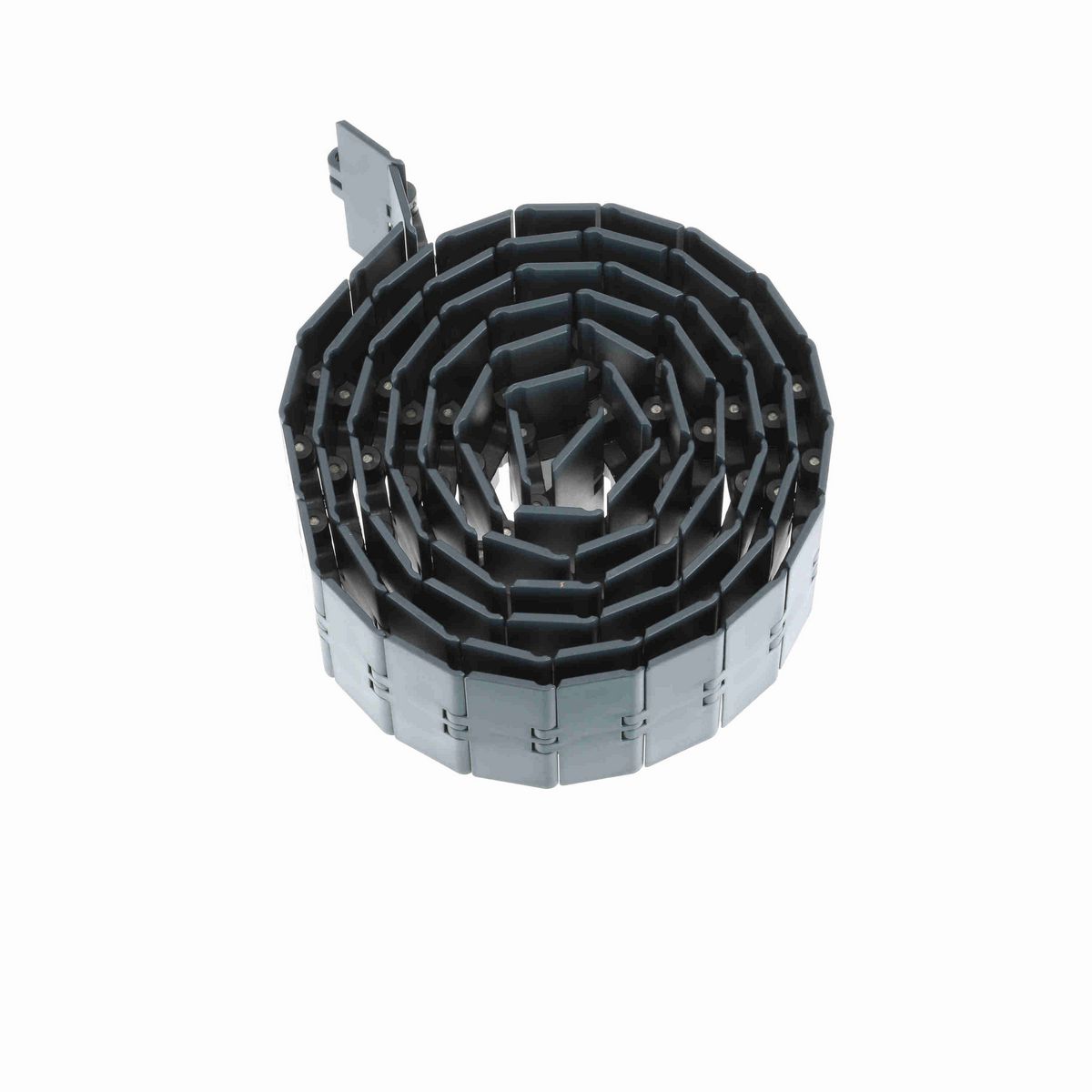

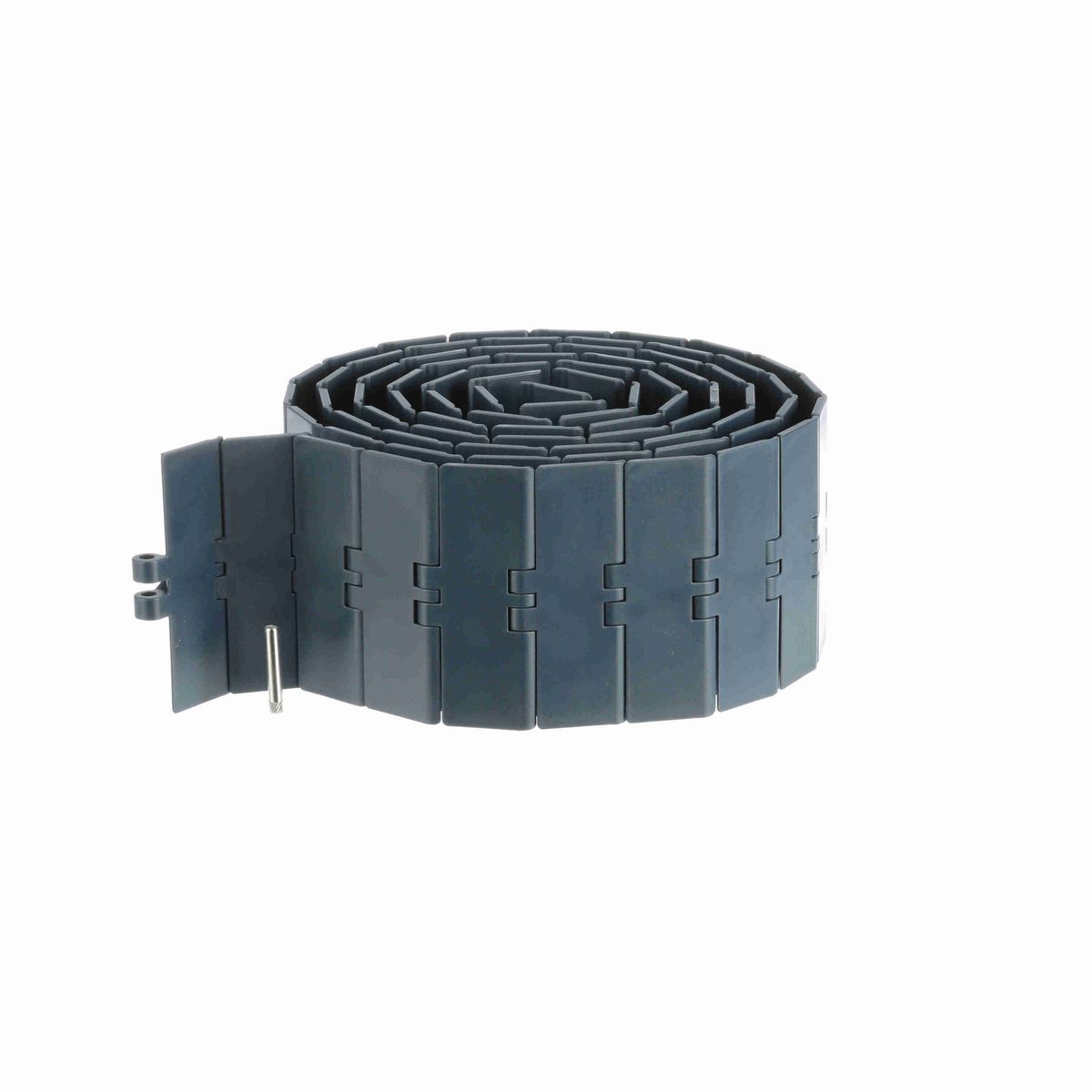

• NG Evo (gray blue in color) conveyor components made from engineered plastic resin.
• Longest Life
• Lowest friction.
• Good chemical resistance.
• High abrasion resistance.
• Less dusting than acetal chains
• Meets the requirement for materials as stated by ECI035/2004 and FDA CFR21 norms for direct food contact.

Technical Specifications

Series	TableTop 820 Series Chain
Product Group	Chain
Product Type	Straight Running
Flight Thickness (in)	0.16 in
Product Line	Conveying Chains and Belts
Flight Thickness (mm)	4.1 mm
Chain Material Description	NG evo (Gray Blue)
Chain Pitch (mm)	38.1 mm
Straight or Side-Flex	Straight Running
Chain Width (in)	4.5 in
Weight (lb/ft)	0.7 lb/ft
Rod/Pin Material	Austenitic steel
Chain Width (mm)	114.3 mm
Breaking Load (lb)	1,000 lb
Breaking Load (N)	4,500 N
Chain Pitch (in)	1.5 in
Weight (kg/m)	1 kg/m
Surface Type	Solid Top
Chain Width Measurement System	Imperial
Chain Number	820
Chain Material	NGE

General Specifications

UPC	726166518622
Weight	0.71 LB
Packaged Length	10.40 IN
Packaged Width	11.00 IN
Packaged Height	8.40 IN
HTC	3923.29.0000
Country of Origin	Mexico
