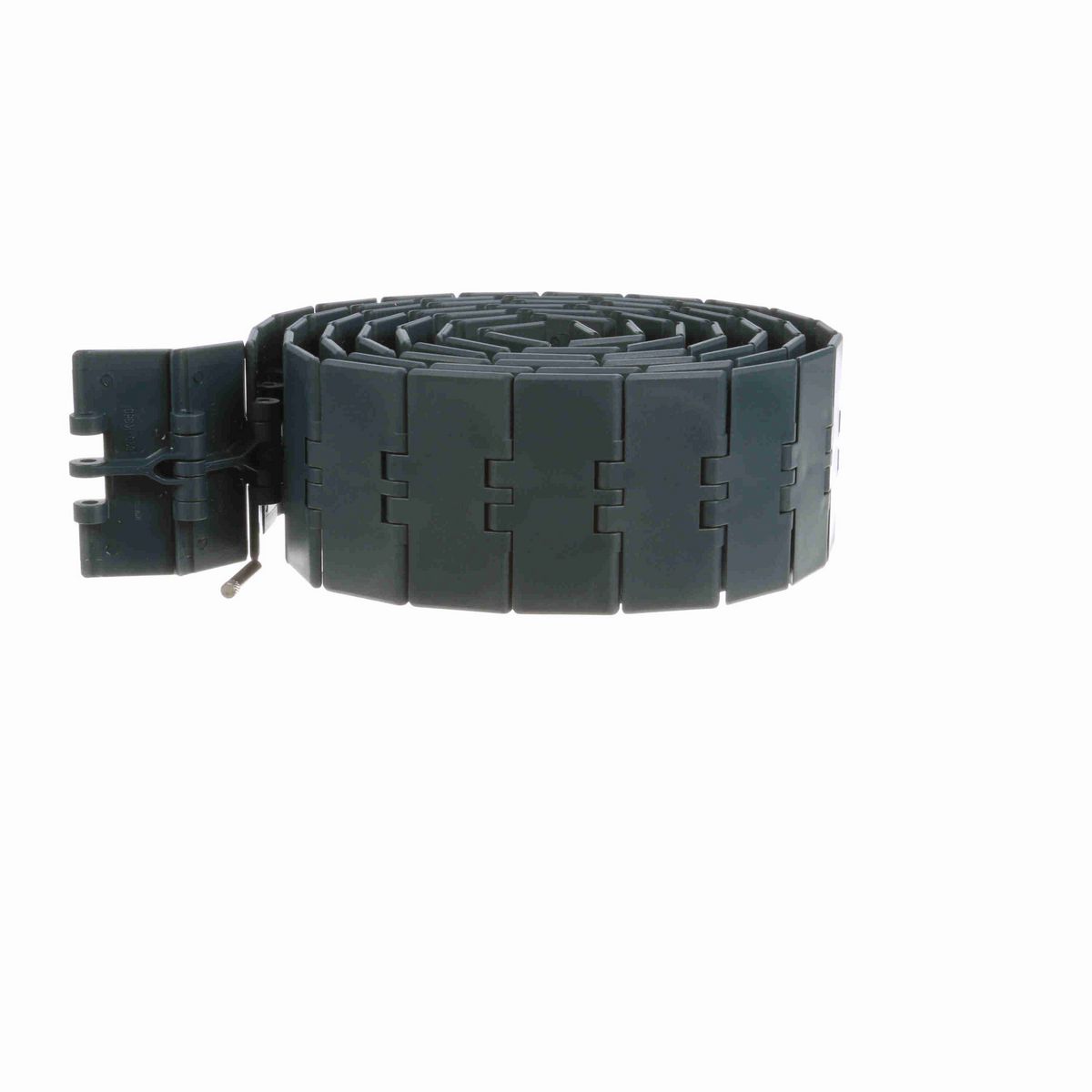

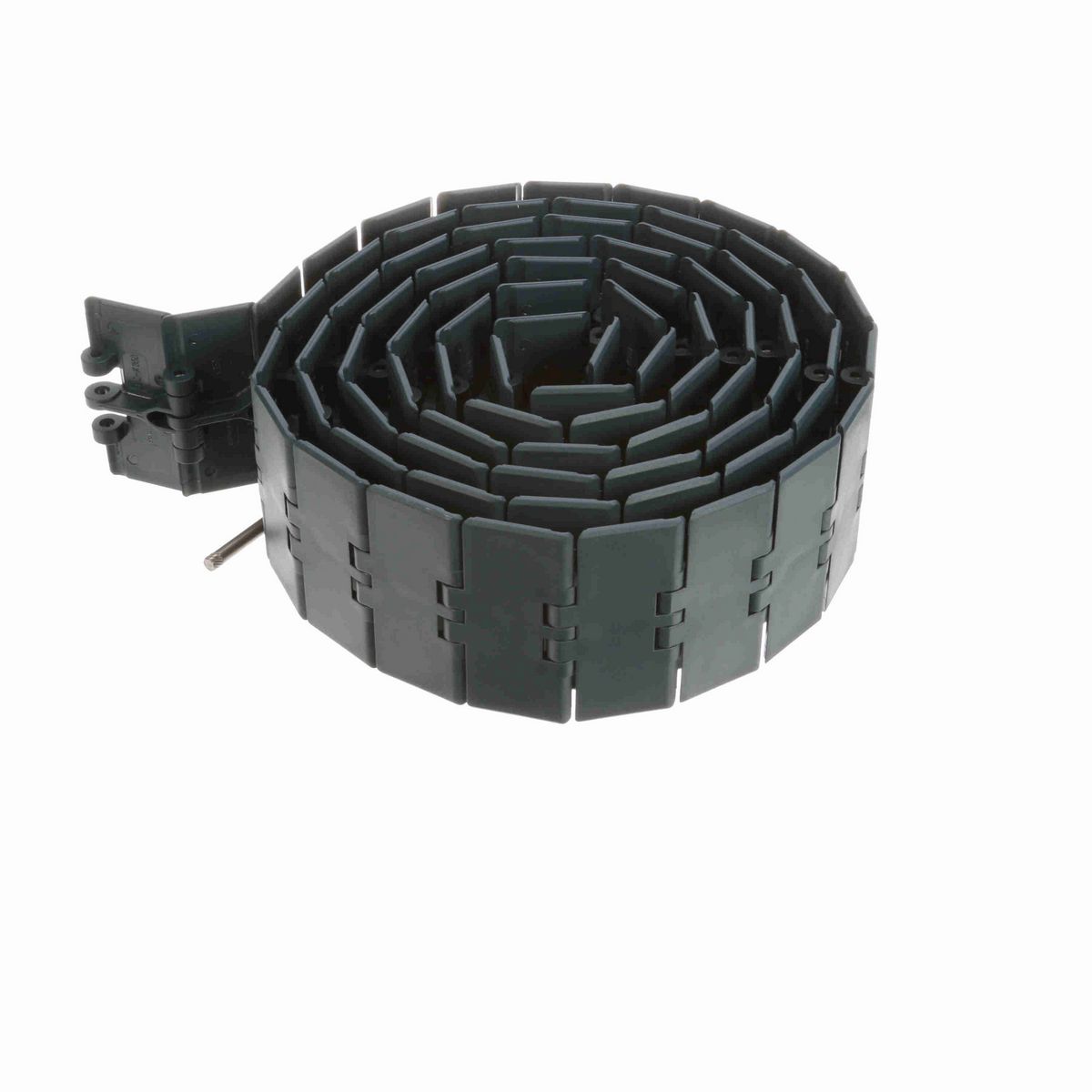

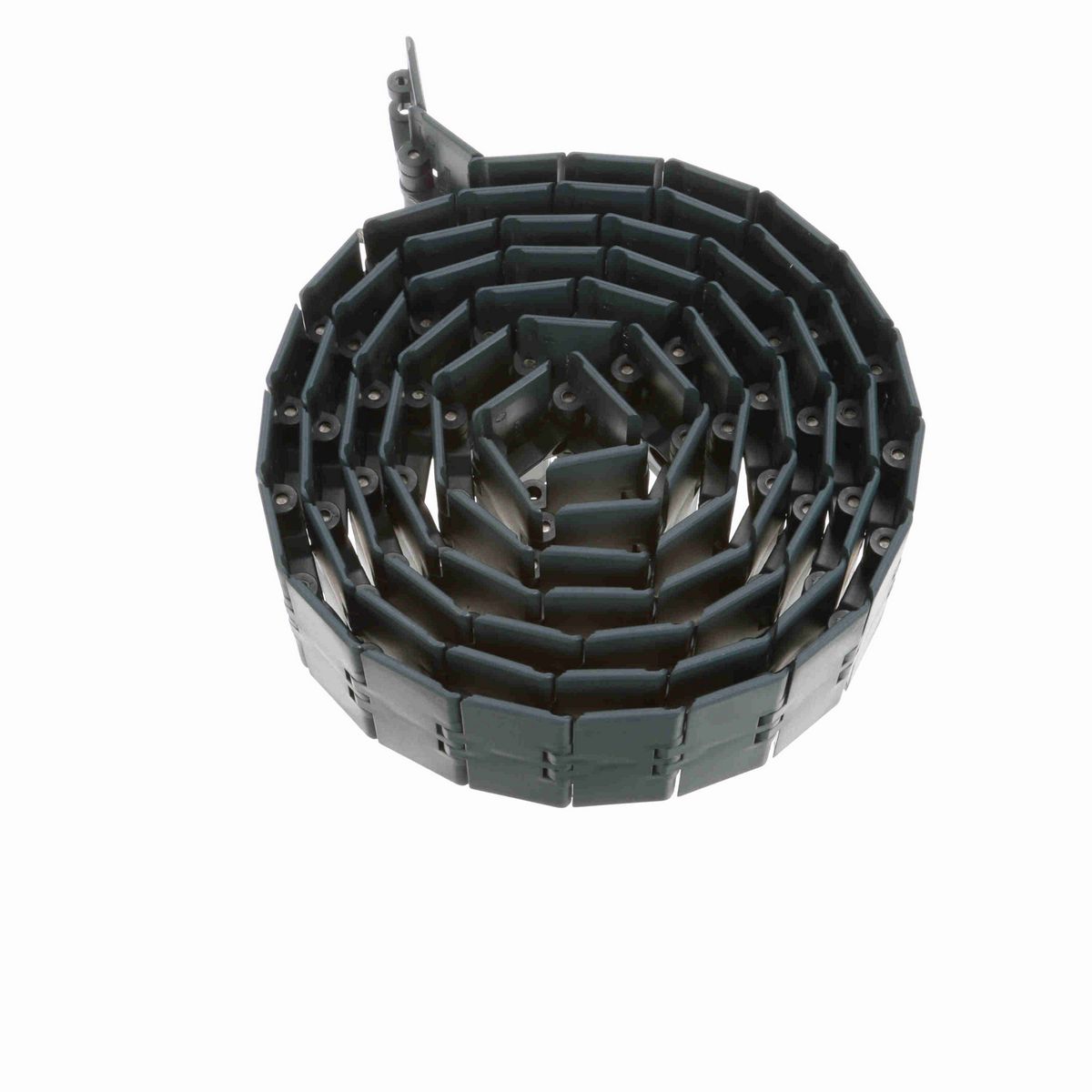

• NG Evo (gray blue in color) conveyor components made from engineered plastic resin.
• Longest Life
• Lowest friction.
• Good chemical resistance.
• High abrasion resistance.
• Less dusting than acetal chains
• Meets the requirement for materials as stated by ECI035/2004 and FDA CFR21 norms for direct food contact.

Technical Specifications

Series	TableTop 820 Series Chain
Product Group	Chain
Product Line	Conveying Chains and Belts
Flight Thickness (in)	0.16 in
Product Type	Straight Running
Flight Thickness (mm)	4.1 mm
Chain Material Description	NG evo (Gray Blue)
Rod/Pin Material	Austenitic steel
Weight (kg/m)	0.9 kg/m
Chain Width (in)	3.5 in
Straight or Side-Flex	Straight Running
Chain Width (mm)	88.9 mm
Chain Pitch (in)	1.5 in
Chain Width Measurement System	Imperial
Weight (lb/ft)	0.6 lb/ft
Surface Type	Solid Top
Chain Number	820
Chain Pitch (mm)	38.1 mm
Breaking Load (N)	4,500 N
Breaking Load (lb)	1,000 lb
Chain Material	NGE

General Specifications

UPC	726166519148
Weight	0.56 LB
Packaged Length	10.50 IN
Packaged Width	9.50 IN
Packaged Height	4.20 IN
HTC	3923.29.0000
Country of Origin	Germany
