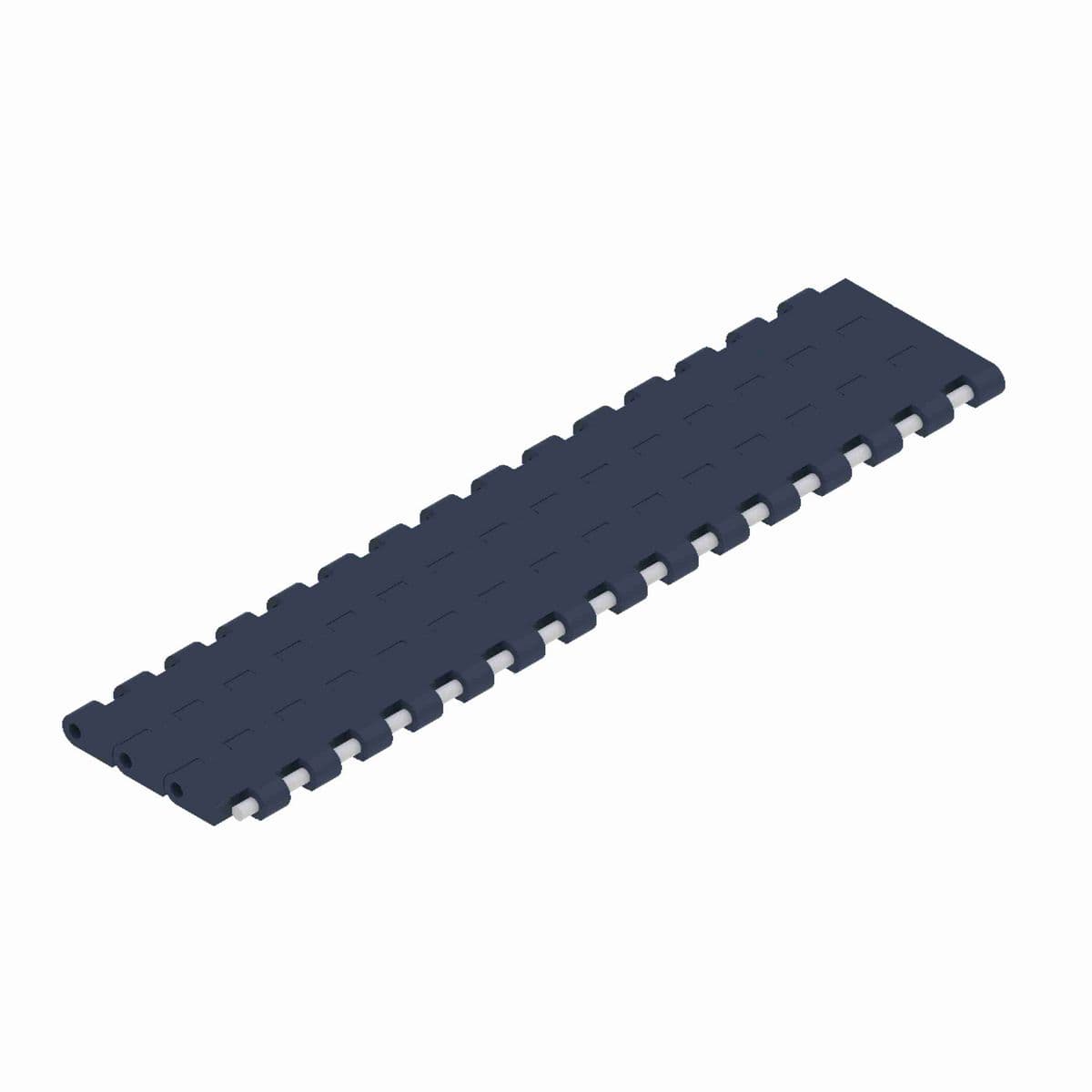

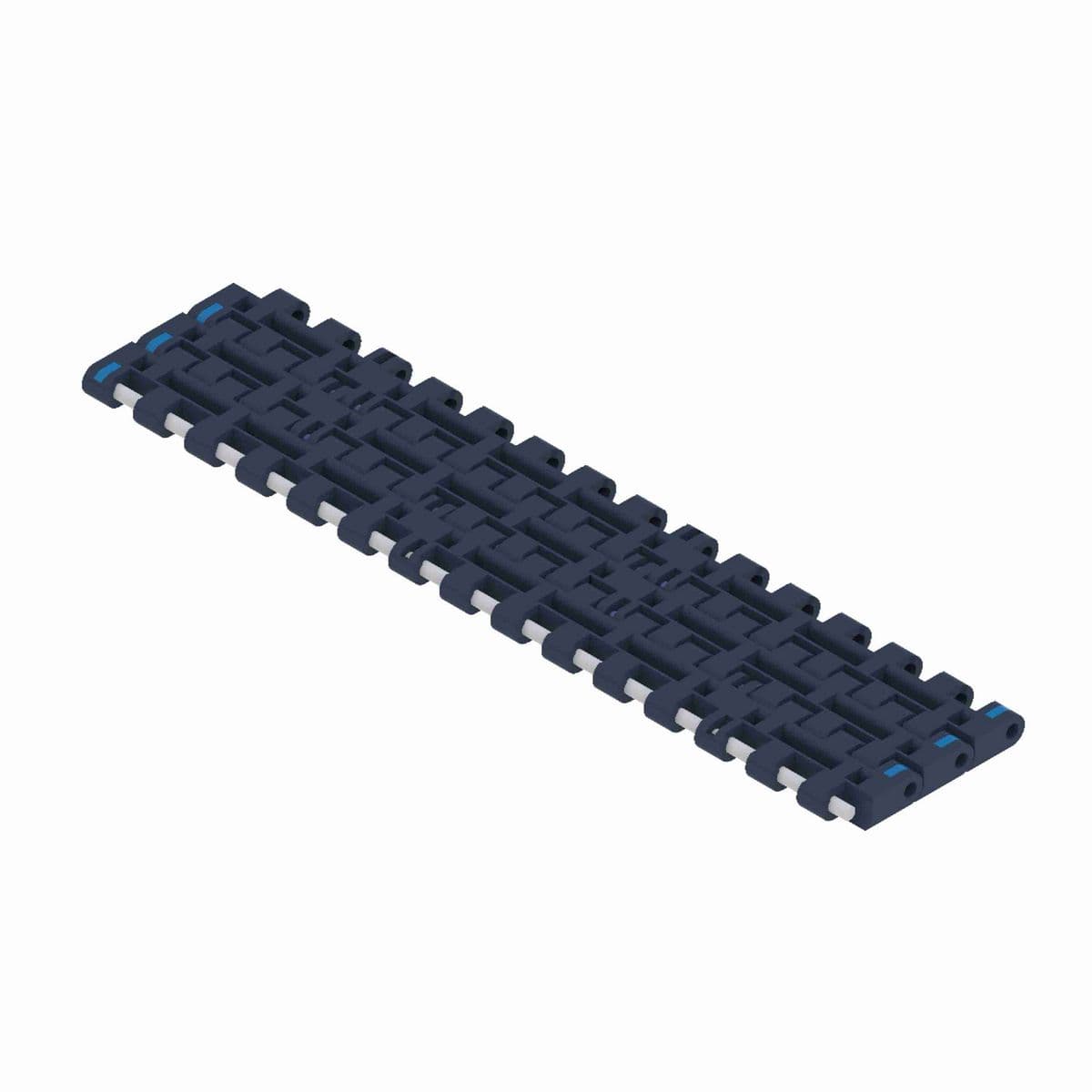

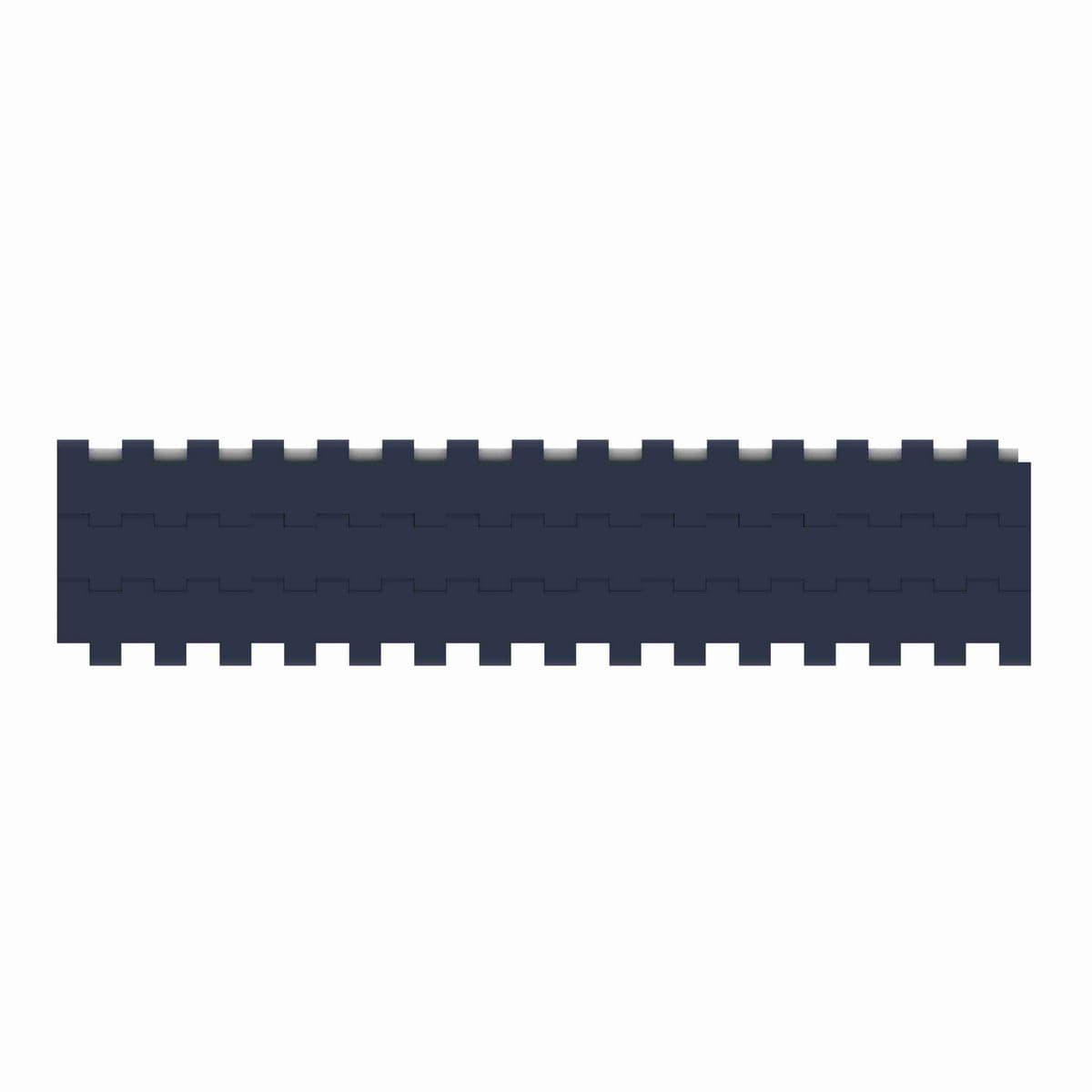

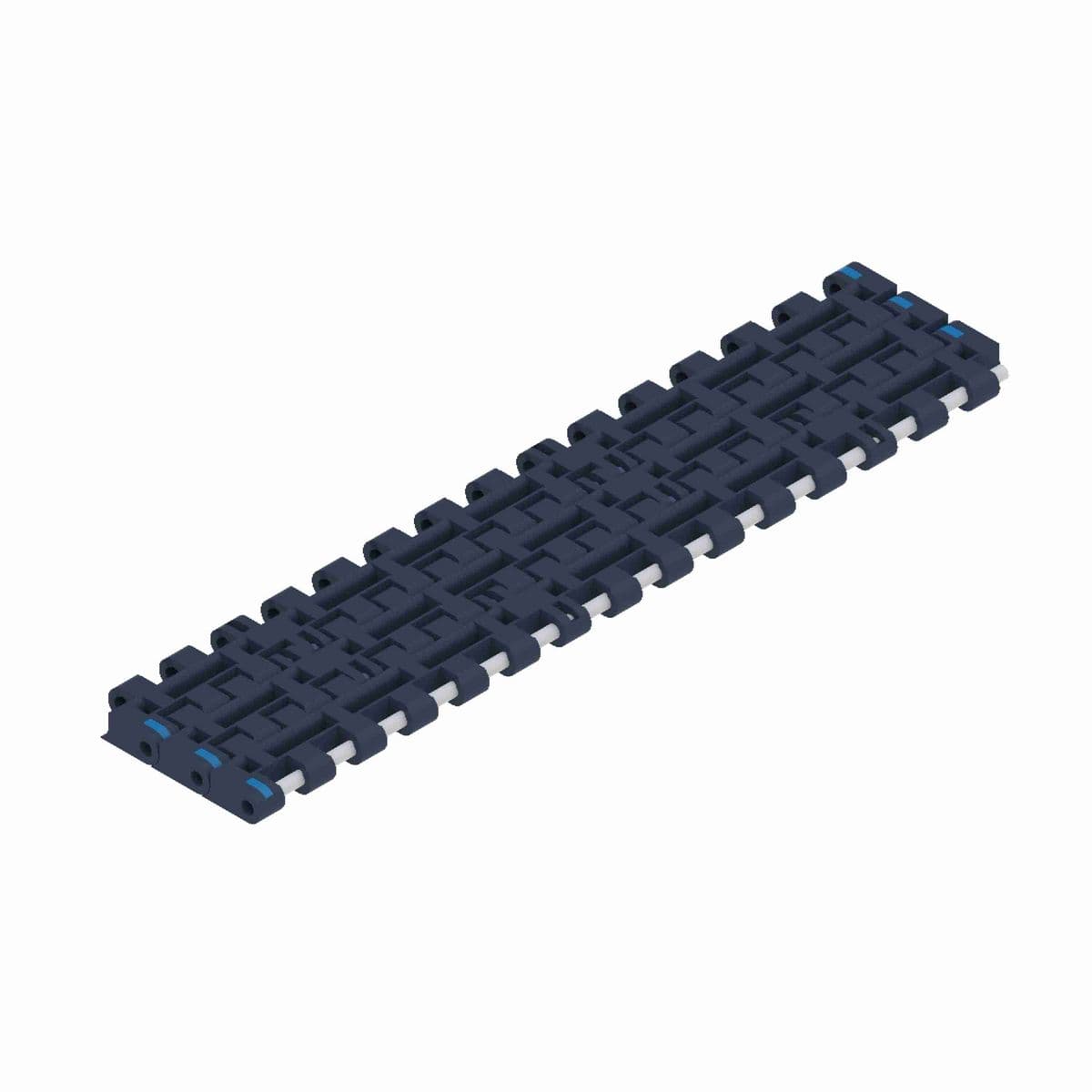

• NG Evo (gray blue in color) conveyor components made from engineered plastic resin.
• Longest Life
• Lowest friction.
• Good chemical resistance.
• High abrasion resistance.
• Less dusting than acetal chains
• Meets the requirement for materials as stated by ECI035/2004 and FDA CFR21 norms for direct food contact.

Technical Specifications

Product Type	Straight Running
Series	2252
Product Line	Plastic Modular Chain and Belt
Product Group	Modular Plastic Belts
Max Load Capacity (N/m)	34,200 N·m
Belt Thickness (in)	0.5 in
Surface Type	Solid Top
Belt Thickness (mm)	12.7 mm
Chain Pitch (in)	1 in
Chain Number	2252FT
Rod/Pin Material	POM Grey
Chain Width (mm)	762 mm
Chain Pitch (mm)	25.4 mm
Straight or Side-Flex	Straight Running
Chain Width (in)	30 in
Chain Width Measurement System	Imperial
Chain Material Description	NG evo (Gray Blue)
Chain Material	NGE
Max Load Capacity (lb/ft)	2,350 lb/ft

General Specifications

UPC	726166517618
Weight	4.50 LB
Packaged Length	12.00 IN
Packaged Width	30.00 IN
Packaged Height	0.50 IN
HTC	3923.29.0000
Country of Origin	Mexico
