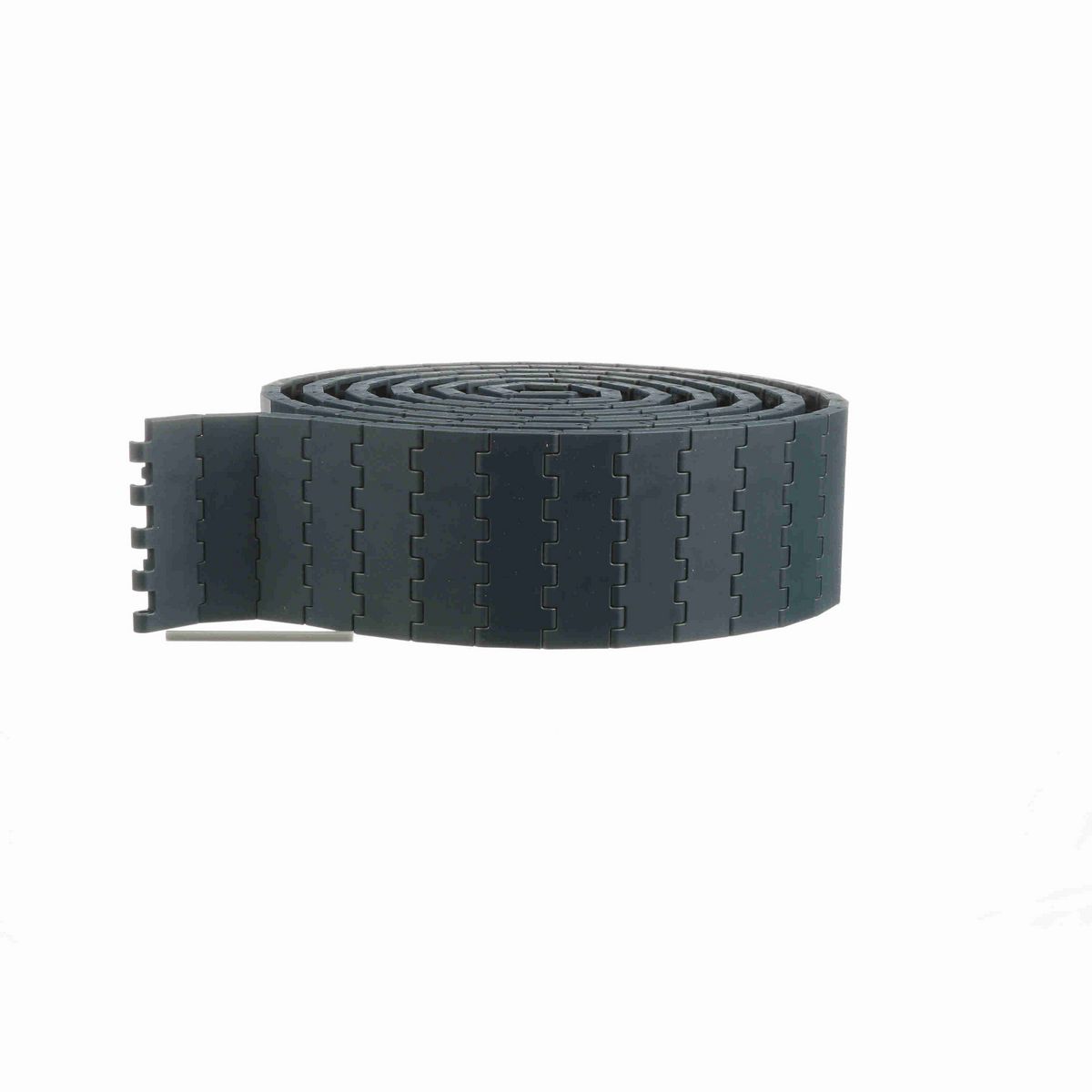

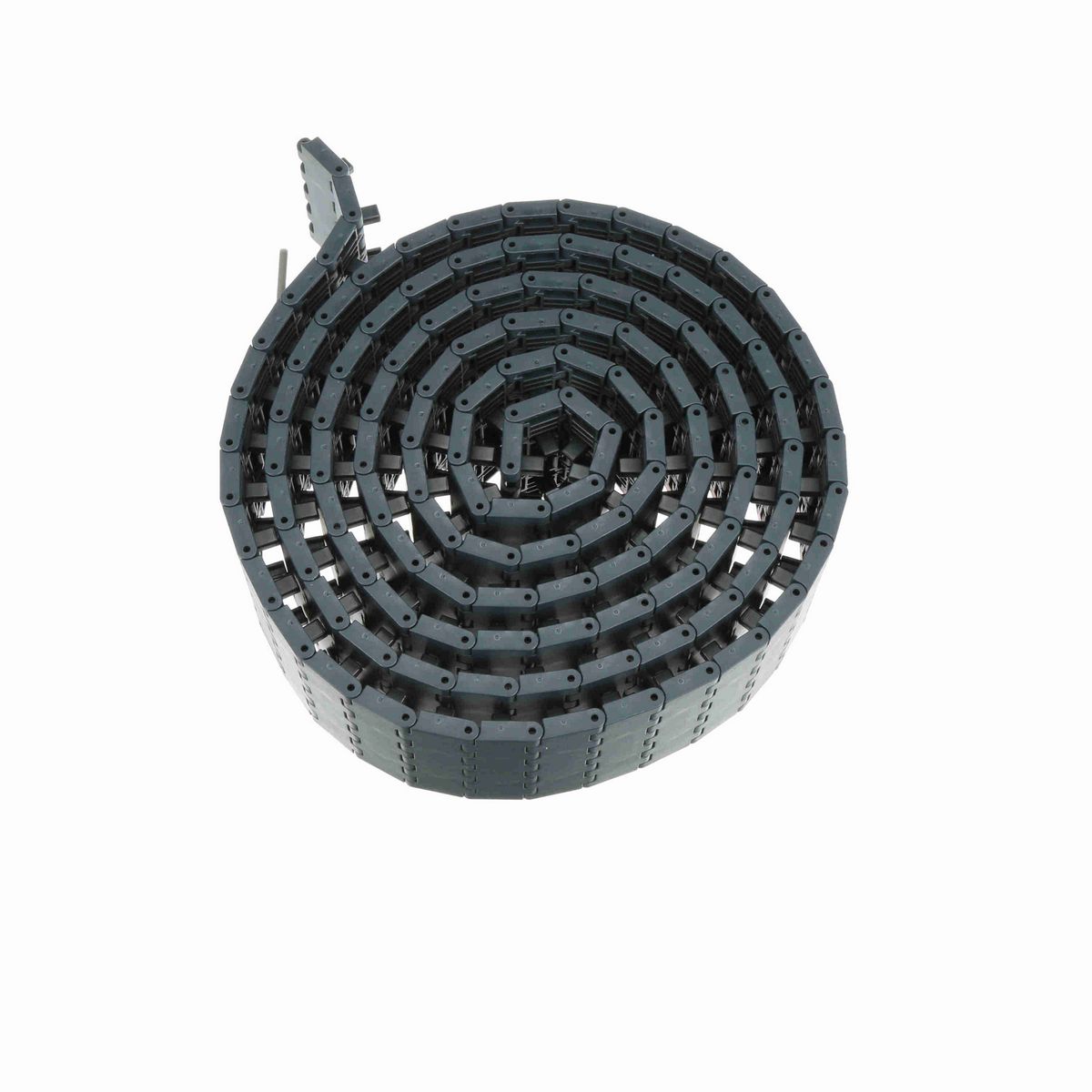

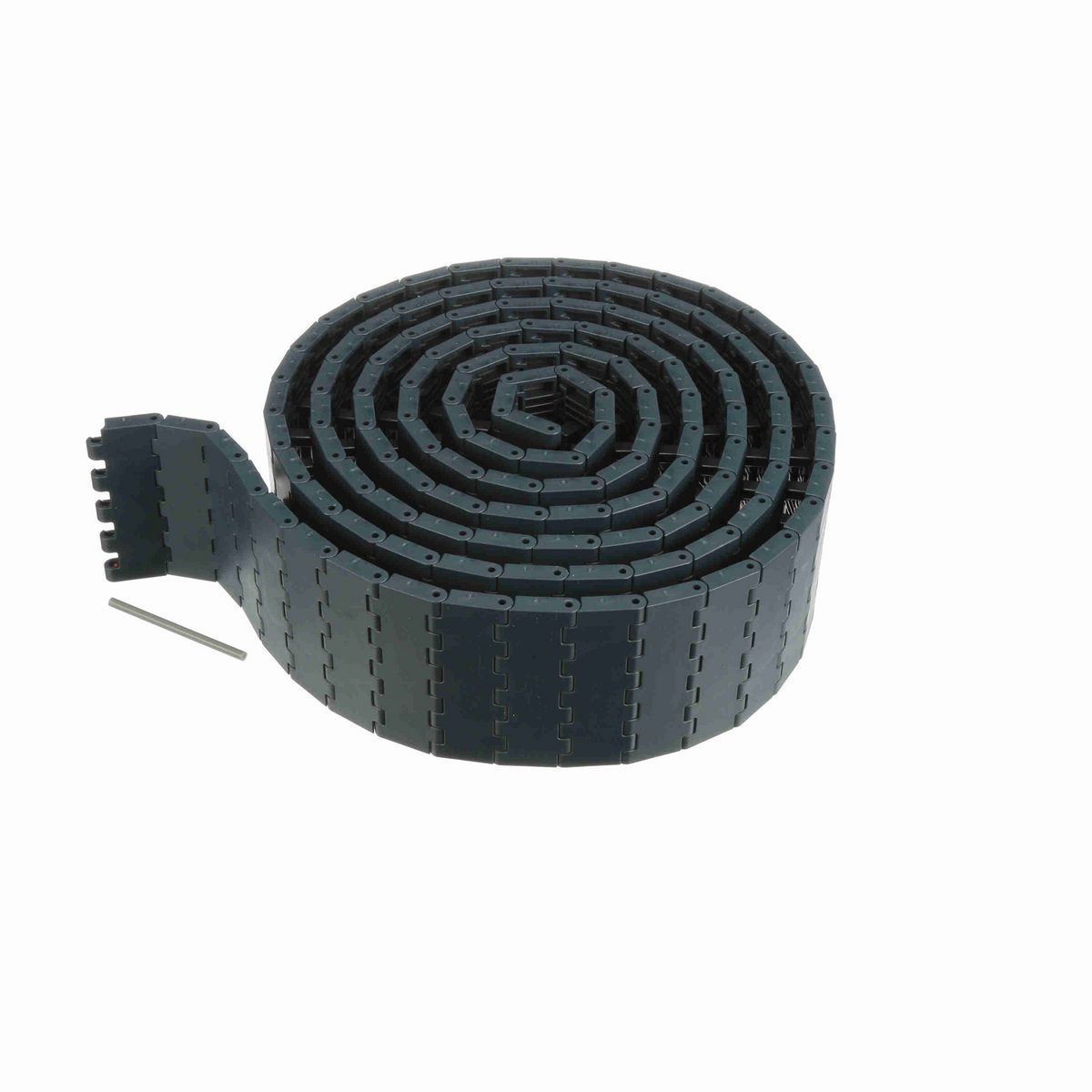

• NG Evo (gray blue in color) conveyor components made from engineered plastic resin.
• Longest Life
• Lowest friction.
• Good chemical resistance.
• High abrasion resistance.
• Less dusting than acetal chains
• Meets the requirement for materials as stated by ECI035/2004 and FDA CFR21 norms for direct food contact.

Technical Specifications

Series	2250
Belt Thickness (in)	0.34 in
Product Type	Straight Running
Product Line	Plastic Modular Chain and Belt
Max Load Capacity (N/m)	1,890 N·m
Product Group	Modular Plastic Belts
Chain Width (in)	3.3 in
Chain Material	NGE
Straight or Side-Flex	Straight Running
Rod/Pin Material	PBT(White)
Chain Pitch (mm)	25.4 mm
Chain Material Description	NG evo (Gray Blue)
Positrack	PT
Chain Width (mm)	83.82 mm
Max Load Capacity (lb/ft)	425 lb/ft
Surface Type	Solid Top
Chain Number	2250FT
Belt Thickness (mm)	8.7 mm
Chain Width Measurement System	Imperial
Chain Pitch (in)	1 in

General Specifications

UPC	726166520762
Weight	0.47 LB
Packaged Length	9.40 IN
Packaged Width	10.50 IN
Packaged Height	4.10 IN
HTC	3923.29.0000
Country of Origin	Germany
