• Multiflex chain.
• NG Evo (gray blue in color) conveyor components made from engineered plastic resin.
• Longest Life
• Lowest friction.
• Good chemical resistance.
• High abrasion resistance.
• Less dusting than acetal chains
• Meets the requirement for materials as stated by ECI035/2004 and FDA CFR21 norms for direct food contact.
• Austenitic stainless steel pin.

Technical Specifications

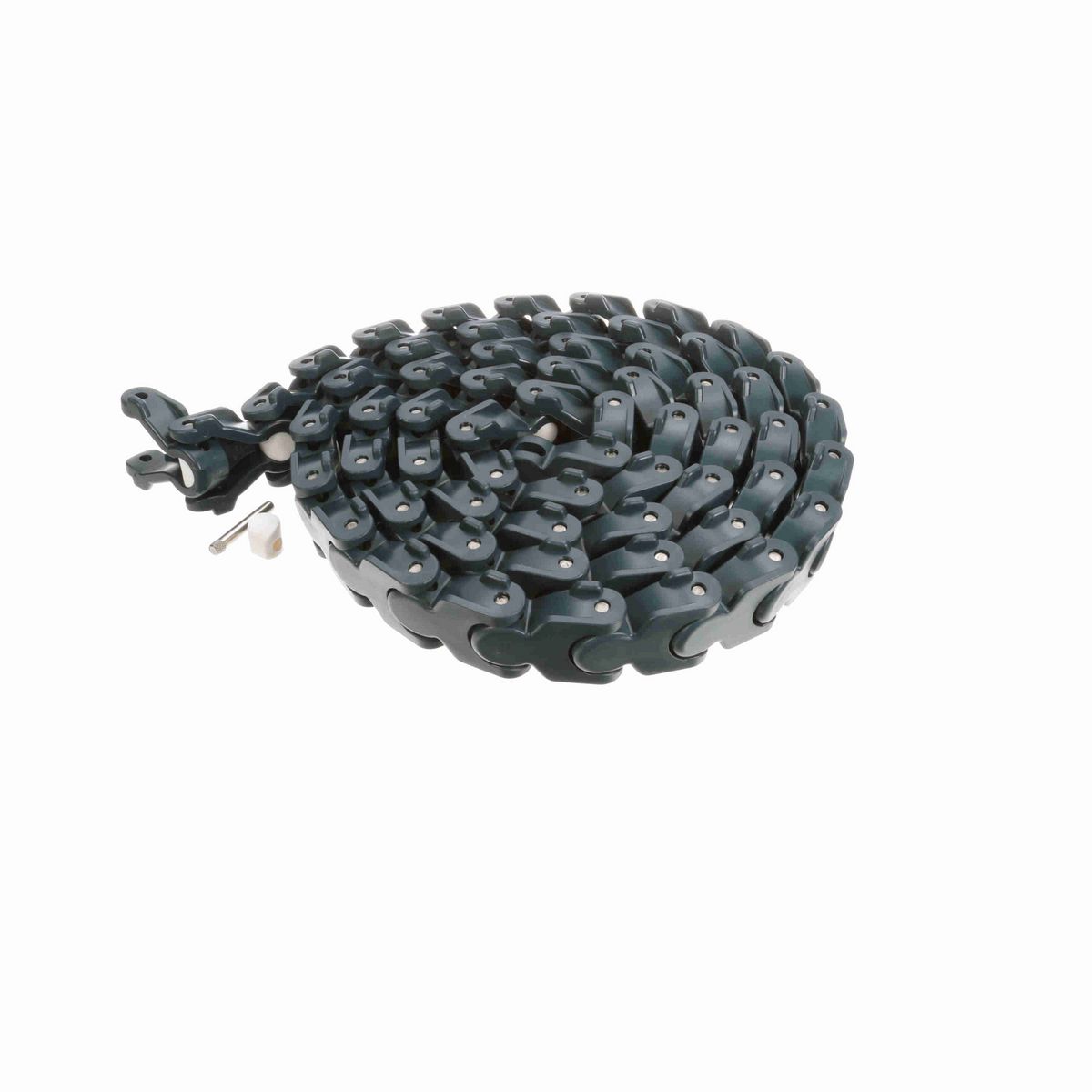

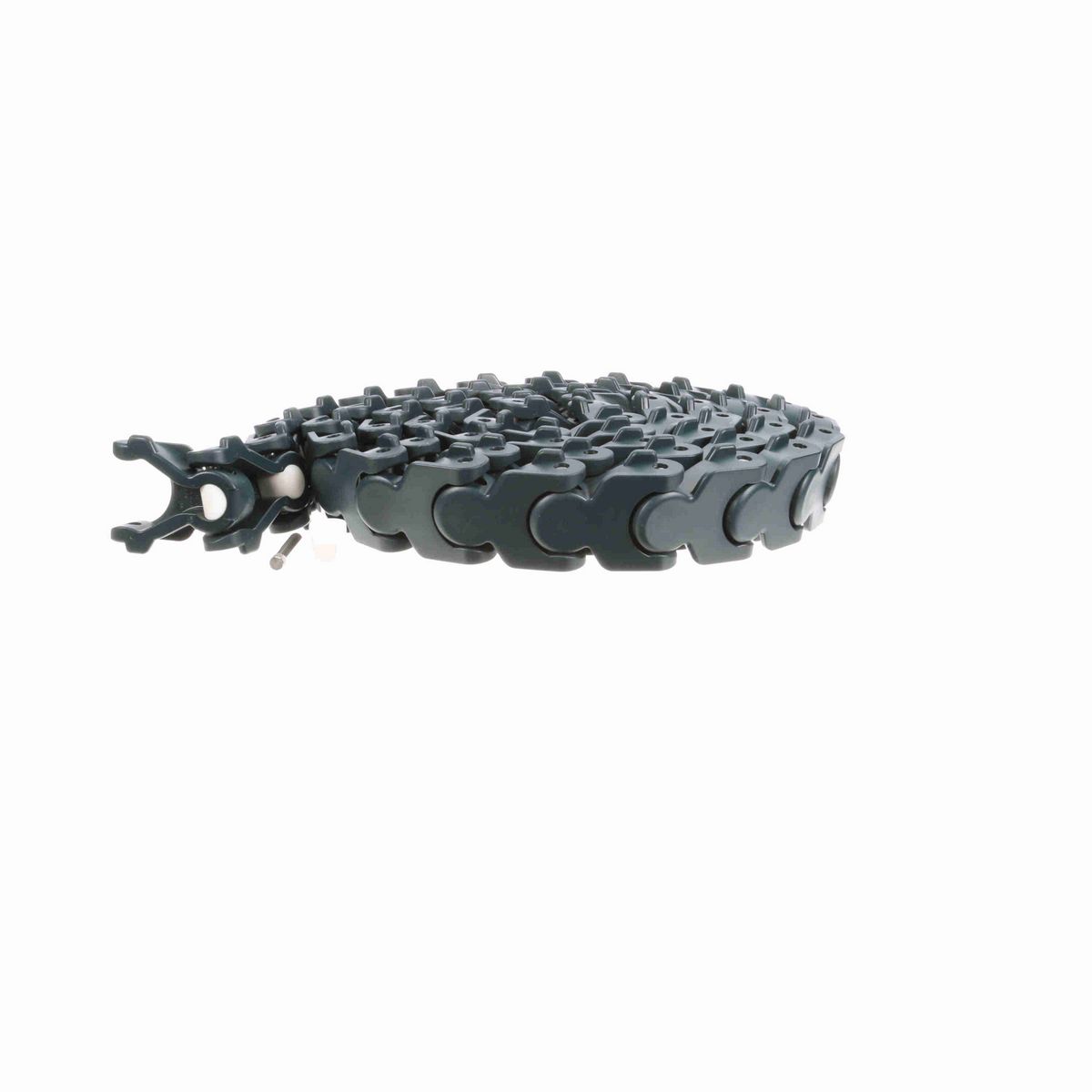

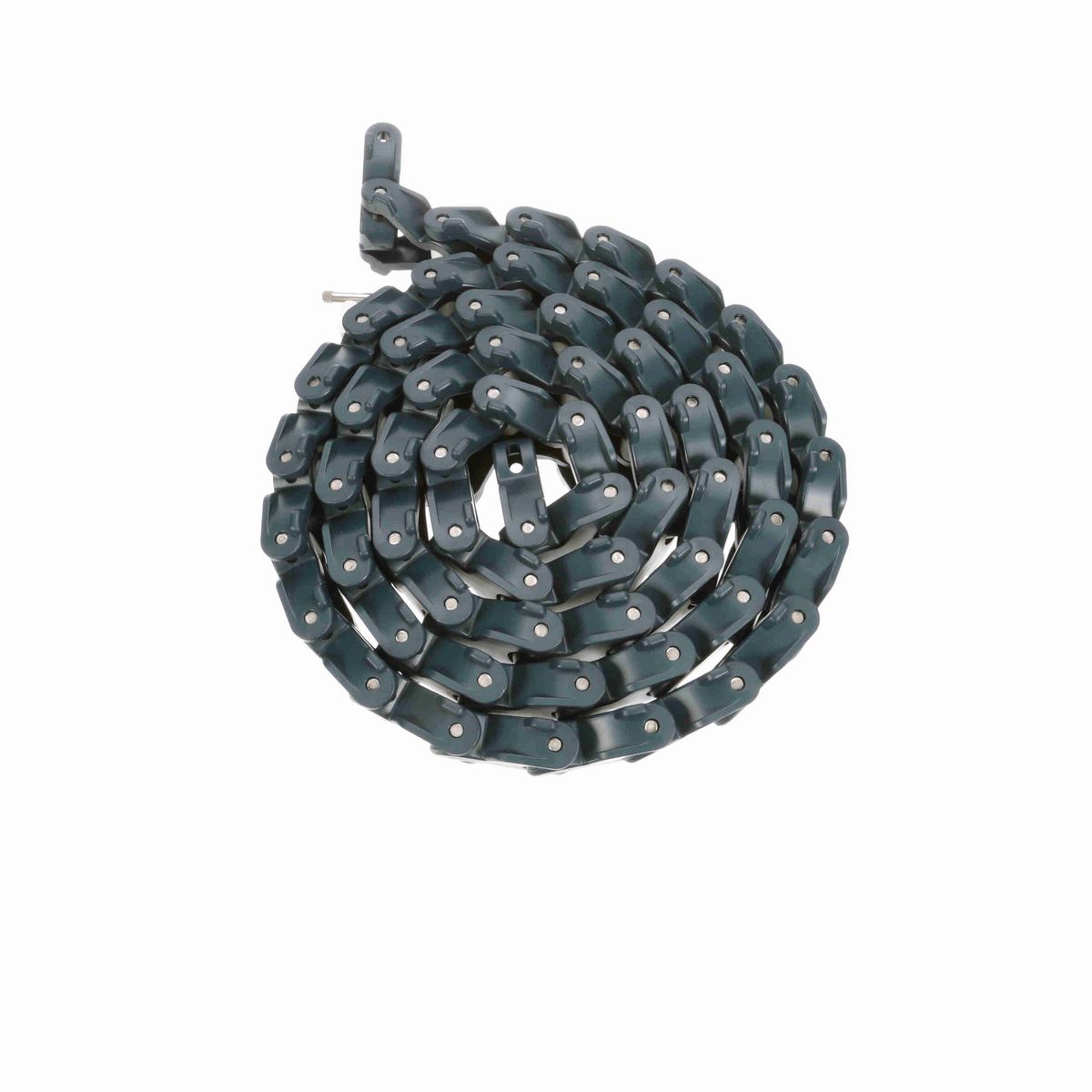

Series	TableTop 1701 Series Side-flexing Chain
Product Type	Side-Flexing
Flight Thickness (in)	0.98 in
Product Line	Conveying Chains and Belts
Product Group	Chain
Flight Thickness (mm)	24.9 mm
Curve Retention Type	TAB
Breaking Load (lb)	1,900 lb
Chain Pitch (in)	1.97 in
Surface Type	Solid Top
Chain Material Description	NG evo (Gray Blue)
Chain Width Measurement System	Metric
Breaking Load (N)	8,600 N
Chain Width (mm)	53.1 mm
Weight (kg/m)	1.4 kg/m
Weight (lb/ft)	0.9 lb/ft
Chain Material	NGE
Straight or Side-Flex	Side-flexing
Chain Width (in)	2.09 in
Chain Pitch (mm)	50 mm
Chain Number	1701TAB
Rod/Pin Material	Austenitic stainless steel

General Specifications

UPC	726166527730
Weight	1.06 LB
Packaged Length	10.40 IN
Packaged Width	11.40 IN
Packaged Height	5.20 IN
HTC	3923.29.0000
Country of Origin	Germany
