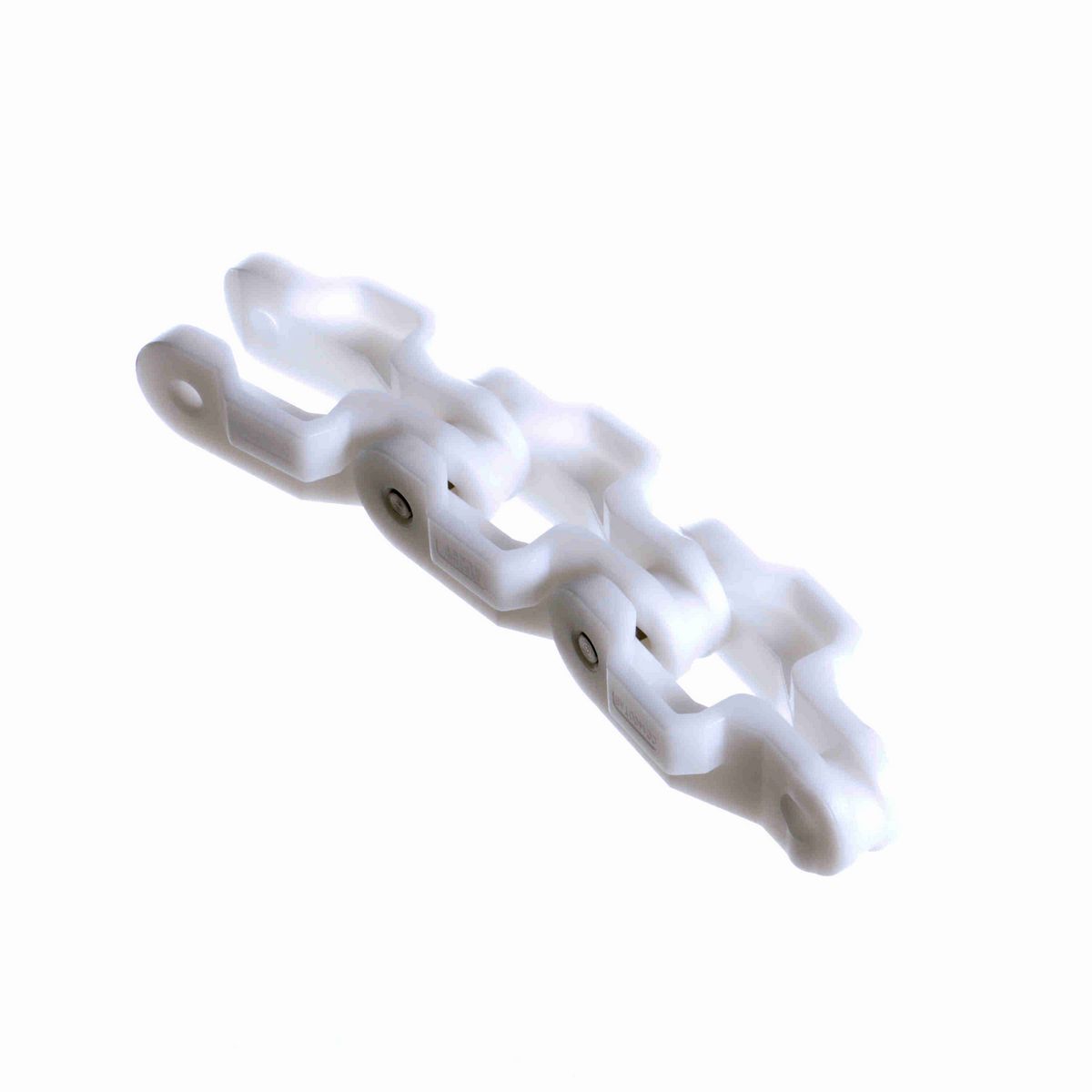

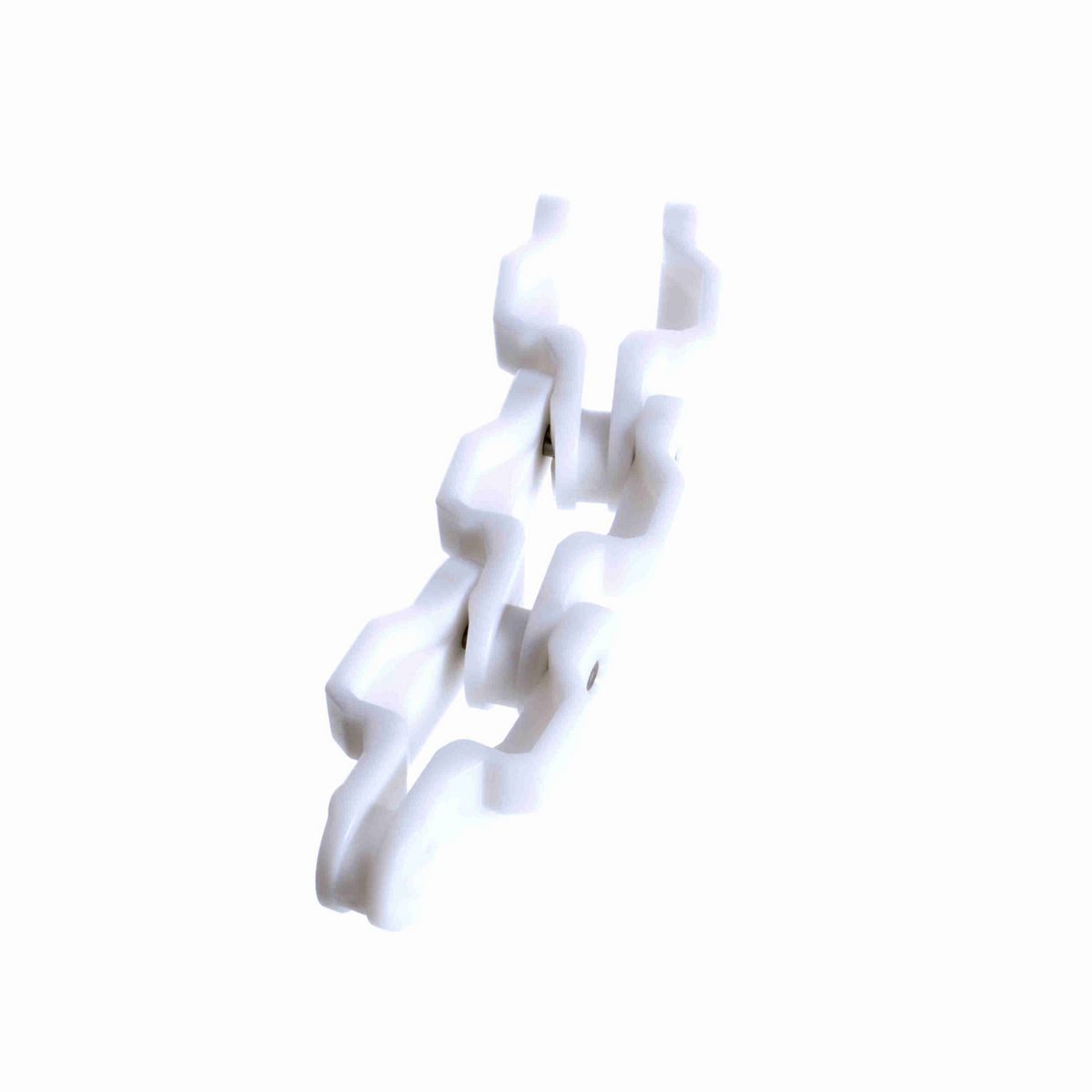

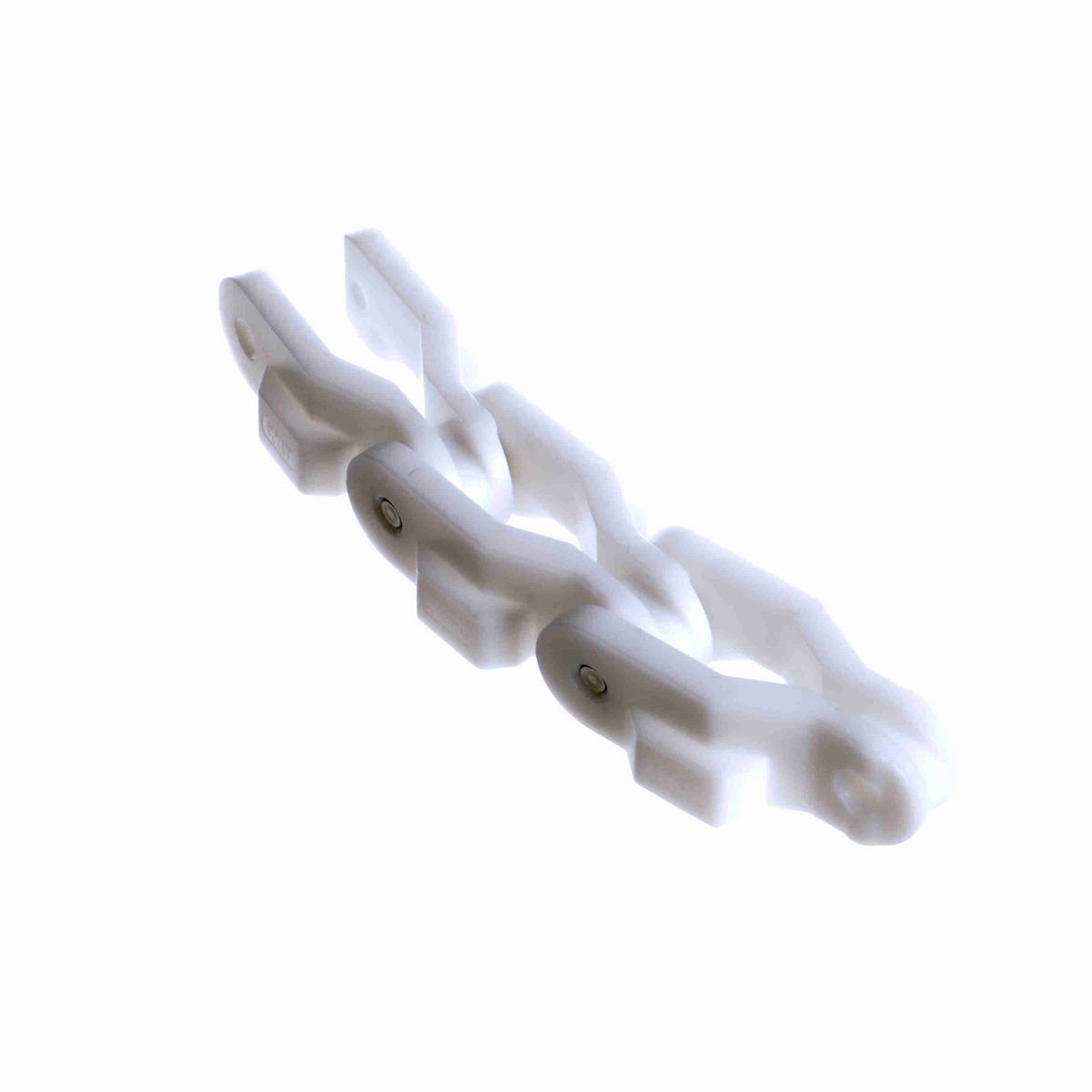

• Crate conveyor chain.
• LFW (white in color) acetal material is commonly used in the market and offers an improved coefficient of friction and is suitable for use in high speed applications.
• Ferritic stainless steel pin.

Technical Specifications

Series	TableTop 1400 Series Side-flexing Chain
Flight Thickness (in)	1.52 in
Product Group	Chain
Product Type	Side-Flexing
Product Line	Conveying Chains and Belts
Flight Thickness (mm)	38.6 mm
Chain Width (in)	2.58 in
Chain Pitch (mm)	82.6 mm
Surface Type	Solid Top
Chain Pitch (in)	3.25 in
Chain Number	1400TAB
Chain Material	LFW
Chain Width Measurement System	Metric
Rod/Pin Material	Ferritic Stainless Steel
Curve Retention Type	TAB
Chain Width (mm)	65.5 mm
Chain Material Description	White Low Friction
Breaking Load (N)	18,000 N
Weight (kg/m)	3.4 kg/m
Weight (lb/ft)	2.3 lb/ft
Straight or Side-Flex	Side-flexing
Breaking Load (lb)	4,050 lb

General Specifications

UPC	726166183141
Weight	1.31 LB
Packaged Length	15.70 IN
Packaged Width	15.70 IN
Packaged Height	5.30 IN
HTC	3923.29.0000
Country of Origin	Germany
