• LF (brown in color) acetal material is commonly used in the market and offers an improved coefficient of friction and is suitable for use in high speed applications.
• Special austenitic stainless steel pins with higher tensile strength and improved surface hardness.

Technical Specifications

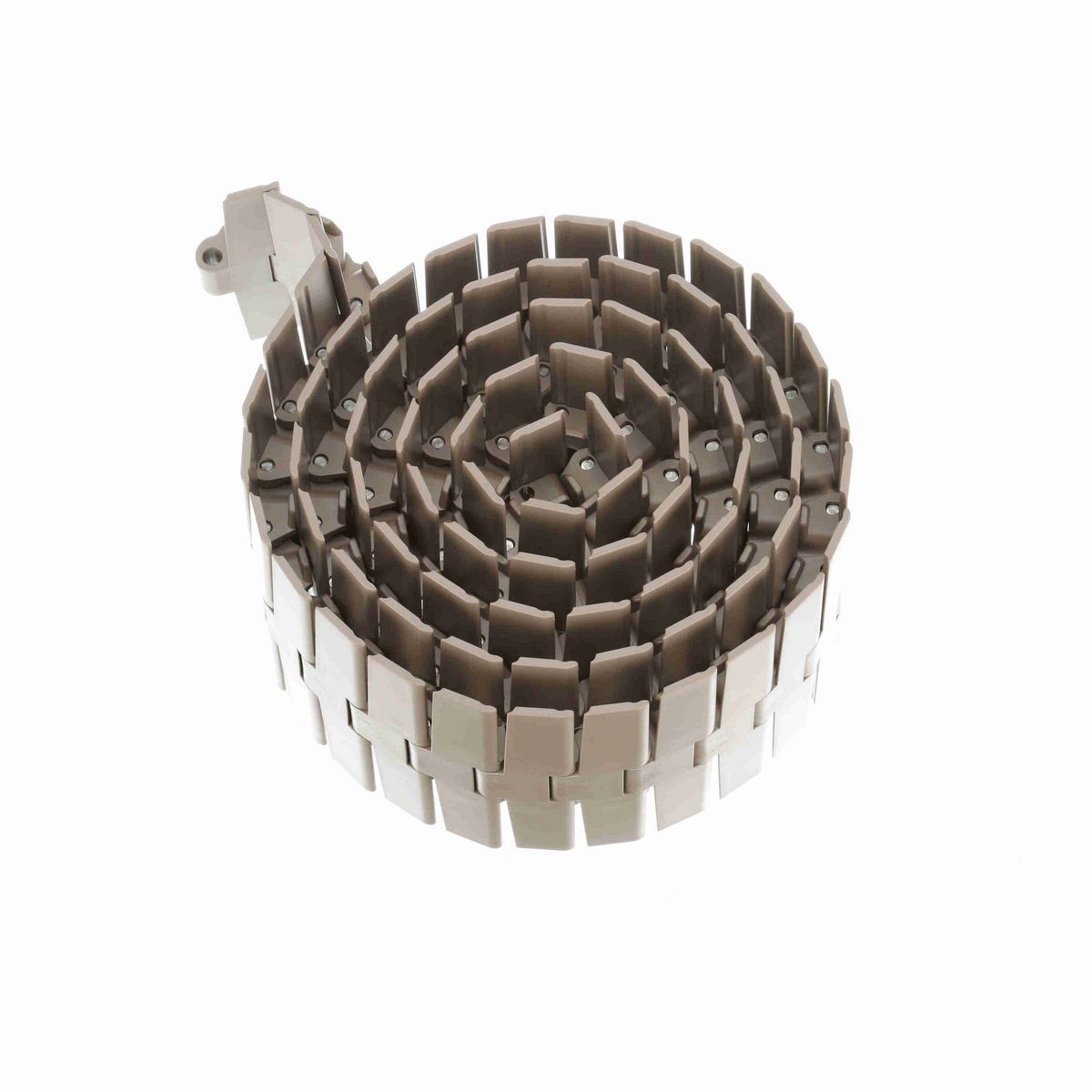

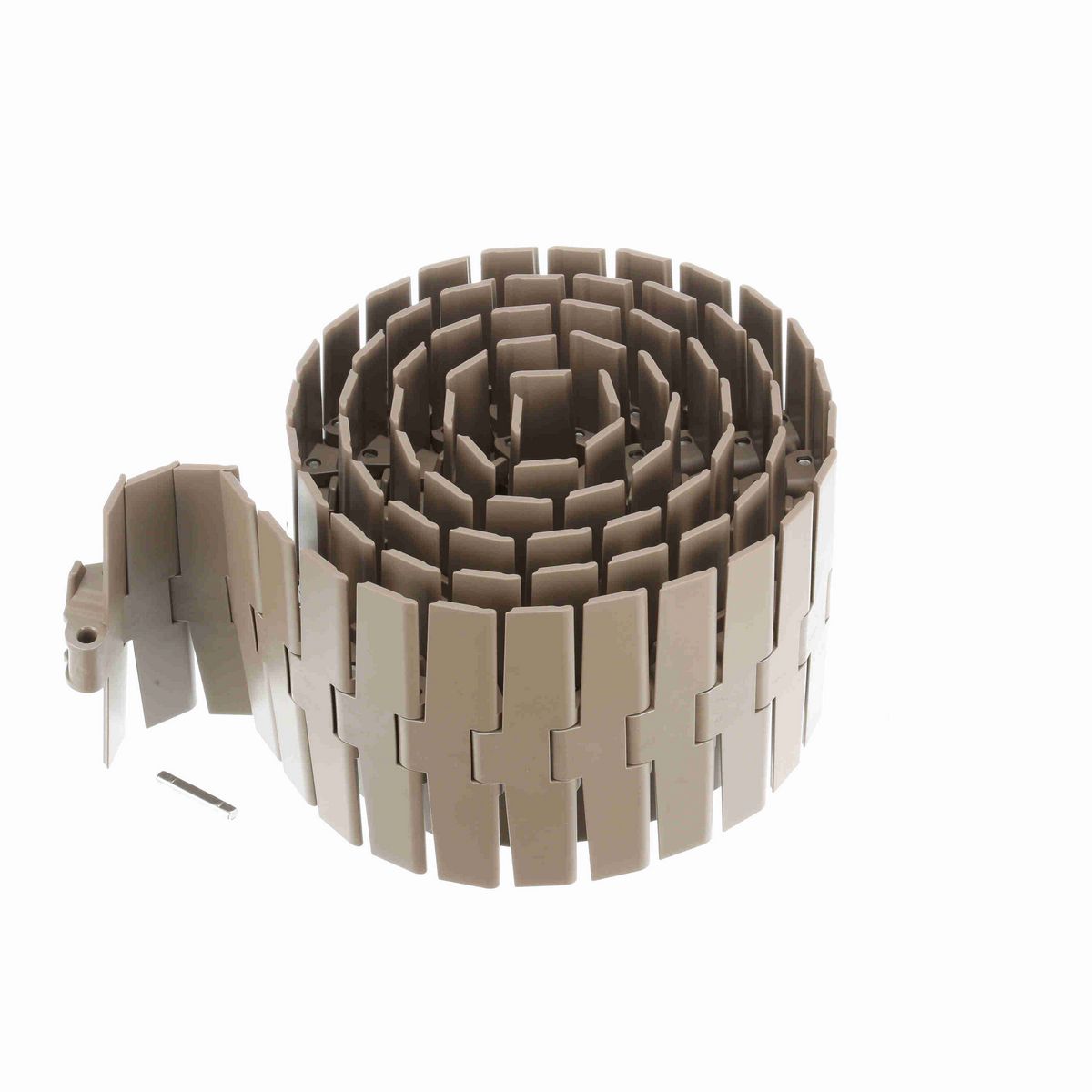

Series	TableTop 882 Series Side-flexing Chain
Product Line	Conveying Chains and Belts
Product Type	Side-Flexing
Flight Thickness (in)	0.19 in
Product Group	Chain
Flight Thickness (mm)	4.8 mm
Rod/Pin Material	Austenitic steel
Weight (kg/m)	2.5 kg/m
Chain Width (mm)	190.5 mm
Chain Material	LF
Weight (lb/ft)	1.7 lb/ft
Surface Type	Solid Top
Breaking Load (lb)	2,250 lb
Chain Width Measurement System	Imperial
Chain Material Description	Tan Low Friction
Curve Retention Type	TAB
Chain Pitch (mm)	38.1 mm
Breaking Load (N)	10,000 N
Chain Pitch (in)	1.5 in
Straight or Side-Flex	Side-flexing
Chain Width (in)	7.5 in
Chain Number	882TAB

General Specifications

UPC	726166148577
Weight	1.70 LB
Packaged Length	13.10 IN
Packaged Width	11.00 IN
Packaged Height	10.70 IN
