• LF (brown in color) acetal material is commonly used in the market and offers an improved coefficient of friction and is suitable for use in high speed applications.
• Special austenitic stainless steel pins with higher tensile strength and improved surface hardness.

Technical Specifications

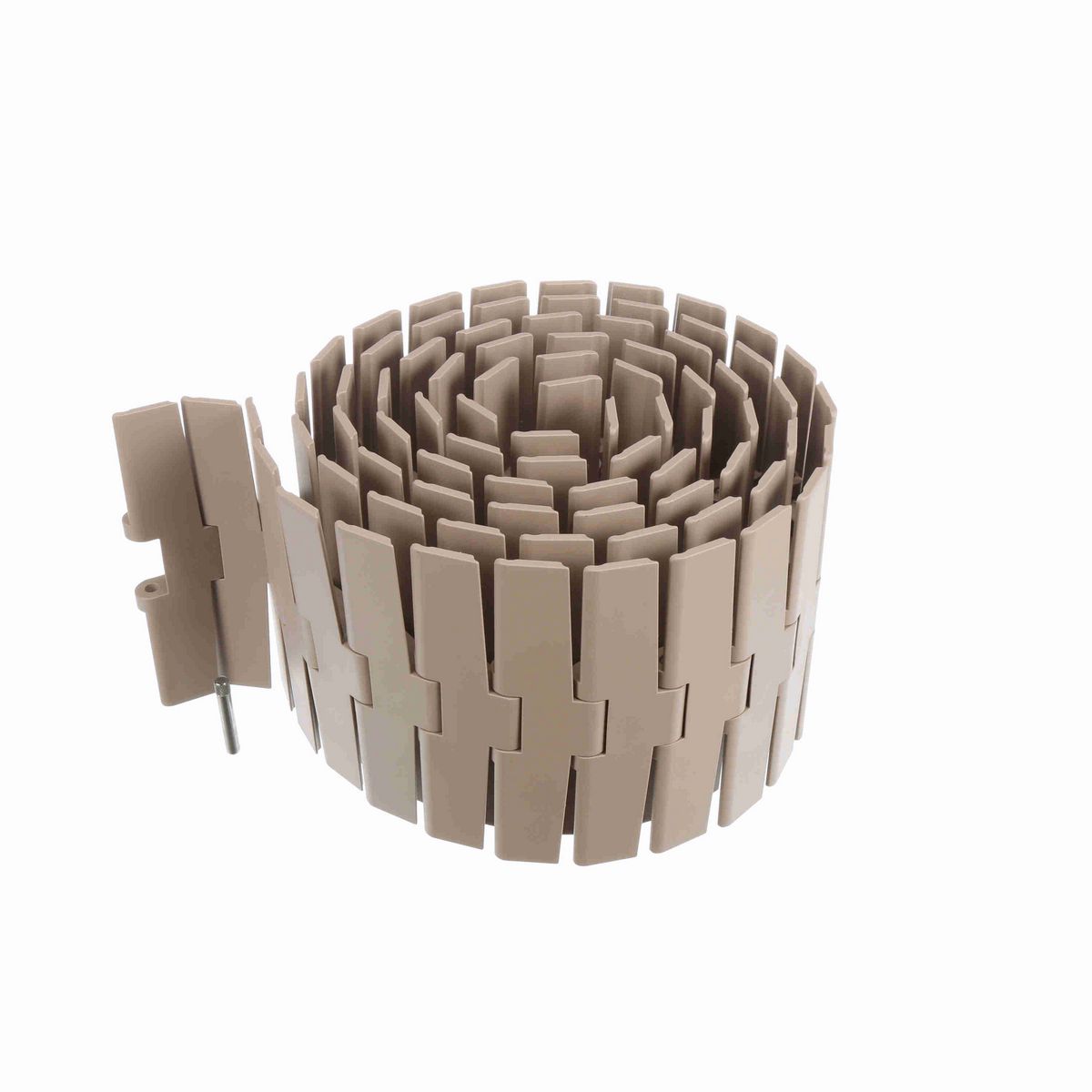

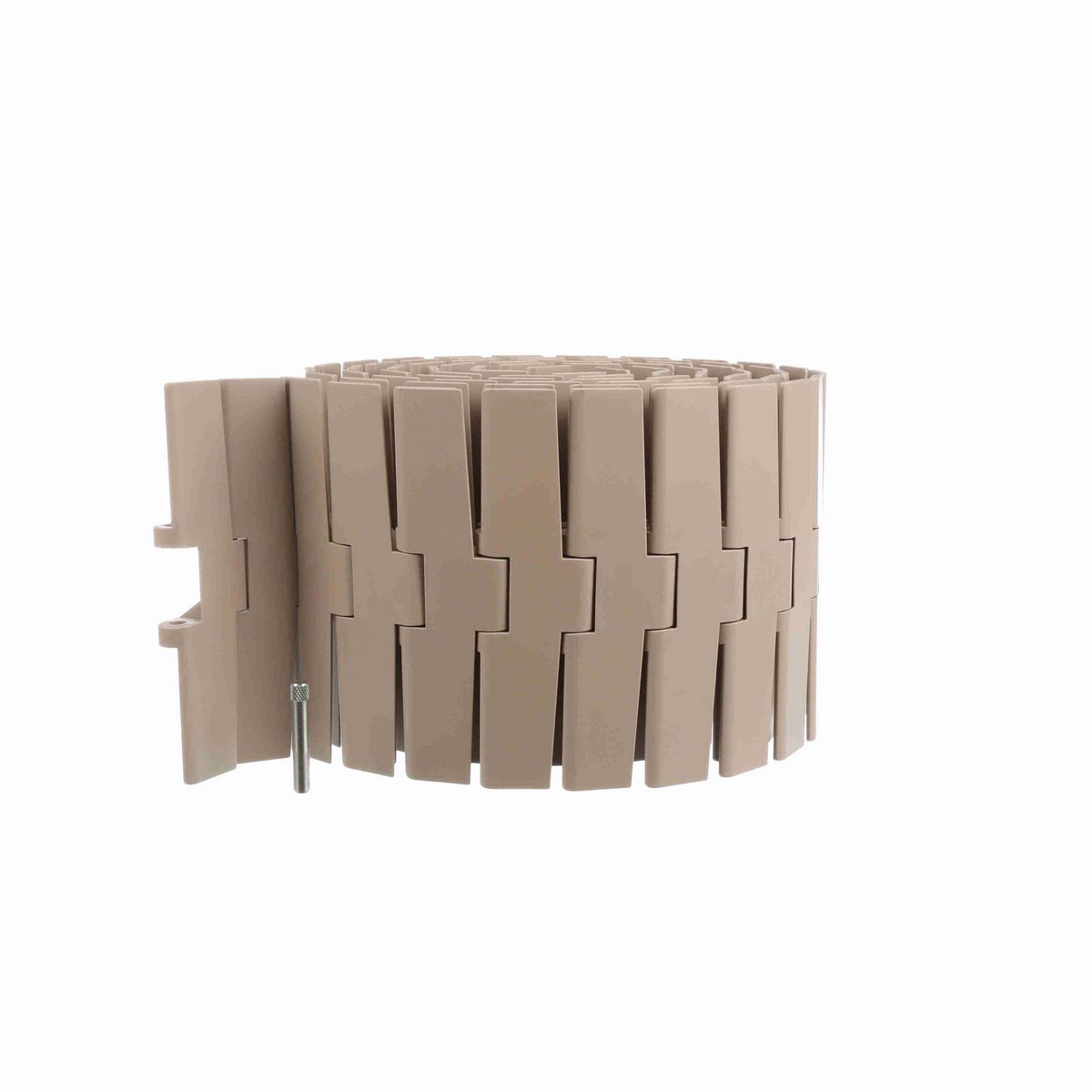

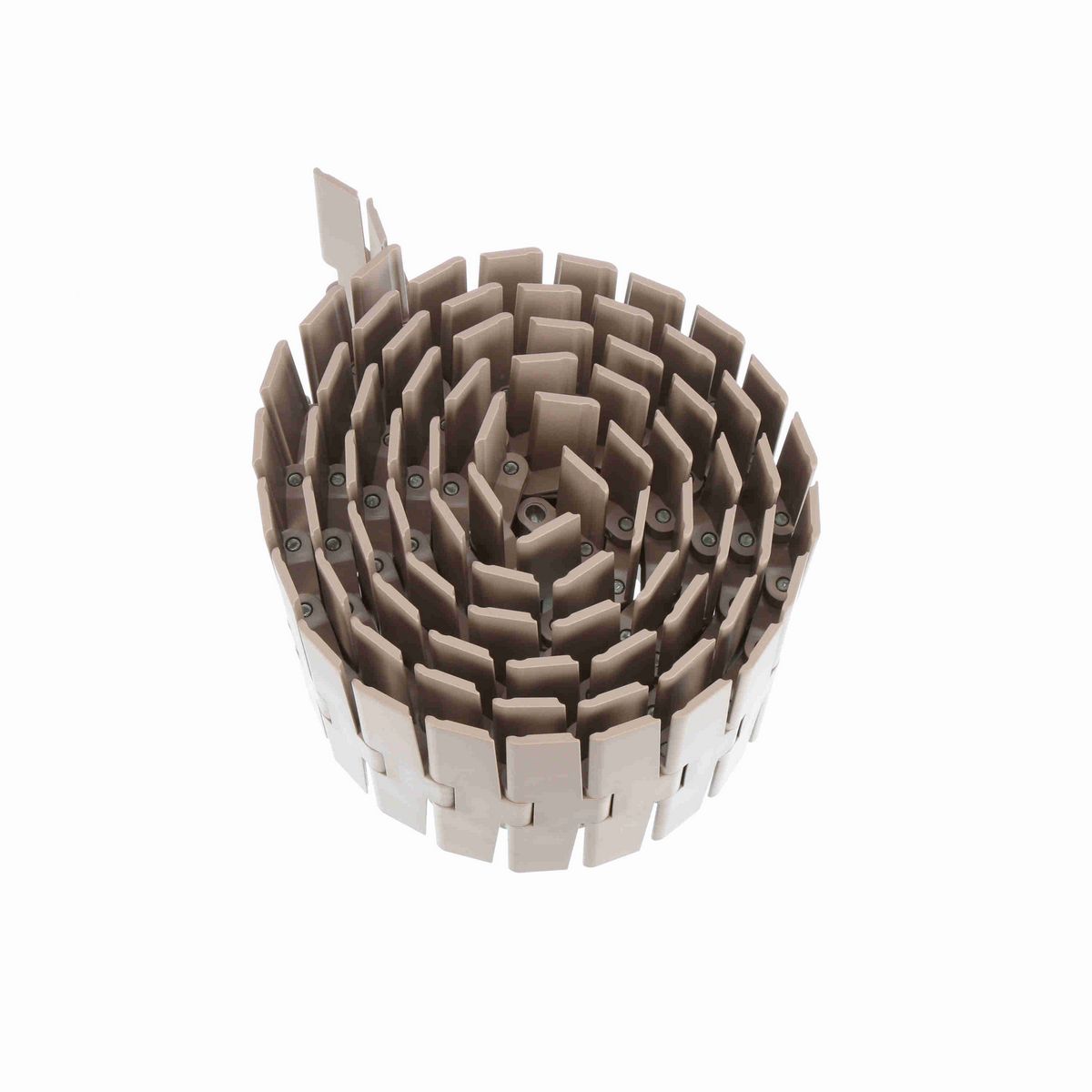

Series	TableTop 882 Series Side-flexing Chain
Flight Thickness (in)	0.19 in
Product Group	Chain
Product Line	Conveying Chains and Belts
Product Type	Side-Flexing
Flight Thickness (mm)	4.8 mm
Chain Number	882M
Chain Width Measurement System	Imperial
Chain Pitch (mm)	38.1 mm
Rod/Pin Material	SPM
Chain Material Description	Tan Low Friction
Surface Type	Solid Top
Chain Width (mm)	190.5 mm
Weight (kg/m)	2.2 kg/m
Breaking Load (lb)	2,250 lb
Curve Retention Type	Magnetic
Chain Material	LF
Chain Pitch (in)	1.5 in
Straight or Side-Flex	Side-flexing
Breaking Load (N)	10,000 N
Weight (lb/ft)	1.4 lb/ft
Chain Width (in)	7.5 in

General Specifications

UPC	726166186104
Weight	1.45 LB
Packaged Length	12.10 IN
Packaged Width	10.30 IN
Packaged Height	8.10 IN
HTC	3923.29.0000
Country of Origin	Germany
