• LF (brown in color) acetal material is commonly used in the market and offers an improved coefficient of friction and is suitable for use in high speed applications.
• Special austenitic stainless steel pins with higher tensile strength and improved surface hardness.

Technical Specifications

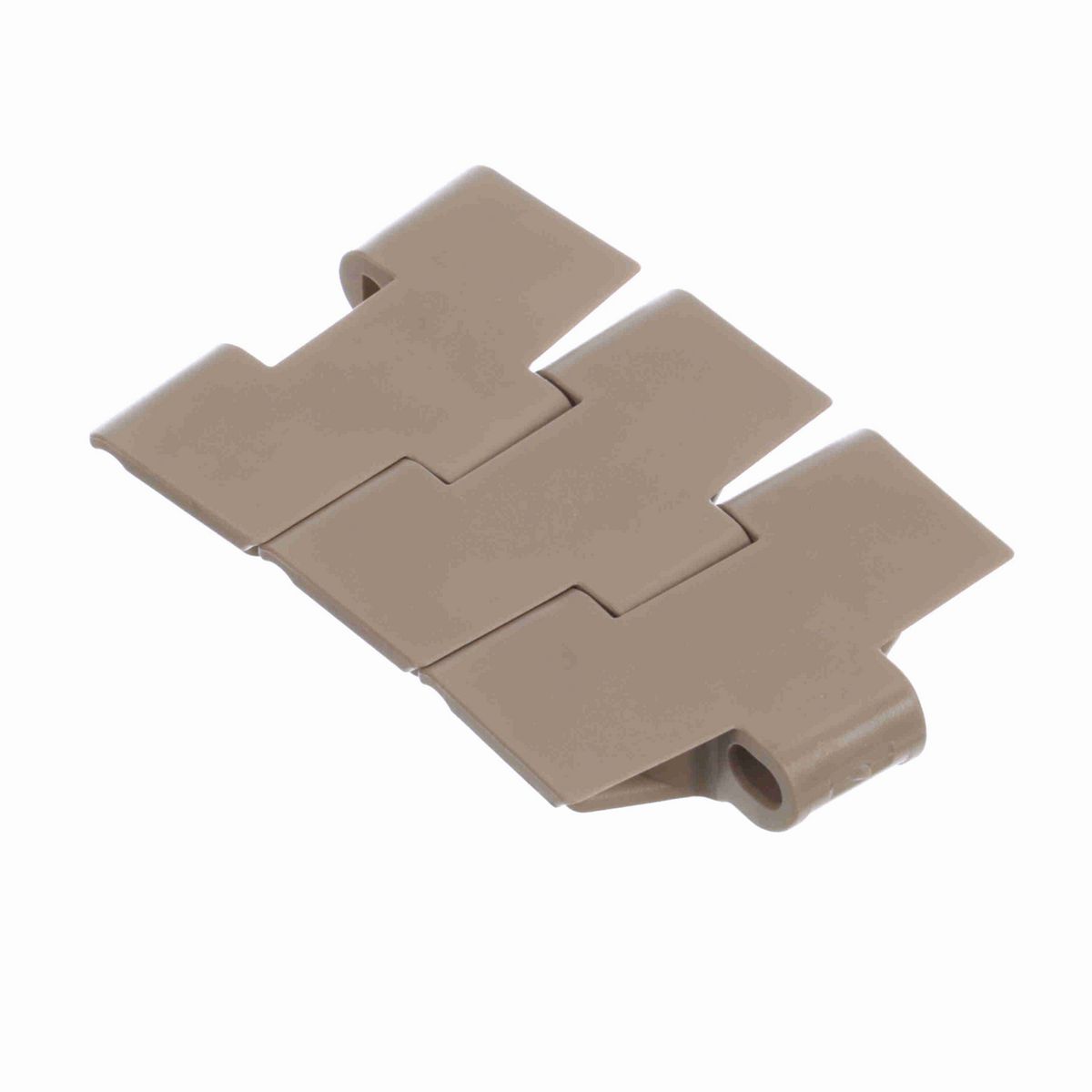

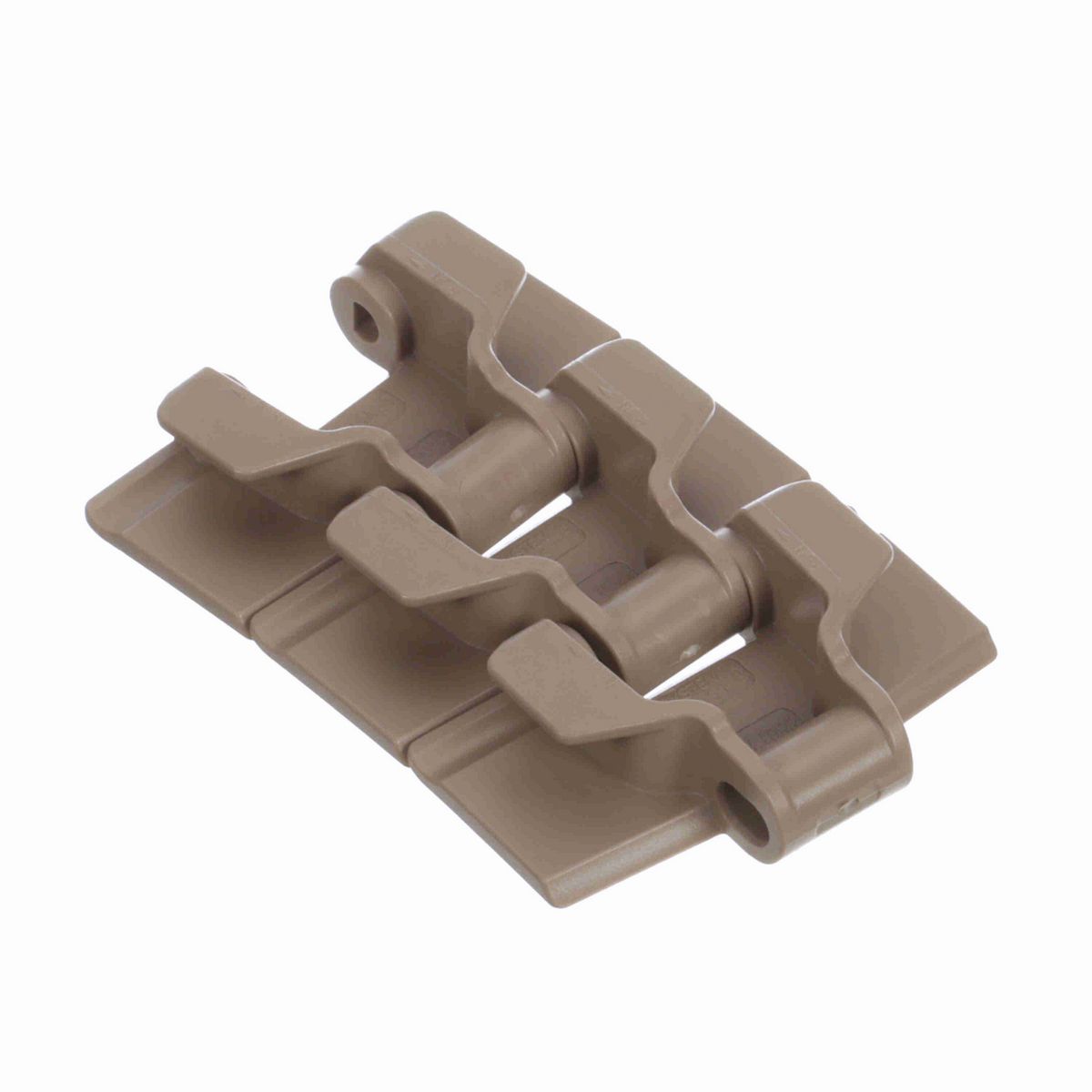

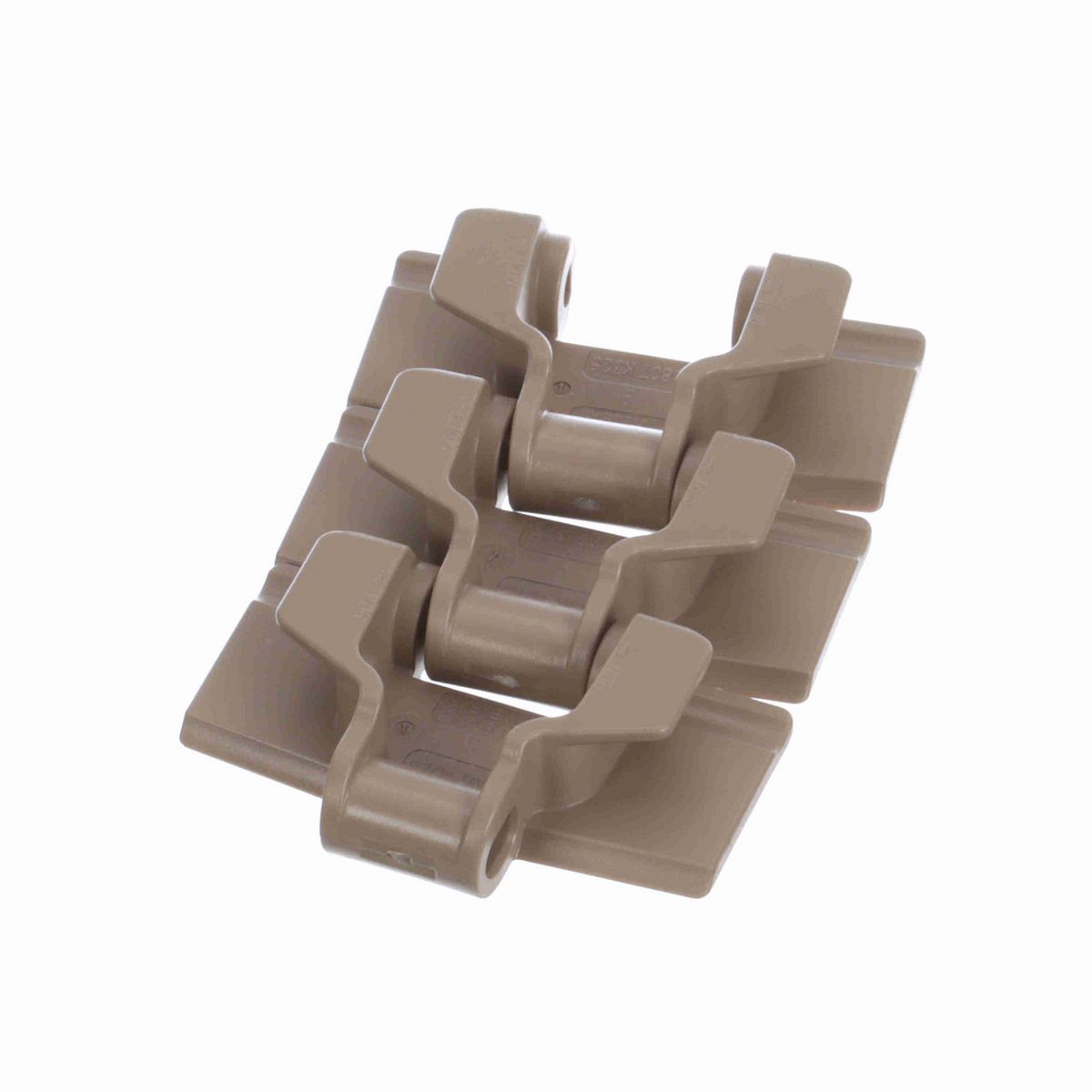

Series	TableTop 880 Series Side-flexing Chain
Product Type	Side-Flexing
Product Line	Conveying Chains and Belts
Flight Thickness (in)	0.16 in
Product Group	Chain
Flight Thickness (mm)	4 mm
Weight (lb/ft)	0.7 lb/ft
Chain Width Measurement System	Imperial
Chain Width (mm)	82.55 mm
Chain Width (in)	3.25 in
Chain Pitch (in)	1.5 in
Weight (kg/m)	1 kg/m
Straight or Side-Flex	Side-flexing
Chain Number	880TAB
Chain Pitch (mm)	38.1 mm
Surface Type	Solid Top
Rod/Pin Material	Austenitic steel
Breaking Load (N)	6,000 N
Breaking Load (lb)	1,350 lb
Chain Material Description	Tan Low Friction
Curve Retention Type	TAB
Chain Material	LF

General Specifications

UPC	726166148461
Weight	0.79 LB
Packaged Length	10.10 IN
Packaged Width	11.50 IN
Packaged Height	4.00 IN
HTC	3923.29.0000
Country of Origin	Mexico
