• LF (brown in color) acetal material is commonly used in the market and offers an improved coefficient of friction and is suitable for use in high speed applications.
• Special austenitic stainless steel pins with higher tensile strength and improved surface hardness.

Technical Specifications

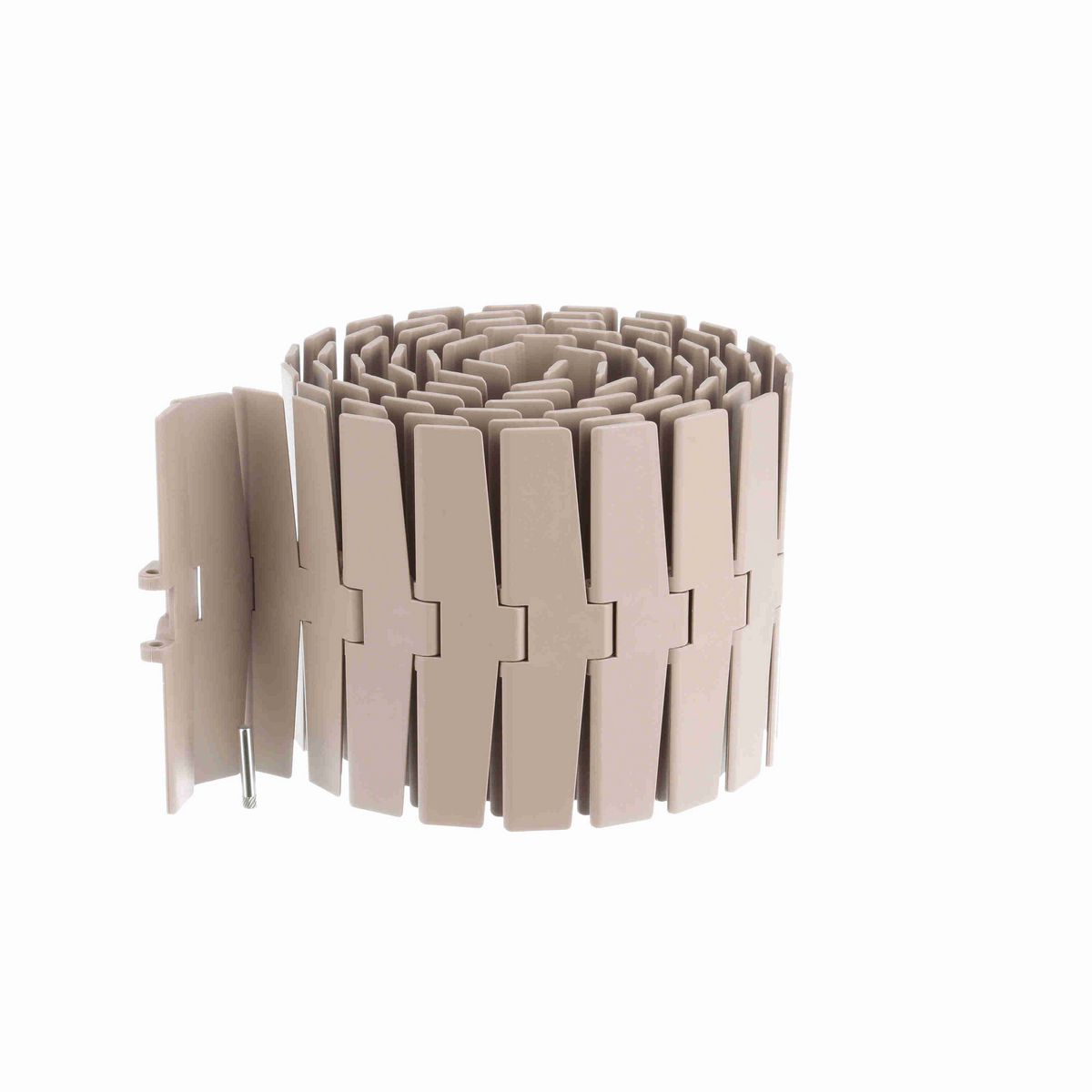

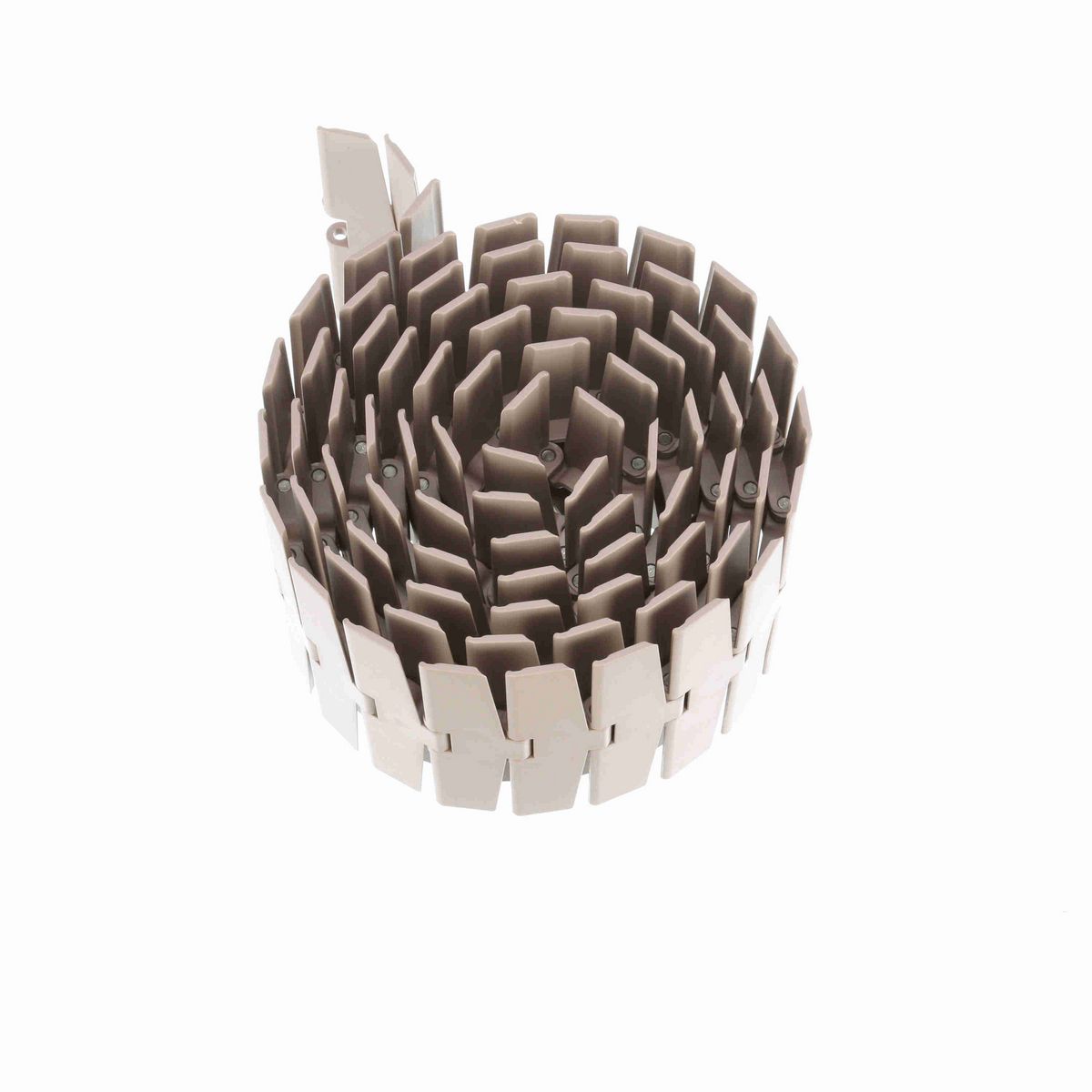

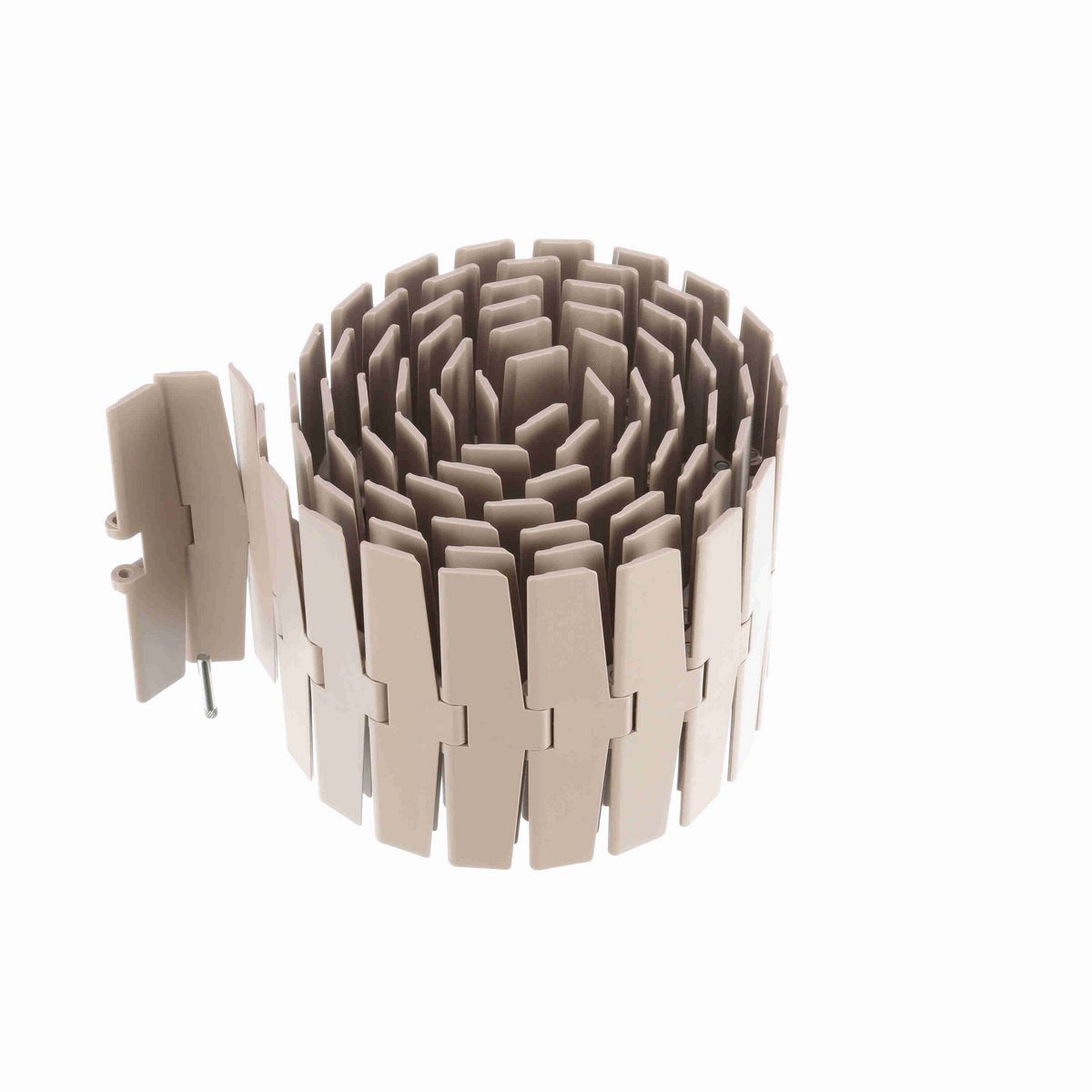

Series	TableTop 880 Series Side-flexing Chain
Product Group	Chain
Product Type	Side-Flexing
Product Line	Conveying Chains and Belts
Flight Thickness (in)	0.16 in
Flight Thickness (mm)	4 mm
Curve Retention Type	Magnetic
Surface Type	Solid Top
Rod/Pin Material	SPM
Weight (kg/m)	1.5 kg/m
Chain Width Measurement System	Imperial
Weight (lb/ft)	1 lb/ft
Chain Width (mm)	190.5 mm
Chain Material	LF
Breaking Load (N)	5,700 N
Chain Number	880M
Chain Width (in)	7.5 in
Straight or Side-Flex	Side-flexing
Breaking Load (lb)	1,280 lb
Chain Material Description	Tan Low Friction
Chain Pitch (in)	1.5 in
Chain Pitch (mm)	38.1 mm

General Specifications

UPC	726166186074
Weight	0.21 LB
Packaged Length	11.60 IN
Packaged Width	10.40 IN
Packaged Height	8.00 IN
HTC	3923.29.0000
Country of Origin	Germany
