• LF (brown in color) acetal material is commonly used in the market and offers an improved coefficient of friction and is suitable for use in high speed applications.
• Special austenitic stainless steel pins with higher tensile strength and improved surface hardness.

Technical Specifications

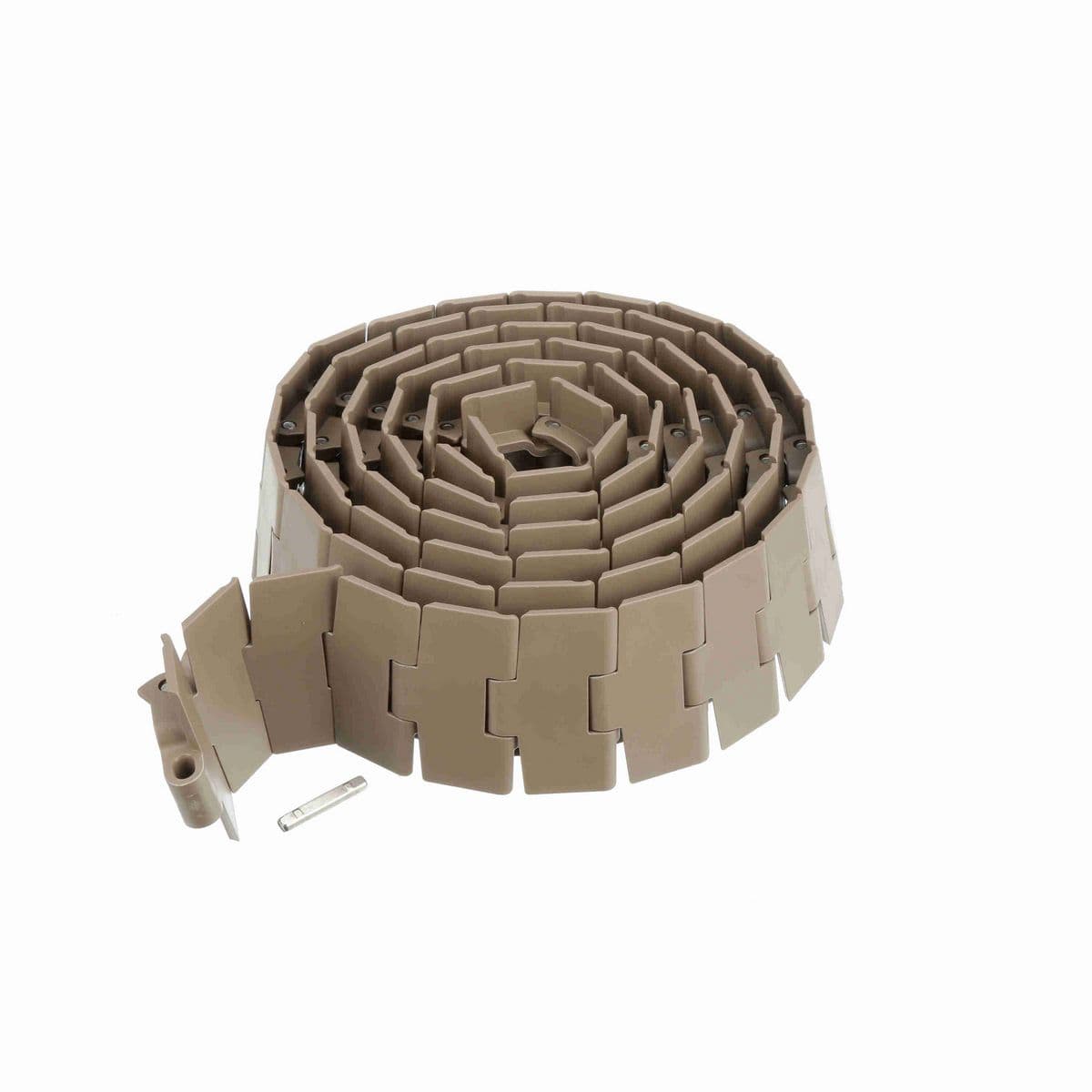

Series	TableTop 880 Series Side-flexing Chain
Product Type	Side-Flexing
Product Group	Chain
Flight Thickness (in)	0.16 in
Product Line	Conveying Chains and Belts
Flight Thickness (mm)	4 mm
Chain Width (in)	3.5 in
Chain Material Description	Tan Low Friction
Chain Width Measurement System	Imperial
Weight (kg/m)	0.9 kg/m
Chain Width (mm)	88.9 mm
Straight or Side-Flex	Side-flexing
Surface Type	Solid Top
Breaking Load (lb)	1,350 lb
Chain Pitch (in)	1.5 in
Rod/Pin Material	Austenitic steel
Chain Pitch (mm)	38.1 mm
Chain Number	880B
Chain Material	LF
Curve Retention Type	Bevel
Weight (lb/ft)	0.6 lb/ft
Breaking Load (N)	6,000 N

General Specifications

UPC	726166186135
Weight	0.65 LB
Packaged Length	12.00 IN
Packaged Width	3.50 IN
Packaged Height	0.79 IN
HTC	3923.29.0000
Country of Origin	Germany
