• LF (brown in color) acetal material is commonly used in the market and offers an improved coefficient of friction and is suitable for use in high speed applications.
• Special austenitic stainless steel pins with higher tensile strength and improved surface hardness.

Technical Specifications

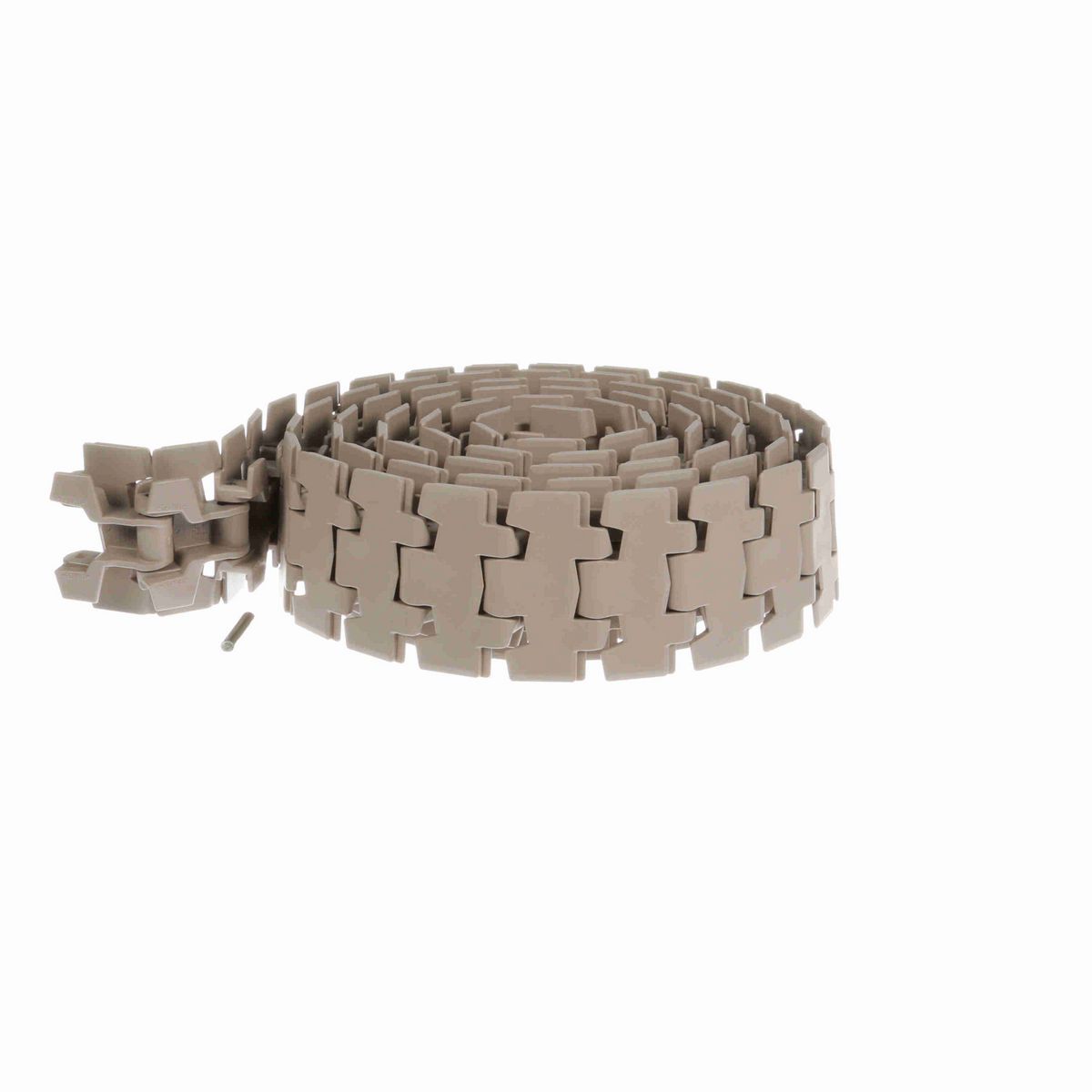

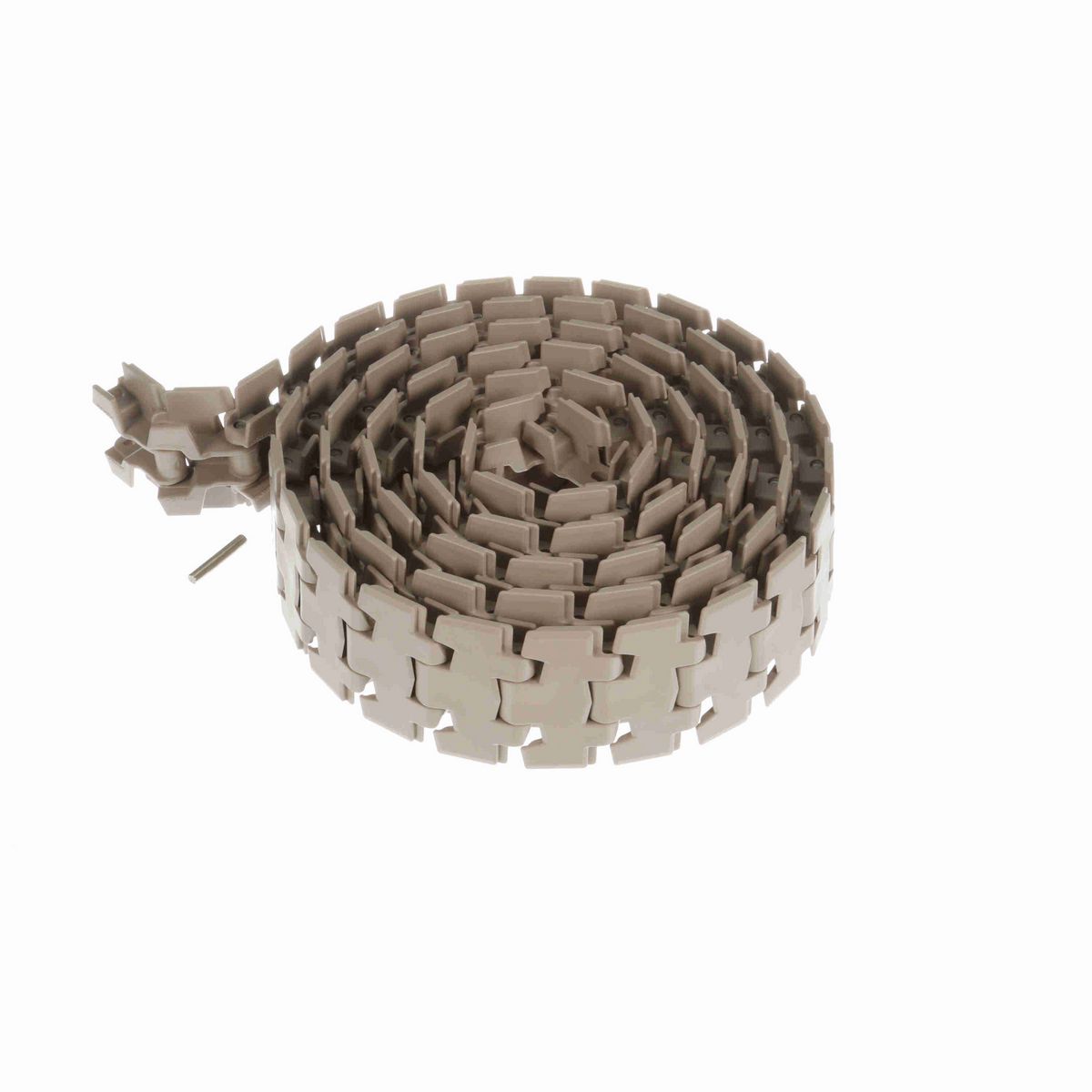

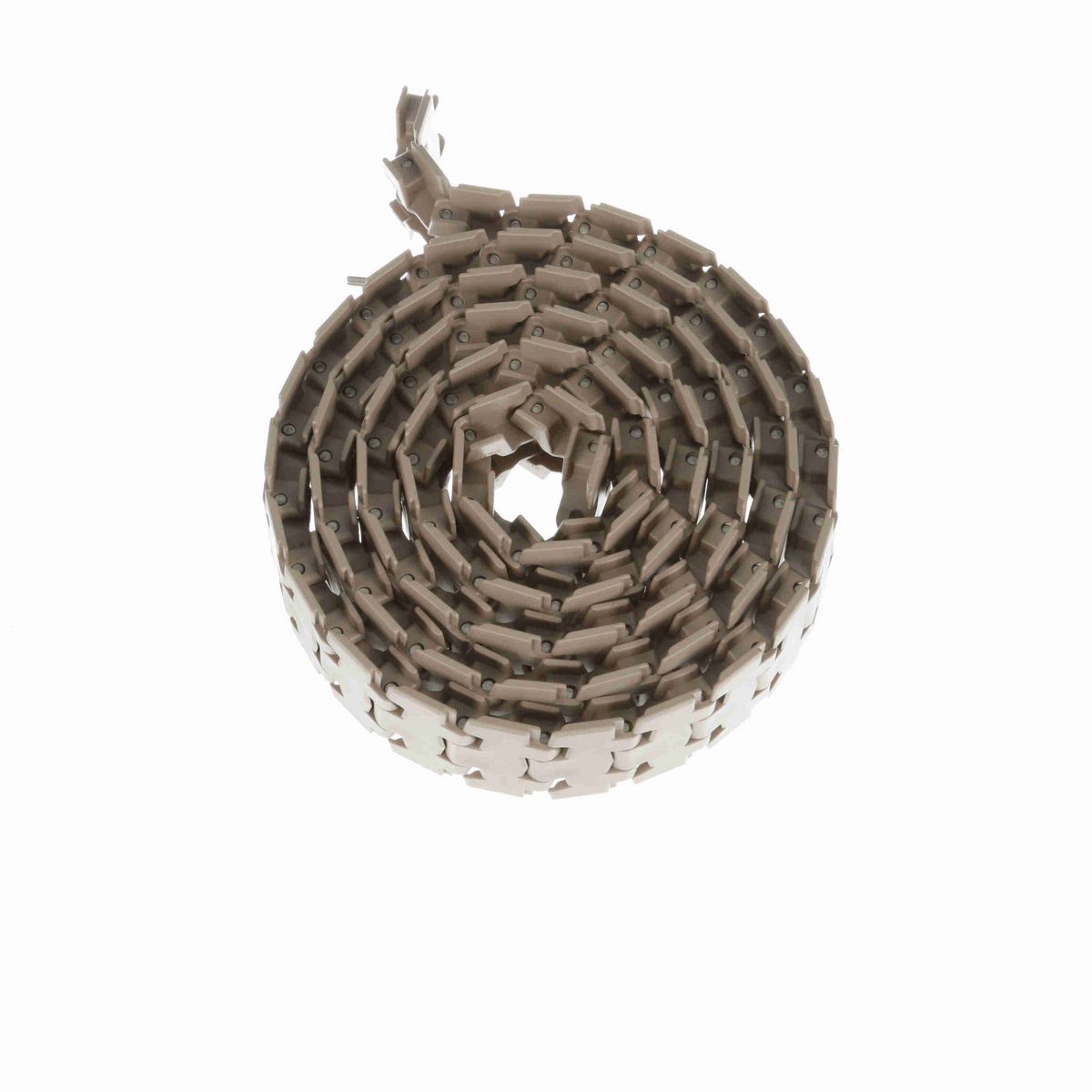

Series	TableTop 878 Series Side-flexing Chain
Product Group	Chain
Product Type	Side-Flexing
Product Line	Conveying Chains and Belts
Flight Thickness (in)	0.19 in
Flight Thickness (mm)	4.8 mm
Chain Width Measurement System	Imperial
Weight (lb/ft)	0.8 lb/ft
Chain Width (in)	3.25 in
Straight or Side-Flex	Side-flexing
Breaking Load (N)	6,000 N
Surface Type	Solid Top
Chain Number	878TAB
Chain Material Description	Tan Low Friction
Curve Retention Type	TAB
Chain Material	LF
Breaking Load (lb)	1,350 lb
Chain Width (mm)	82.55 mm
Chain Pitch (in)	1.5 in
Rod/Pin Material	Austenitic steel
Chain Pitch (mm)	38.1 mm
Weight (kg/m)	1.1 kg/m

General Specifications

UPC	726166148386
Weight	0.64 LB
Packaged Length	12.00 IN
Packaged Width	3.25 IN
Packaged Height	0.82 IN
HTC	3923.29.0000
Country of Origin	Germany
