• LF (brown in color) acetal material is commonly used in the market and offers an improved coefficient of friction and is suitable for use in high speed applications.
• Carbon steel base chain.

Technical Specifications

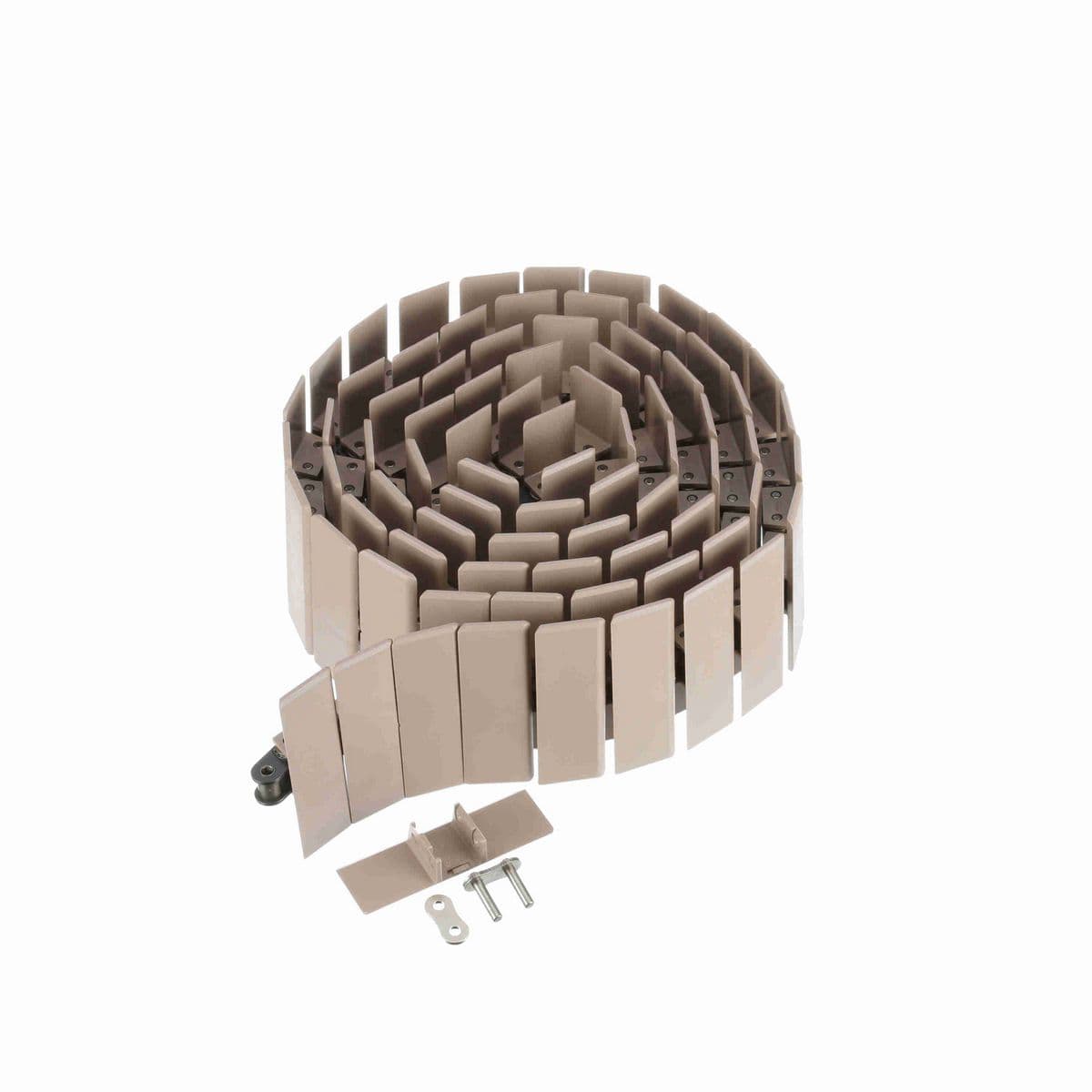

Series	TableTop 843 Series Chain
Product Type	Straight Running
Product Line	Conveying Chains and Belts
Flight Thickness (in)	0.12 in
Product Group	Chain
Flight Thickness (mm)	3.1 mm
Weight (kg/m)	0.8 kg/m
Chain Width (in)	1 in
Chain Material	LF
Breaking Load (lb)	3,800 lb
Chain Pitch (in)	1 in
Straight or Side-Flex	Straight Running
Base Chain Material	C45
Breaking Load (N)	16,900 N
Chain Width (mm)	25.4 mm
Chain Material Description	Tan Low Friction
Chain Pitch (mm)	25.4 mm
Chain Number	843
Weight (lb/ft)	0.6 lb/ft
Chain Width Measurement System	Imperial
Rod/Pin Material	Carbon Steel
Surface Type	Solid Top

General Specifications

UPC	726166183585
Weight	0.55 LB
Packaged Length	12.00 IN
Packaged Width	1.00 IN
Packaged Height	0.57 IN
HTC	7315.11.0060
Country of Origin	Germany
