• LF (brown in color) acetal material is commonly used in the market and offers an improved coefficient of friction and is suitable for use in high speed applications.
• Special austenitic stainless steel pins with higher tensile strength and improved surface hardness.

Technical Specifications

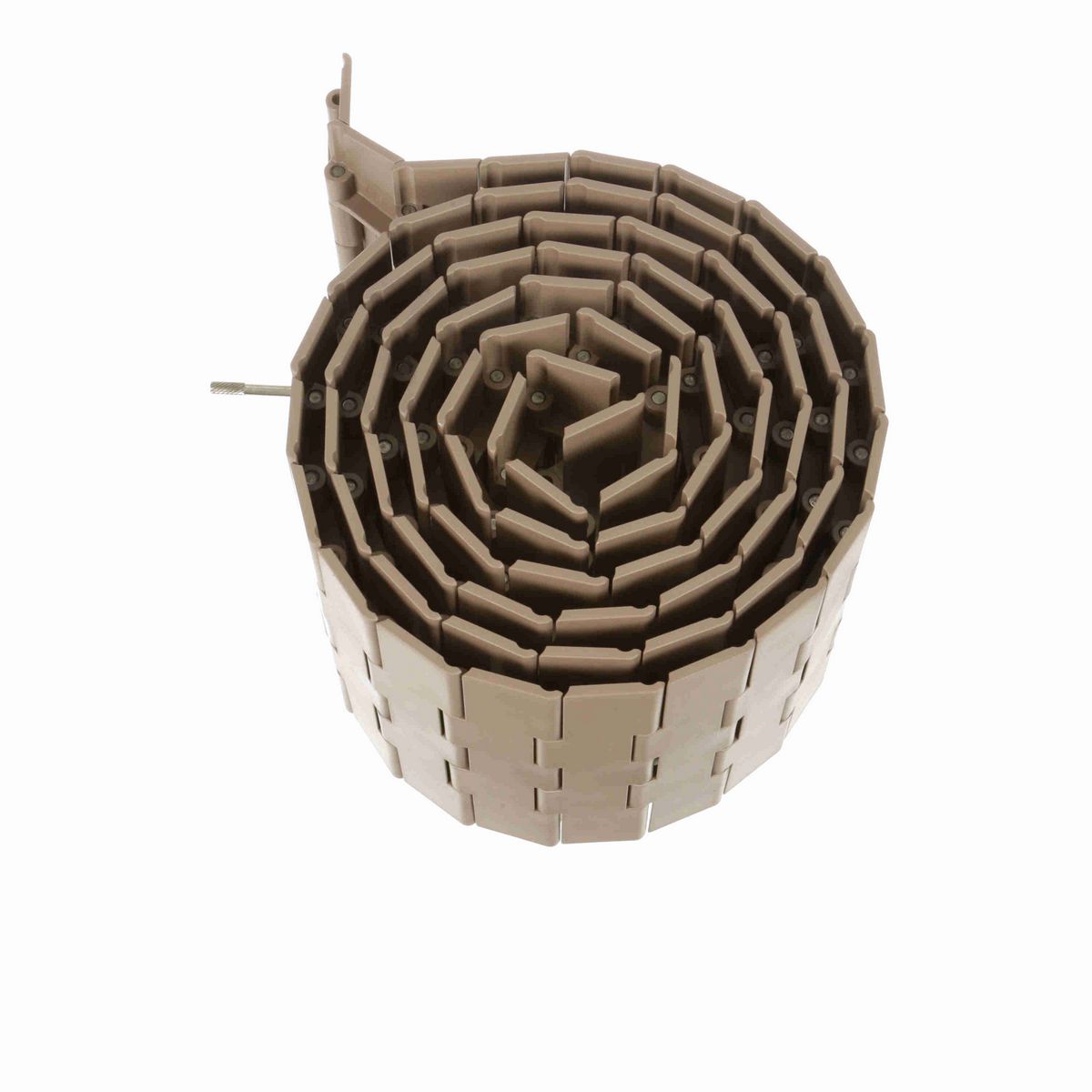

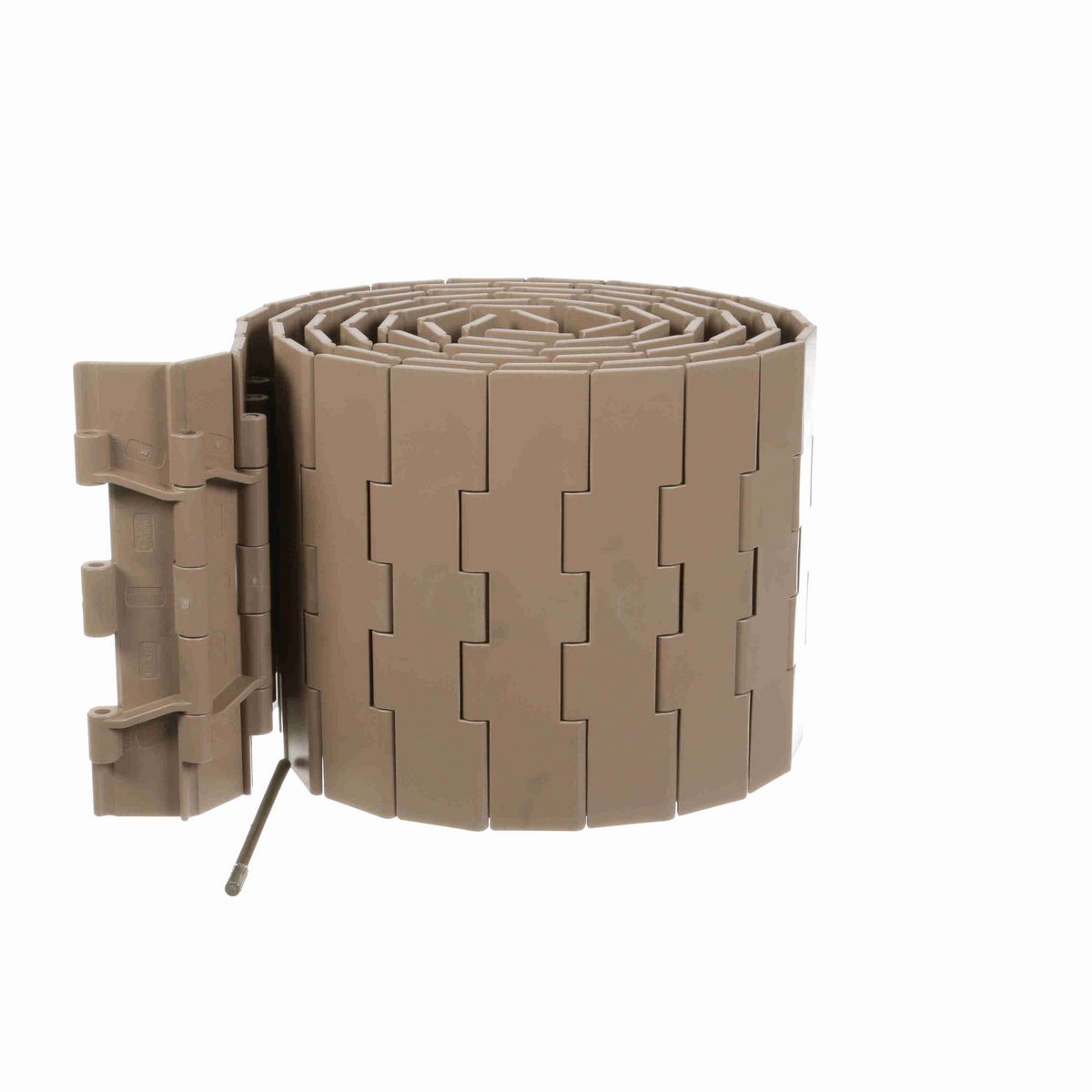

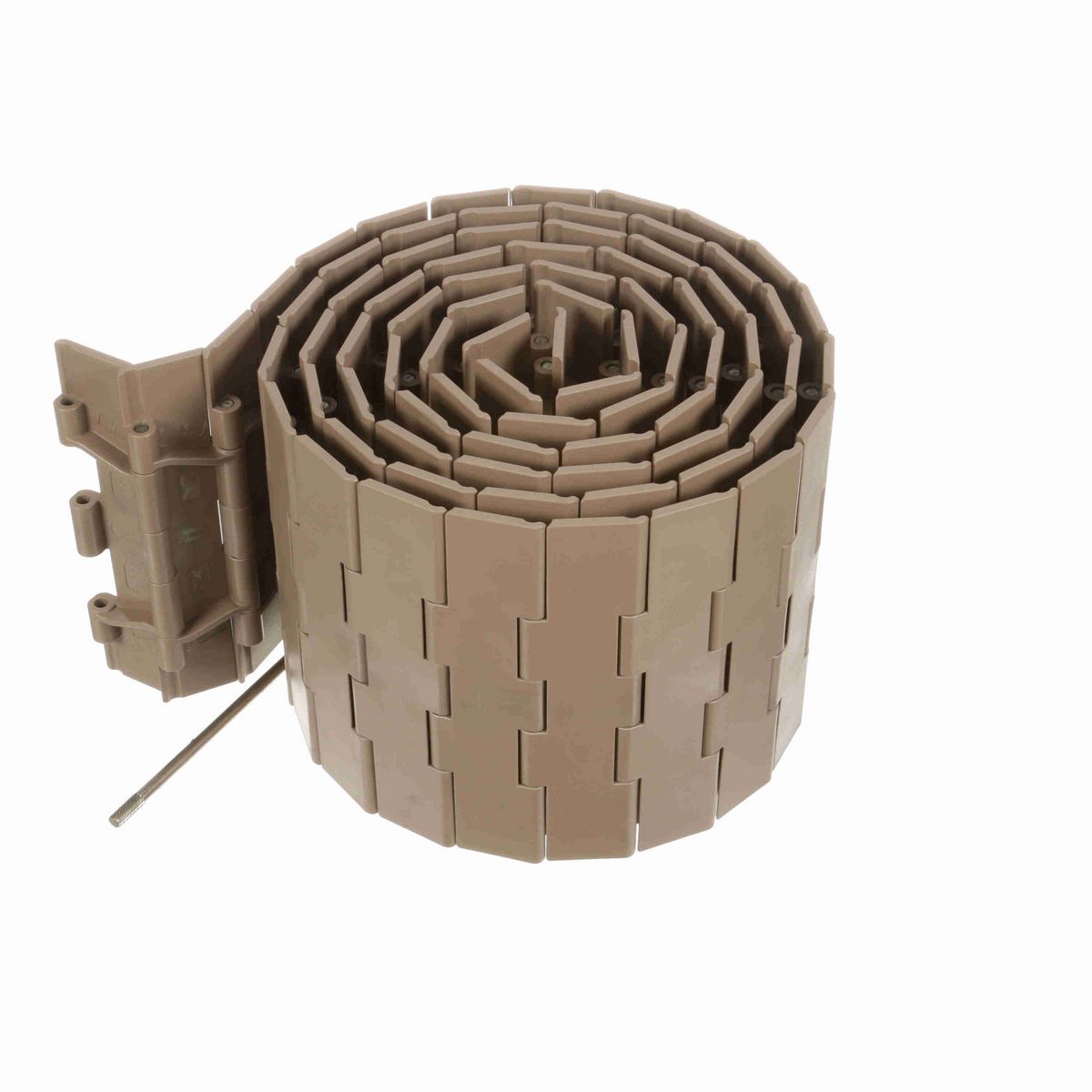

Series	TableTop 821 Series Chain
Product Type	Straight Running
Product Line	Conveying Chains and Belts
Flight Thickness (in)	0.19 in
Product Group	Chain
Flight Thickness (mm)	4.8 mm
Straight or Side-Flex	Straight Running
Chain Width (mm)	190.5 mm
Chain Number	821
Chain Pitch (mm)	38.1 mm
Surface Type	Solid Top
Breaking Load (N)	8,300 N
Chain Width (in)	7.5 in
Weight (kg/m)	2.6 kg/m
Chain Pitch (in)	1.5 in
Chain Material Description	Tan Low Friction
Rod/Pin Material	Austenitic steel
Weight (lb/ft)	1.7 lb/ft
Chain Material	LF
Breaking Load (lb)	1,830 lb
Chain Width Measurement System	Imperial

General Specifications

UPC	726166148003
Weight	1.79 LB
Packaged Length	10.50 IN
Packaged Width	11.00 IN
Packaged Height	8.40 IN
HTC	3923.29.0000
Country of Origin	Mexico
