• LF (brown in color) acetal material is commonly used in the market and offers an improved coefficient of friction and is suitable for use in high speed applications.
• Special austenitic stainless steel pins with higher tensile strength and improved surface hardness.

Technical Specifications

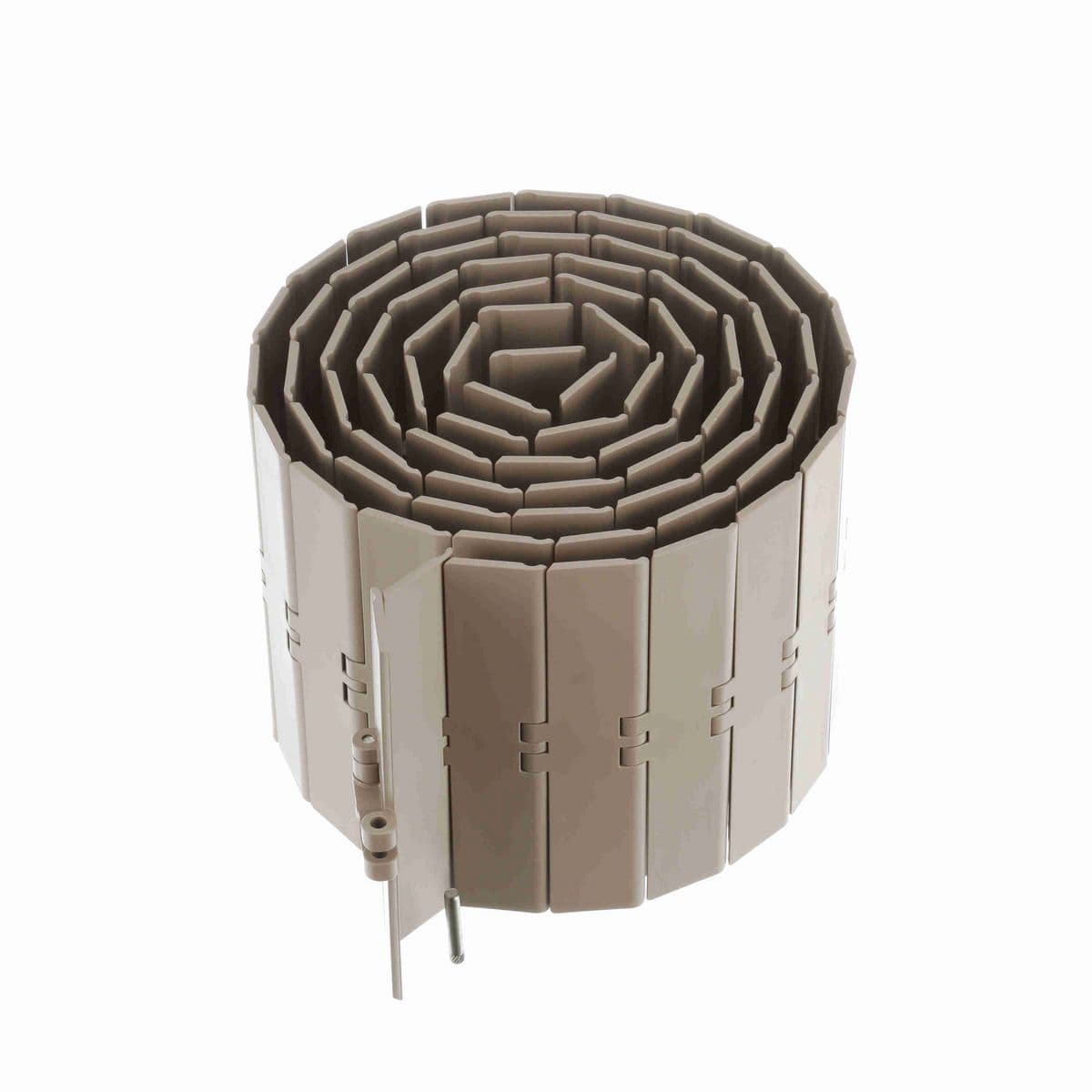

Series	TableTop 821 Series Chain
Flight Thickness (in)	0.19 in
Product Type	Straight Running
Product Group	Chain
Product Line	Conveying Chains and Belts
Flight Thickness (mm)	4.8 mm
Chain Material Description	Tan Low Friction
Straight or Side-Flex	Straight Running
Chain Width (in)	12 in
Surface Type	Solid Top
Weight (lb/ft)	2.6 lb/ft
Chain Material	LF
Chain Pitch (in)	1.5 in
Chain Number	821
Breaking Load (lb)	1,830 lb
Chain Pitch (mm)	38.1 mm
Chain Width (mm)	304.8 mm
Chain Width Measurement System	Imperial
Breaking Load (N)	8,300 N
Weight (kg/m)	3.4 kg/m
Rod/Pin Material	Austenitic steel

General Specifications

UPC	726166147990
Weight	2.31 LB
Packaged Length	10.90 IN
Packaged Width	10.50 IN
Packaged Height	13.00 IN
HTC	3923.29.0000
Country of Origin	Mexico
