• LF (brown in color) acetal material is commonly used in the market and offers an improved coefficient of friction and is suitable for use in high speed applications.
• Carbon steel base chain.

Technical Specifications

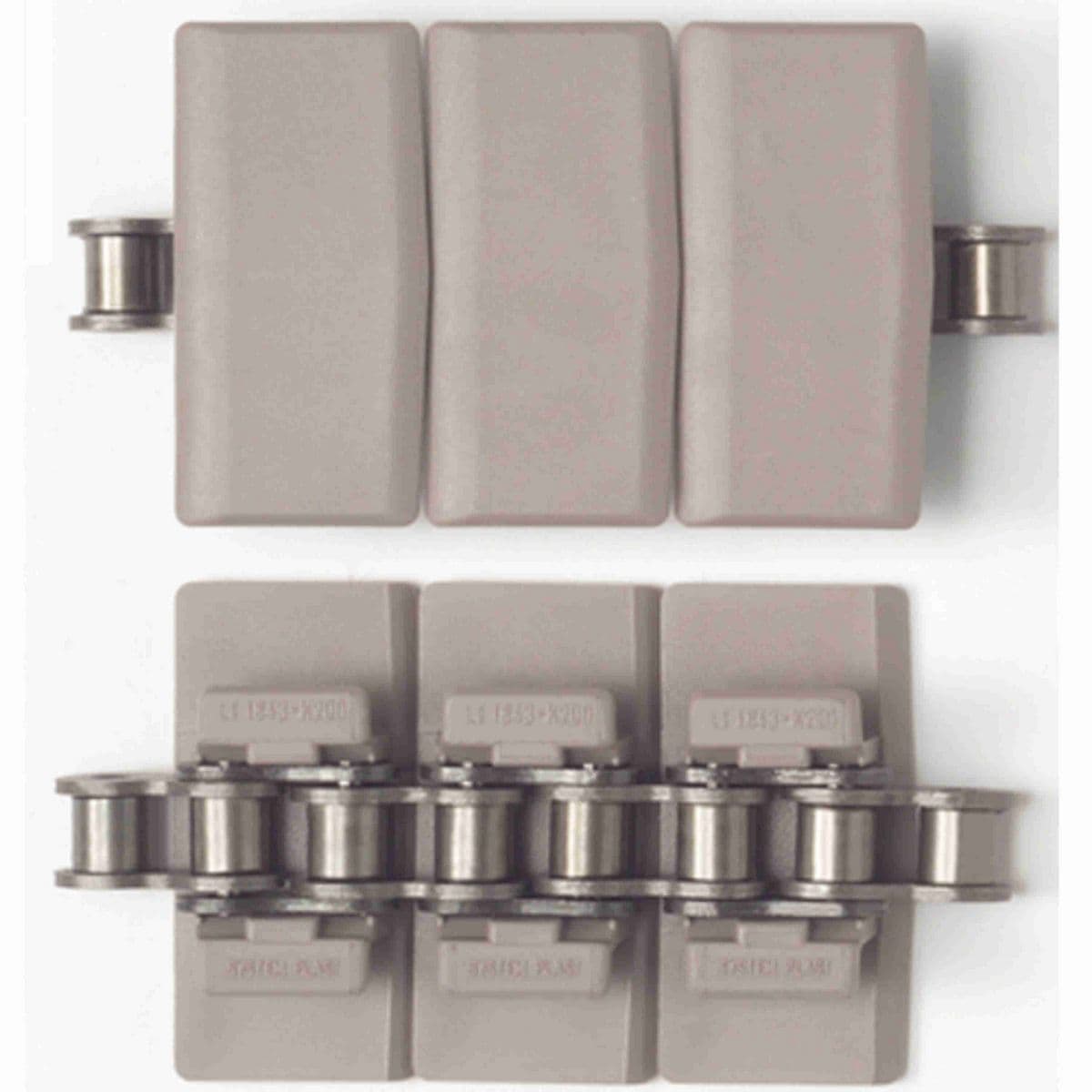

Series	TableTop 1843 Series Side-flexing Chain
Product Group	Chain
Product Line	Conveying Chains and Belts
Product Type	Side-Flexing
Flight Thickness (in)	0.13 in
Flight Thickness (mm)	3.2 mm
Chain Width (in)	1.25 in
Weight (kg/m)	0.7 kg/m
Surface Type	Solid Top
Chain Width Measurement System	Imperial
Base Chain Material	Carbon Steel
Chain Width (mm)	31.75 mm
Weight (lb/ft)	0.5 lb/ft
Chain Pitch (mm)	25.4 mm
Chain Number	1843TAB
Straight or Side-Flex	Side-flexing
Chain Material Description	Tan Low Friction
Breaking Load (lb)	2,930 lb
Breaking Load (N)	13,000 N
Chain Pitch (in)	1 in
Chain Material	LF
Curve Retention Type	TAB

General Specifications

UPC	726166148690
Weight	0.50 LB
HTC	7315.11.0060
Country of Origin	Germany
