Суперлинейная втулка Bosch Rexroth KBSH-40-D [R073014040]

Shaft diameter d [mm]

40

Version

Standard

Format of linear bushings

– Closed

Series

Super SH

Seal

1 integrated wiper seal

Lubrication

Not lubricated

Dynamic load capacity C [N]

13500

Note: dynamic load capacity C

The load capacities apply for the main direction of loading.

Maximum acceleration rate amax [m/s²]

150

Maximum permissible linear speed vmax [m/s]

5

Length of linear bushing [mm]

80

Outer diameter D [mm]

62

Permissible ambient temperature (min. ... max.)

-20 °C ... +80 °C

Friction coefficient μ

0.001 ... 0.004

Note: friction coefficient μ

Friction coefficients of unsealed linear bushings when lubricated with oil. The friction coefficient is lowest under heavy load, but can still be above the specified value even under a low load.

Weight [kg]

0.6

Static load capacity C0 [N]

10400

Note: static load capacity C0

The load capacities apply for the main direction of loading.

Footnote breakaway force

One wiper seal: Multiply value with factor 0.5

Footnote friction force FR

One wiper seal: Multiply value with factor 0.5

Breakaway force [N]

12

Type

Linear bushing

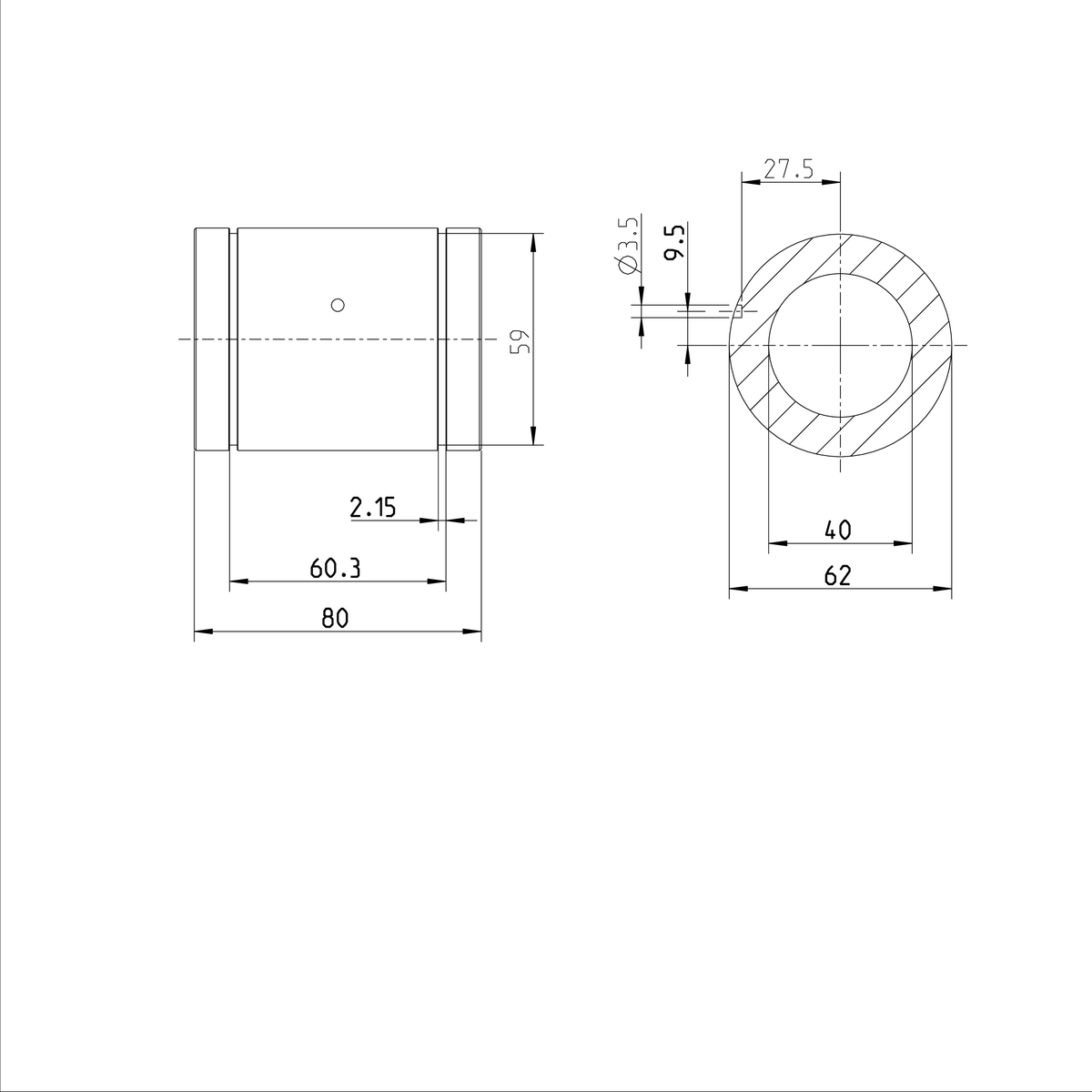

Dimension C h13 [mm]

80

Dimension C1 H13 [mm]

60.3

Dimension C2 [mm]

2.15

Dimension D [mm]

62

Dimension D1 [mm]

59

Dimension S3 [mm]

3.5
