Суперлинейная втулка Bosch Rexroth KBH-O-25-VD [R073322545]

Shaft diameter d [mm]

25

Version

Standard

Format of linear bushings

O - Open

Series

Super H

Seal

Fully sealed

Lubrication

Not lubricated

Dynamic load capacity C [N]

4430

Note: dynamic load capacity C

The load capacities apply for the main direction of loading.

Maximum acceleration rate amax [m/s²]

150

Maximum permissible linear speed vmax [m/s]

5

Length of linear bushing [mm]

58

Outer diameter D [mm]

40

Permissible ambient temperature (min. ... max.)

-20 °C ... +80 °C

Friction coefficient μ

0.001 ... 0.004

Note: friction coefficient μ

Friction coefficients of unsealed linear bushings when lubricated with oil. The friction coefficient is lowest under heavy load, but can still be above the specified value even under a low load.

Weight [kg]

0.14

Static load capacity C0 [N]

3360

Note: static load capacity C0

The load capacities apply for the main direction of loading.

Footnote breakaway force

One wiper seal: Multiply value with factor 0.5

Footnote friction force FR

One wiper seal: Multiply value with factor 0.5

Breakaway force [N]

10.5

Type

Linear bushing

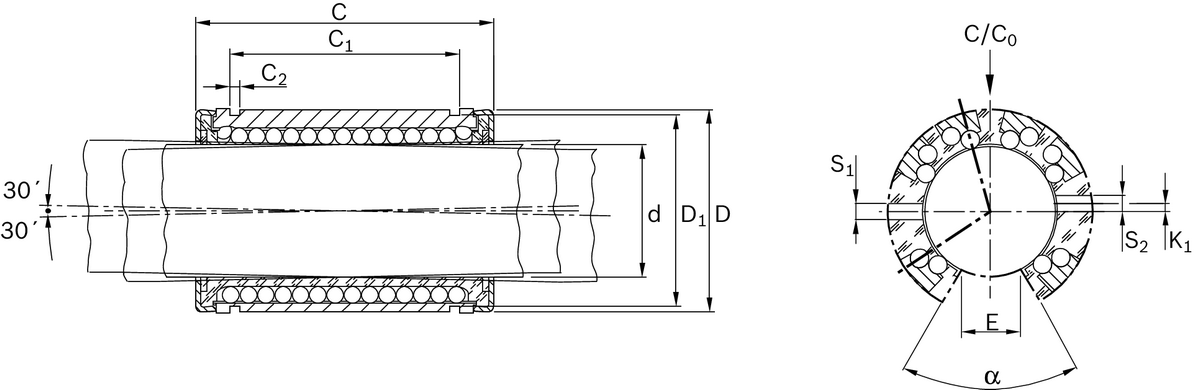

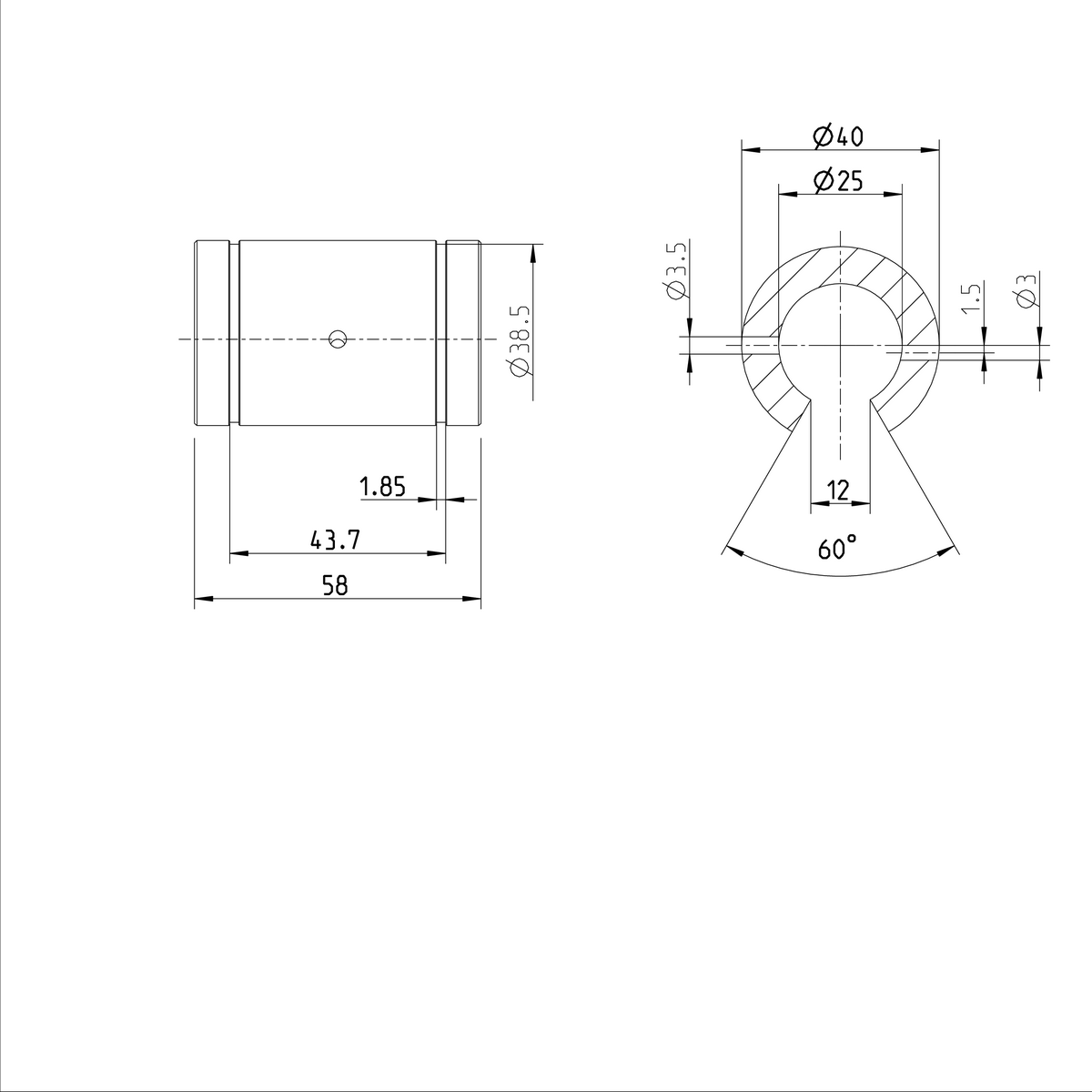

Dimension C h13 [mm]

58

Dimension C1 H13 [mm]

43.7

Dimension C2 [mm]

1.85

Dimension D [mm]

40

Dimension D1 [mm]

38.5

Dimension E [mm]

12

Dimension S1 (profiled rail systems) [mm]

3.5

Dimension S2 [mm]

3

Footnote Dimension E

Lower limit relative to shaft Ø d

Angle α [°]

60
