Поворотный подшипник Bosch Rexroth B EMC40 & [R349947000]

Fastening elements for electromechanical cylinders

Swivel bearing

Nominal size [mm]

40

Weight [kg]

0.14

Footnote max. dynamic load

Fmax EMC

Material of electromechanical cylinders

Aluminum

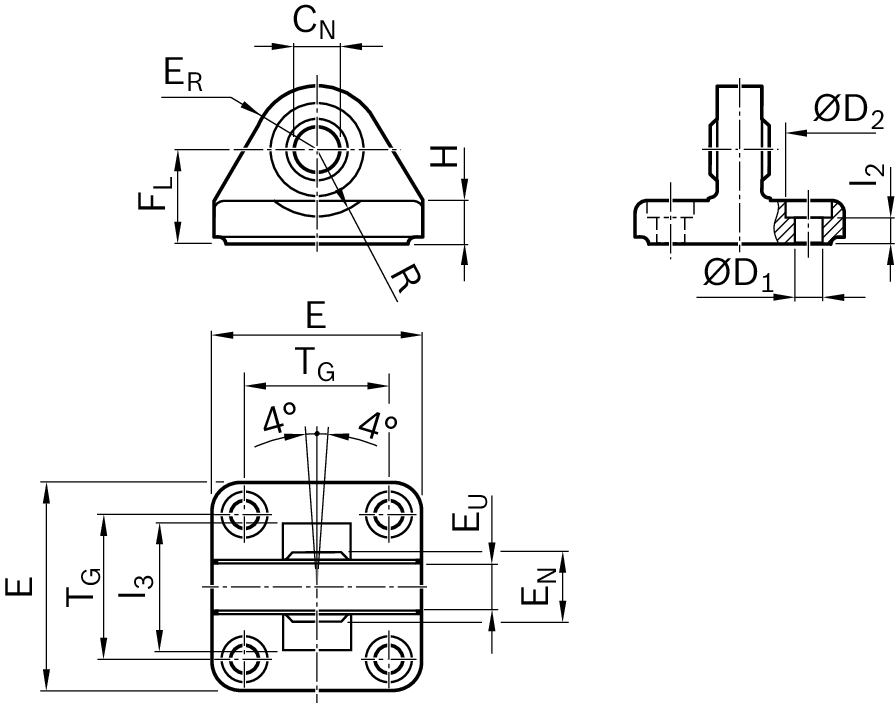

Dimension CN H7 [mm]

12

Dimension D1 H13 [mm]

6.6

Dimension D2 H13 [mm]

11

Dimension E [mm]

53

Dimension EN [mm]

16

Dimension EN tolerance [mm]

-0.1

Dimension ER [mm]

18

Dimension EU [mm]

12

Dimension FL [mm]

25

Dimension FL tolerance [mm]

-0.2

Dimension H [mm]

9

Dimension I2 [mm]

5.5

Dimension l3 min. [mm]

42

Dimension R [mm]

15

Dimension Tg [mm]

38

Dimension TG [mm]

38

Dimension TG tolerance [mm]

±0.2

Dimension hex socket head cap screws DIN 912

M6x18 mm

Dimension hex socket head cap screw DIN 912 thread diameter

M6

Hex socket head cap screw DIN 912 screw Dimension, length [mm]

18
