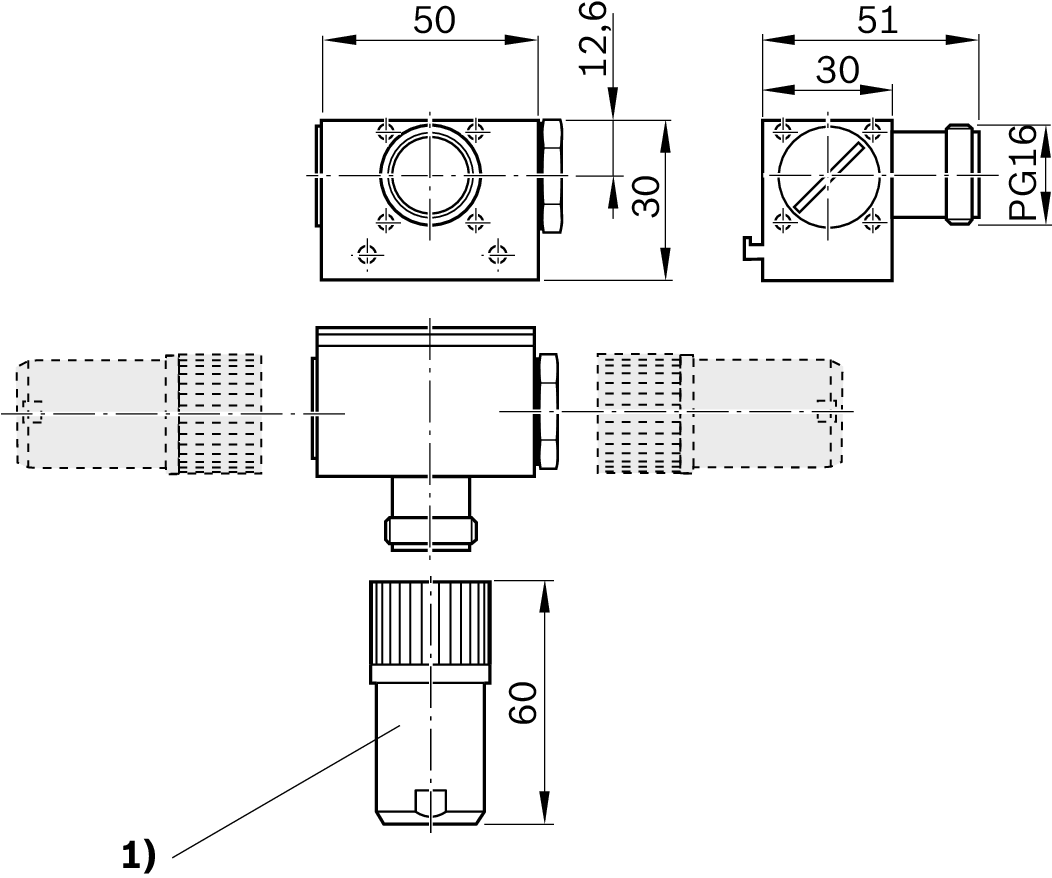

Гнездо и разъем Bosch Rexroth BG [R141400061]

Electrical accessories for linear axes

Socket and connector

Use

Socket and connector

Flange socket connection type

Soldered connection

Connector connection type motor

Soldered connection

Pin number

16

Permissible ambient temperature (min. ... max.)

-20 °C ... +125 °C

Operating voltage (min. … max.)

10 V DC ... 30 V DC

Designation

for SGK/SOK

Diameter soldered connection flange socket [mm]

≤1

Diameter soldered connection connector [mm]

≤1

Weight [kg]

0.22

Cable diameter D (min. … max.)

10 mm ... 14 mm

Housing cable bushing

1 seal with bore 2x5.5 mm, 1x3.5 mm 1 adaptable seal, max. 14 mm diameter

Cable bushing, connector

Bolting with pull relief

Maximum operating current per contact [A]

8

Option number

17

Plug cycles

>50
