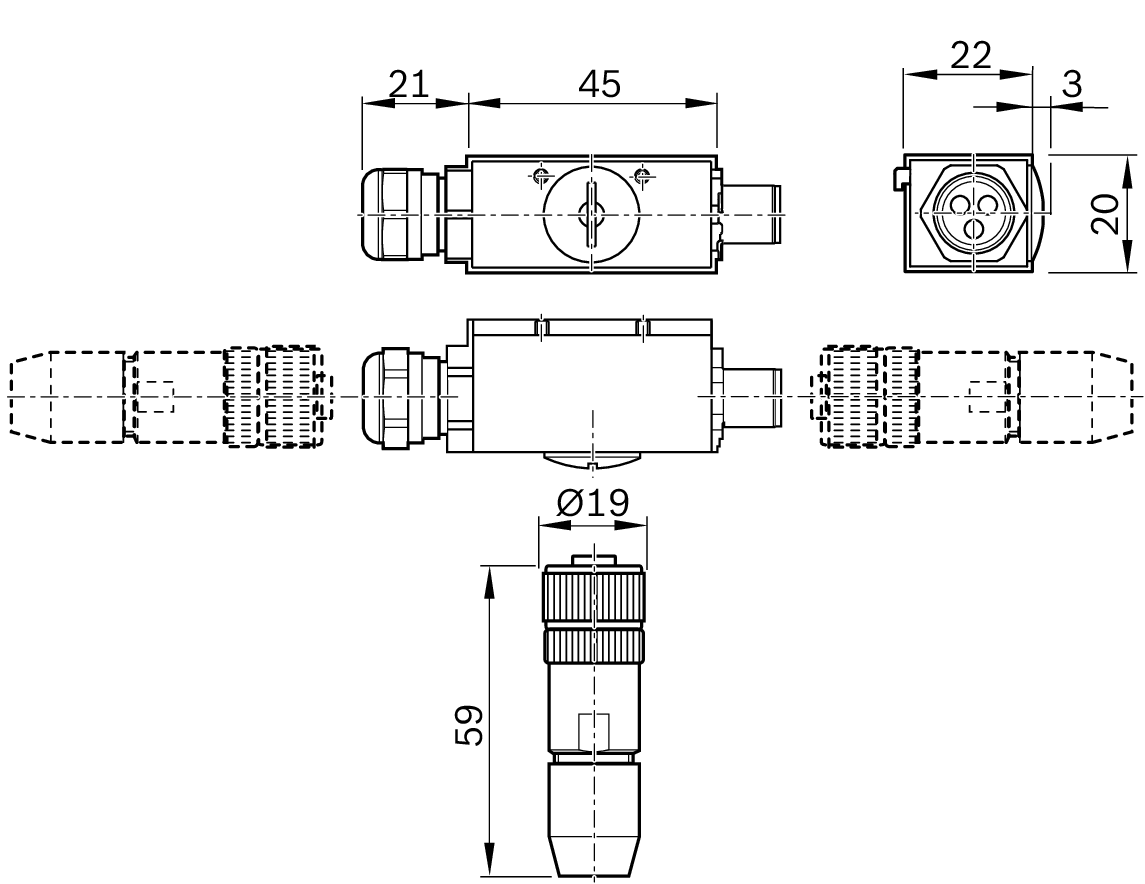

Гнездо и разъем Bosch Rexroth BG [R117560102]

Electrical accessories for linear axes

Socket and connector

Connection type 1

Male connector, straight, M12x1, 5-pin, spring-cage connection

Use

Socket and connector

Connection type 2

Coupling / flange socket M12x1, 5-pin, with 0.5 m cable

Version

angled, for suspension in the lateral slot of the linear motion system

Connection cross-section (min. … max.)

0.14 mm² ... 0.5 mm²

Certifications and approvals

‒

Permissible ambient temperature (min. ... max.)

-25 °C ... +85 °C

Operating voltage (min. … max.)

10 V DC ... 30 V DC

Designation

for CKK/CKR-070, MKK/MKR-040

Weight [kg]

0.15

Cable diameter D (min. … max.)

4 mm ... 8 mm

Housing cable bushing

Cable gland M16x1.5 with seal (bore 3x3.5 mm) incl. cap and blind plug

Cable bushing, connector

Bolting with pull relief

Maximum operating current per contact [A]

4

Protection class

‒
