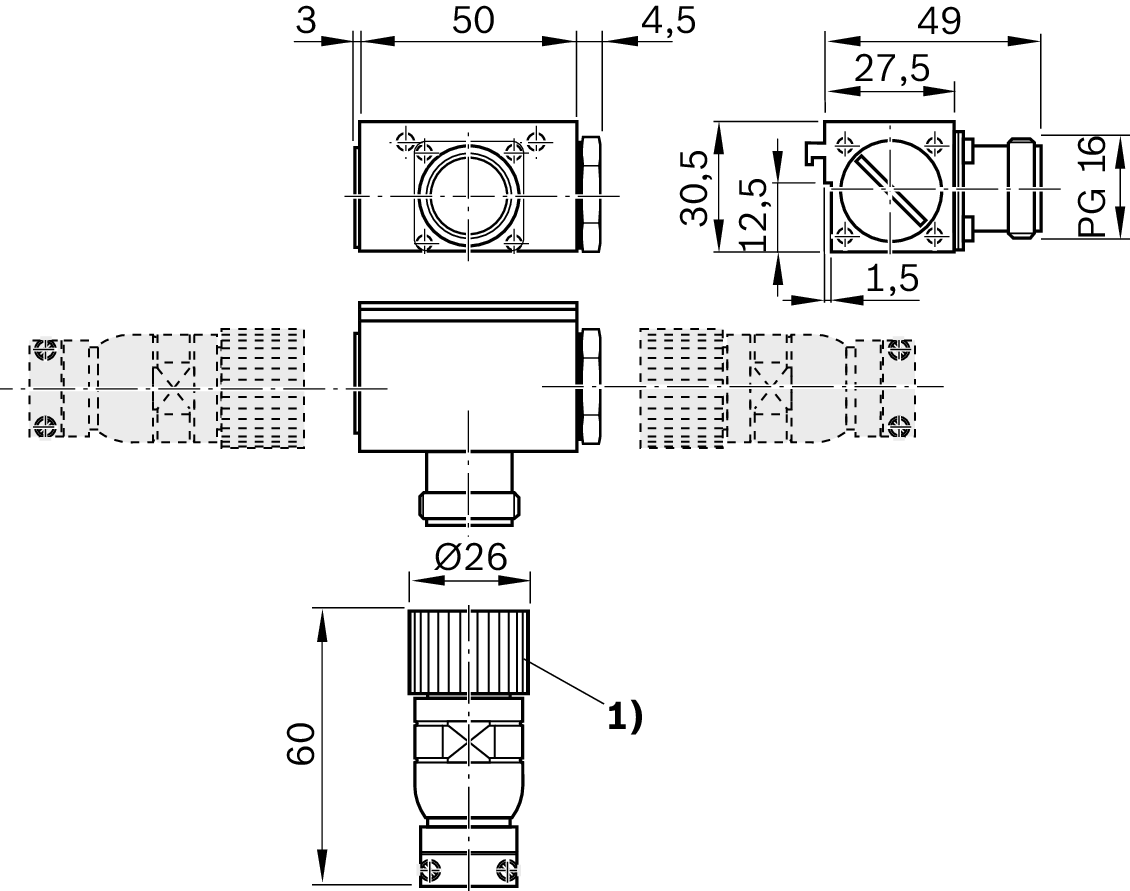

Гнездо и разъем Bosch Rexroth BG [R117500153]

Electrical accessories for linear axes

Socket and connector

Connection type 1

Male connector, straight, 16-pin, soldered connection

Use

Socket and connector

Version

angled, for suspension in the lateral slot of the linear motion system

Connection type 2

Coupling / flange socket, 16-pin, soldered connection

Connection cross-section (min. … max.)

0.14 mm² ... 1 mm²

Type of operating voltage

AC/DC

Certifications and approvals

‒

Permissible ambient temperature (min. ... max.)

-20 °C ... +125 °C

Designation

for CKK/CKR-090/110/145/200, MKx-065/080/110/145/165, MLR-080/110, OBB, AGK, TKK

Weight [kg]

0.23

Cable diameter D (min. … max.)

10 mm ... 14 mm

Housing cable bushing

1 seal with bore 2x5.5 mm, 1x3.5 mm 1 adaptable seal, max. 14 mm diameter incl. cap and dummy plug

Cable bushing, connector

Bolting with pull relief

Maximum operating current per contact [A]

8

Option number

17/7

Protection class

‒
