Одинарный подшипник кулачкового ролика Bosch Rexroth LWA-052-SKS-FN-E-0 [R190315210]

Version

Cam roller guide

Nominal size [mm]

52

Width of runner block [mm]

44.5

Length of runner block [mm]

104

Height of runner block [mm]

29.5

Height runner block with guide rail [mm]

40

Maximum acceleration rate amax [m/s²]

50

Maximum permissible linear speed vmax [m/s]

10

Note: maximum permissible speed vmax

For average load.

Maximum permissible dynamic torsional moment about the x-axis Mx max [Nm]

0,75· a

Maximum permissible dynamic torsional moment about the y-axis My max [Nm]

0,75· b

Maximum permissible dynamic torsional moment about the z-axis Mz max [Nm]

1,2 · b

Maximum dynamic load in y-direction Fy max [N]

2500

Operating temperature (min. … max.)

-20 °C ... +80 °C

Maximum static load due to a resulting force in the y-direction F0y max [N]

2500

Weight [kg]

0.38

Maximum operating temperature [°C]

+80

Maximum dynamic load in z-direction Fz max [N]

1500

Minimum operating temperature [°C]

-20

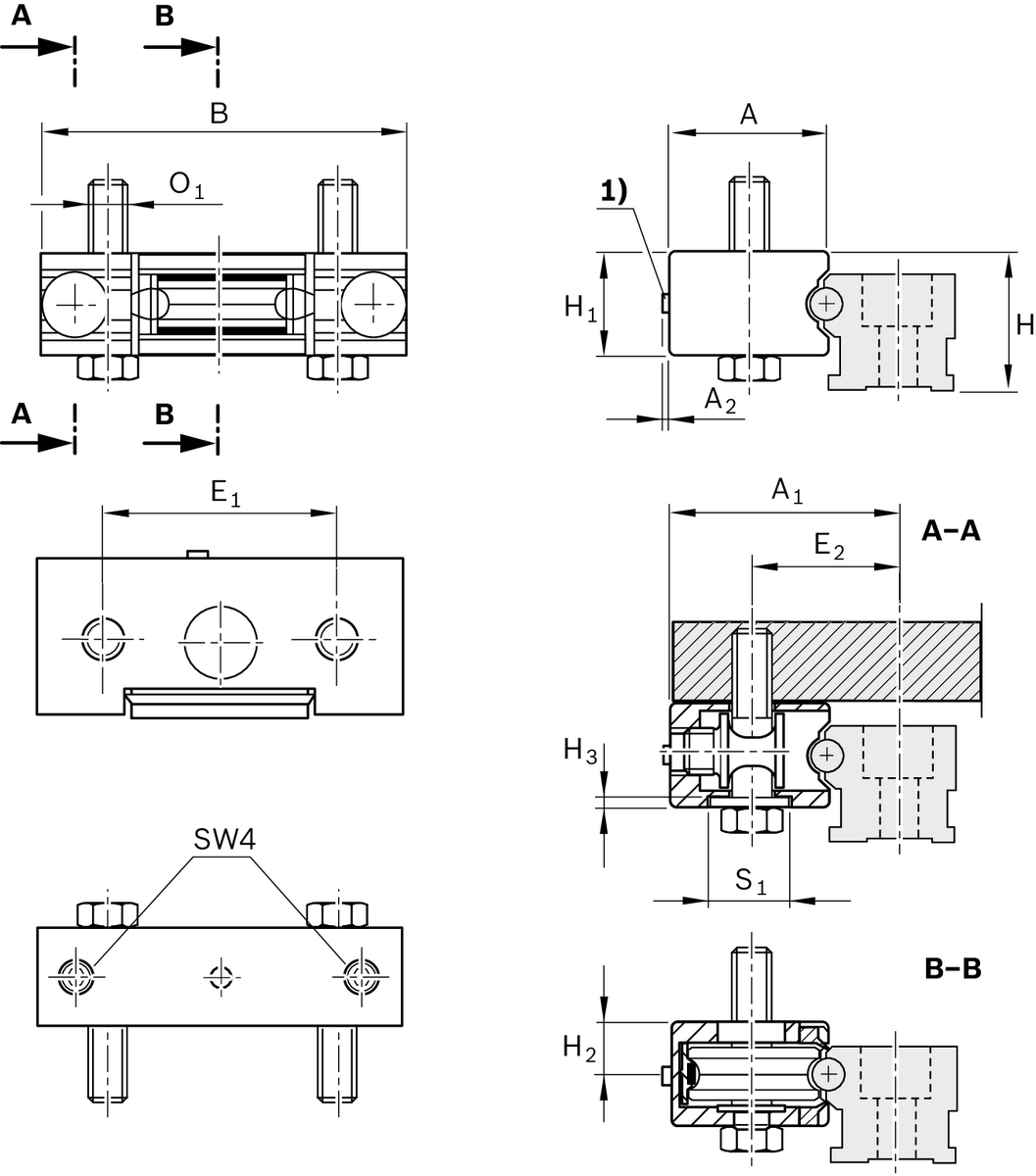

Dimension A (profiled rail systems) [mm]

44.5

Dimension A1 (profiled rail systems) [mm]

65

Dimension A2 (profiled rail systems) [mm]

2

Dimension B (profiled rail systems) [mm]

104

Dimension E1 [mm]

66

Dimension E2 (profiled rail systems) [mm]

42

Dimension H [mm]

40

Dimension H1 (profiled rail systems) [mm]

29.5

Dimension H2 (profiled rail systems) [mm]

14.9

Dimension H3 [mm]

2.5

Dimension O1 thread diameter

M10

Dimension S1 (profiled rail systems) [mm]

22

Dimension O1 thread diameter footnote

Fastening screws are not included. For screws ISO 4014 8.8, a washer according to ISO 7089 is required.
