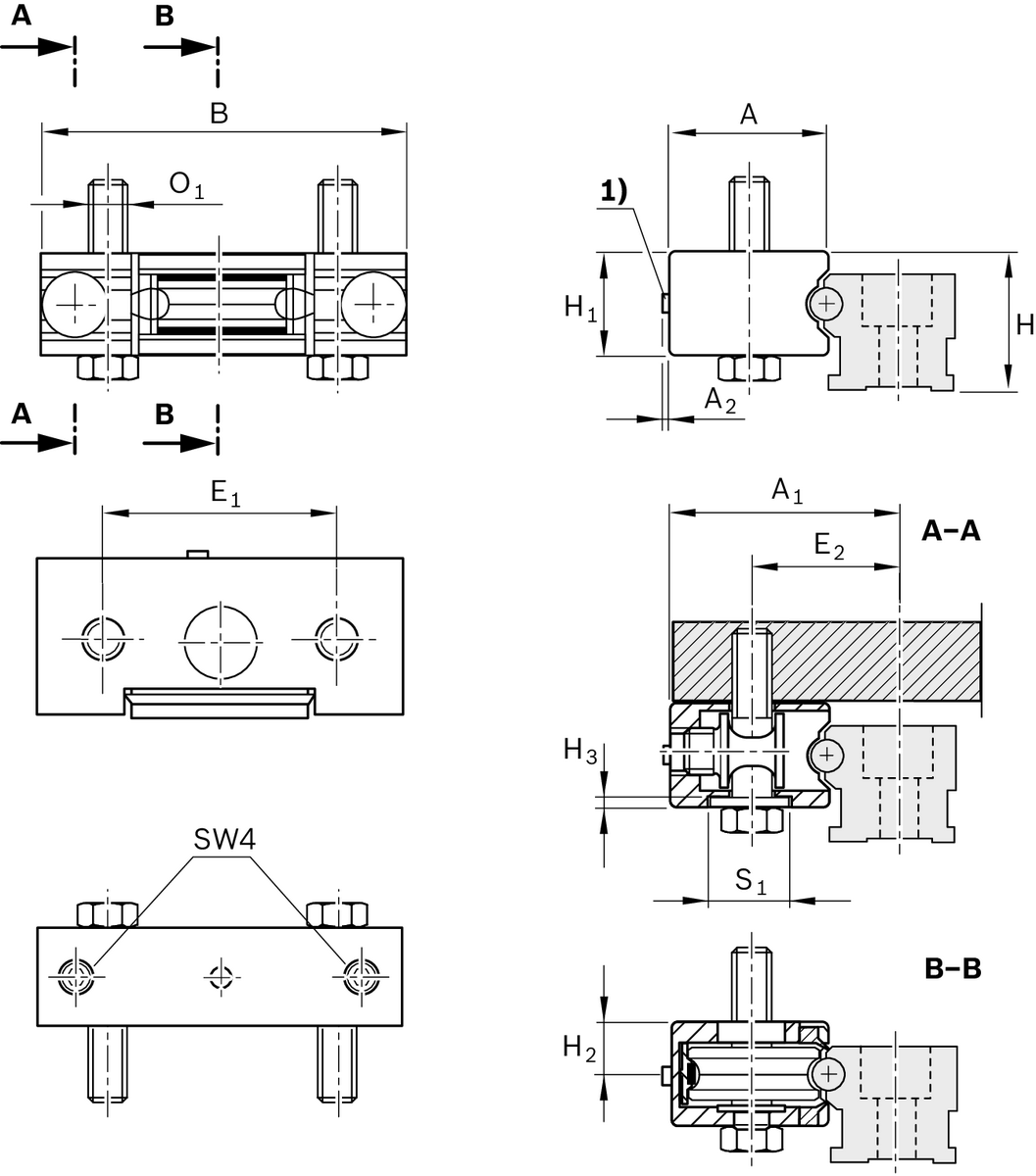

Одинарный подшипник кулачкового ролика Bosch Rexroth LWA-032-SKS-FN-E-0 [R190313210]

Version

Cam roller guide

Nominal size [mm]

32

Width of runner block [mm]

31

Length of runner block [mm]

87

Height of runner block [mm]

20.5

Height runner block with guide rail [mm]

26

Maximum acceleration rate amax [m/s²]

50

Maximum permissible linear speed vmax [m/s]

10

Note: maximum permissible speed vmax

For average load.

Maximum permissible dynamic torsional moment about the x-axis Mx max [Nm]

0,42 · a

Maximum permissible dynamic torsional moment about the y-axis My max [Nm]

0,42 · b

Maximum permissible dynamic torsional moment about the z-axis Mz max [Nm]

0,5 · b

Maximum dynamic load in y-direction Fy max [N]

1000

Operating temperature (min. … max.)

-20 °C ... +80 °C

Maximum static load due to a resulting force in the y-direction F0y max [N]

1000

Weight [kg]

0.16

Maximum operating temperature [°C]

+80

Maximum dynamic load in z-direction Fz max [N]

850

Minimum operating temperature [°C]

-20

Dimension A (profiled rail systems) [mm]

31

Dimension A1 (profiled rail systems) [mm]

43

Dimension A2 (profiled rail systems) [mm]

2

Dimension B (profiled rail systems) [mm]

87

Dimension E1 [mm]

54

Dimension E2 (profiled rail systems) [mm]

27

Dimension H [mm]

26

Dimension H1 (profiled rail systems) [mm]

20.5

Dimension H2 (profiled rail systems) [mm]

11

Dimension H3 [mm]

2.5

Dimension O1 thread diameter

M8

Dimension S1 (profiled rail systems) [mm]

18

Dimension O1 thread diameter footnote

Fastening screws are not included. For screws ISO 4014 8.8, a washer according to ISO 7089 is required.
