Shoulder milling cutter for steel, stainless steel, and high-temperature alloys. Kennametal HARVI Ultra 8X - Helical Shell Mill - SNHJ12 - For Corner Radius 0,8-4,0mm - Metric [6524715]
(0) |
Нет в наличии
0 руб.
До конца акции осталось:
00дн.
00час.
00мин.
Поделиться
![Shoulder milling cutter for steel, stainless steel, and high-temperature alloys. Kennametal HARVI Ultra 8X - Helical Shell Mill - SNHJ12 - For Corner Radius 0,8-4,0mm - Metric [6524715]](/bitrix/templates/magnet_s1/img/no-photo.png "Shoulder milling cutter for steel, stainless steel, and high-temperature alloys. Kennametal HARVI Ultra 8X - Helical Shell Mill - SNHJ12 - For Corner Radius 0,8-4,0mm - Metric [6524715]")
Shoulder milling cutter for steel, stainless steel, and high-temperature alloys. Kennametal HARVI Ultra 8X - Helical Shell Mill - SNHJ12 - For Corner Radius 0,8-4,0mm - Metric [6524715]
(0) |
Нет в наличии
0 руб.
Overview

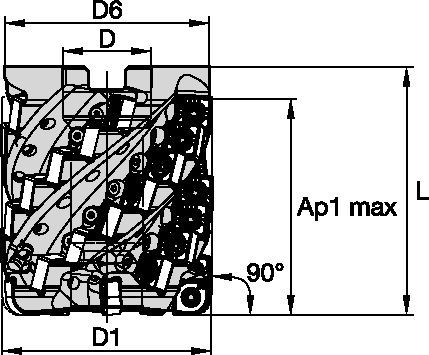

| Material Number | 6524715 |
| ISO Catalog ID | HU8X080S12S32ZU5AP72Z35 |
| [D1] Effective Cutting Diameter | 80 mm |
| [D] Adapter / Shank / Bore Diameter | 32 mm |
| [D6] Hub Diameter | 78 mm |
| [L] Overall Length | 90 mm |
| [AP1MAX] 1st Maximum Cutting Depth | 72 mm |
| Number of Inserts | 35 |
| [Z] Number of Flutes | 5 |
| Weight Kilograms | 2.02 |
| Max RPM | 12900 |
Uses and application
- Slotting: Shoulder Profiling
- Slotting: Shoulder
- Side Milling/Shoulder Milling: Square End
- Side Milling/Shoulder Milling: Eased Chamfer
- Milling - Through Coolant
- Milling - Side and Face
- Pocketing
Workpiece Materials
- Steel
- Stainless Steel
- Cast Iron
- High-Temp Alloys
- Hardened Materials
Features and benefits

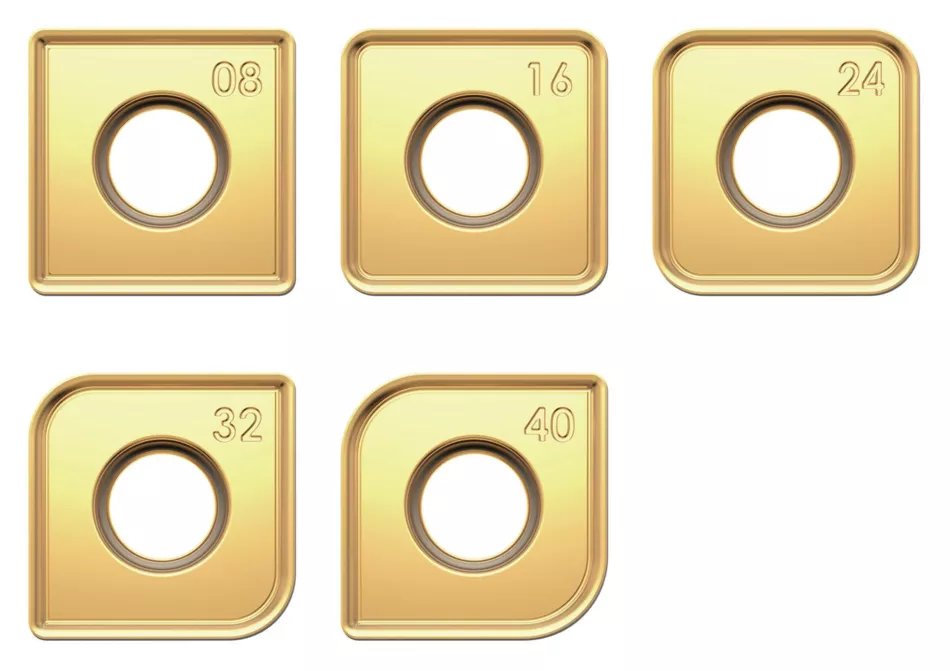

- ATTENTION: Inserts with corner radius 4,0mm require insert pocket modifications.
- Designed for aerospace airframe structural component machining, targeting maximum metal removal rates (MRR).
- Adjustable coolant nozzles support chip evacuation and control heat in the cutting zone.
- Large helix ensures hassle-free chip evacuation event at highest metal removal rates (MRR).
