Сегментная линейная втулка Bosch Rexroth KBSE-30 [R066803000]

Shaft diameter d [mm]

30

Version

Standard

Format of linear bushings

– Closed

Series

Segment

Seal

without wiper seals

Lubrication

Not lubricated

Maximum dynamic load capacity Cmax [N]

2530

Maximum acceleration rate amax [m/s²]

150

Maximum permissible linear speed vmax [m/s]

3

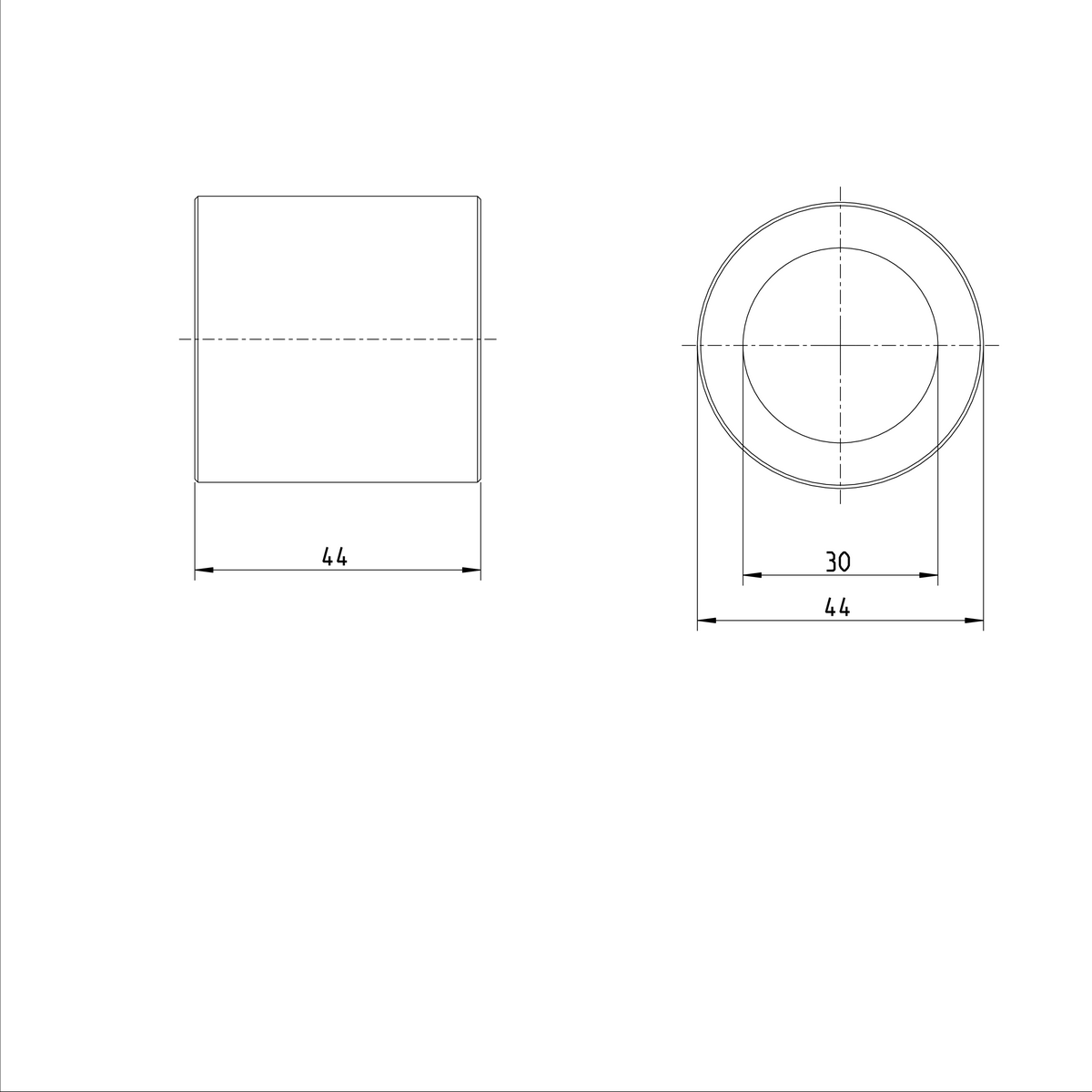

Length of linear bushing [mm]

44

Outer diameter D [mm]

44

Permissible ambient temperature (min. ... max.)

-10 °C ... +80 °C

Friction coefficient μ

0.001 ... 0.004

Note: friction coefficient μ

Friction coefficients of unsealed linear bushings when lubricated with oil. The friction coefficient is lowest under heavy load, but can still be above the specified value even under a low load.

Weight [kg]

0.11

Footnote maximum dynamic load capacity Cmax

The dynamic load capacities are based on a total travel of 100,000 m. When based on 50,000 m, the C values in the table are to be multiplied by 1.26.

Footnote maximum static load capacity C0max

null

Footnote minimum dynamic load capacity Cmin

The dynamic load capacities are based on a total travel of 100,000 m. When based on 50,000 m, the C values in the table are to be multiplied by 1.26.

Footnote minimum static load capacity C0min

null

Footnote friction force FR

Frictional drags generated by linear bushings with seals on both ends when not under radial load. This depends on speed and lubrication.

Breakaway force [N]

9

Type

Linear bushing

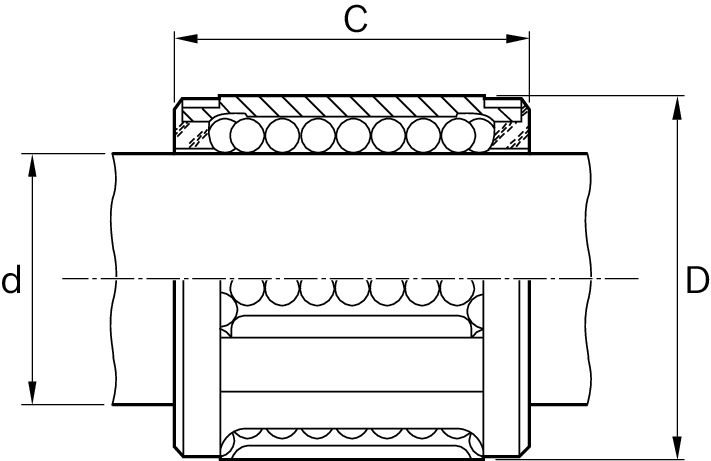

Dimension C js14 [mm]

44

Dimension D [mm]

44
