Скребковая пластина для роликовых рельсовых систем Bosch Rexroth 45 (0.30) [R182041040]

Accessories for

Runner block

Nominal size [mm]

45

Width of runner block [mm]

77

Height runner block with guide rail [mm]

49.8

Mass m (g) [g]

71

Weight [kg]

0.08

Size footnote

For cover strip 0.3 mm

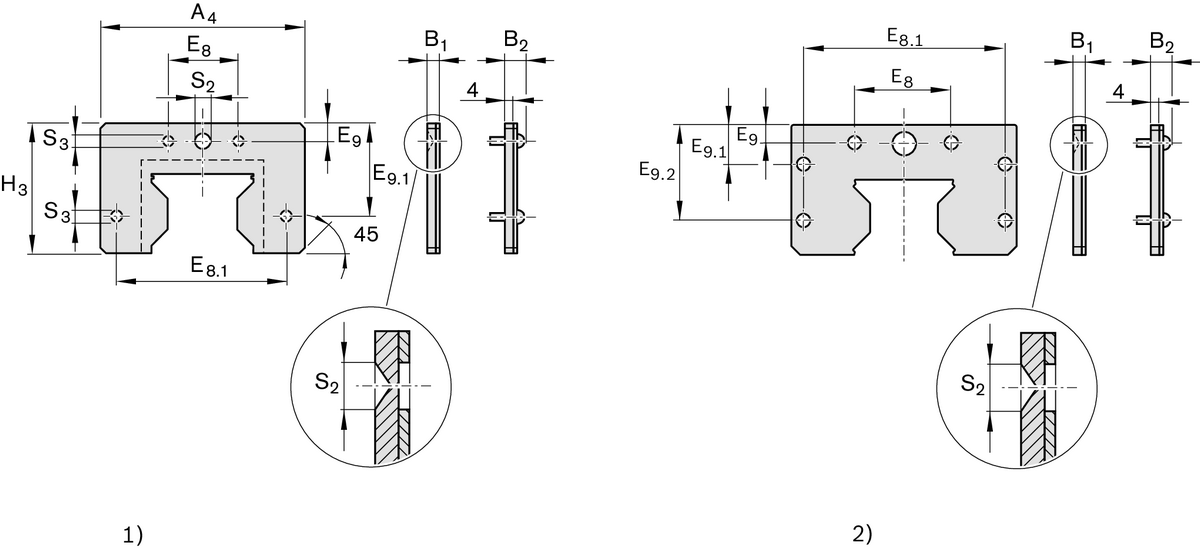

Dimension A (profiled rail systems) [mm]

77

Dimension A1 (profiled rail systems) [mm]

2

Dimension D [mm]

6

Dimension D1 [mm]

9

Dimension diameter S2 (profiled rail systems) [mm]

7

Dimension diameter S3 (profiled rail systems) [mm]

5

Dimension diameter S4 (profiled rail systems) [mm]

4

Dimension E8 (profiled rail systems) [mm]

62.9

Dimension E8.1 (profiled rail systems) [mm]

69.6

Dimension E9 (profiled rail systems) [mm]

16

Dimension E9.1 (profiled rail systems) [mm]

35.8

Dimension H [mm]

49.8
