Скребковая пластина для роликовых рельсовых систем Bosch Rexroth 25 (0.20) [R182021000]

Accessories for

Runner block

Nominal size [mm]

25

Width of runner block [mm]

44

Height runner block with guide rail [mm]

28.5

Mass m (g) [g]

22

Weight [kg]

0.03

Size footnote

For cover strip 0.2 mm

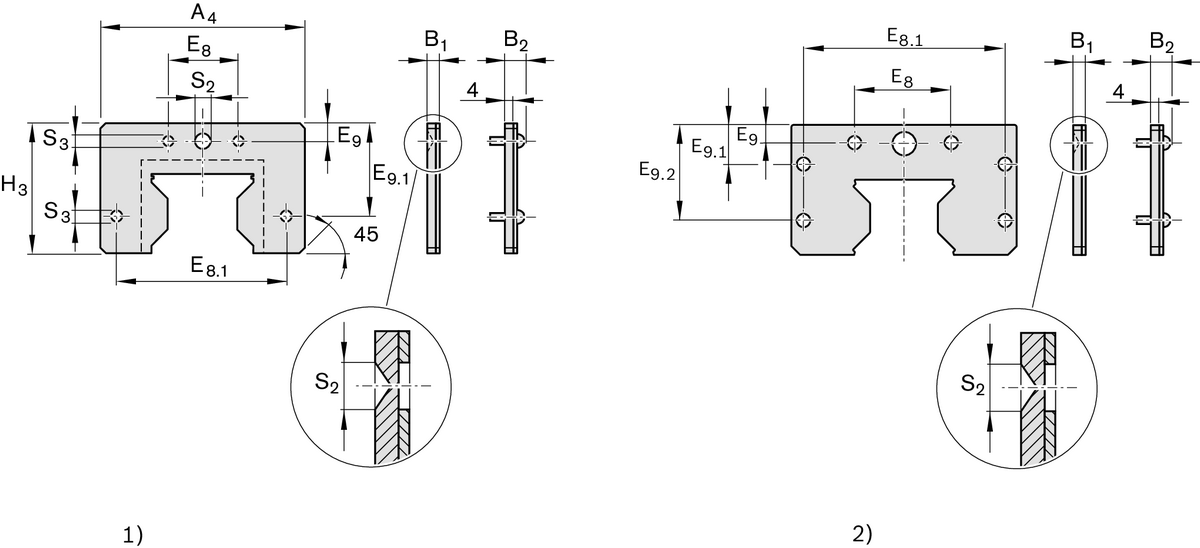

Dimension A (profiled rail systems) [mm]

44

Dimension A1 (profiled rail systems) [mm]

1.2

Dimension D [mm]

5

Dimension D1 [mm]

7

Dimension diameter S2 (profiled rail systems) [mm]

7

Dimension diameter S3 (profiled rail systems) [mm]

4

Dimension diameter S4 (profiled rail systems) [mm]

3

Dimension E8 (profiled rail systems) [mm]

33.4

Dimension E8.1 (profiled rail systems) [mm]

40.2

Dimension E9 (profiled rail systems) [mm]

7.9

Dimension E9.1 (profiled rail systems) [mm]

20.9

Dimension H [mm]

28.5
