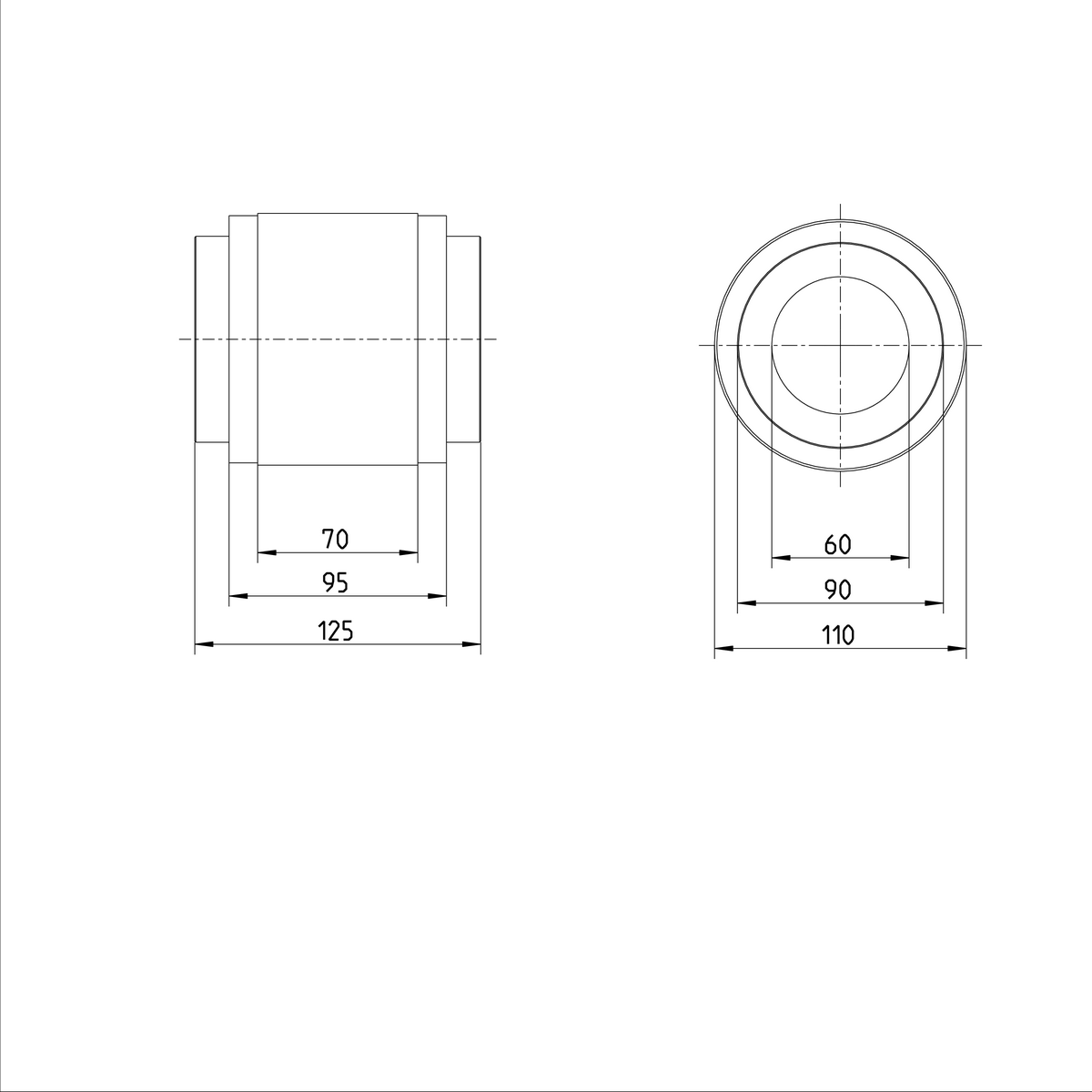

Вращающаяся линейная втулка с игольчатым подшипником Bosch Rexroth KBRON-60-DD [R066706000]

Shaft diameter d [mm]

60

Version

Standard

Format of linear bushings

N - With needle bearing

Series

Combined linear and rotary motion (rotation)

Seal

2 integrated wiper seals

Lubrication

Not lubricated

Dynamic load capacity C [N]

11500

Note: dynamic load capacity C

The load capacities indicated are minimal values as the orientation and direction of loading cannot always be clearly defined.

Maximum acceleration rate amax [m/s²]

50

Maximum permissible linear speed vmax [m/s]

2

Length of linear bushing [mm]

125

Outer diameter D [mm]

110

Permissible ambient temperature (min. ... max.)

-10 °C ... +80 °C

Weight [kg]

3.93

Footnote diameter d

Contrary to the illustration, these sizes have two needle bearings.

Static load capacity C0 [N]

9160

Note: static load capacity C0

The load capacities indicated are minimal values as the orientation and direction of loading cannot always be clearly defined.

Retaining ring footnote

Seeger-Orbis GmbH

Type

Linear bushing

Dimension A (profiled rail systems) [mm]

95

Dimension B (profiled rail systems) [mm]

125

Dimension b [mm]

70

Dimension C3 H12 [mm]

100.2

Dimension C4 H13 [mm]

2.7

Dimension D [mm]

110

Dimension D1 [mm]

90

Dimension D2 [mm]

95

Dimension D3 [mm]

108
