Роликовая каретка из углеродистой стали Bosch Rexroth RWD-035-SNH-C3-P-2 [R18213322X]

Version

Roller rail systems

Nominal size [mm]

35

Format

SNH - slimline, normal, high

Model

High-precision roller runner block

Material (profiled rail systems)

Carbon steel

Preload class

C3 - High preload

Accuracy class

P - Precise

Seal

DS - Double-lip seal

Width of runner block [mm]

70

Length of runner block [mm]

118

Height of runner block [mm]

48

Height runner block with guide rail [mm]

55

Lubrication

With preservation and without initial lubrication

Maximum acceleration rate amax [m/s²]

150

Note: Max. acceleration amax

Requirement: There must be preload, even during operation under load.

Maximum permissible linear speed vmax [m/s]

4

Permissible ambient temperature (min. ... max.)

-10 °C ... +80 °C

Note: permissible ambient temperature (min. ... max.)

100 °C admissible for short time. For operation at lower minus temperatures, please consult us.

Friction coefficient μ

0.0004 ... 0.001

Note: friction coefficient μ

Without friction of seal

Weight [kg]

1.77

Dynamic load capacity C50 [N]

75000

Note: dynamic load capacity C50

Dynamic load capacity and load moments based on a travel of 50,000 m.

Dynamic load capacity C100 [N]

61000

Note: dynamic load capacity C100

Dynamic load capacities and load moments are based on a travel of 100,000 m according to DIN ISO 14728-1.

Static load capacity C0 [N]

119400

Dynamic torsional moment load capacity Mt50 [Nm]

1490

Note: Dynamic torsional moment load capacity Mt50

Dynamic load capacity and load moments based on a travel of 50,000 m.

Dynamic torsional moment load capacity Mt100 [Nm]

1210

Note: Dynamic torsional moment load capacity Mt100

Dynamic load capacities and load moments are based on a travel of 100,000 m according to DIN ISO 14728-1.

Static torsional moment load capacity Mt0 [Nm]

2370

Dynamic longitudinal moment load capacity ML50 [Nm]

940

Note: Dynamic longitudinal moment load capacity ML50

Dynamic load capacity and load moments based on a travel of 50,000 m.

Dynamic longitudinal moment load capacity ML100 [Nm]

760

Note: Dynamic longitudinal moment load capacity ML100

Dynamic load capacities and load moments are based on a travel of 100,000 m according to DIN ISO 14728-1.

Static longitudinal moment load capacity ML0 [Nm]

1480

Footnote friction force FR

Guideline value for frictional drags of the complete, sealed and lubricated roller runner block.

Pitch T guide rail [mm]

40

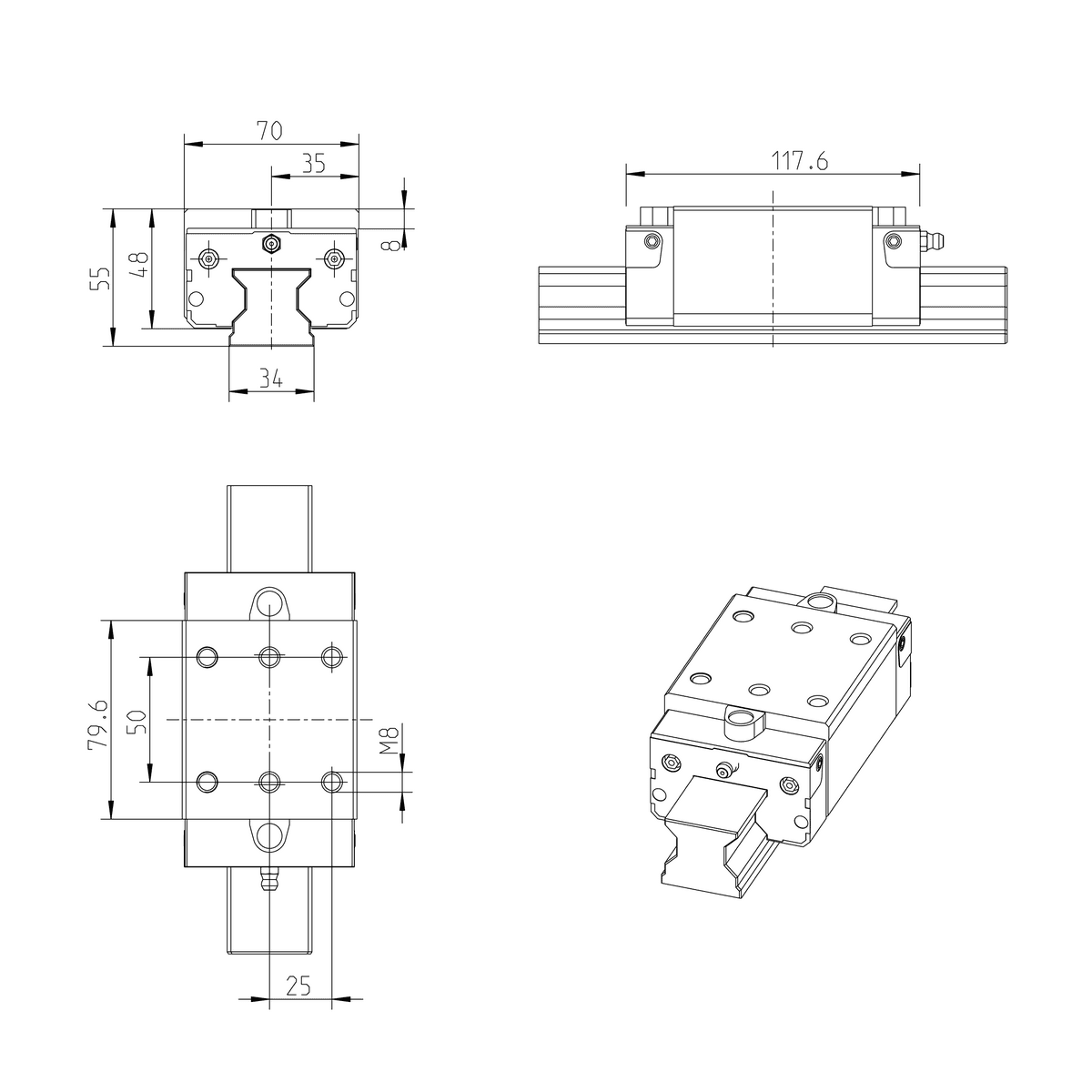

Dimension A (profiled rail systems) [mm]

70

Dimension A1 (profiled rail systems) [mm]

35

Dimension A2 (profiled rail systems) [mm]

34

Dimension A3 (profiled rail systems) [mm]

18

Dimension B (profiled rail systems) [mm]

118

Dimension B1 [mm]

79.6

Dimension diameter S5 (profiled rail systems)

9

Dimension E1 [mm]

50

Dimension E2 (profiled rail systems) [mm]

50

Dimension E8 (profiled rail systems) [mm]

50.3

Dimension E9 (profiled rail systems) [mm]

20.1

Dimension H [mm]

55

Dimension H1 (profiled rail systems) [mm]

48

Dimension H2 with cover strip (profiled rail systems) [mm]

31.1

Dimension H2 without cover strip (profiled rail systems) [mm]

30.8

Dimension K1 (profiled rail systems) [mm]

21.55

Dimension K2 (profiled rail systems) [mm]

23.4

Dimension N3 (profiled rail systems) [mm]

13

Dimension N5 (profiled rail systems) [mm]

14

Dimension N6 (profiled rail systems) [mm]

19.4

Dimension N6 tolerance (profiled rail systems) [mm]

±0.5

Dimension S2 (profiled rail systems)

M8

Dimension S9

M3

Dimension S9 thread diameter (profiled rail systems)

M3

Dimension T1 min [mm]

16

Dimension V1 [mm]

8

Note of Dimension T

T = Rail separation of the Roller Guide Rail
