Роликовая каретка из углеродистой стали Bosch Rexroth RWA-125-FNS-C2-H-2 [R186132310]

Version

Roller rail systems

Nominal size [mm]

125

Format

FNS - flange, normal, standard height

Model

Heavy-duty roller runner block

Material (profiled rail systems)

Carbon steel

Preload class

C2 - Medium preload

Accuracy class

H - Highly accurate

Seal

SS - Standard seal

Width of runner block [mm]

320

Length of runner block [mm]

371

Height of runner block [mm]

135.5

Height runner block with guide rail [mm]

160

Lubrication

With preservation and without initial lubrication

Maximum acceleration rate amax [m/s²]

150

Note: Max. acceleration amax

Requirement: There must be preload, even during operation under load.

Maximum permissible linear speed vmax [m/s]

2

Permissible ambient temperature (min. ... max.)

-10 °C ... +80 °C

Note: permissible ambient temperature (min. ... max.)

100 °C admissible for short time. For operation at lower minus temperatures, please consult us.

Friction coefficient μ

0.0004 ... 0.001

Note: friction coefficient μ

Without friction of seal

Weight [kg]

62.1

Dynamic load capacity C50 [N]

931000

Note: dynamic load capacity C50

Dynamic load capacity and load moments based on a travel of 50,000 m.

Dynamic load capacity C100 [N]

757200

Note: dynamic load capacity C100

Dynamic load capacities and load moments are based on a travel of 100,000 m according to DIN ISO 14728-1.

Static load capacity C0 [N]

1324000

Dynamic torsional moment load capacity Mt50 [Nm]

67100

Note: Dynamic torsional moment load capacity Mt50

Dynamic load capacity and load moments based on a travel of 50,000 m.

Dynamic torsional moment load capacity Mt100 [Nm]

54520

Note: Dynamic torsional moment load capacity Mt100

Dynamic load capacities and load moments are based on a travel of 100,000 m according to DIN ISO 14728-1.

Static torsional moment load capacity Mt0 [Nm]

95330

Dynamic longitudinal moment load capacity ML50 [Nm]

36500

Note: Dynamic longitudinal moment load capacity ML50

Dynamic load capacity and load moments based on a travel of 50,000 m.

Dynamic longitudinal moment load capacity ML100 [Nm]

29660

Note: Dynamic longitudinal moment load capacity ML100

Dynamic load capacities and load moments are based on a travel of 100,000 m according to DIN ISO 14728-1.

Static longitudinal moment load capacity ML0 [Nm]

51860

Footnote friction force FR

Guideline value for frictional drags of the complete, sealed and lubricated roller runner blocks. The friction is approx. 50% higher immediately after lubrication.

Pitch T guide rail [mm]

120

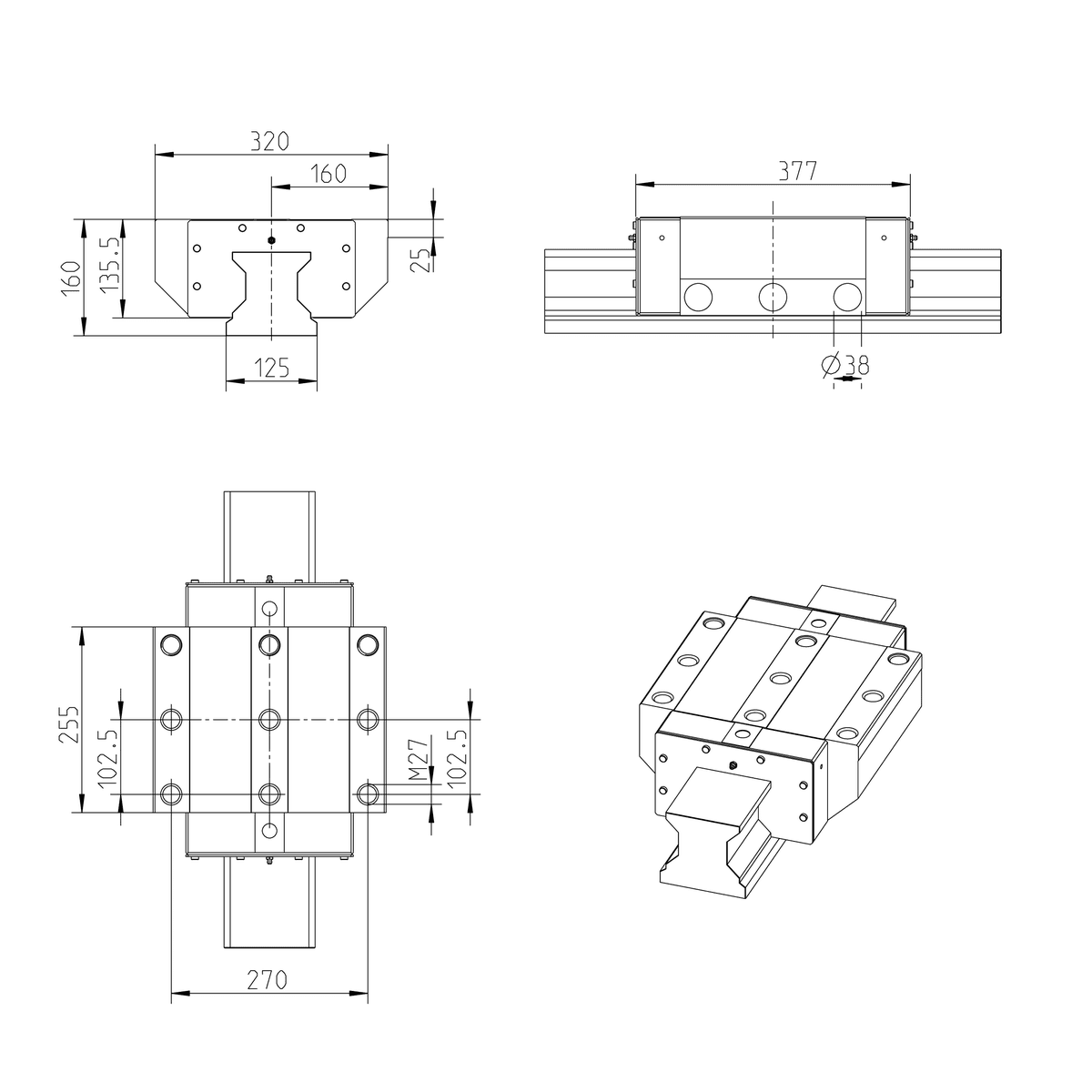

Dimension A (profiled rail systems) [mm]

320

Dimension A1 (profiled rail systems) [mm]

160

Dimension A2 (profiled rail systems) [mm]

125

Dimension A3 (profiled rail systems) [mm]

97.5

Dimension B (profiled rail systems) [mm]

371

Dimension B1 [mm]

255

Dimension B2 (profiled rail systems) [mm]

377

Dimension B3 [mm]

386.5

Dimension B4 [mm]

130

Dimension diameter S5 (profiled rail systems)

33

Dimension E1 [mm]

270

Dimension E2 (profiled rail systems) [mm]

205

Dimension E8 (profiled rail systems) [mm]

80

Dimension E9 (profiled rail systems) [mm]

12

Dimension H [mm]

160

Dimension H1 (profiled rail systems) [mm]

135.5

Dimension H2 with cover strip (profiled rail systems) [mm]

115.3

Dimension K1 (profiled rail systems) [mm]

50

Dimension K2 (profiled rail systems) [mm]

50

Dimension N1 (profiled rail systems) [mm]

45

Dimension N2 (profiled rail systems) [mm]

29

Dimension N5 (profiled rail systems) [mm]

29

Dimension N6 (profiled rail systems) [mm]

74.5

Dimension N6 tolerance (profiled rail systems) [mm]

±0.5

Dimension N7 (profiled rail systems) [mm]

92

Dimension S1 thread diameter (profiled rail systems) [mm]

25

Dimension S2 (profiled rail systems)

M27

Dimension T1 min [mm]

40

Dimension V1 [mm]

25

Note of Dimension T

T = Rail separation of the Roller Guide Rail
