Роликовая направляющая устойчивая к коррозии с покрытием Resist CR Bosch Rexroth RSA-055-BNS-H-MA-SC [R187356371]

Version

Roller rail systems

Nominal size [mm]

55/85

Format

BNS - wide guide rail

Material (profiled rail systems)

Hard chrome plated

Accuracy class

H - Highly accurate

Guide rail mounting

For bolting from above

Guide rail cover

With cover strip

Max. length Lmax [mm]

3956

Number of holes nB (profiled rail systems)

66

Number of sections

One-piece

Mass m (kg/m) [kg/m]

24.7

Permissible ambient temperature (min. ... max.)

-10 °C ... +80 °C

Note: permissible ambient temperature (min. ... max.)

100°C admissible for short time. For operation at lower minus temperatures, please consult us.

Weight [kg]

0

Recommended rail length (formula)

L = nB • T ‒ 4 mm

Pitch T guide rail [mm]

60

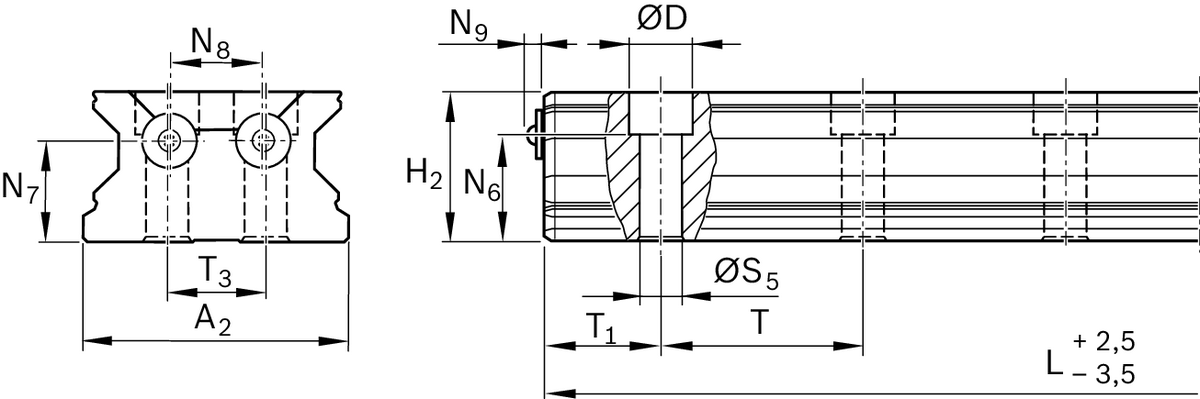

Dimension A2 (profiled rail systems) [mm]

85

Dimension D [mm]

20

Dimension diameter S5 (profiled rail systems)

18

Dimension H2 with cover strip (profiled rail systems) [mm]

47.85

Footnote of H2 with cover strip (profiled rail systems)

With cover strip 0.3 mm

Dimension N6 (profiled rail systems) [mm]

31.2

Dimension N6 tolerance (profiled rail systems) [mm]

±0.5

Dimension N7 (profiled rail systems) [mm]

30

Dimension N8 (profiled rail systems) [mm]

32

Dimension N9 (profiled rail systems) [mm]

4.8

Dimension T [mm]

60

Dimension T1 min [mm]

28

Dimension T1 s (profiled rail systems) [mm]

32

Footnote of dimension T1 min (profiled rail systems)

When undercutting T1 min, no front-side thread possible. Secure the cover strip! Observe the instruction for mounting!

Footnote of dimension T1 s (profiled rail systems)

Preferred dimension T1S with tolerance +1/-1.5

Height of guide rail H2 with cover strip [mm]

47.85
