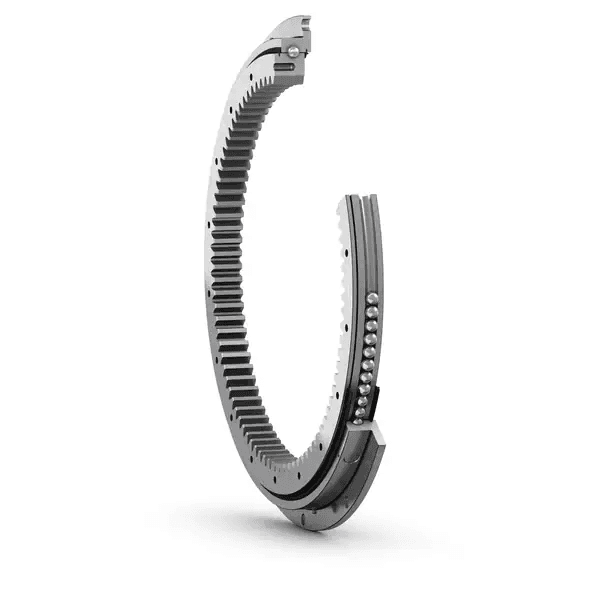

RK series internally geared slewing ring bearings have a flanged cross-section on the outer ring that reduces weight and provides the equipment designer with unique flexibility, accommodating various configurations of adjacent mounting structures and bolting arrangements. The use of spacer balls alternated with load balls allows for lower rotational torque and superior performance in applications involving oscillatory movement. Integral face riding bearing seals are provided to assist in the exclusion of contaminants. Accommodate radial, axial and moment loads simultaneously Economical Most capacity relative to envelope size Minimal maintenance Four lubrication fittings spaced 90 degrees apart Integral sealing prolongs bearing life

Основные
Масса нетто изделия	40.8kg
Код eClass	23-05-14-01
Код UNSPSC	31171504
Наружный диаметр	647.954mm
Диаметр отверстия	447.04mm
Ширина	56.007mm
Угол контакта	45°
