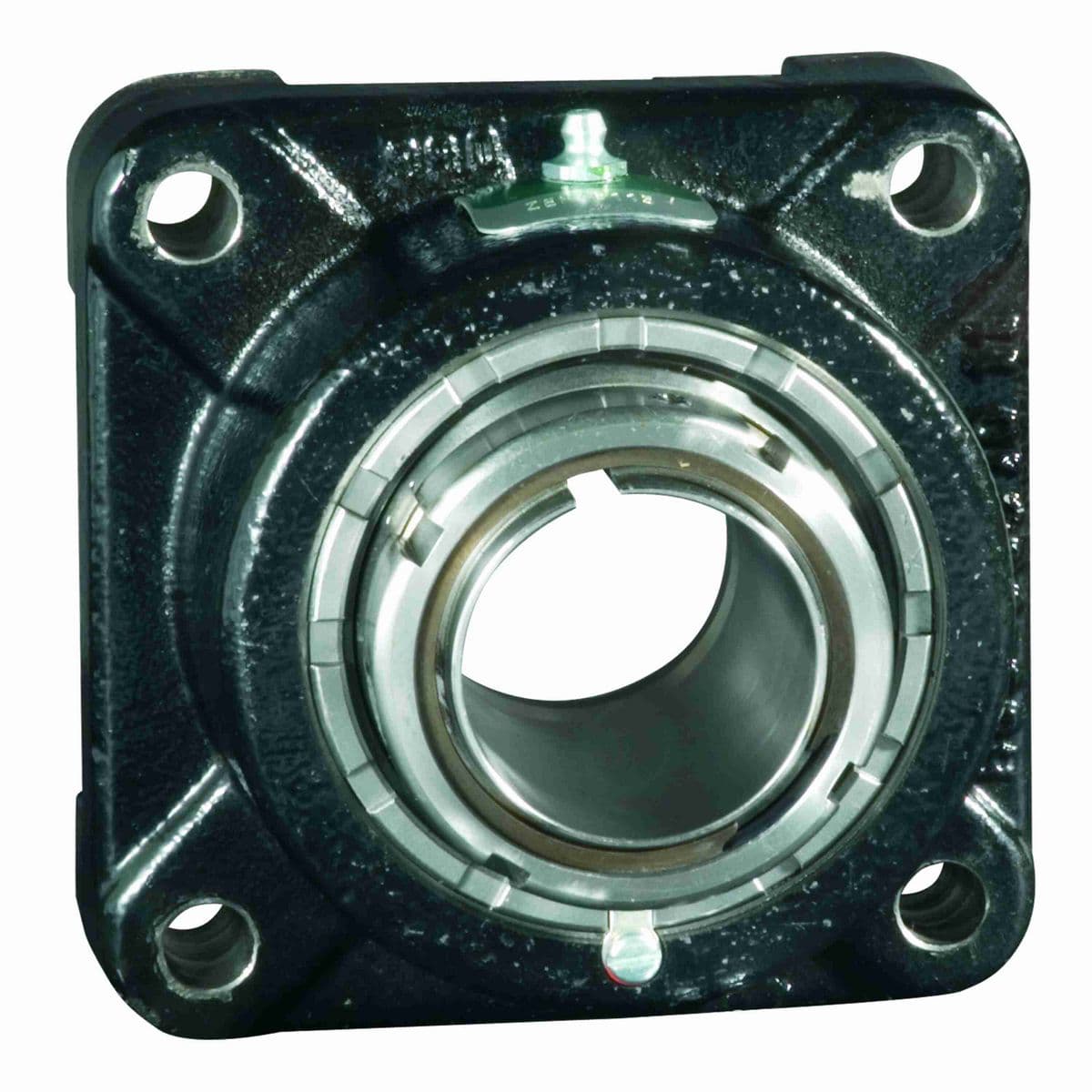

• 3 7/16" Mounted Spherical Roller Bearing, Cast Iron 4-Bolt Square Flange Block, Shurlok Adapter Mounted, Clearance Seal

Dimensions

Foot Height (in)	2.07 in
Bore Diameter (in)	3.4375 in
Overall Height (in)	6.2 in
Overall Width (in)	8.75 in
Housing Height (in)	4.66 in
Bolt Size (in)	3/4 in
Housing Width (in)	9.25 in
Overall Length (in)	8.75 in
Locking Collar Outside Diameter (in)	4.95 in
Standoff Distance (in)	1.17 in
Bolt Circle (in)	9.906 in
Length Through Bore (in)	5.03 in
Inner Ring Outside Diameter (in)	3.975 in
Housing Cast Face to Outermost Bearing Face (in)	1.59 in
Bolt Spacing (in)	7 in

Technical Specifications

Misalignment Type	Dynamic
Housing Construction	Solid
Housing Type	Flange, Four Bolt
Seal Type	Clearance Seal
Product	ZEF6000
Series	Flange Blocks
Radial Clearance	C3 STANDARD
Rolling Element	Spherical Roller
Housing Material	Cast Iron
Housing Style	Flange Block
Cage Material	Engineered Polymer
Radial Dynamic Load Capacity (lb)	84,330 lb
End Cap	NEED EXT EC
Fixed/Expansion	Fixed
Shaft Locking Type	Adapter Mount
Static Load Rating (lb)	90,700 lb
Ability to Relubricate	Yes
Available Seal Type	K Light Contact Lip Seal; M Spring Loaded Heavy Contact Lip Seal (Buna and Viton); Z Clearance Seal; G Triple Lip
Setscrew Torque (in-lbs)	165-185 in/lbs
Seal Kit	ZS10
Microlock Kit	ML4
Maximum Speed (RPM)	2400 rpm
Vibration Frequency Inner Ring Defect	0.1784 cps
Lubricant	EXXON RONEX MP STD
Locking Device Kit	AK106307
Shaft Locking Collar Kit/Adapter Assembly	AK106307
Size Code	10
Insert	6307U
Max Operating Temperature (C)	107 °C
Misalignment Capability	±2.0° Misalignment - Dynamic
Vibration Frequency Fundamental Train	0.0073 cps
Grease Fitting Thread Size	1/8 NPT
Max Operating Temperature (F)	225 °F
Vibration Frequency Roller Spin	0.0628 cps
Primary Seal	STEEL CLEARANCE SEAL
Housing Coating	POWDER COATED
Vibration Frequency Outer Ring Defect	0.1383 cps
Impact Style Shurlok Install Tool	105-90425-51

General Specifications

UPC	698210035570
Weight	43.00 LB
Packaged Length	9.69 IN
Packaged Width	9.69 IN
Packaged Height	6.25 IN
Country of Origin	Mexico
