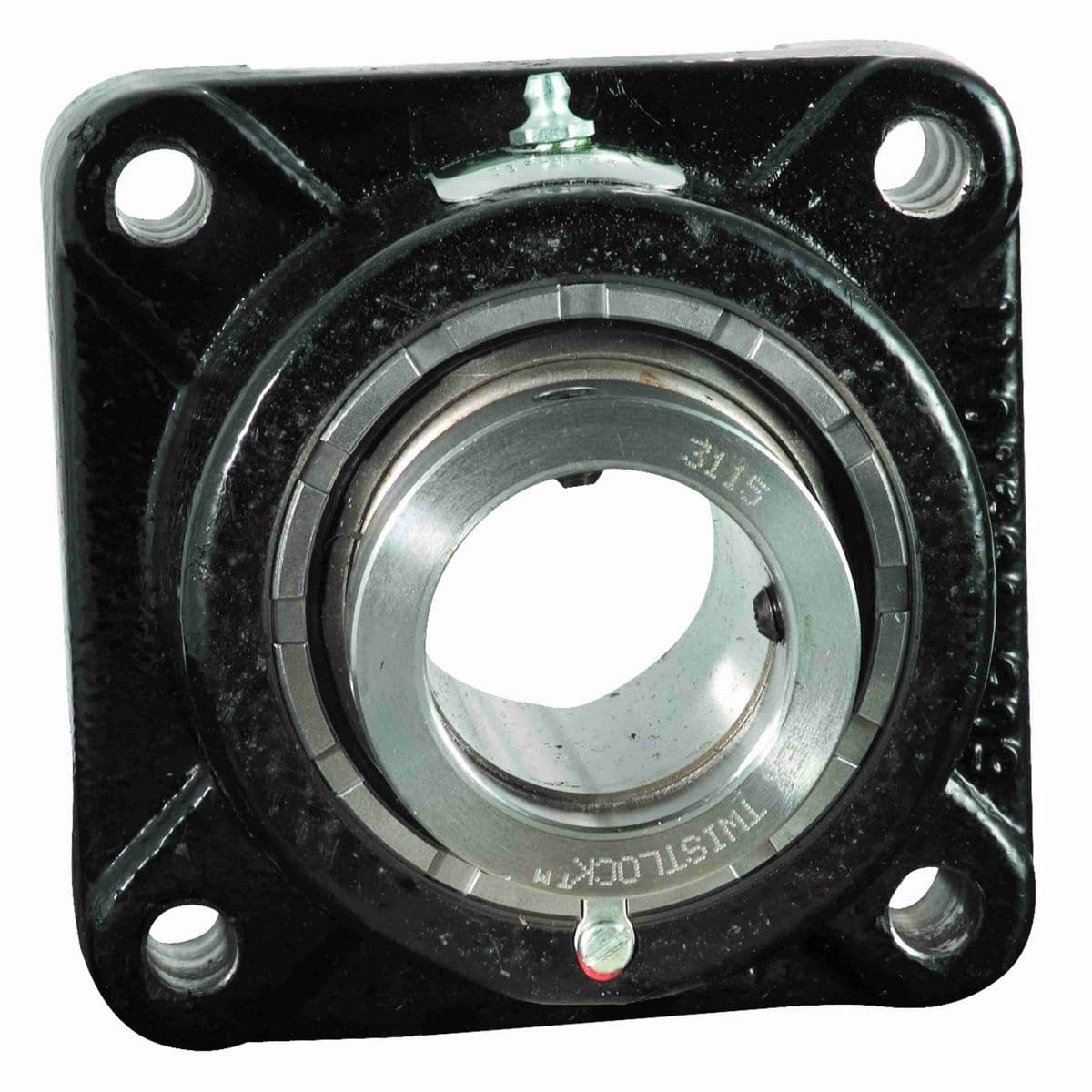

• 1 15/16" Mounted Spherical Roller Bearing, Cast Iron 4-Bolt Square Flange Block, Eccentric Cam Locking Collar, Clearance Seal

Dimensions

Bolt Size (in)	1/2 in
Bore Diameter (in)	1.9375 in
Housing Width (in)	5.63 in
Housing Height (in)	3.28 in
Overall Height (in)	4.16 in
Foot Height (in)	1.5 in
Overall Length (in)	5.63 in
Overall Width (in)	5.63 in
Standoff Distance (in)	0.09 in
Locking Collar Outside Diameter (in)	2.75 in
Length Through Bore (in)	3.28 in
Bolt Spacing (in)	4.38 in
Inner Ring Outside Diameter (in)	2.307 in
Bolt Circle (in)	6.188 in
Housing Cast Face to Outermost Bearing Face (in)	0.84 in

Technical Specifications

Seal Type	Clearance Seal
Housing Material	Cast Iron
Housing Style	Flange Block
End Cap	DTC612
Series	Flange Blocks
Misalignment Type	Dynamic
Static Load Rating (lb)	33,200 lb
Shaft Locking Type	Eccentric Collar
Housing Type	Flange, Four Bolt
Fixed/Expansion	Fixed
Housing Construction	Solid
Product	ZEF3000
Cage Material	Engineered Polymer
Rolling Element	Spherical Roller
Radial Clearance	C3 STANDARD
Radial Dynamic Load Capacity (lb)	28,890 lb
Seal Kit	ZS6
Available Seal Type	K Light Contact Lip Seal; M Spring Loaded Heavy Contact Lip Seal (Buna and Viton); Z Clearance Seal; G Triple Lip
Microlock Kit	ML2
Maximum Speed (RPM)	4050 rpm
Setscrew Torque (in-lbs)	325 in/lbs
Ability to Relubricate	Yes
Primary Seal	STEEL CLEARANCE SEAL
Vibration Frequency Roller Spin	0.0559 cps
Locking Device Kit	SC3115
Housing Coating	POWDER COATED
Max Operating Temperature (C)	107 °C
Vibration Frequency Outer Ring Defect	0.1217 cps
Vibration Frequency Fundamental Train	0.0072 cps
Misalignment Capability	±2.0° Misalignment - Dynamic
Max Operating Temperature (F)	225 °F
Size Code	6
Vibration Frequency Inner Ring Defect	0.1617 cps
Insert	3115U
Grease Fitting Thread Size	1/8 NPT
Lubricant	EXXON RONEX MP STD

General Specifications

UPC	698210911096
Weight	11.00 LB
Packaged Length	7.25 IN
Packaged Width	3.50 IN
Packaged Height	7.25 IN
HTC	8483204080
Country of Origin	Mexico
