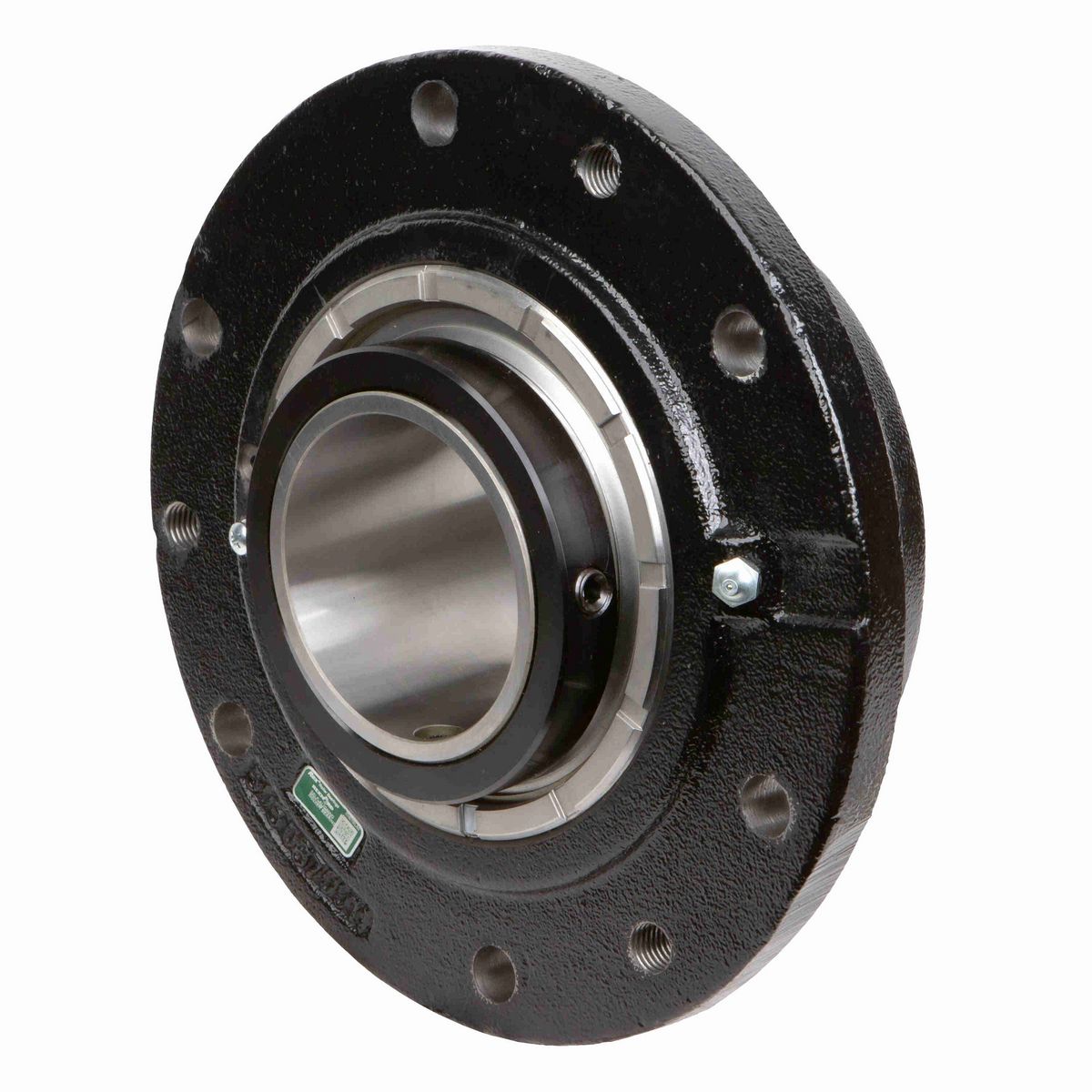

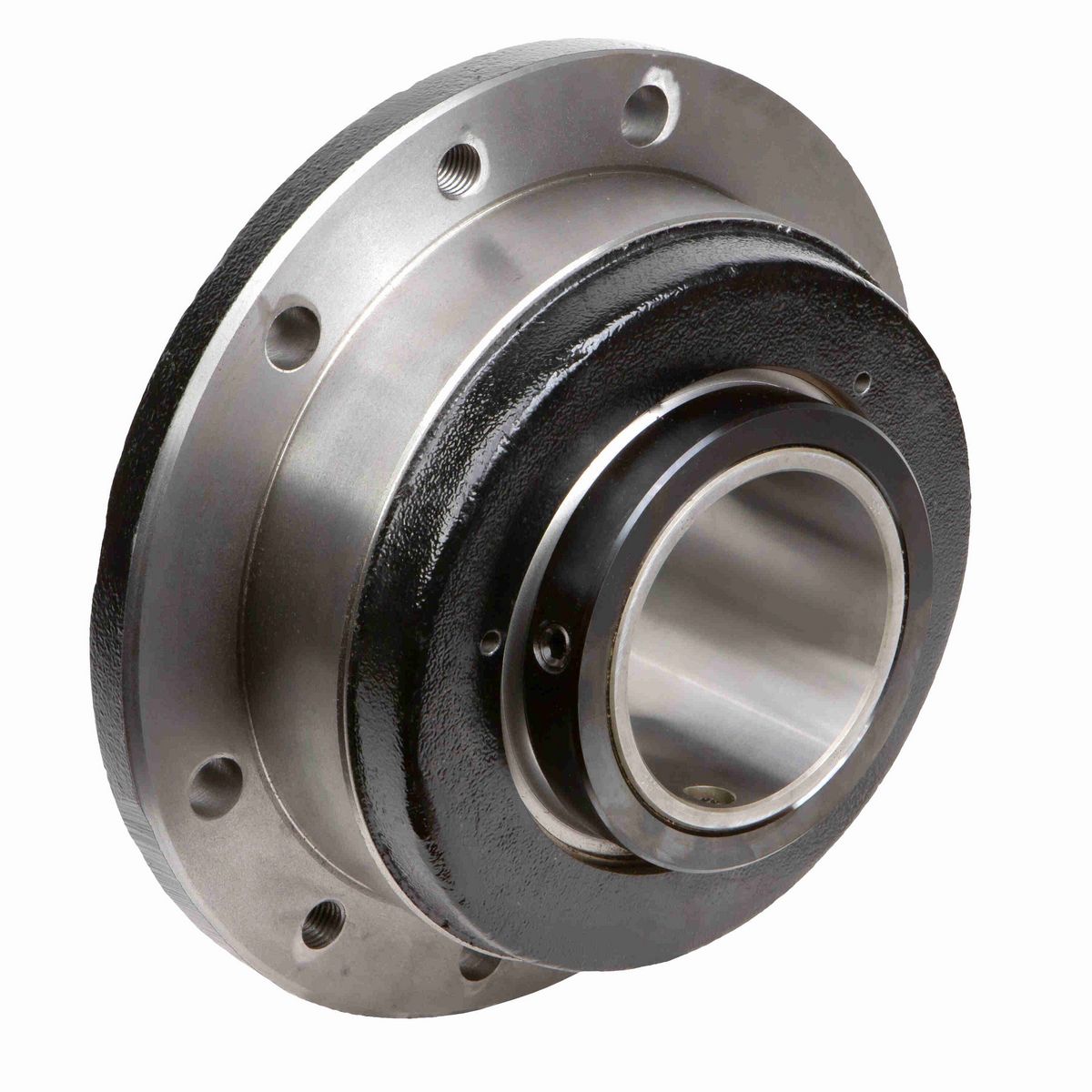

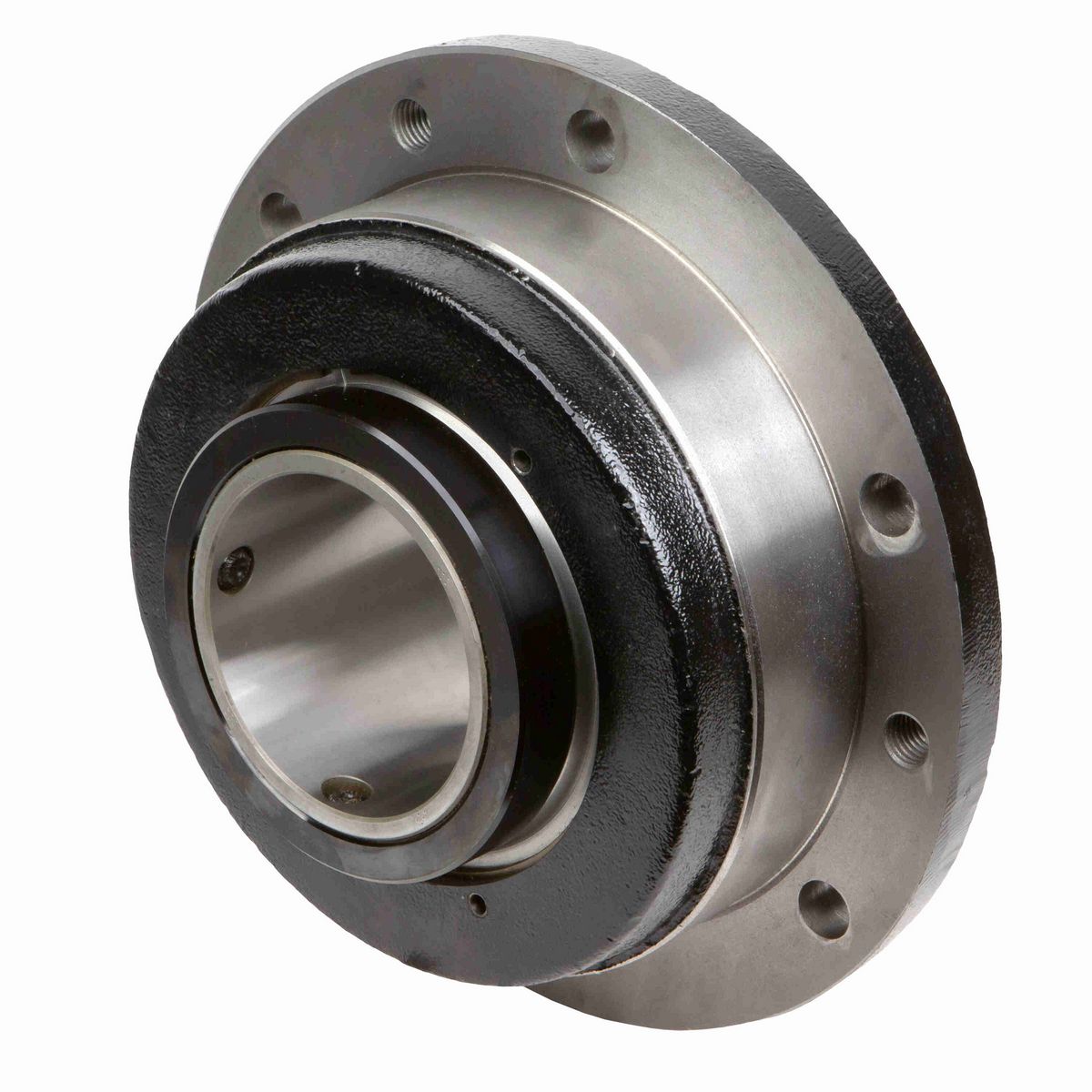

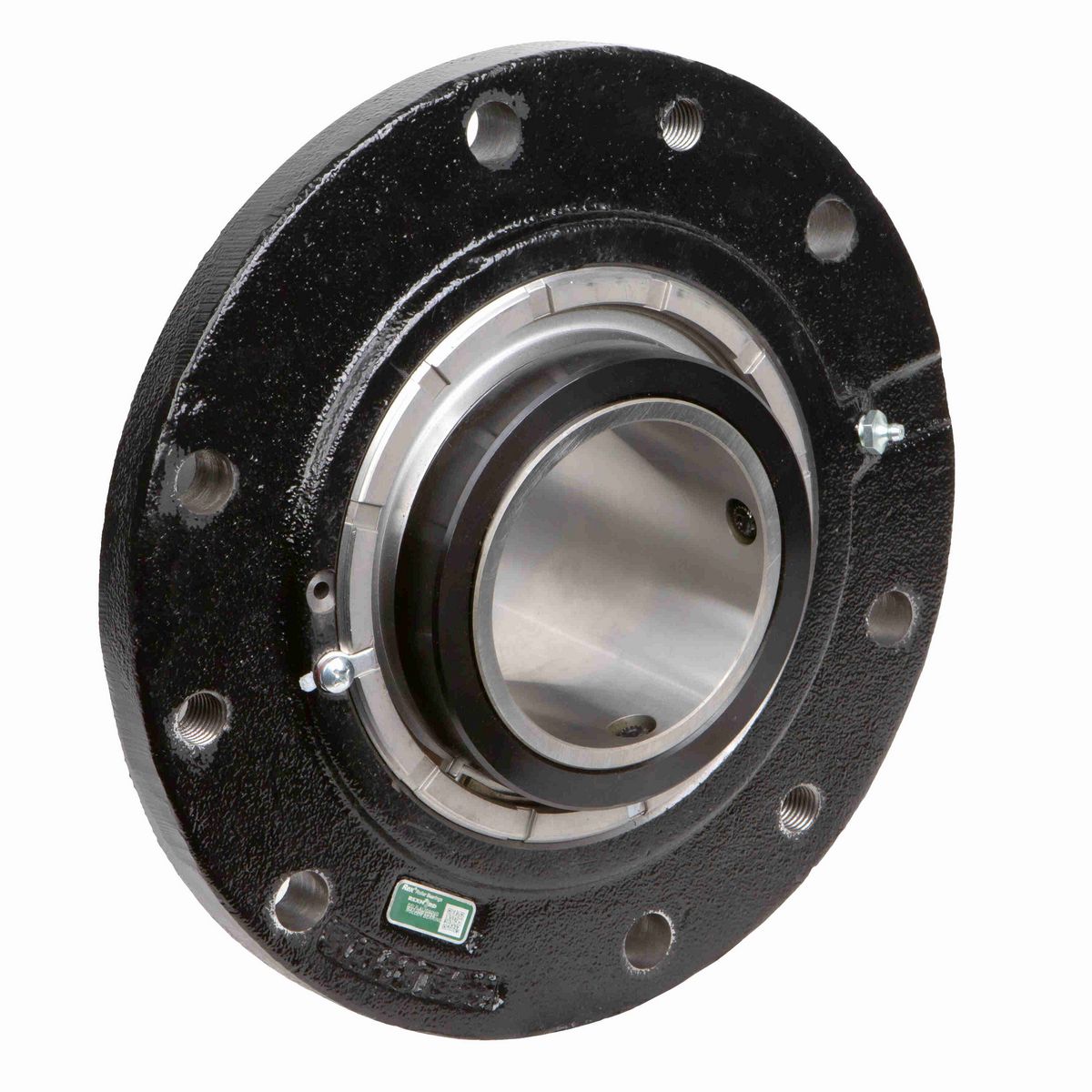

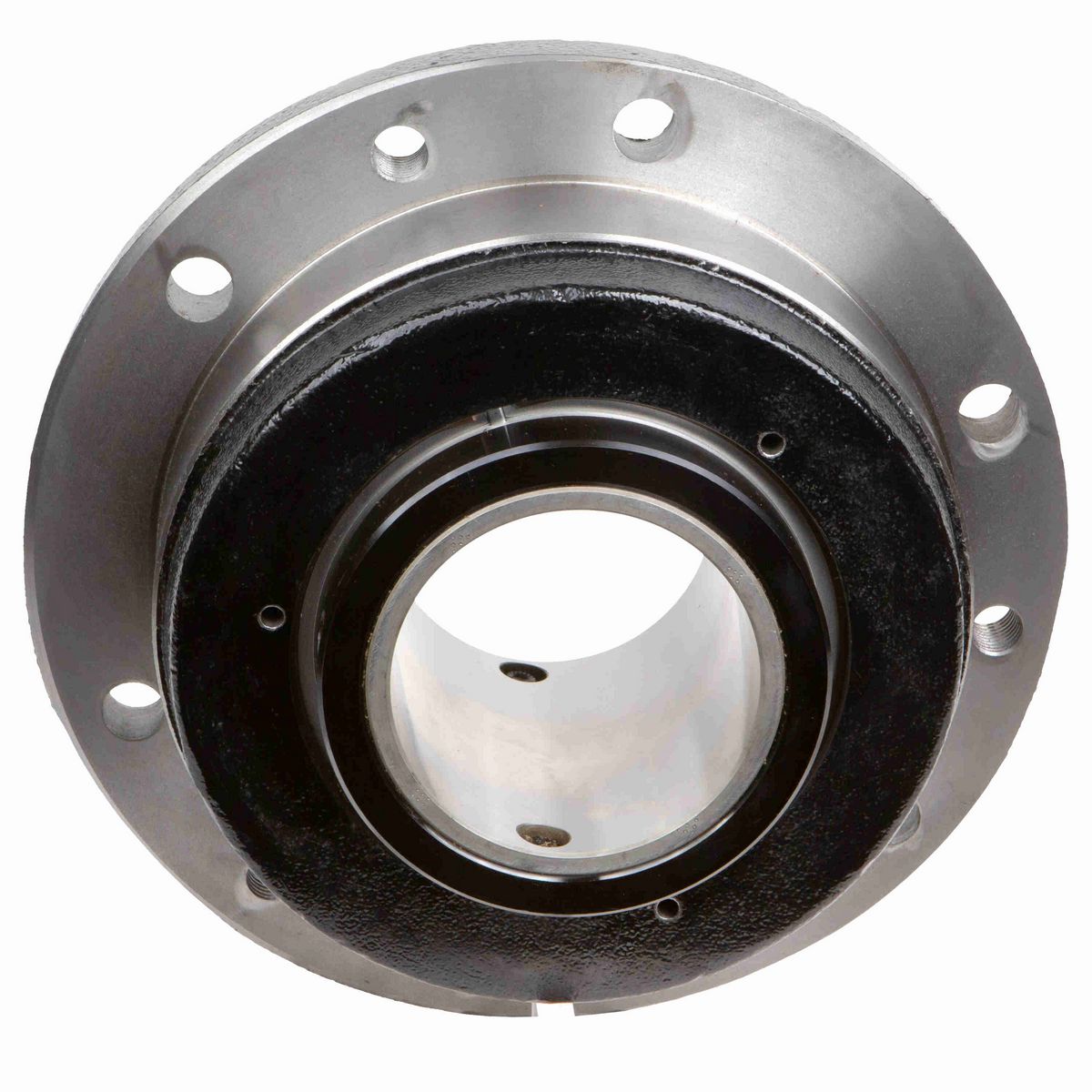

• 4 7/16" Mounted Spherical Roller Bearing, Cast Iron 6-Bolt Round Flange Cartridge Block, Double Setscrew Locking Collar, Clearance Seal

Dimensions

Pilot Diameter (in)	10.25 in
Overall Length (in)	13.5 in
Housing Height (in)	4.25 in
Foot Height (in)	1 in
Overall Height (in)	6.25 in
Bore Diameter (in)	4.4375 in
Overall Width (in)	13.5 in
Bolt Size (in)	3/4 in
Locking Collar Outside Diameter (in)	6.19 in
Mounting Plate to Collar Face (in)	2.31 in
Pilot Depth (in)	2 in
Housing Outside Diameter (in)	13.5 in
Length Through Bore (in)	6.25 in
Bolt Circle (in)	11.75 in
Mounting Surface to End of Housing (in)	3.94 in
Inner Ring Outside Diameter (in)	5.03 in
Housing Cast Face to Outermost Bearing Face (in)	1.06 in
Bolt Spacing (in)	5.88 in

Technical Specifications

Radial Clearance	C3 STANDARD
Seal Type	Clearance Seal
Housing Type	Flange, Cartridge
Housing Construction	Solid
Radial Dynamic Load Capacity (lb)	149,500 lb
Shaft Locking Type	Double Set Collar
Cage Material	Engineered Polymer
Misalignment Type	Dynamic
Fixed/Expansion	Fixed
Static Load Rating (lb)	159,300 lb
Housing Style	Flange Block
Rolling Element	Spherical Roller
Product	ZBR5000
Series	Flanged Cartridge Blocks
Housing Material	Cast Iron
Housing Color	Black
Seal Kit	ZS12Y
Available Seal Type	M Spring Loaded Heavy Contact Lip Seal (Buna and Viton); Z Clearance Seal; G Triple Lip
Ability to Relubricate	Yes
Maximum Speed (RPM)	1850 rpm
Bolt Hole Shape	Round Hole
Microlock Kit	ML4
Setscrew Torque (in-lbs)	1350 in/lbs
Primary Seal	STEEL CLEARANCE SEAL
Misalignment Capability	±2.0° Misalignment - Dynamic
Vibration Frequency Inner Ring Defect	0.1901 cps
Locking Device Kit	SC12Y QTY 2
Grease Fitting Thread Size	1/4 NPT
Insert	5407YU
Max Operating Temperature (C)	107 °C
Vibration Frequency Fundamental Train	0.0072 cps
Size Code	12
Lubricant	EXXON RONEX MP STD
Housing Coating	POWDER COATED
Max Operating Temperature (F)	225 °F
Vibration Frequency Outer Ring Defect	0.1433 cps
Vibration Frequency Roller Spin	0.0568 cps

General Specifications

UPC	698210683238
Weight	103.13 LB
Packaged Length	13.00 IN
Packaged Width	10.00 IN
Packaged Height	13.00 IN
HTC	8483204080
Country of Origin	Mexico
