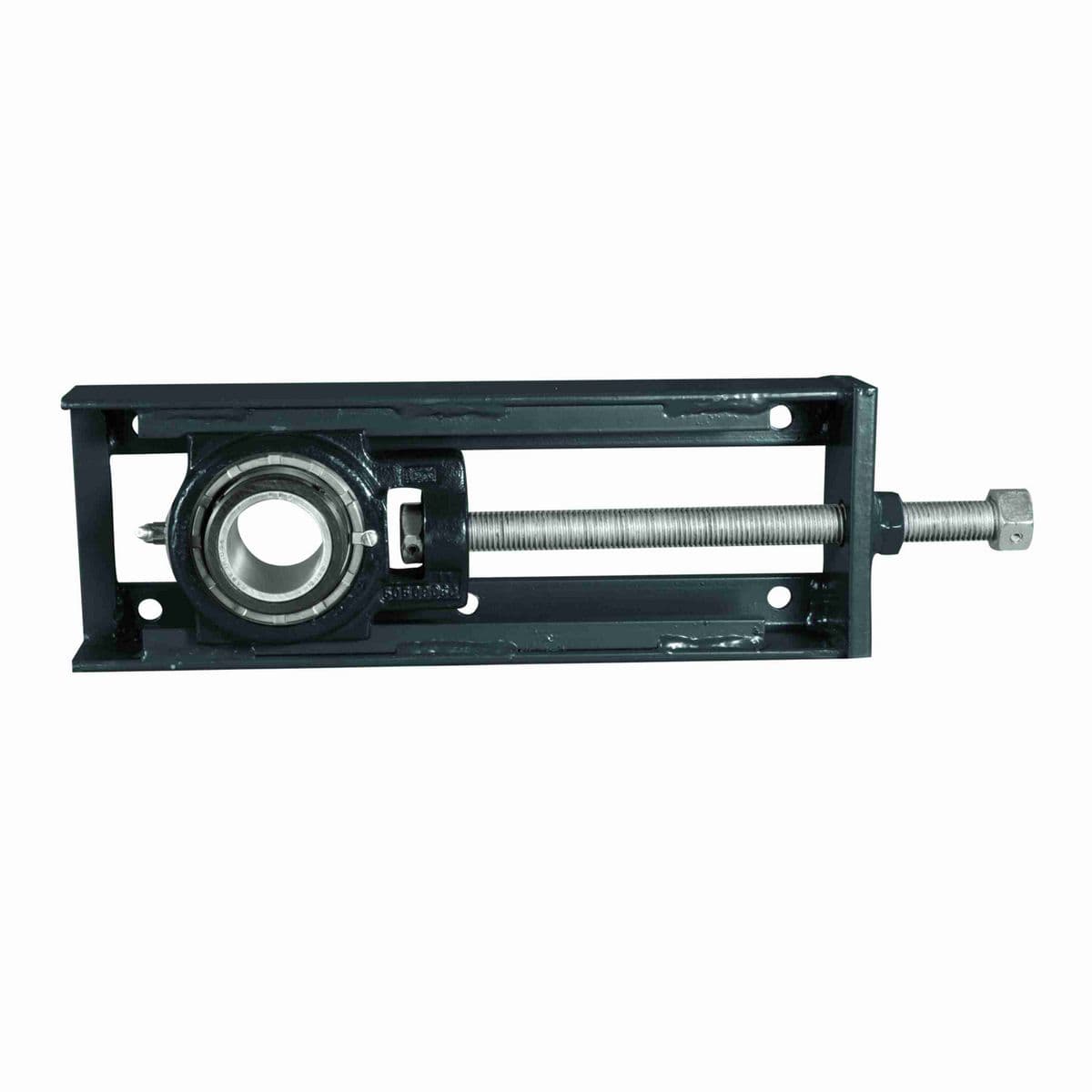

• 2 15/16" Mounted Spherical Roller Bearing, Center Pull Side Mounted Take-up Assembly, Single Setscrew Locking Collar, Clearance Seal

Dimensions

Bolt Size (in)	1/2 in
Overall Width (in)	4.88 in
Foot Height (in)	0.31 in
Base to Center Height (in)	2.438 in
Overall Length (in)	26 in
Overall Height (in)	8.13 in
Bore Diameter (in)	2.9375 in
Overall Rod Length (in)	18.5 in
Distance from Bearing Centerline to End of Rod (in)	21.75 in
Travel Length (in)	12 in
Distance from Bearing Centerline to End of Frame (in)	4.25 in
Frame Height (in)	8.13 in
Mounting Plate to Collar Face (in)	4.88 in
Frame Length (in)	23 in
Length Through Bore (in)	4 in
End of Frame at Rod End to Bearing Centerline (in)	6.75 in
Bolt Spacing (in)	6.5 in
Bolt Spacing Width (in)	5.38 in
End of Frame to Bolt Center (in)	1.75 in

Technical Specifications

End Cap	DTC9
Series	Take-up Assemblies
Housing Style	Take-Up Assembly
Shaft Locking Type	Single Set Collar
Housing Material	Cast Iron
Product	ZAT2000
Radial Dynamic Load Capacity (lb)	57,750 lb
Cage Material	Engineered Polymer
Frame Type	Center Pull Side Mount Assembly
Fixed/Expansion	Fixed
Static Load Rating (lb)	71,500 lb
Rolling Element	Spherical Roller
Misalignment Type	Dynamic
Housing Type	Take-Up Assembly
Housing Construction	Solid
Radial Clearance	C3 STANDARD
Seal Type	Clearance Seal
Frame Material	Welded Steel
Available Seal Type	K Light Contact Lip Seal; M Spring Loaded Heavy Contact Lip Seal (Buna and Viton); Z Clearance Seal; G Triple Lip
Frame	ZAT912
Setscrew Torque (in-lbs)	680 in/lbs
Maximum Speed (RPM)	2800 rpm
Microlock Kit	ML3
Adjusting Screw Thread Size	1 1/4-7 NC
Seal Kit	ZS9
Ability to Relubricate	Yes
Max Operating Temperature (F)	225 °F
Lubricant	EXXON RONEX MP STD
Size Code	9
Vibration Frequency Inner Ring Defect	0.1701 cps
Vibration Frequency Roller Spin	0.0591 cps
Housing Coating	POWDER COATED
Replacement Take-up Block	ZT92215
Insert	2215U
Vibration Frequency Fundamental Train	0.0072 cps
Locking Device Kit	SC9
Misalignment Capability	±2.0° Misalignment - Dynamic
Vibration Frequency Outer Ring Defect	0.1299 cps
Primary Seal	STEEL CLEARANCE SEAL
Max Operating Temperature (C)	107 °C
Grease Fitting Thread Size	1/8 NPT

General Specifications

UPC	698210715373
Weight	75.00 LB
