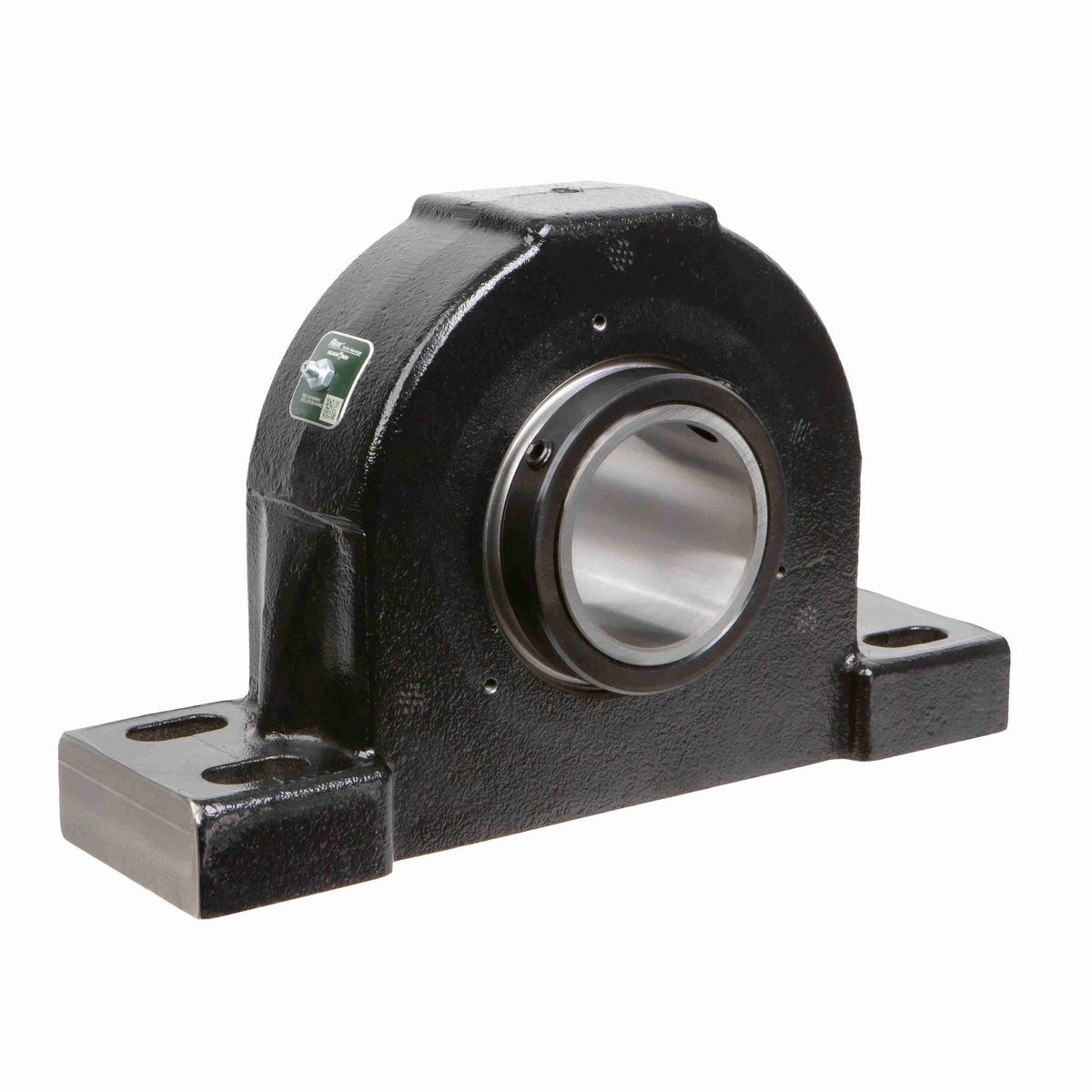

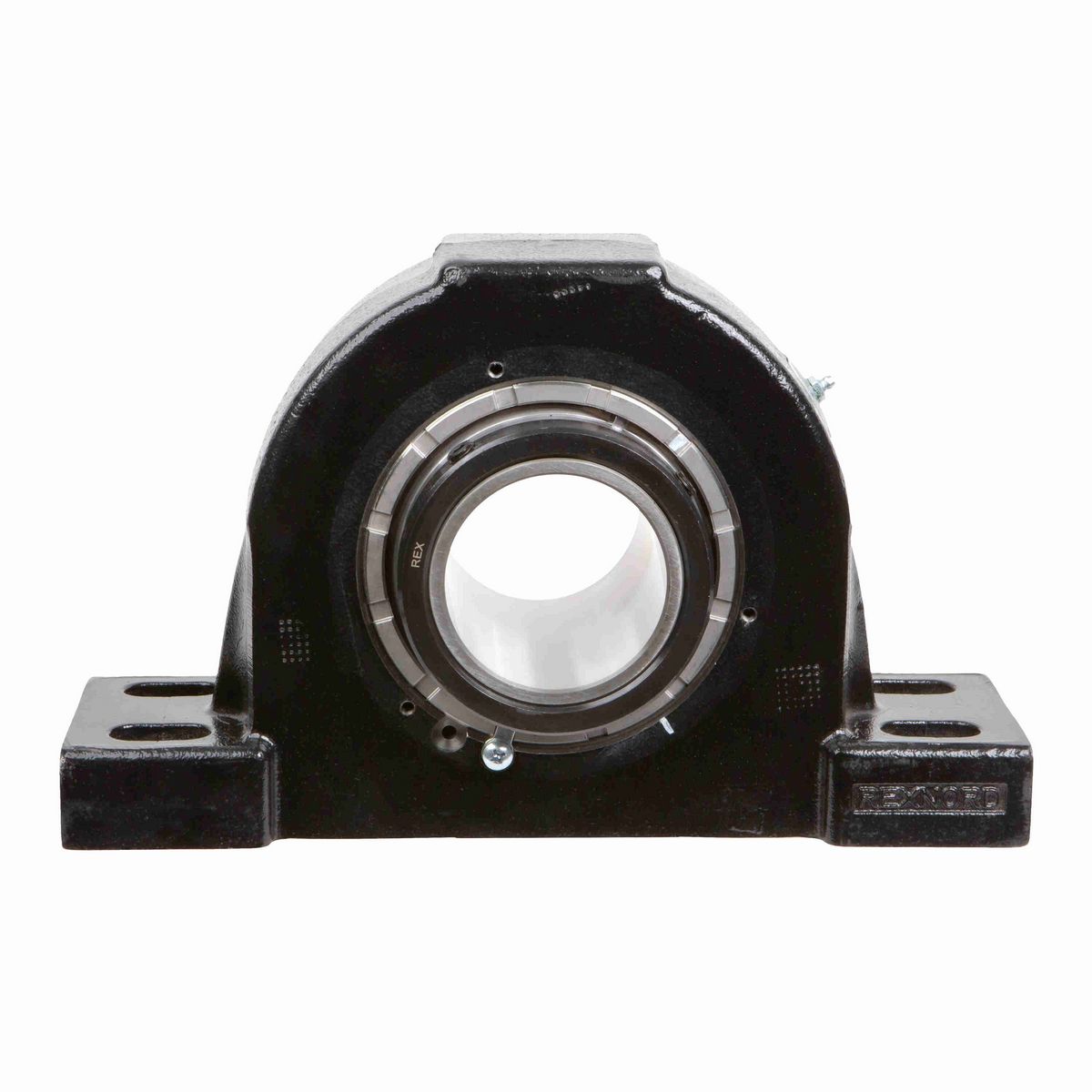

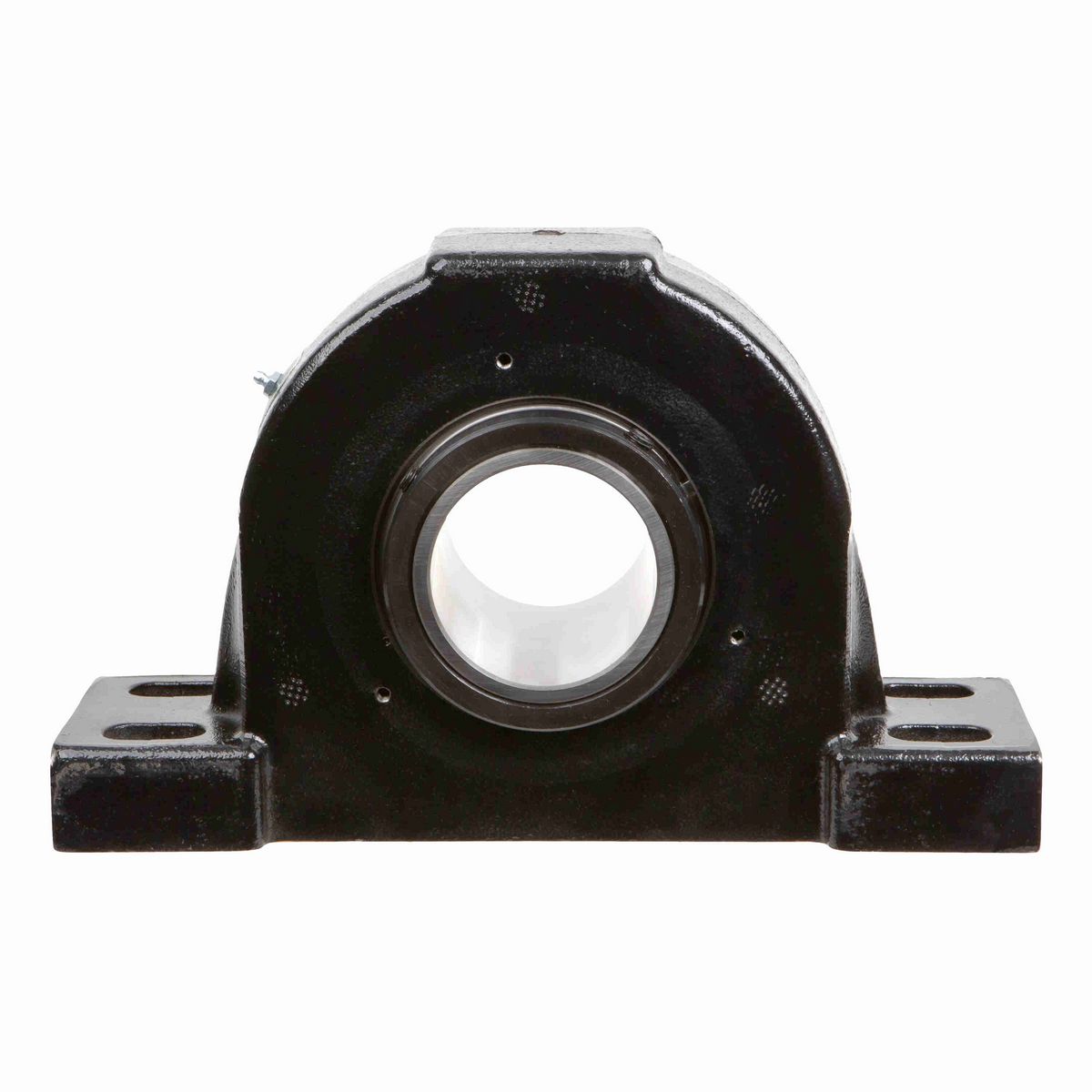

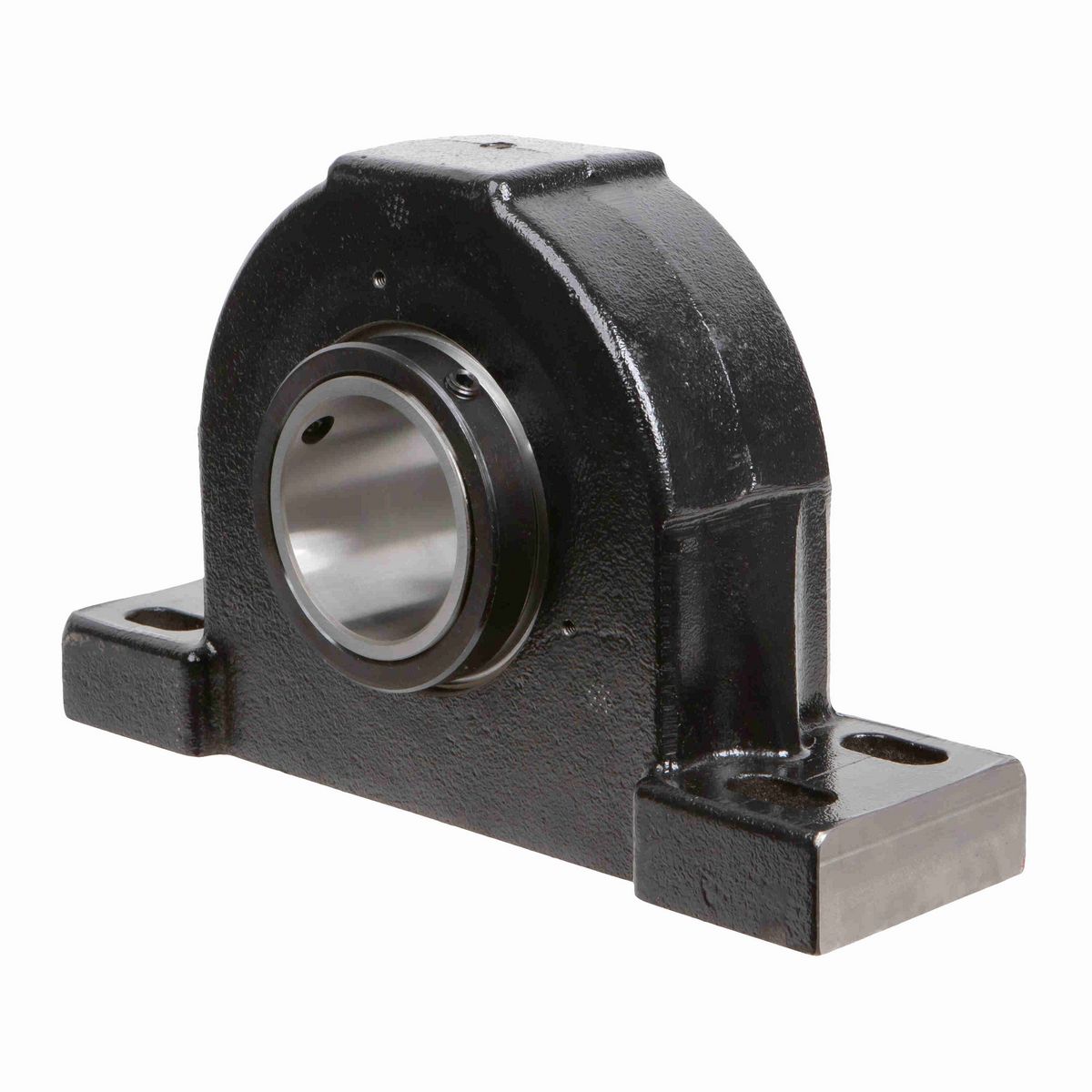

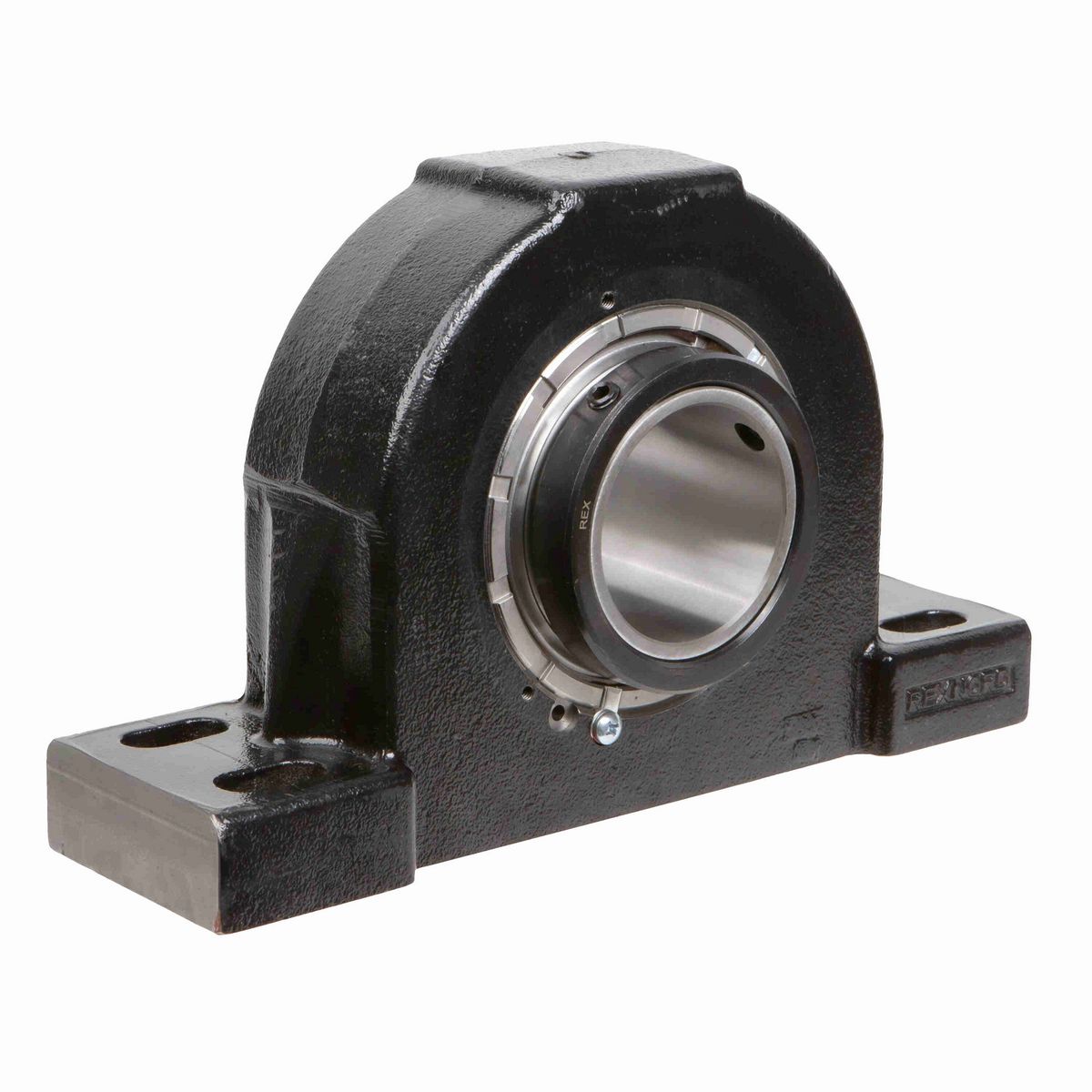

• 3 7/16" Mounted Spherical Roller Bearing, Fixed Cast Iron 4-Bolt Pillow Block, Double Setscrew Locking Collar, Clearance Seal

Dimensions

Foot Height (in)	1.66 in
Base to Center Height (in)	4.5 in
Overall Height (in)	9.28 in
Base Width (in)	4.34 in
Overall Width (in)	5.31 in
Slot Length (in)	1.56 in
Overall Length (in)	15.38 in
Bore Diameter (in)	3.4375 in
Bolt Size (in)	3/4 in
Locking Collar Outside Diameter (in)	4.91 in
Housing Cast Face to Outermost Bearing Face (in)	0.94 in
Base Length (in)	15.38 in
Length Through Bore (in)	5.31 in
Bolt Spacing Max (in)	13.13 in
Bolt Spacing Width (in)	2.38 in
Inner Ring Outside Diameter (in)	3.975 in
Bolt Spacing Min (in)	11.63 in

Technical Specifications

Rolling Element	Spherical Roller
Series	Solid-housed Pillow Blocks
Housing Construction	Solid
Radial Dynamic Load Capacity (lb)	84,330 lb
Shaft Locking Type	Double Set Collar
Static Load Rating (lb)	90,700 lb
Housing Type	Pillow Block, Four Bolt, SAF Style
Housing Color	Black
Seal Type	Clearance Seal
Fixed/Expansion	Fixed
Housing Material	Cast Iron
End Cap	DTC10
Product	ZAF5000F
Cage Material	Engineered Polymer
Misalignment Type	Dynamic
Housing Style	Pillow Block
Radial Clearance	C3 STANDARD
Setscrew Torque (in-lbs)	680 in/lbs
Seal Kit	ZS10
Maximum Speed (RPM)	2400 rpm
Available Seal Type	K Light Contact Lip Seal; M Spring Loaded Heavy Contact Lip Seal (Buna and Viton); Z Clearance Seal; G Triple Lip
Ability to Relubricate	Yes
Microlock Kit	ML4
Misalignment Capability	±2.0° Misalignment - Dynamic
Max Operating Temperature (C)	107 °C
Size Code	10
Locking Device Kit	SC10 QTY 2
Vibration Frequency Outer Ring Defect	0.1383 cps
Vibration Frequency Fundamental Train	0.0073 cps
Lubricant	EXXON RONEX MP STD
Vibration Frequency Roller Spin	0.0628 cps
Housing Coating	POWDER COATED
Max Operating Temperature (F)	225 °F
Vibration Frequency Inner Ring Defect	0.1784 cps
Insert	5307U
Grease Fitting Thread Size	1/8 NPT
Primary Seal	STEEL CLEARANCE SEAL

General Specifications

UPC	793699724899
Weight	75.00 LB
Packaged Length	17.50 IN
Packaged Width	6.38 IN
Packaged Height	9.88 IN
HTC	8483208080
