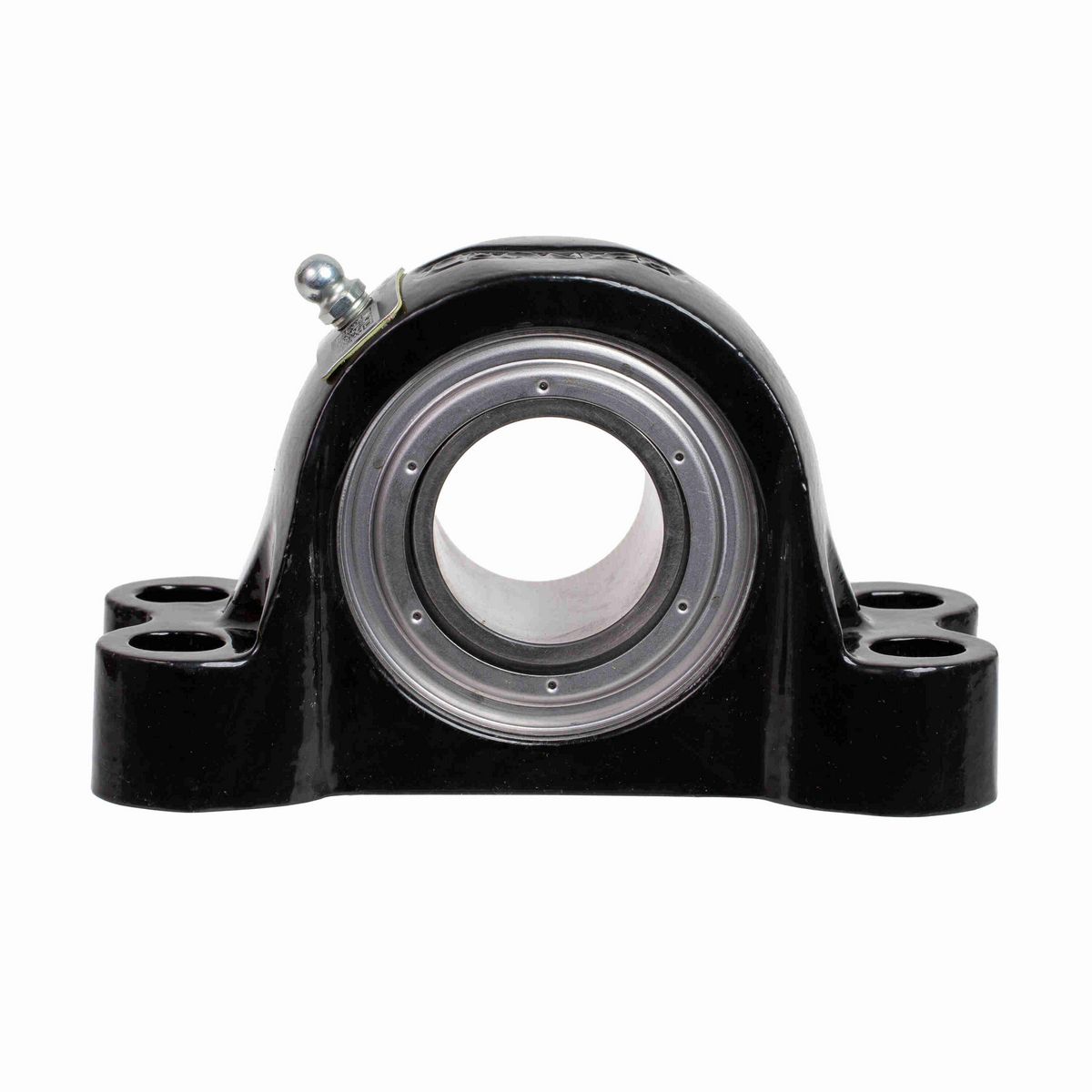

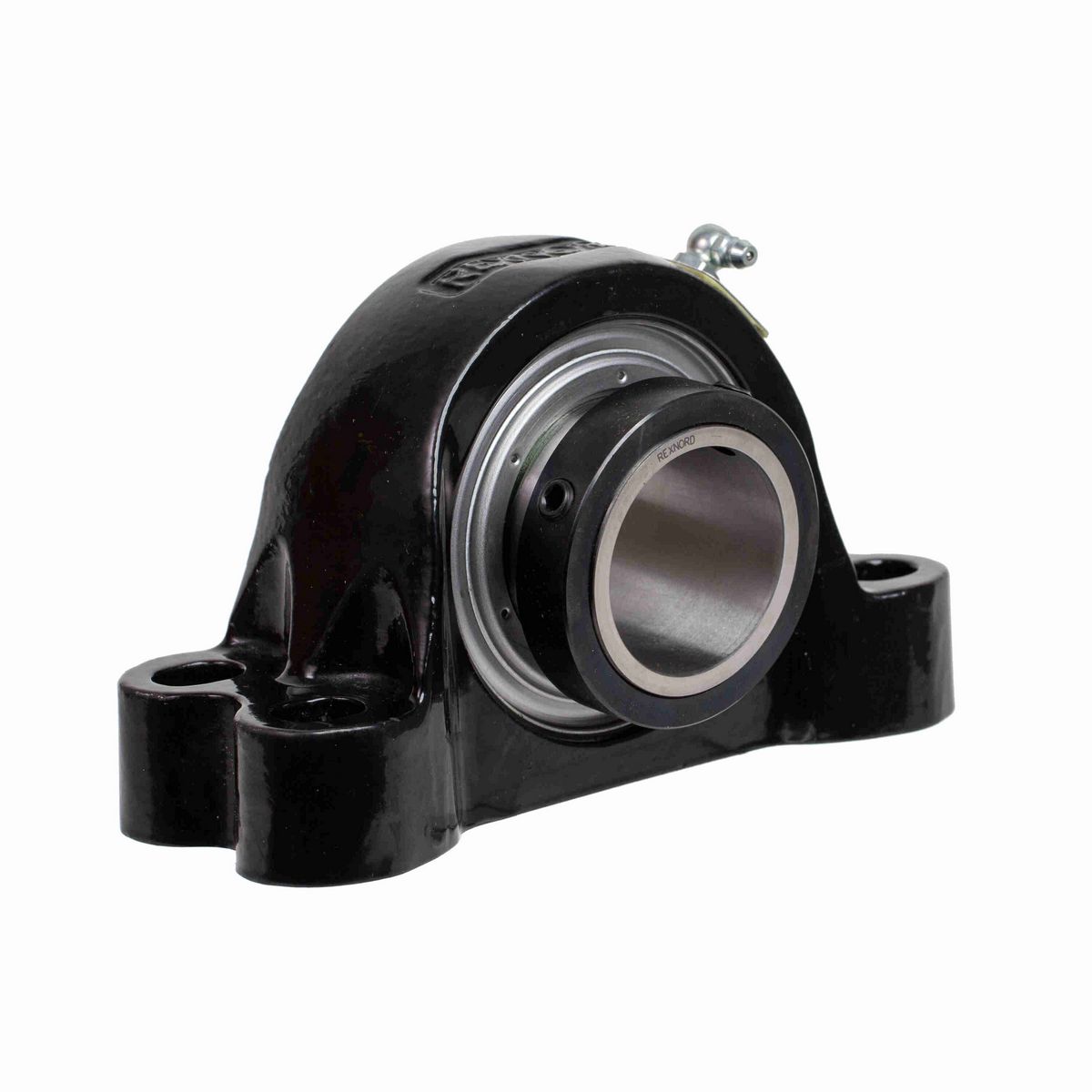

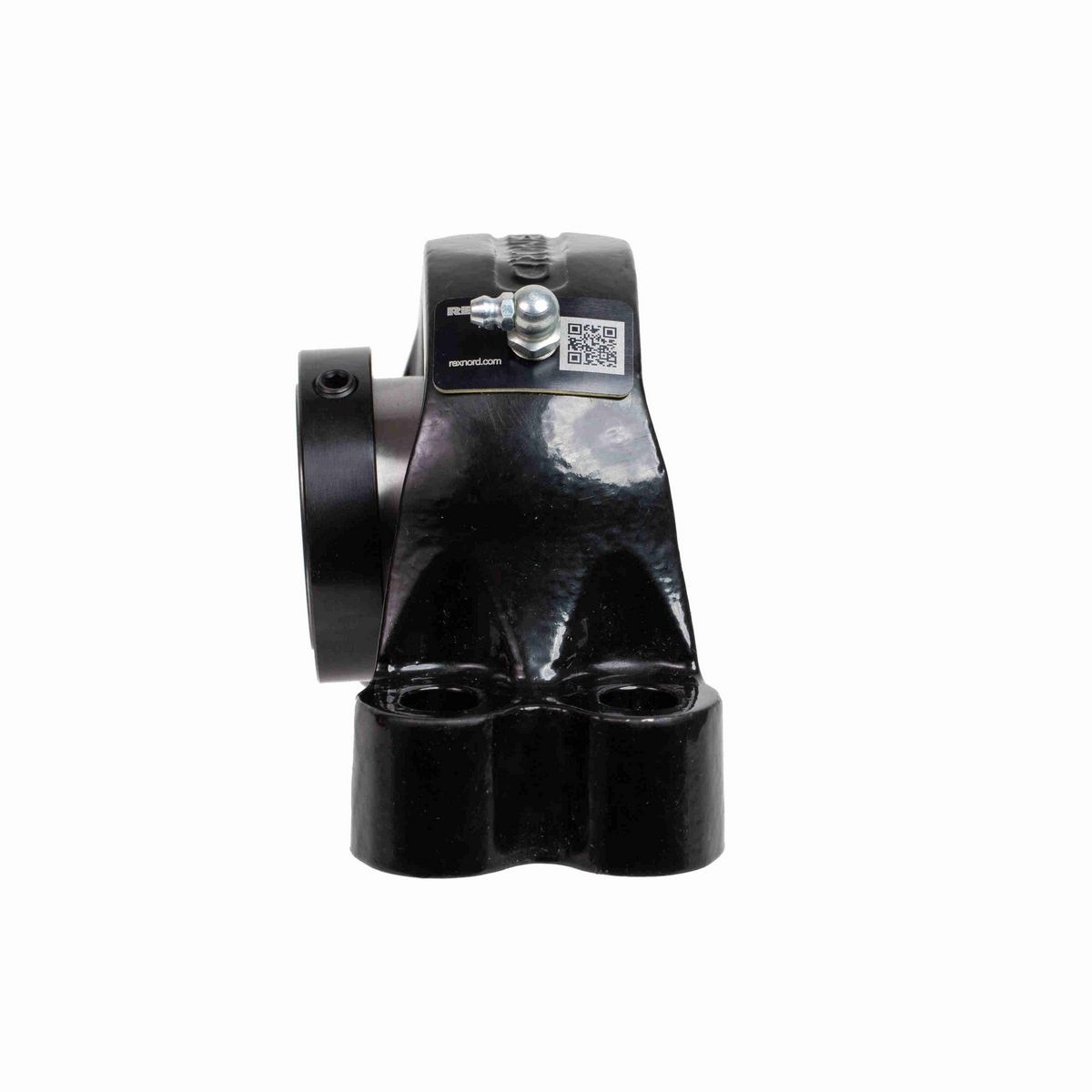

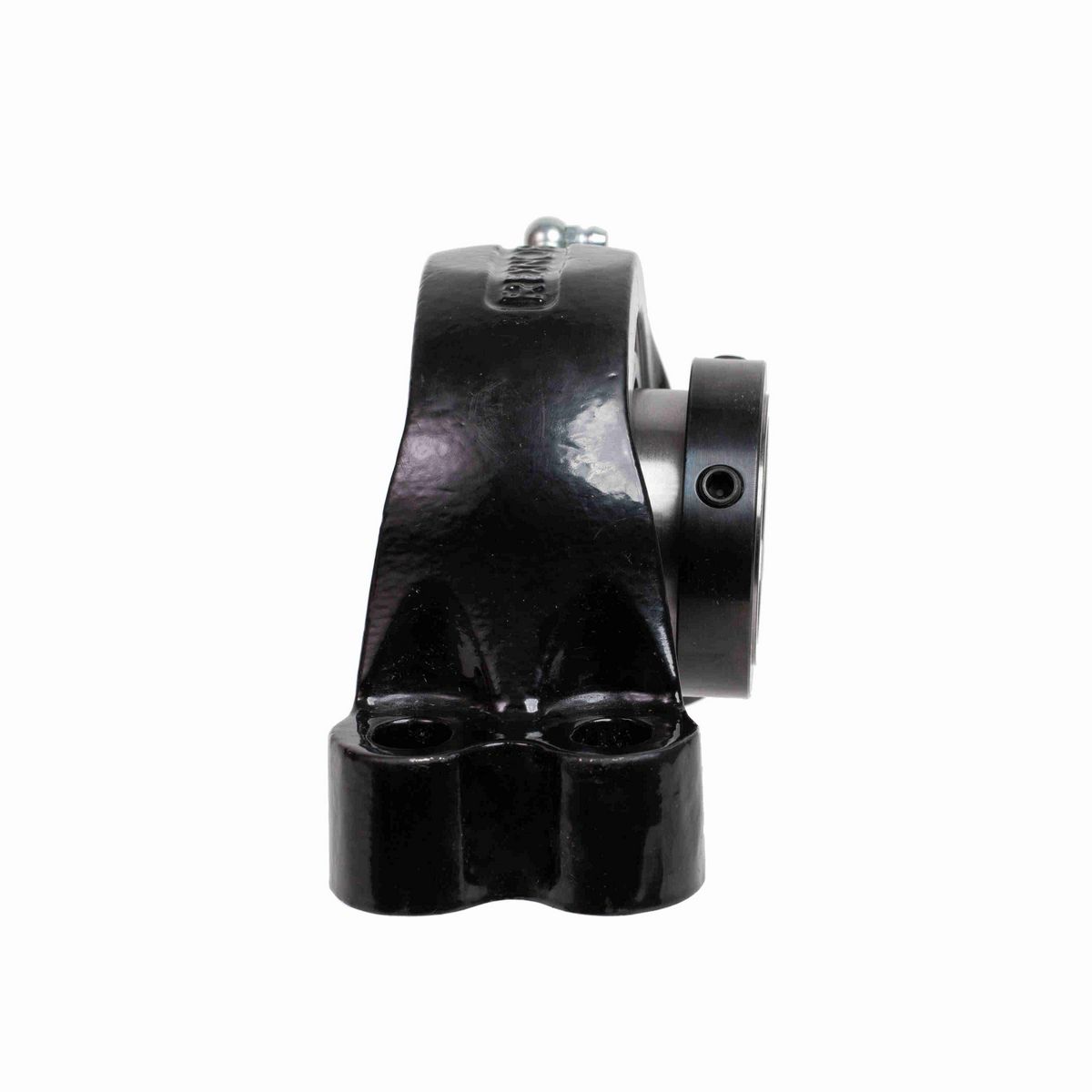

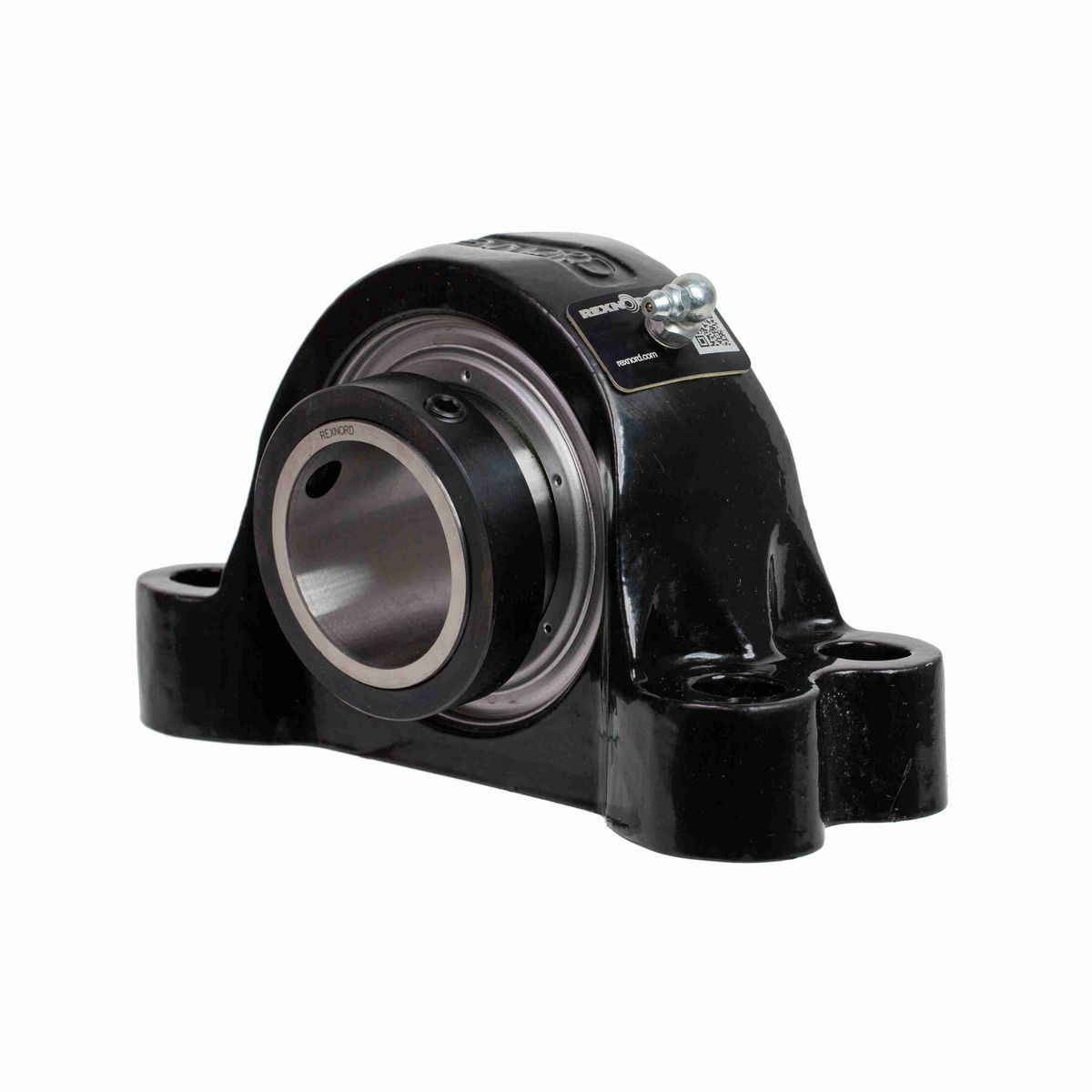

• 3 7/16" shaft size; Cast iron housing; Expansion unit; Setscrew mounting collar; Clearance seal; Exxon Ronex MP grease; Accessories include open cap and closed cap

Dimensions

Base to Center Height (in)	3.75 in
Foot Height (in)	2.25 in
Overall Length (in)	12.4 in
Base Width (in)	4.5 in
Overall Height (in)	7.56 in
Overall Width (in)	4.5 in
Bore Diameter (in)	3.4375 in
Bolt Size (in)	3/4 in
Slot Length (in)	1.5 in
Locking Collar Outside Diameter (in)	4.9 in
Expansion Capability (in)	0.34 in
Housing Cast Face to Outermost Bearing Face (in)	1.13 in
Length Through Bore (in)	4.12 in
Bolt Spacing Max (in)	10.62 in
Bolt Spacing Width (in)	2 in
Centerline to Outermost Bearing Face (in)	2.71 in
Bolt Spacing Min (in)	9.38 in

Technical Specifications

Fixed/Expansion	Expansion
Housing Style	Pillow Block
Static Load Rating (lb)	77,880 lb
Series	Solid-housed Pillow Blocks
Housing Material	Cast Iron
Seal Type	Clearance Seal
Housing Construction	Solid
Cage Material	Steel
End Cap	SEE AUX CAP KIT
Shaft Locking Type	Single Set Collar
Misalignment Type	Dynamic
Housing Type	Pillow Block, Four Bolt
Radial Dynamic Load Capacity (lb)	64,000 lb
Rolling Element	Spherical Roller
Housing Color	Black
Product	P4B
Ability to Relubricate	Yes
Maximum Speed (RPM)	1980 rpm
Setscrew Torque (in-lbs)	680 in/lbs
Available Seal Type	C Clearance Seal; T Triple Lip Seal
Vibration Frequency Fundamental Train	0.007 cps
Vibration Frequency Outer Ring Defect	0.1195 cps
Grease Fitting Thread Size	1/8 NPT
Max Operating Temperature (C)	107 °C
Misalignment Capability	±2.0° Misalignment - Dynamic
Vibration Frequency Roller Spin	0.0513 cps
Lube Fitting Type	STRAIGHT AND 90 DEG FITTING
Lubricant	EXXON RONEX MP STD
Vibration Frequency Inner Ring Defect	0.1638 cps
Housing Coating	POWDER COATED
Size Code	10
Primary Seal	STEEL CLEARANCE SEAL
Max Operating Temperature (F)	225 °F

General Specifications

UPC	782934931321
Weight	35.70 LB
Packaged Length	13.50 IN
Packaged Width	5.00 IN
Packaged Height	7.88 IN
HTC	8483208080
Country of Origin	China
