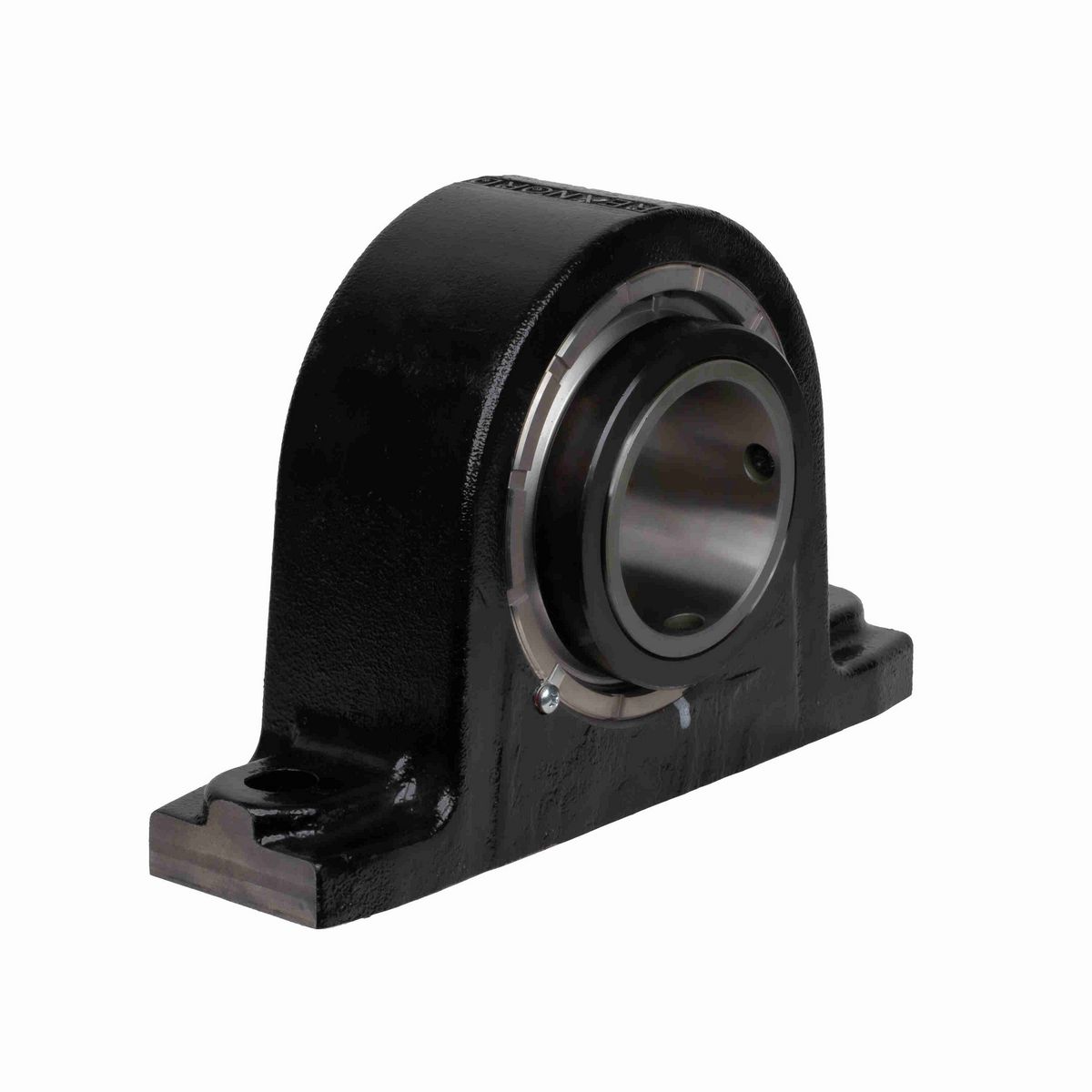

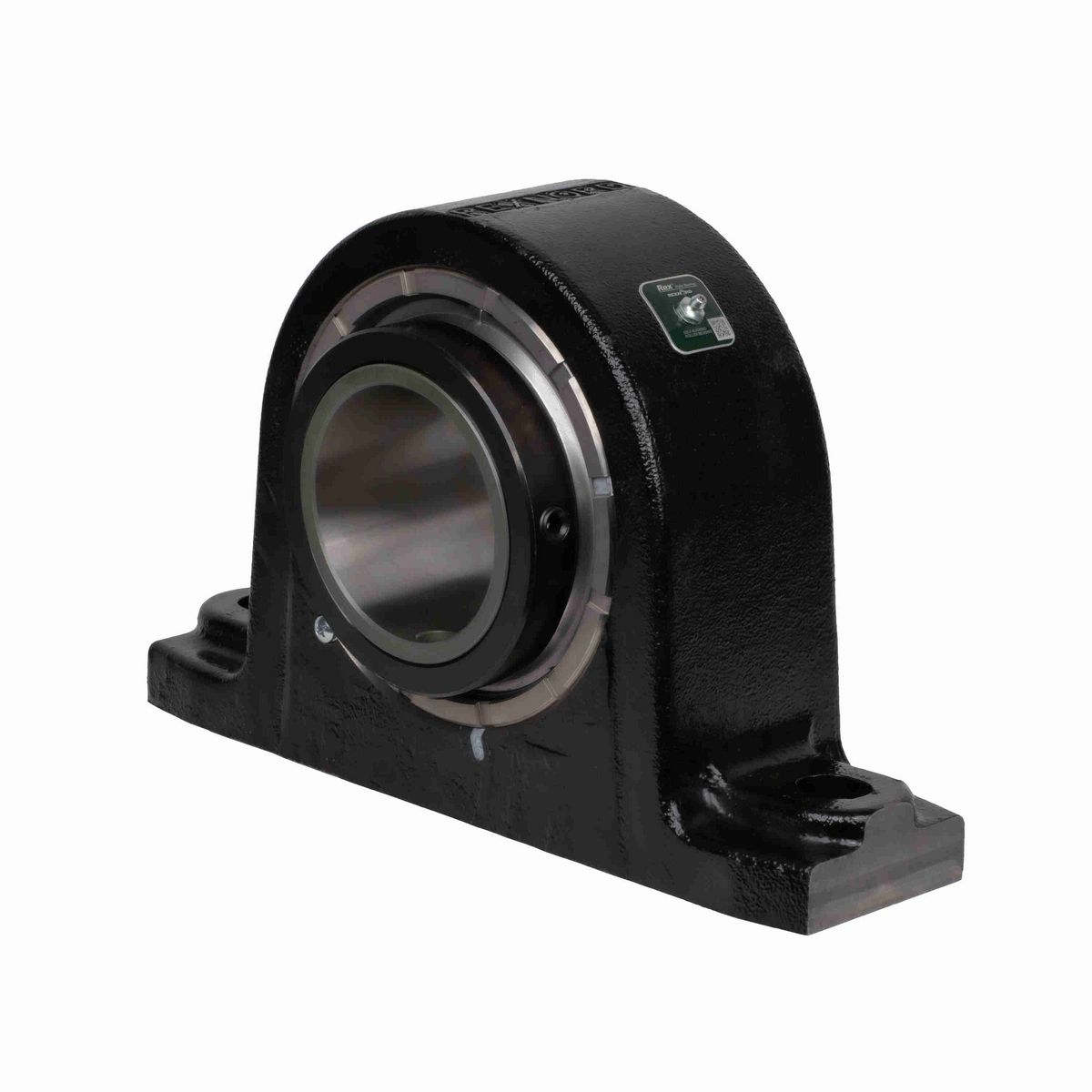

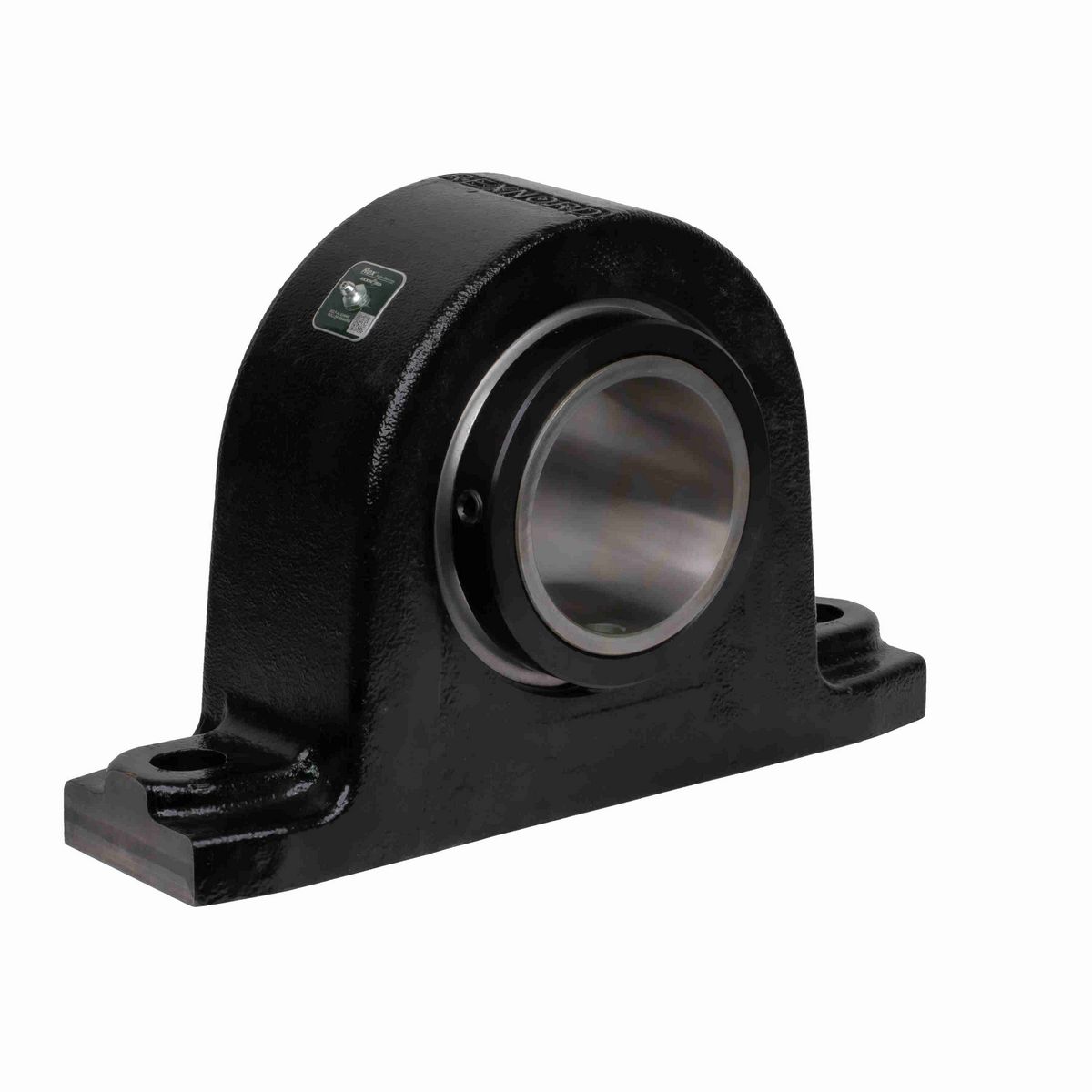

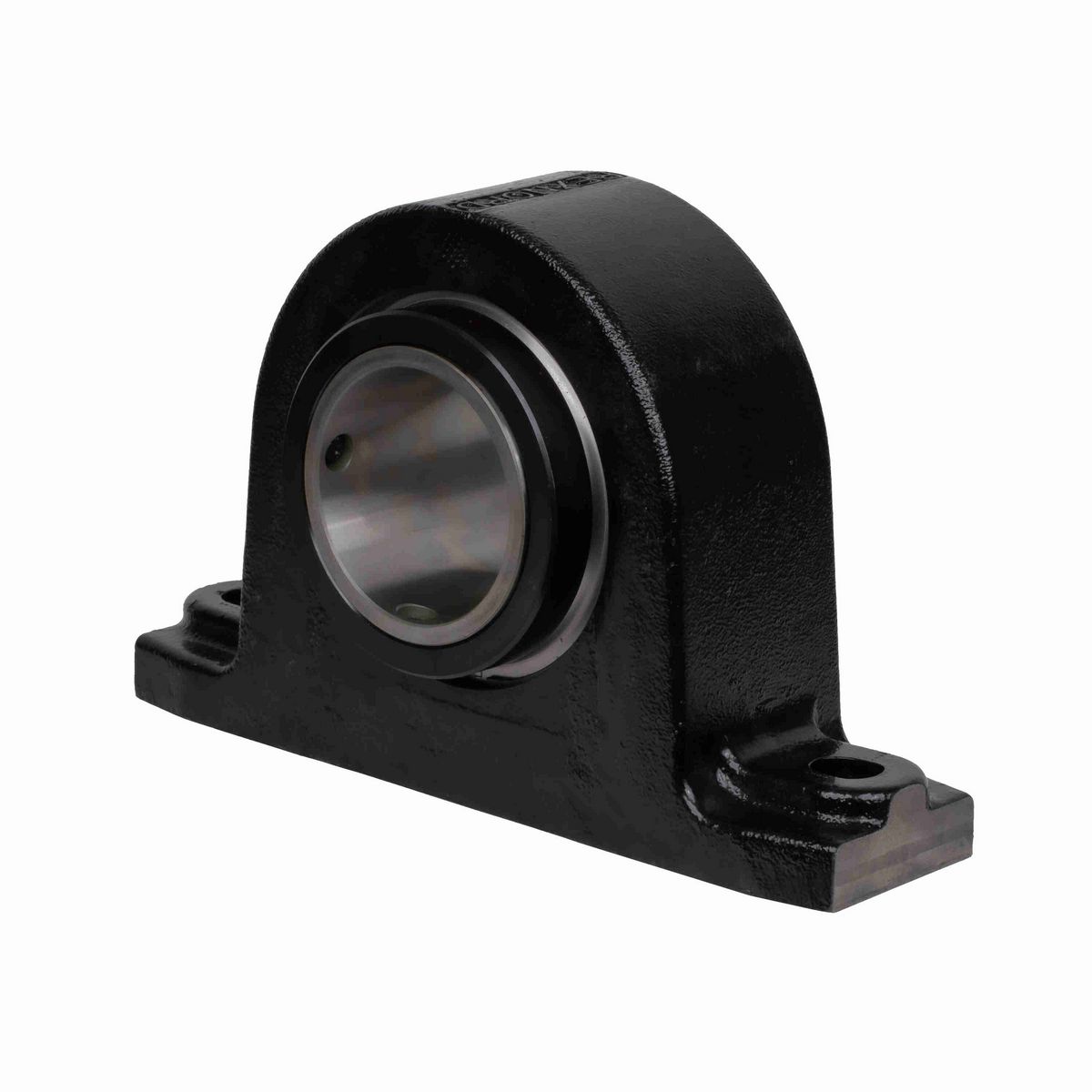

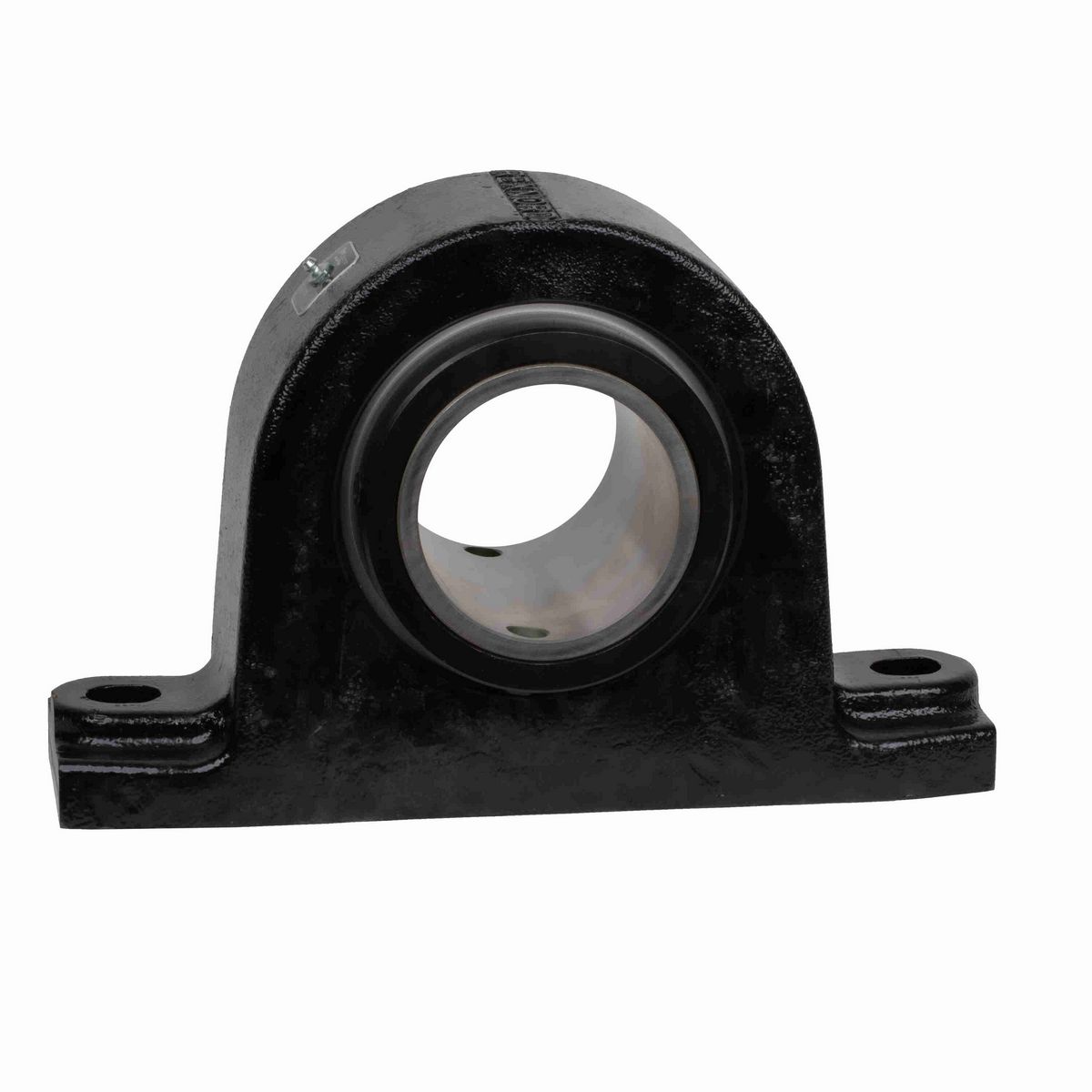

• 115mm Mounted Spherical Roller Bearing, Fixed Metric Solid Cast Iron 2-Bolt Pillow Block, Double Setscrew Locking Collar, Clearance Seal

Dimensions

Bolt Size (mm)	24 mm
Overall Width (in)	6.25 in
Housing Height (mm)	273.1 mm
Locking Collar Outside Diameter (mm)	157.2 mm
Slot Length (mm)	35 mm
Length Through Bore (mm)	158.8 mm
Inner Ring Outside Diameter (mm)	127.8 mm
Overall Height (mm)	273.1 mm
Overall Length (mm)	445 mm

Technical Specifications

Product	P2BRN5000Z
Radial Clearance	C3 STANDARD
Housing Construction	Solid
Seal Type	Clearance Seal
Series	Solid-housed Pillow Blocks
Radial Dynamic Load Capacity (lb)	149,500 lb
Shaft Locking Type	Double Set Collar
Rolling Element	Spherical Roller
Housing Style	Pillow Block
Housing Type	Pillow Block, Two Bolt, Hard Metric
Cage Material	Engineered Polymer
Misalignment Type	Dynamic
Static Load Rating (lb)	159,300 lb
Housing Material	Cast Iron
Fixed/Expansion	Fixed
Housing Color	Black
Ability to Relubricate	Yes
Maximum Speed (RPM)	1850 rpm
Microlock Kit	ML4
Seal Kit	ZS12Y
Available Seal Type	K Light Contact Lip Seal; M Spring Loaded Heavy Contact Lip Seal (Buna and Viton); Z Clearance Seal; G Triple Lip
Setscrew Torque (in-lbs)	1350 in/lbs
Grease Fitting Thread Size	1/4 NPT
Vibration Frequency Fundamental Train	0.0072 cps
Vibration Frequency Roller Spin	0.0568 cps
Max Operating Temperature (F)	225 °F
Vibration Frequency Inner Ring Defect	0.1901 cps
Lubricant	EXXON RONEX MP STD
Misalignment Capability	±2.0° Misalignment - Dynamic
Vibration Frequency Outer Ring Defect	0.1433 cps
Size Code	12
Max Operating Temperature (C)	107 °C
Housing Coating	POWDER COATED
Insert	5115MMU
Locking Device Kit	SC12Y QTY 2
Primary Seal	STEEL CLEARANCE SEAL

General Specifications

UPC	782935329585
Weight	76.00 LB
Packaged Length	17.50 IN
Packaged Width	6.38 IN
Packaged Height	9.88 IN
Country of Origin	Mexico
