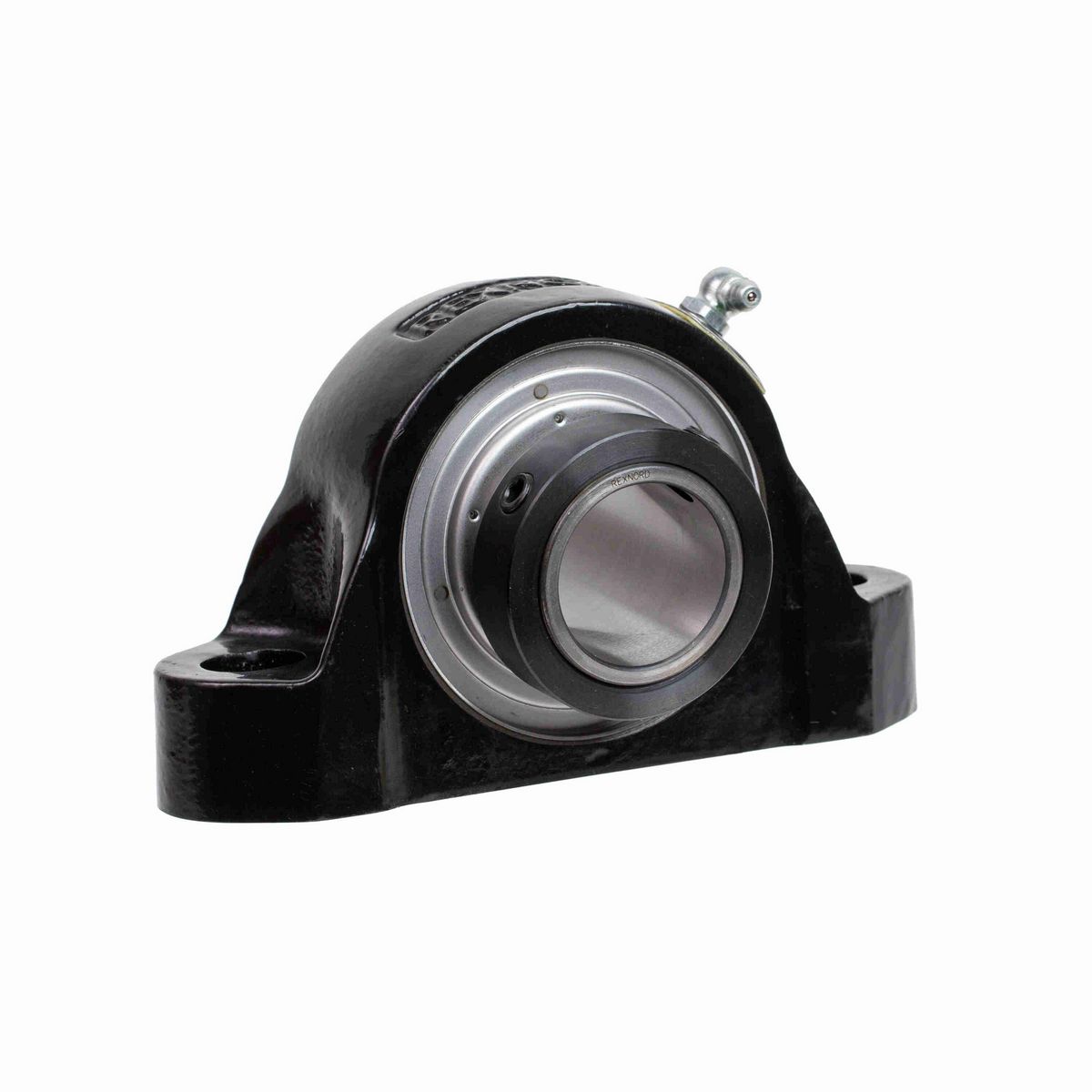

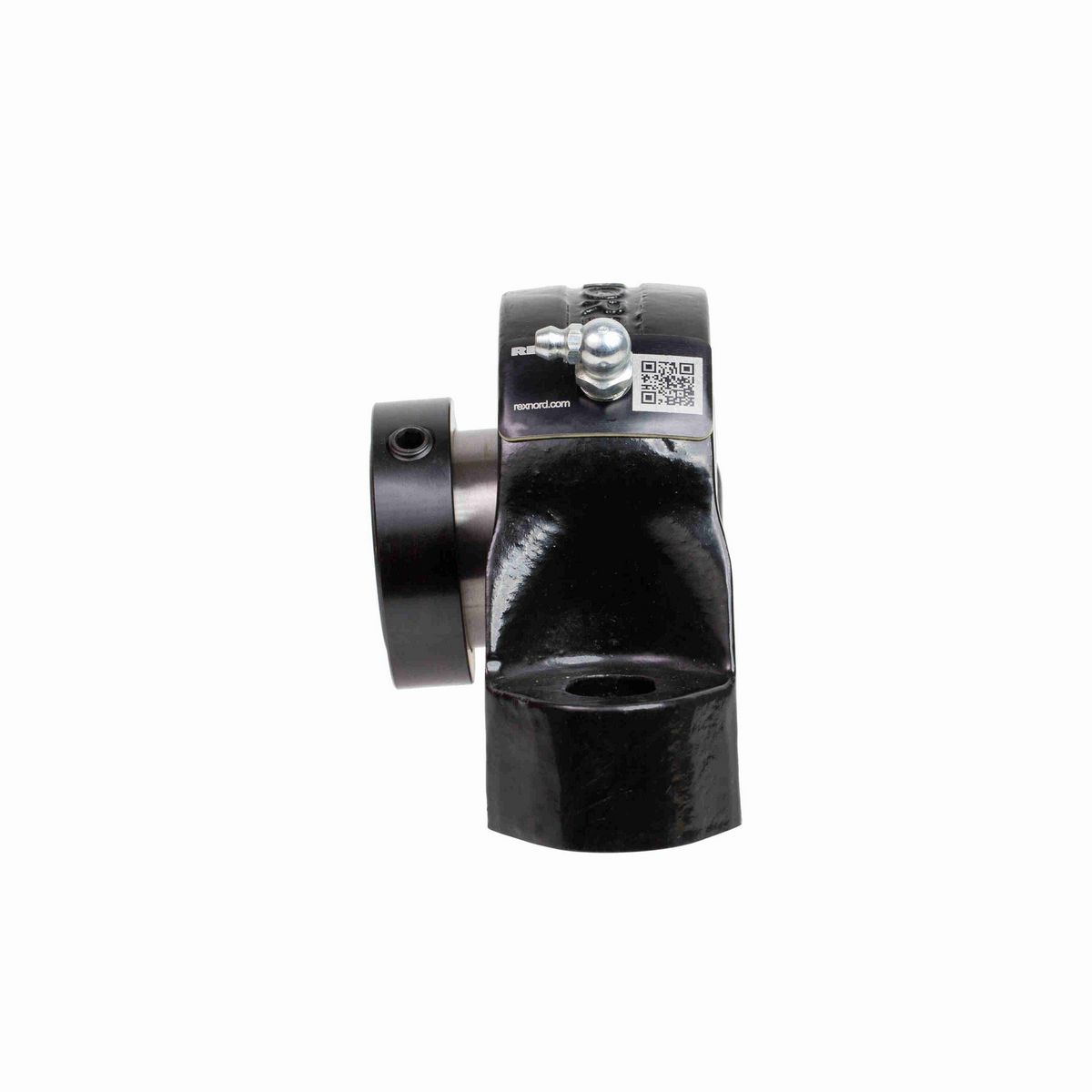

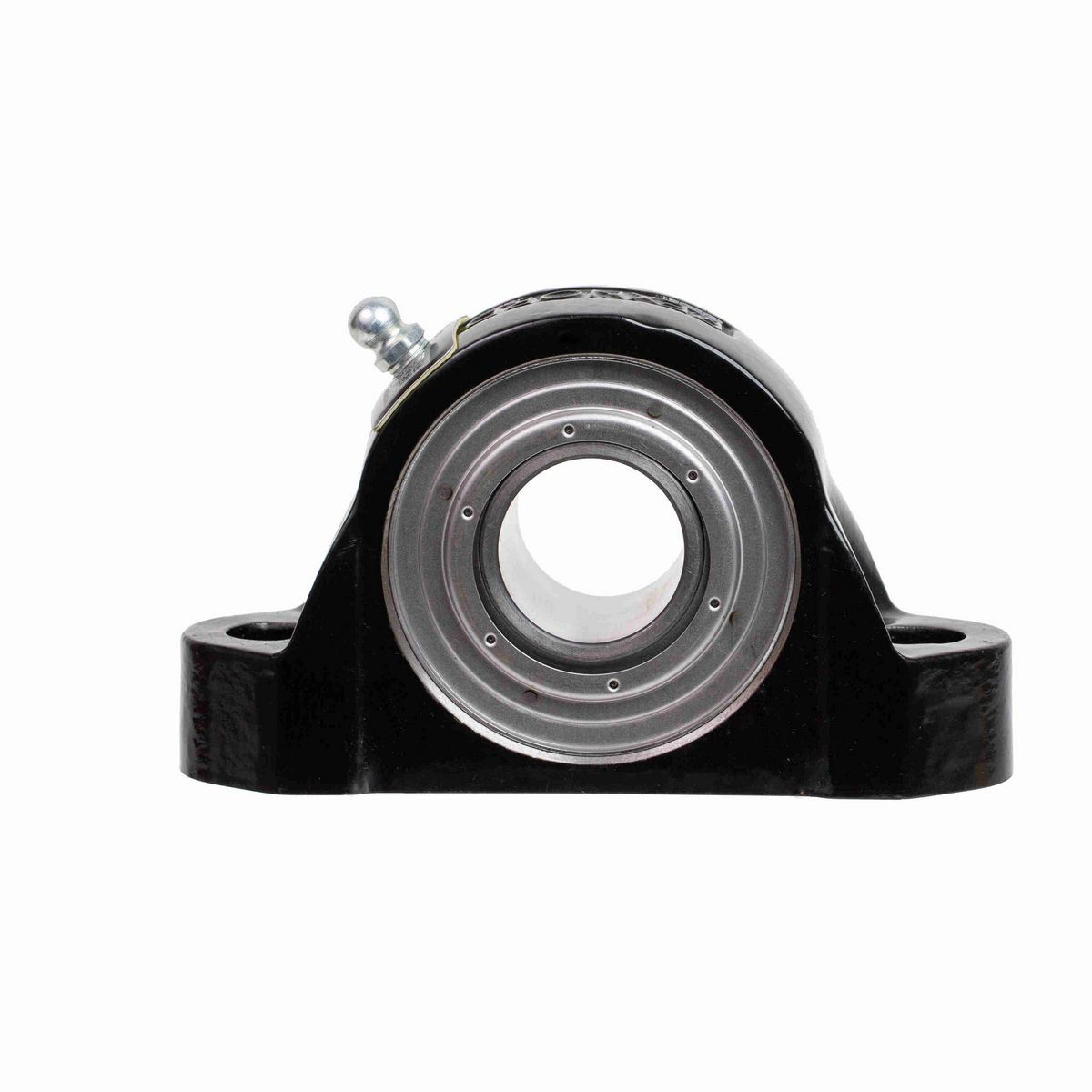

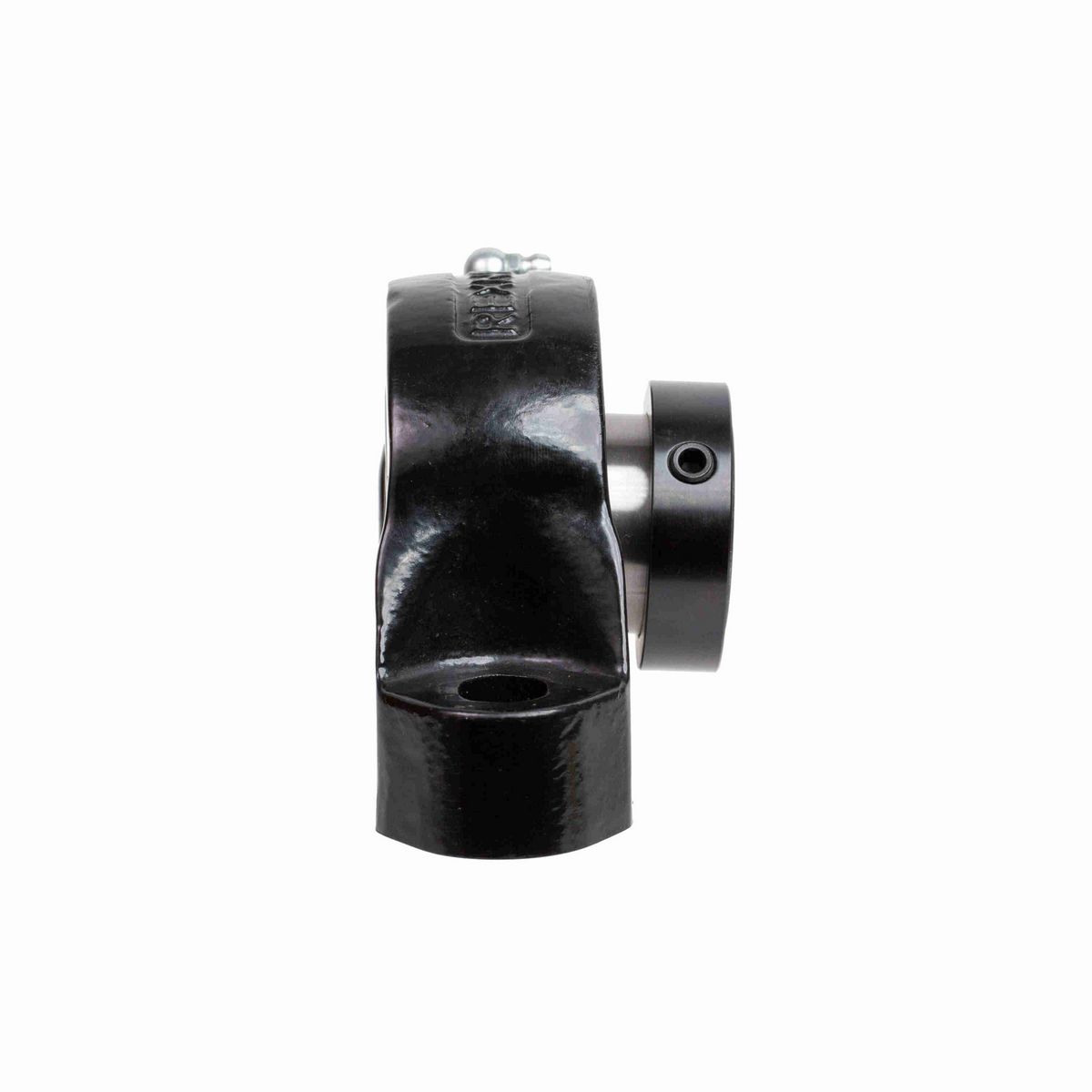

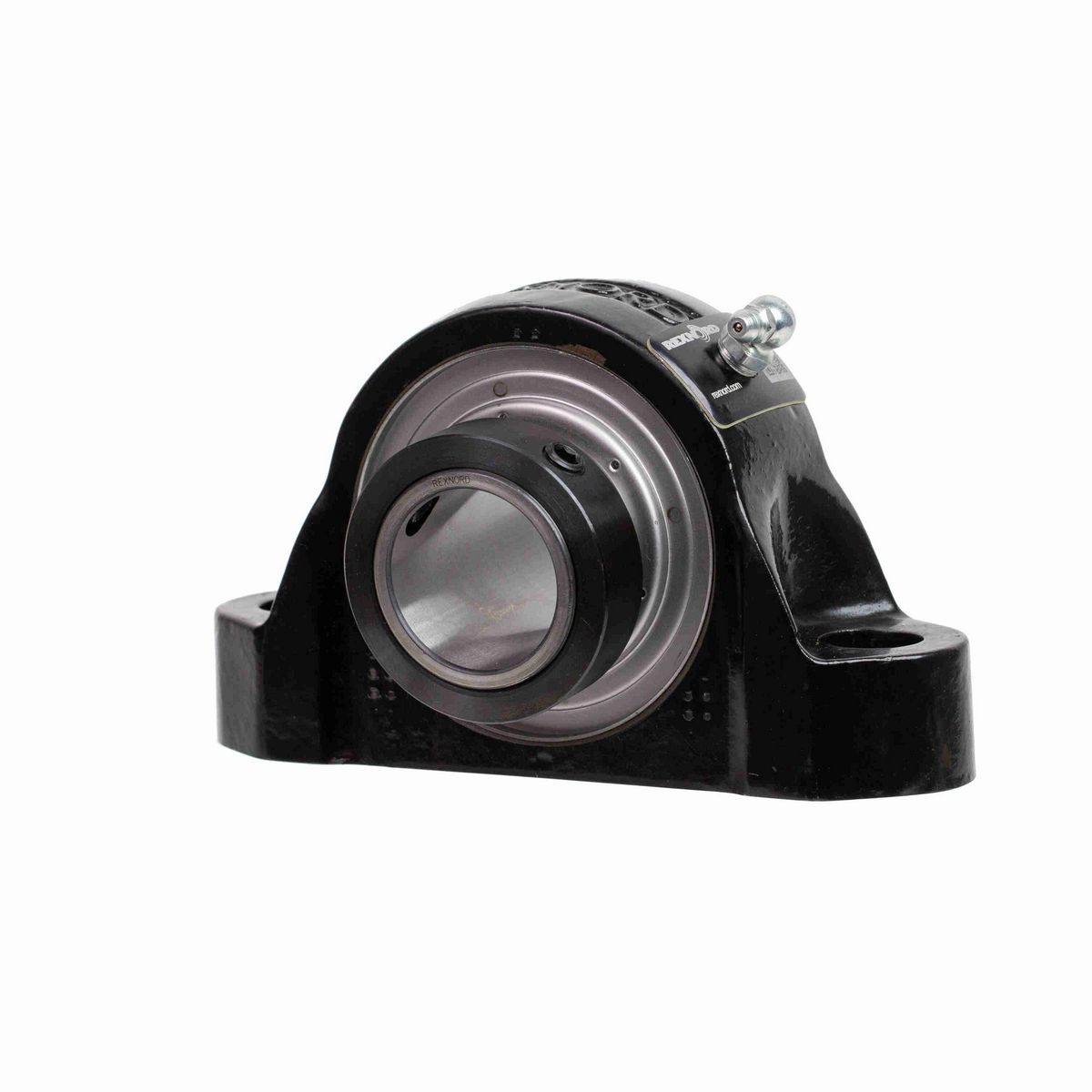

• 3 7/16" shaft size; Cast iron housing; Expansion unit; Setscrew mounting collar; Clearance seal; Exxon Ronex MP grease; Accessories include open cap and closed cap

Dimensions

Overall Length (in)	12.63 in
Overall Height (in)	7.5 in
Slot Length (in)	1.63 in
Base to Center Height (in)	3.75 in
Foot Height (in)	2.25 in
Base Width (in)	3.42 in
Overall Width (in)	4.12 in
Bore Diameter (in)	3.4375 in
Bolt Size (in)	7/8 in
Locking Collar Outside Diameter (in)	4.9 in
Bolt Spacing Max (in)	10.63 in
Centerline to Outermost Bearing Face (in)	2.71 in
Bolt Spacing Min (in)	9.38 in
Housing Cast Face to Outermost Bearing Face (in)	1.13 in
Base Length (in)	12.63 in
Expansion Capability (in)	0.34 in
Length Through Bore (in)	4.12 in

Technical Specifications

Seal Type	Clearance Seal
Series	Solid-housed Pillow Blocks
Misalignment Type	Dynamic
Product	P2B
Fixed/Expansion	Expansion
End Cap	SEE AUX CAP KIT
Housing Style	Pillow Block
Housing Construction	Solid
Static Load Rating (lb)	77,880 lb
Cage Material	Steel
Radial Dynamic Load Capacity (lb)	64,000 lb
Housing Material	Cast Iron
Shaft Locking Type	Single Set Collar
Rolling Element	Spherical Roller
Housing Color	Black
Housing Type	Pillow Block, Two Bolt
Setscrew Torque (in-lbs)	680 in/lbs
Available Seal Type	C Clearance Seal; T Triple Lip Seal
Ability to Relubricate	Yes
Maximum Speed (RPM)	1980 rpm
Lube Fitting Type	STRAIGHT AND 90 DEG FITTING
Housing Coating	POWDER COATED
Max Operating Temperature (C)	107 °C
Primary Seal	STEEL CLEARANCE SEAL
Vibration Frequency Roller Spin	0.0513 cps
Grease Fitting Thread Size	1/8 NPT
Vibration Frequency Outer Ring Defect	0.1195 cps
Misalignment Capability	±2.0° Misalignment - Dynamic
Vibration Frequency Inner Ring Defect	0.1638 cps
Max Operating Temperature (F)	225 °F
Size Code	10
Lubricant	EXXON RONEX MP STD
Vibration Frequency Fundamental Train	0.007 cps

General Specifications

UPC	782934931680
Weight	29.03 LB
Packaged Length	8.00 IN
Packaged Width	4.38 IN
Packaged Height	13.00 IN
HTC	8483208080
Country of Origin	China
