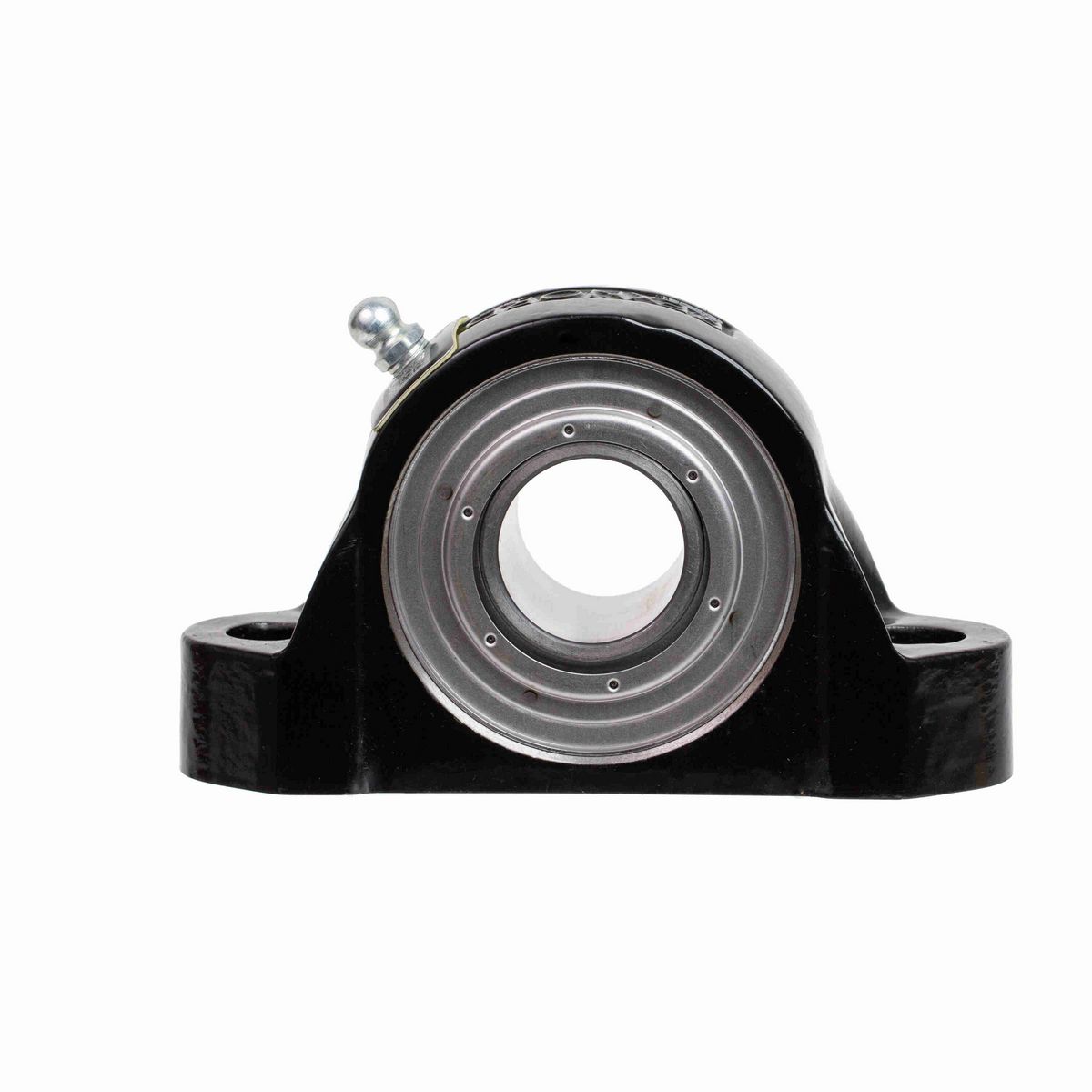

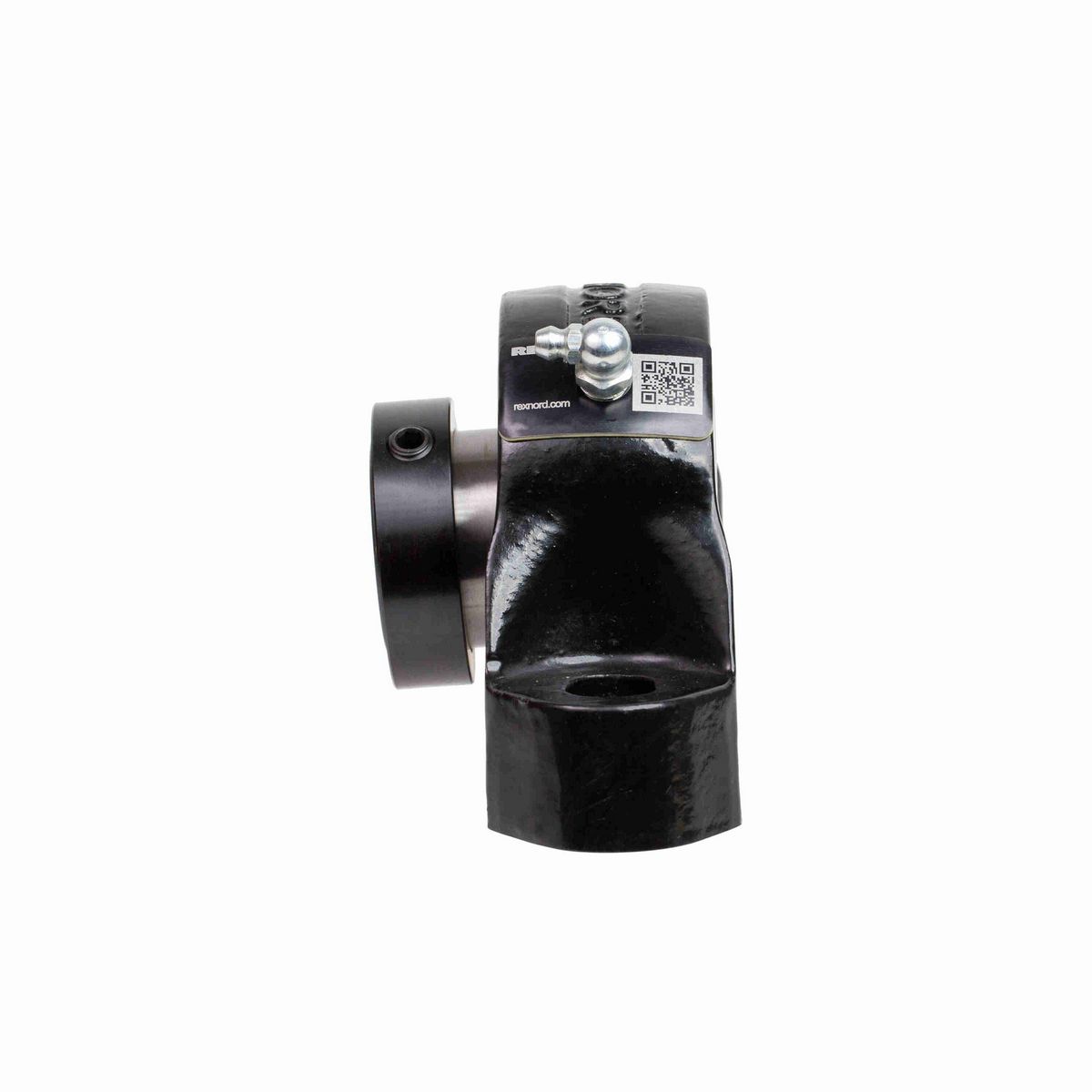

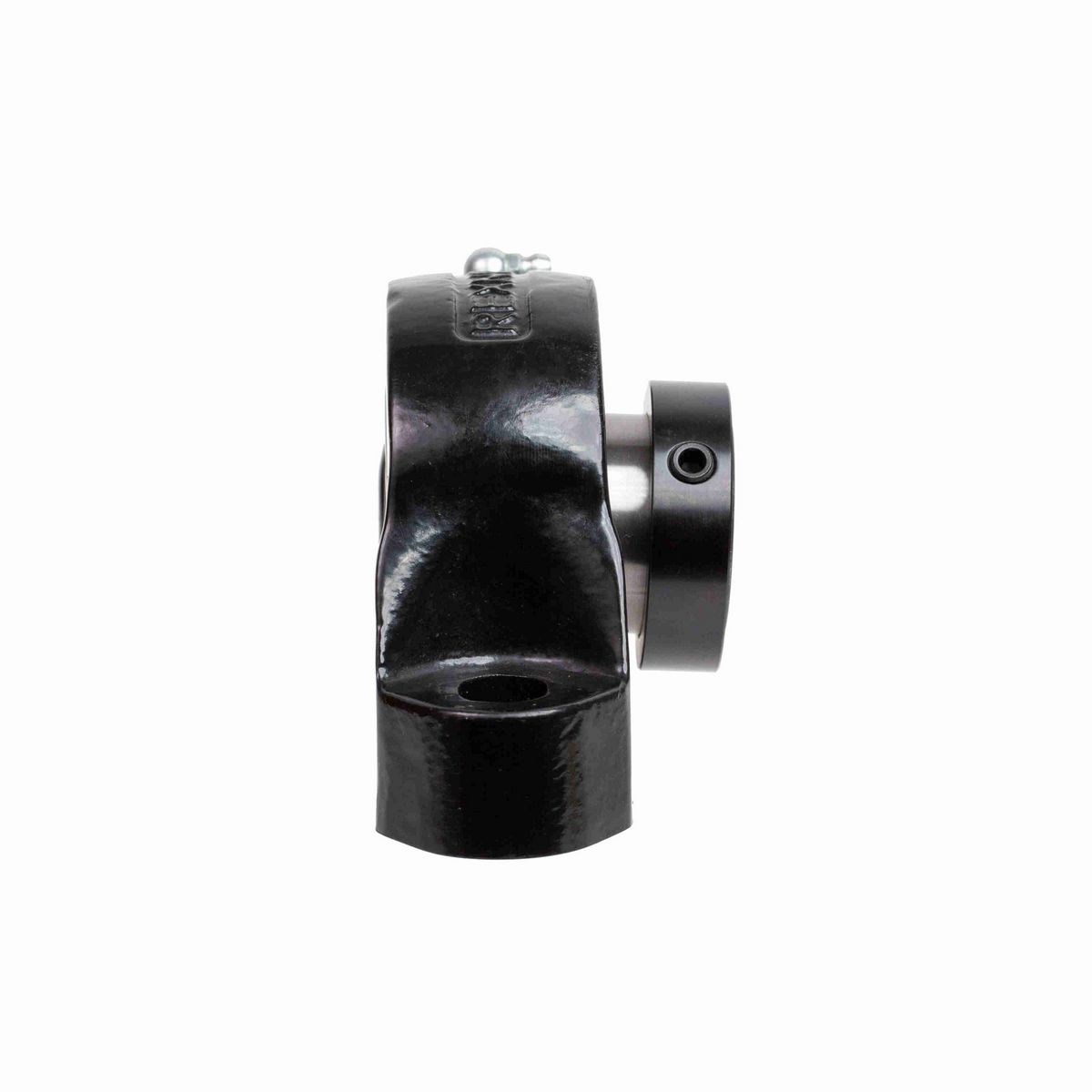

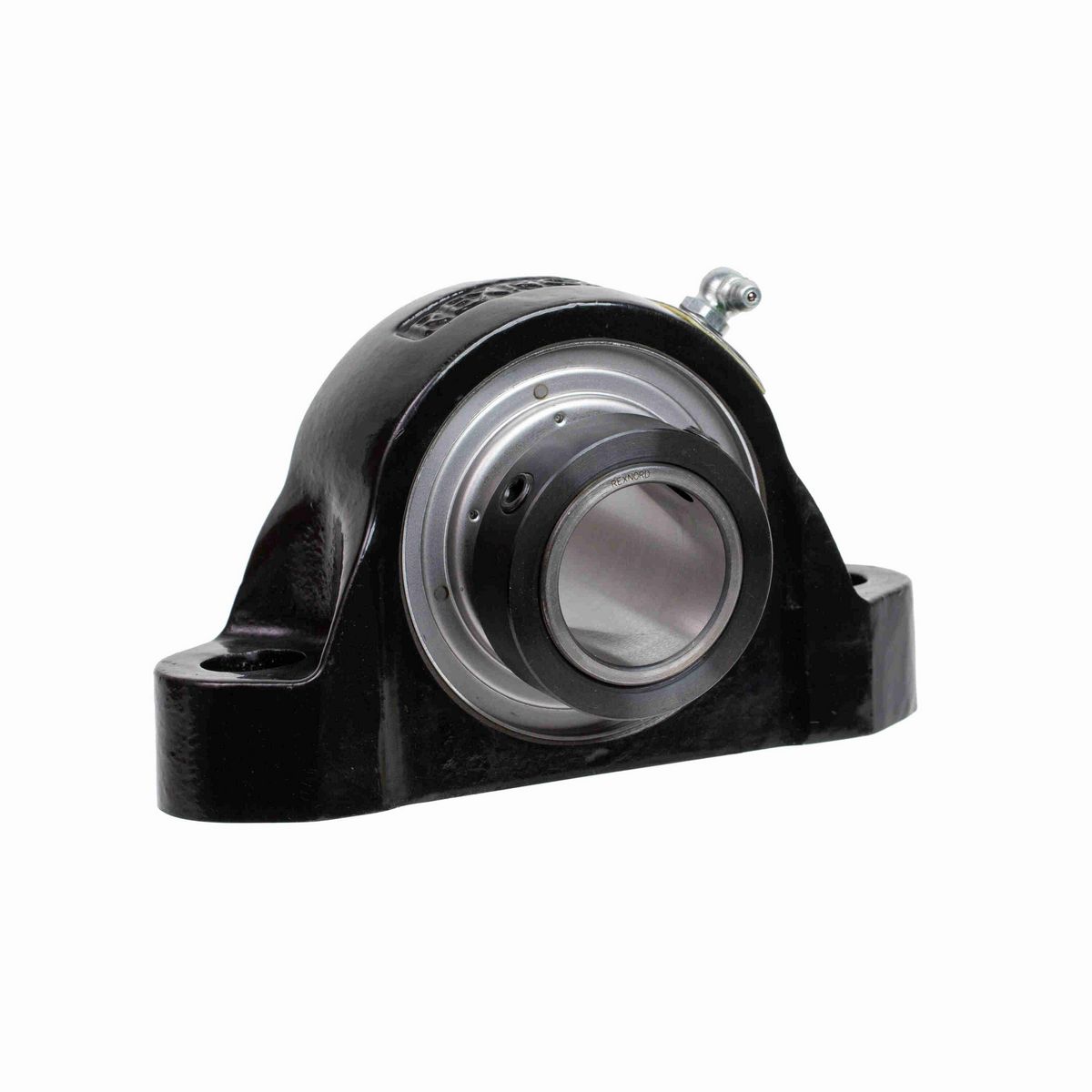

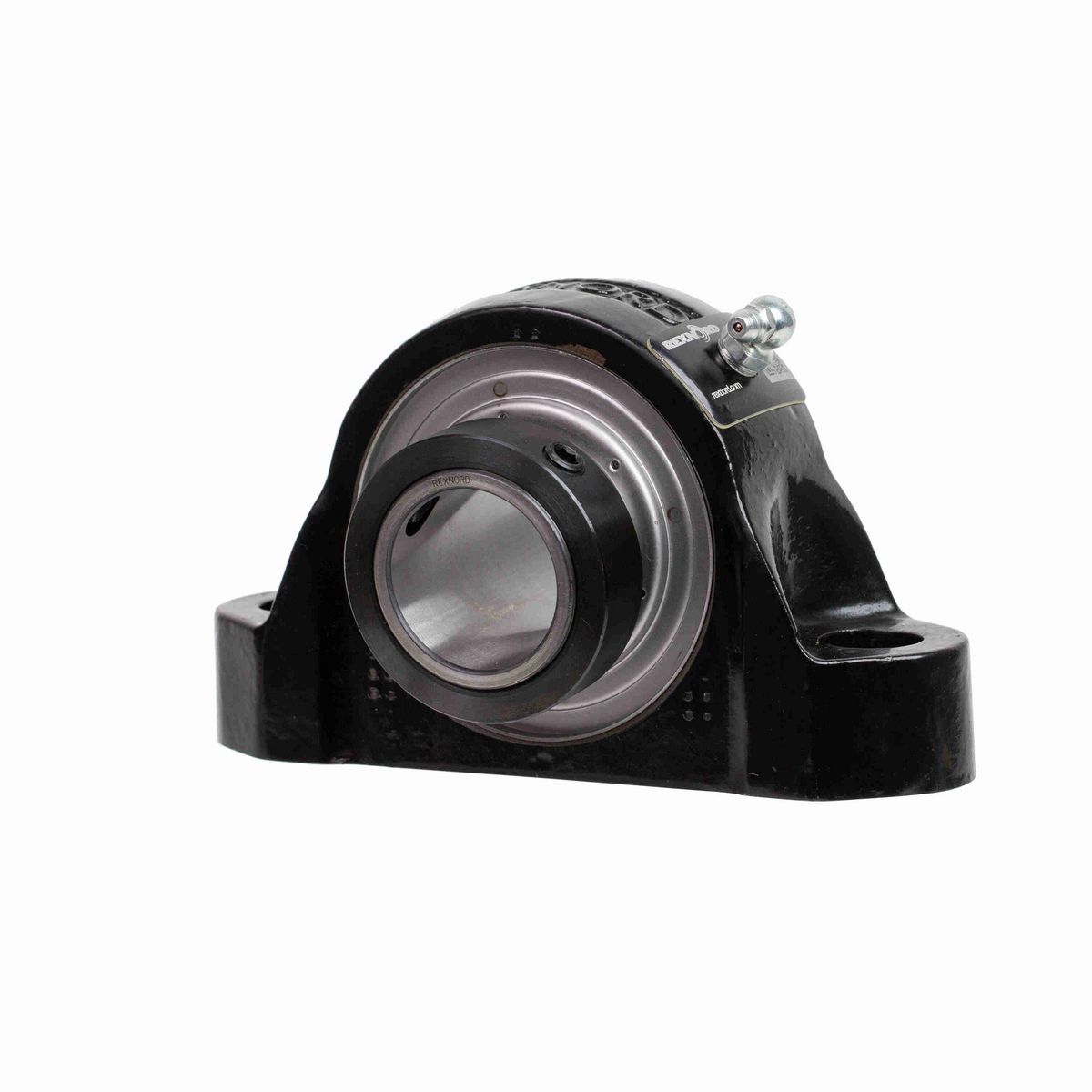

• 1 11/16" shaft size; Cast iron housing; Fixed unit; Setscrew mounting collar; Clearance seal; Exxon Ronex MP grease; Accessories include open cap and closed cap

Dimensions

Base Width (in)	2.06 in
Overall Length (in)	7.12 in
Slot Length (in)	0.82 in
Bore Diameter (in)	1.6875 in
Overall Height (in)	4.27 in
Overall Width (in)	2.76 in
Foot Height (in)	1.25 in
Bolt Size (in)	1/2 in
Base to Center Height (in)	2.125 in
Locking Collar Outside Diameter (in)	2.58 in
Housing Cast Face to Outermost Bearing Face (in)	0.91 in
Centerline to Outermost Bearing Face (in)	1.84 in
Bolt Spacing Min (in)	5.31 in
Length Through Bore (in)	2.76 in
Base Length (in)	7.12 in

Technical Specifications

Misalignment Type	Dynamic
Rolling Element	Spherical Roller
Housing Color	Black
Product	P2B
Static Load Rating (lb)	23,240 lb
Housing Construction	Solid
End Cap	SEE AUX CAP KIT
Radial Dynamic Load Capacity (lb)	20,500 lb
Housing Style	Pillow Block
Shaft Locking Type	Single Set Collar
Cage Material	Steel
Housing Type	Pillow Block, Two Bolt
Fixed/Expansion	Fixed
Seal Type	Clearance Seal
Series	Solid-housed Pillow Blocks
Housing Material	Cast Iron
Setscrew Torque (in-lbs)	325 in/lbs
Maximum Speed (RPM)	3820 rpm
Seal Kit	ZS5
Ability to Relubricate	Yes
Available Seal Type	C Clearance Seal; T Triple Lip Seal
Housing Coating	POWDER COATED
Size Code	5
Vibration Frequency Outer Ring Defect	0.1187 cps
Vibration Frequency Fundamental Train	0.007 cps
Misalignment Capability	±2.0° Misalignment - Dynamic
Lubricant	EXXON RONEX MP STD
Max Operating Temperature (C)	107 °C
Vibration Frequency Roller Spin	0.0492 cps
Grease Fitting Thread Size	1/8 NPT
Lube Fitting Type	STRAIGHT AND 90 DEG FITTING
Max Operating Temperature (F)	225 °F
Vibration Frequency Inner Ring Defect	0.1647 cps
Primary Seal	STEEL CLEARANCE SEAL

General Specifications

UPC	782934931987
Weight	6.20 LB
Packaged Length	8.50 IN
Packaged Width	3.50 IN
Packaged Height	4.50 IN
HTC	8483208080
Country of Origin	China
