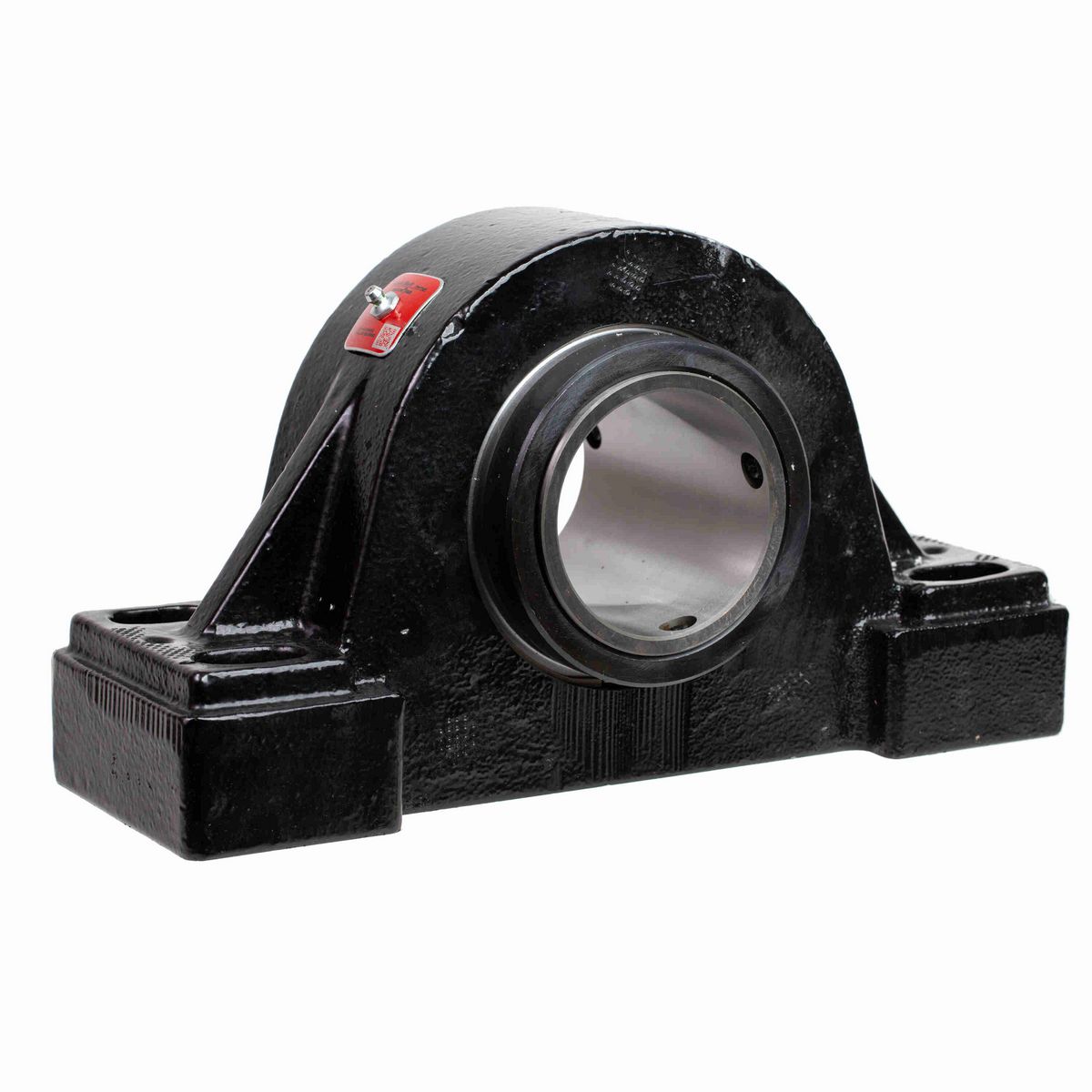

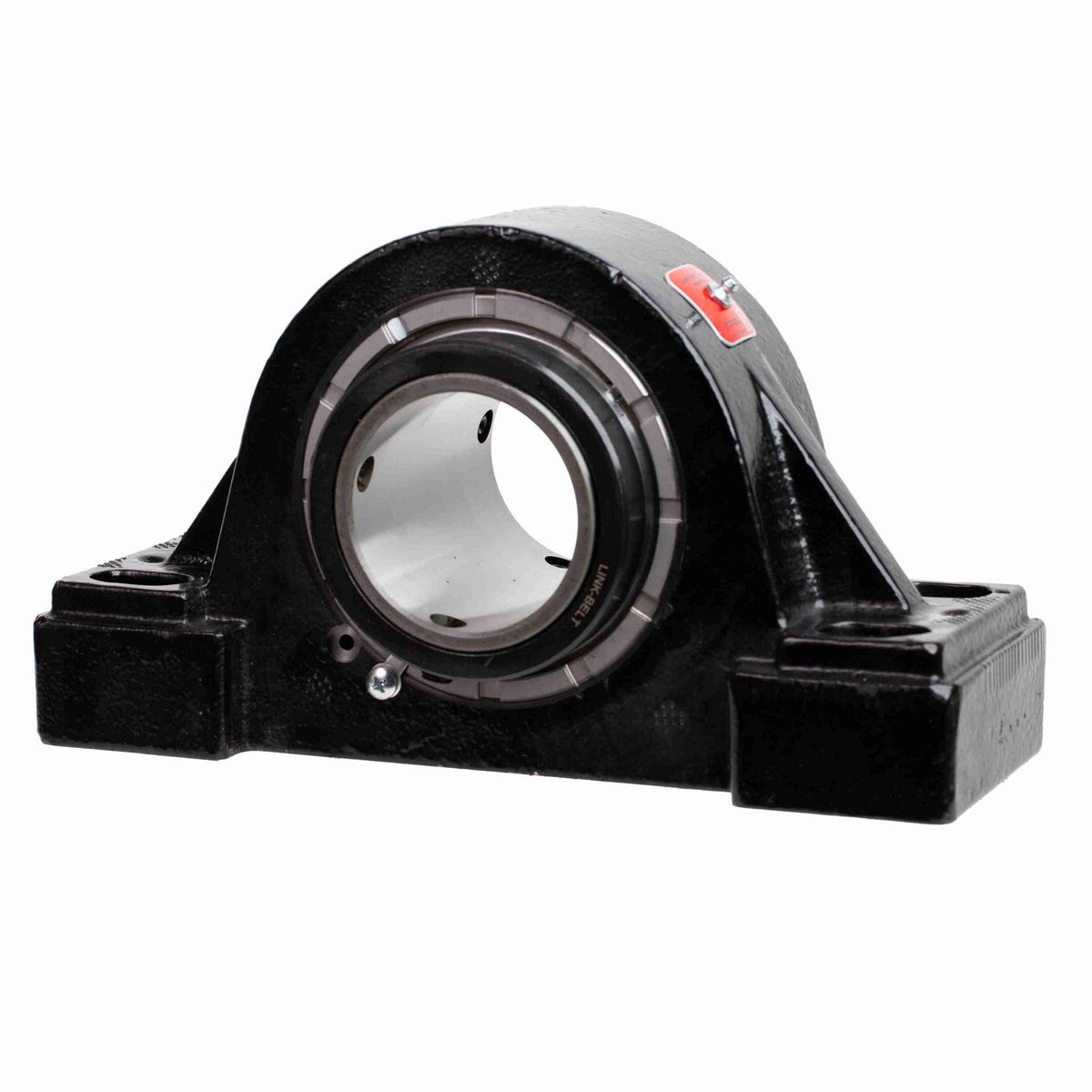

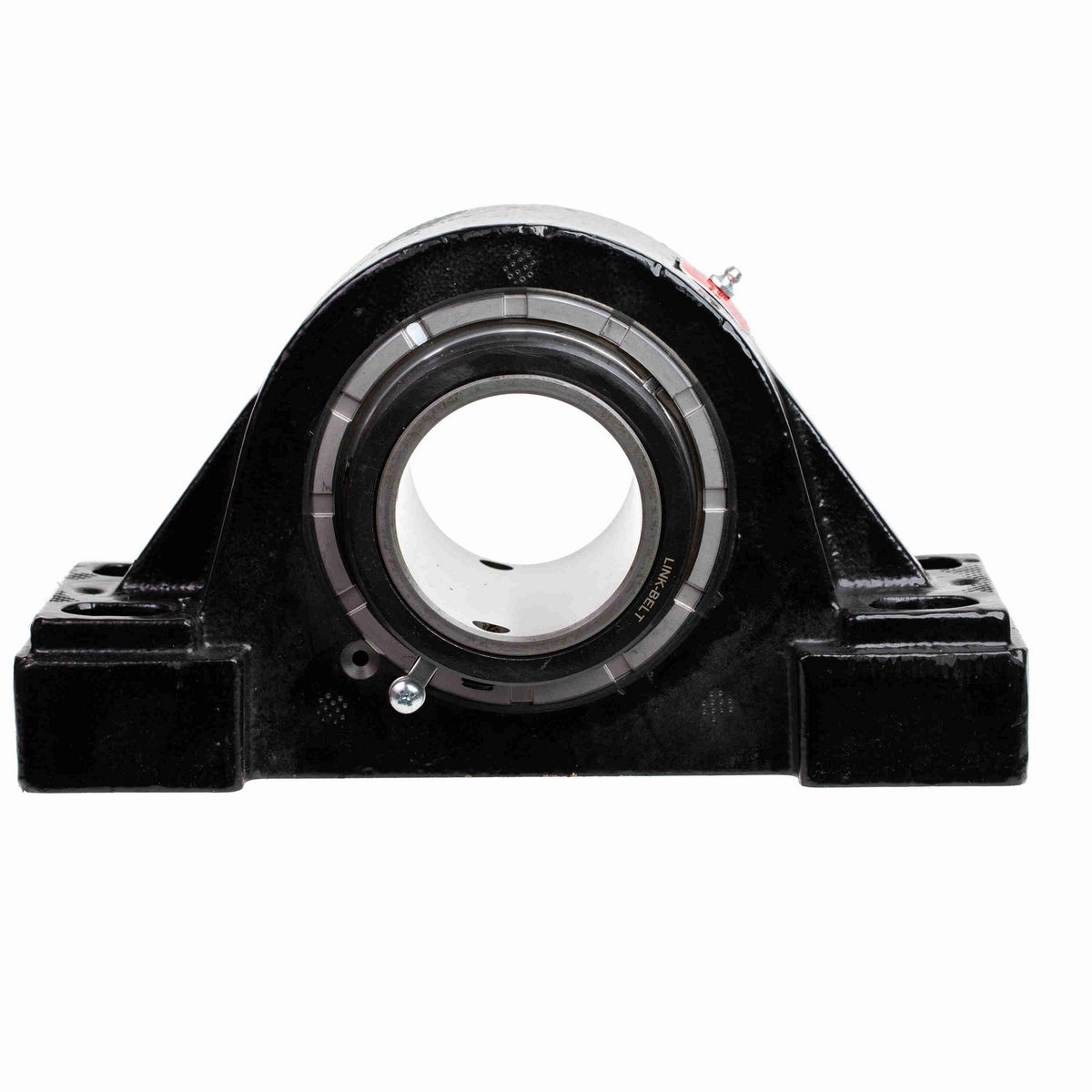

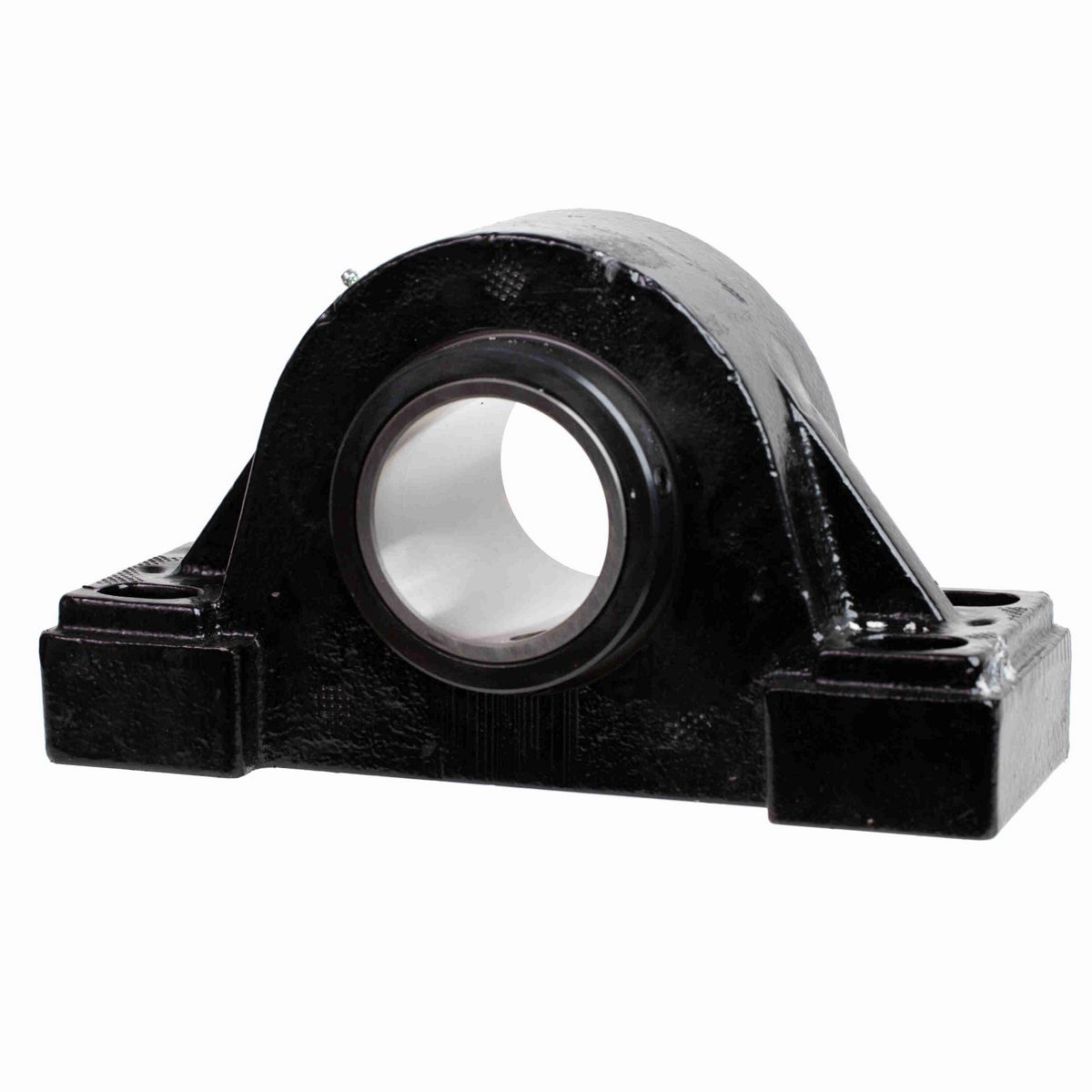

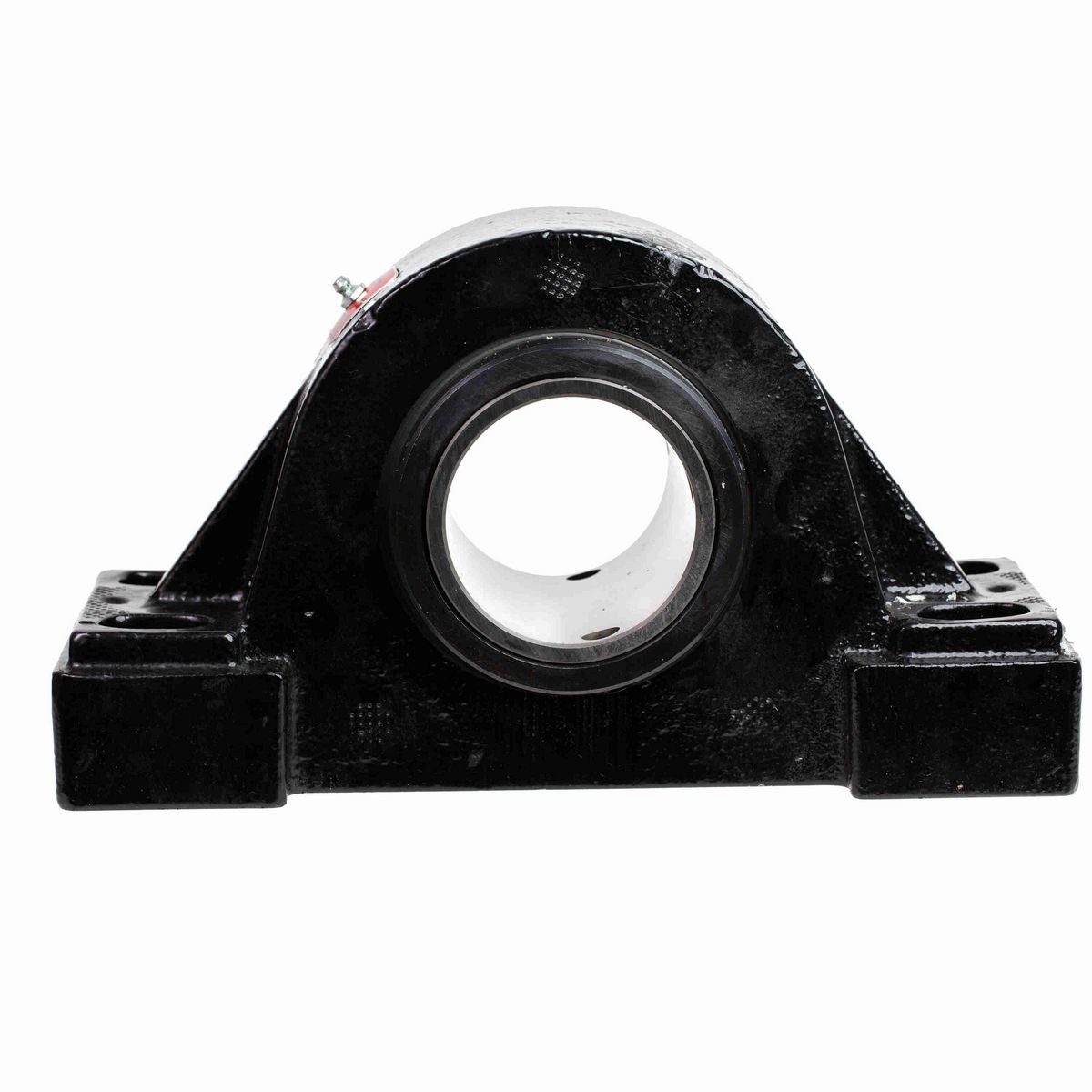

• 3 3/16" Mounted Spherical Roller Bearing, Fixed Cast Iron 4-Bolt Pillow Block, Double Setscrew Locking Collar, Spring Loaded Heavy Contact Seal, Housing Drilled on EacE Side to Accept Auxiliary Caps

Dimensions

Bolt Size (in)	3/4 in
Base Width (in)	5 in
Overall Length (in)	15 in
Bore Diameter (in)	3.1875 in
Slot Length (in)	1.5 in
Overall Height (in)	8.13 in
Overall Width (in)	5.31 in
Base to Center Height (in)	4 in
Foot Height (in)	1.5 in
Locking Collar Outside Diameter (in)	4.91 in
Bolt Spacing (in)	11.5 in
Length Through Bore (in)	5.31 in
Base Length (in)	15 in
Bolt Spacing Width (in)	3 in
Inner Ring Outside Diameter (in)	3.975 in
Housing Cast Face to Outermost Bearing Face (in)	0.94 in

Technical Specifications

Housing Color	Black
Product	ZP5000F
Radial Clearance	C3 STANDARD
Housing Material	Cast Iron
End Cap	DTC10
Cage Material	Engineered Polymer
Fixed/Expansion	Fixed
Radial Dynamic Load Capacity (lb)	84,330 lb
Housing Style	Pillow Block
Series	Solid-housed Pillow Blocks
Housing Type	Pillow Block, Four Bolt
Rolling Element	Spherical Roller
Shaft Locking Type	Double Set Collar
Static Load Rating (lb)	90,700 lb
Seal Type	Heavy Contact Seal
Housing Construction	Solid
Misalignment Type	Dynamic
Seal Kit	MS10
Ability to Relubricate	Yes
Available Seal Type	K Light Contact Lip Seal; M Spring Loaded Heavy Contact Lip Seal (Buna and Viton); Z Clearance Seal; G Triple Lip
Microlock Kit	ML4
Maximum Speed (RPM)	1400 rpm
Setscrew Torque (in-lbs)	680 in/lbs
Misalignment Capability	±2.0° Misalignment - Dynamic
Grease Fitting Thread Size	1/8 NPT
Lubricant	EXXON RONEX MP STD
Housing Coating	POWDER COATED
Primary Seal	BUNA SPRING LOADED LIP SEAL
Max Operating Temperature (C)	107 °C
Locking Device Kit	SC10 QTY 2
Max Operating Temperature (F)	225 °F
Insert	5303U
Vibration Frequency Inner Ring Defect	0.1784 cps
Vibration Frequency Roller Spin	0.0628 cps
Vibration Frequency Fundamental Train	0.0073 cps
Vibration Frequency Outer Ring Defect	0.1383 cps
Size Code	10

General Specifications

UPC	698210013134
Weight	52.00 LB
Packaged Length	15.50 IN
Packaged Width	5.38 IN
Packaged Height	8.50 IN
HTC	8483204080
Country of Origin	United States of America
