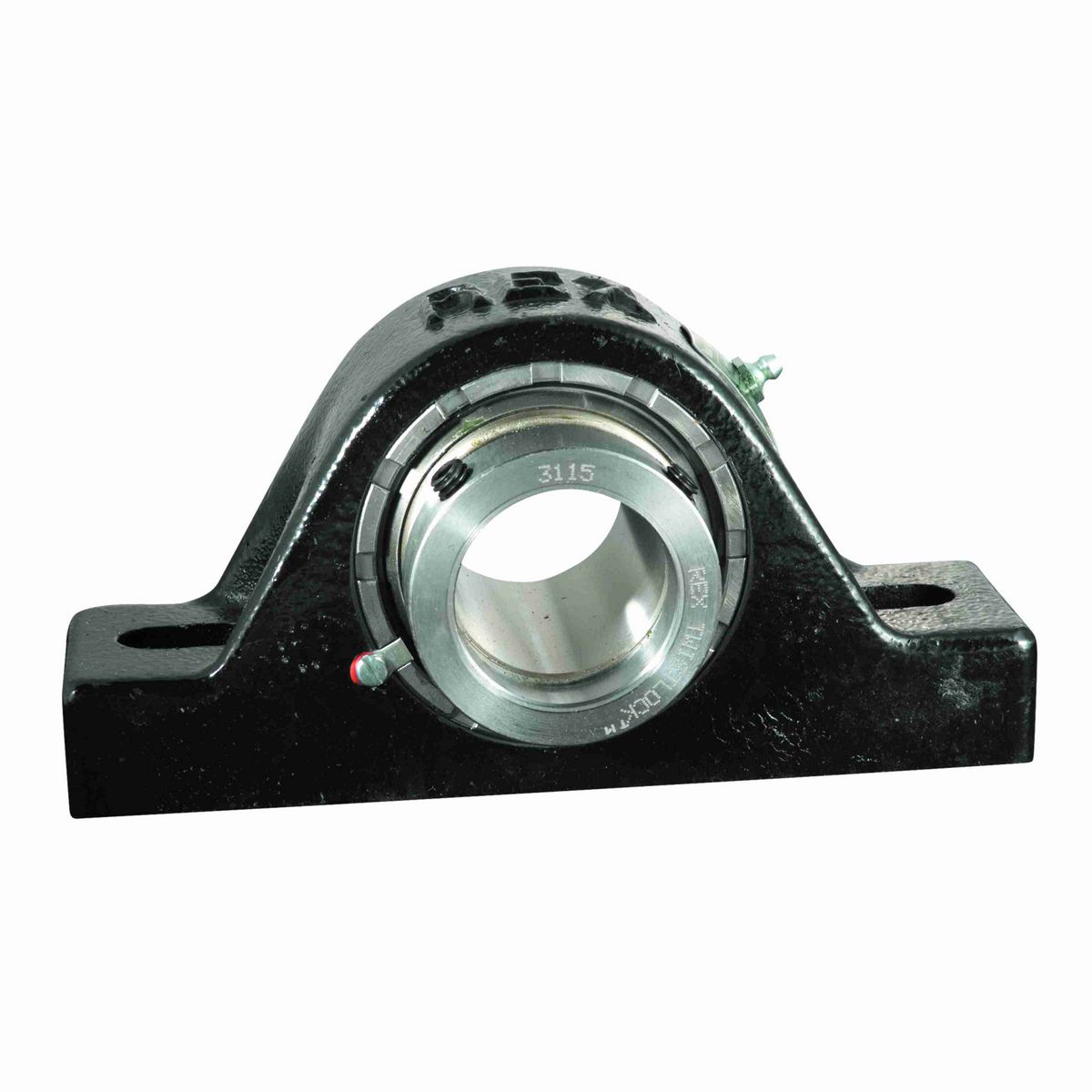

• 3 7/16" Mounted Spherical Roller Bearing, Fixed Cast Iron 2-Bolt Type E Pillow Block, Eccentric Cam Locking Collar, Spring Loaded Heavy Contact Seal

Dimensions

Base Width (in)	3.5 in
Overall Length (in)	13.81 in
Bolt Size (in)	7/8 in
Base to Center Height (in)	3.75 in
Foot Height (in)	2.25 in
Overall Height (in)	7.5 in
Overall Width (in)	4.56 in
Bore Diameter (in)	3.4375 in
Locking Collar Outside Diameter (in)	4.91 in
Inner Ring Outside Diameter (in)	3.975 in
Housing Cast Face to Outermost Bearing Face (in)	1.14 in
Base Length (in)	13.81 in
Length Through Bore (in)	4.56 in
Bolt Spacing Max (in)	11.31 in
Bolt Spacing Min (in)	9.31 in

Technical Specifications

Product	ZEP3000
Radial Dynamic Load Capacity (lb)	84,330 lb
Housing Style	Pillow Block
Rolling Element	Spherical Roller
End Cap	NEED EXT EC
Misalignment Type	Dynamic
Shaft Locking Type	Eccentric Collar
Housing Material	Cast Iron
Housing Construction	Solid
Housing Color	Black
Fixed/Expansion	Fixed
Cage Material	Engineered Polymer
Seal Type	Heavy Contact Seal
Housing Type	Pillow Block, Two Bolt, Type E
Radial Clearance	C3 STANDARD
Series	Solid-housed Pillow Blocks
Static Load Rating (lb)	90,700 lb
Seal Kit	MS10
Available Seal Type	K Light Contact Lip Seal; M Spring Loaded Heavy Contact Lip Seal (Buna and Viton); Z Clearance Seal; G Triple Lip Seal
Setscrew Torque (in-lbs)	460 in/lbs
Ability to Relubricate	Yes
Maximum Speed (RPM)	1400 rpm
Microlock Kit	ML4
Grease Fitting Thread Size	1/8 NPT
Primary Seal	BUNA SPRING LOADED LIP SEAL
Locking Device Kit	SC3307
Misalignment Capability	±2.0° Misalignment - Dynamic
Insert	3307U
Vibration Frequency Roller Spin	0.0628 cps
Max Operating Temperature (C)	107 °C
Vibration Frequency Inner Ring Defect	0.1784 cps
Vibration Frequency Outer Ring Defect	0.1383 cps
Lubricant	EXXON RONEX MP STD
Size Code	10
Housing Coating	POWDER COATED
Vibration Frequency Fundamental Train	0.0073 cps
Max Operating Temperature (F)	225 °F

General Specifications

UPC	698210911409
Weight	42.50 LB
Packaged Length	14.38 IN
Packaged Width	4.63 IN
Packaged Height	7.75 IN
HTC	8483208080
