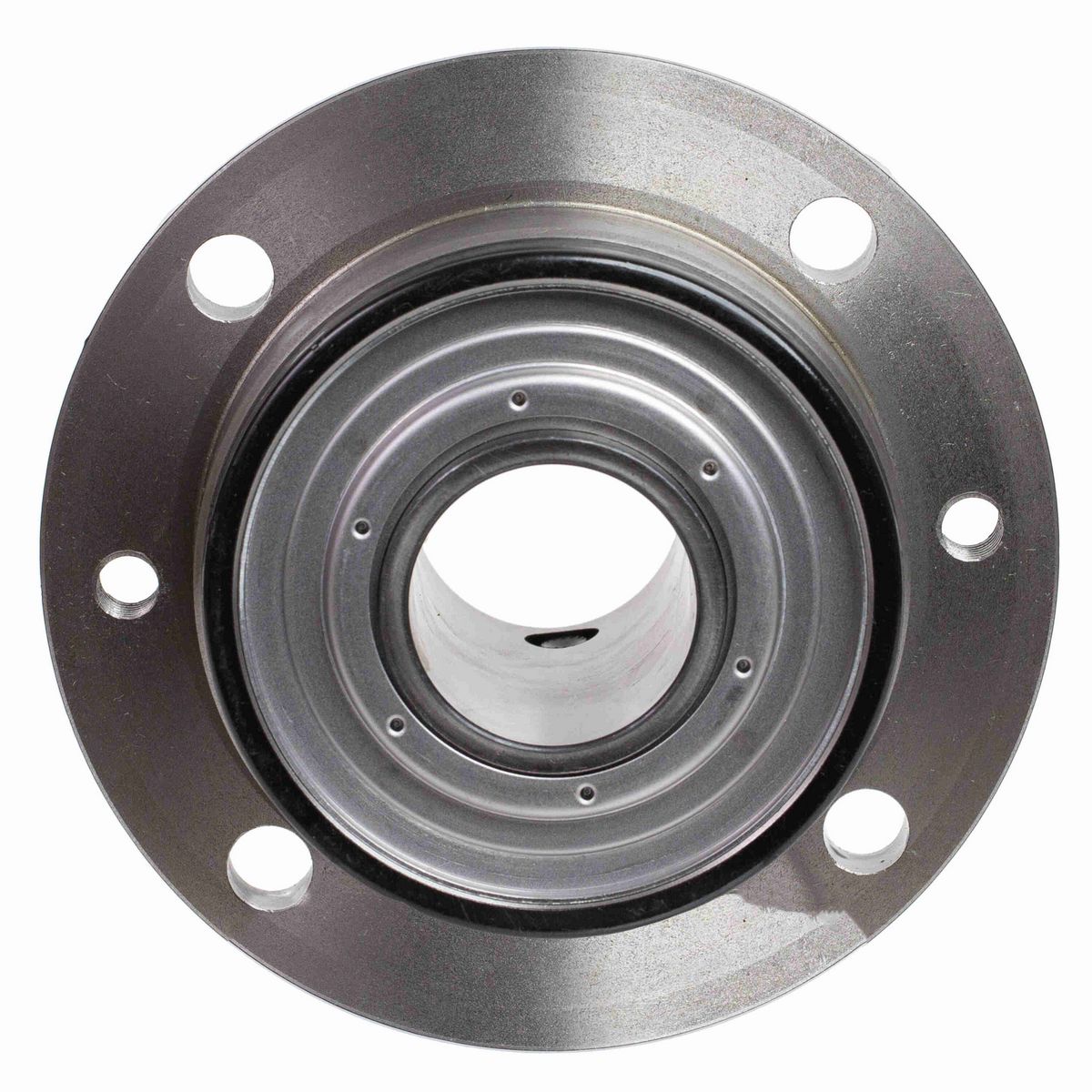

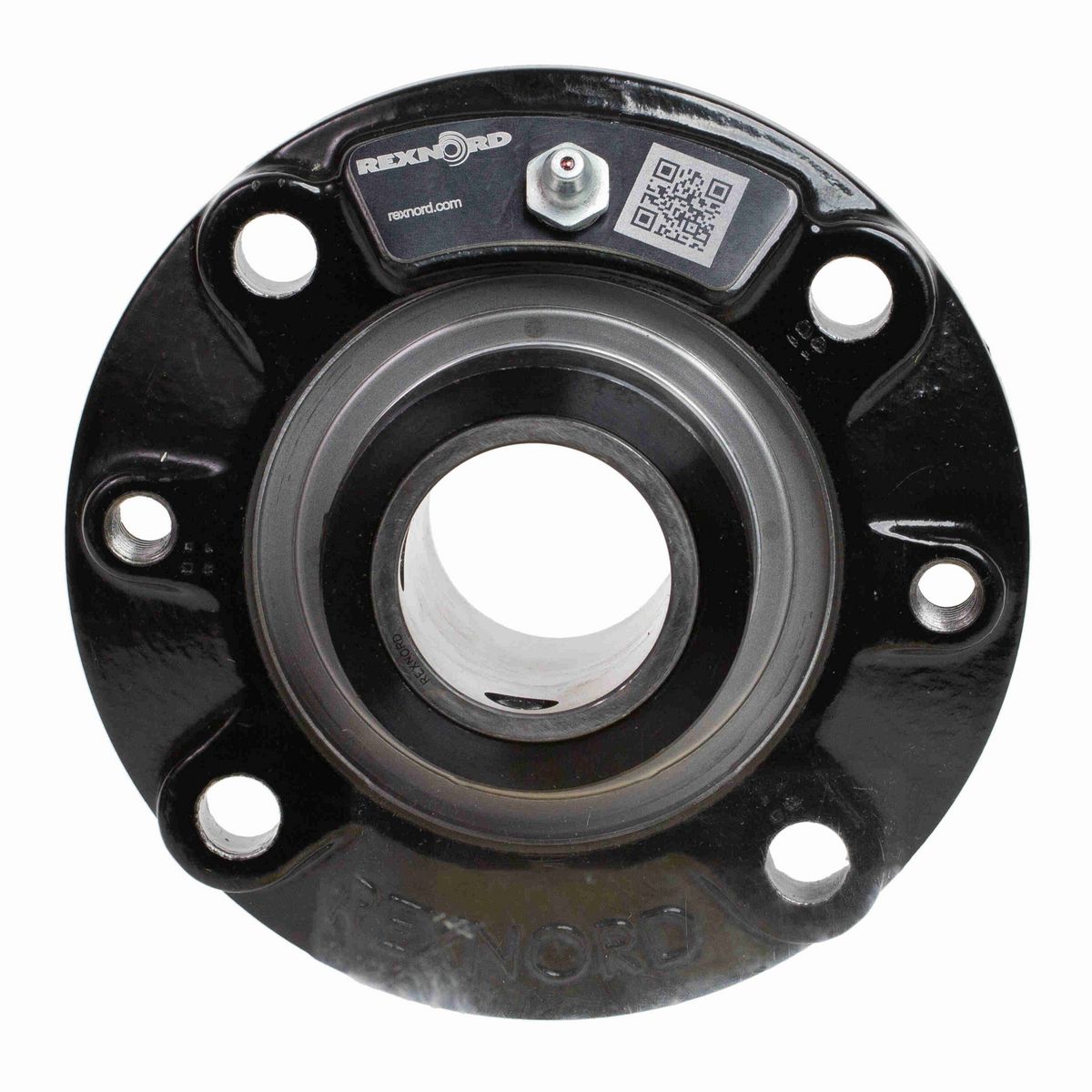

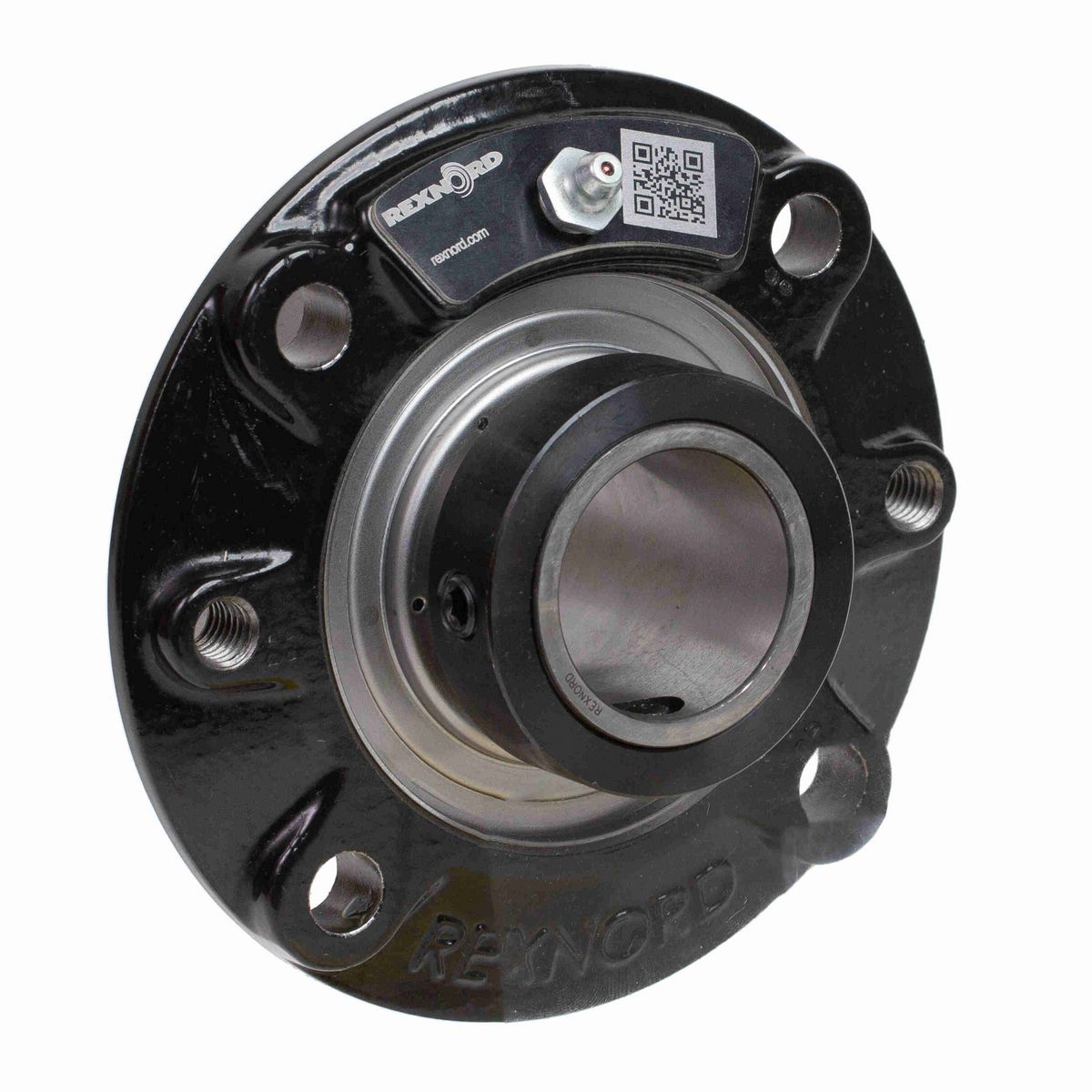

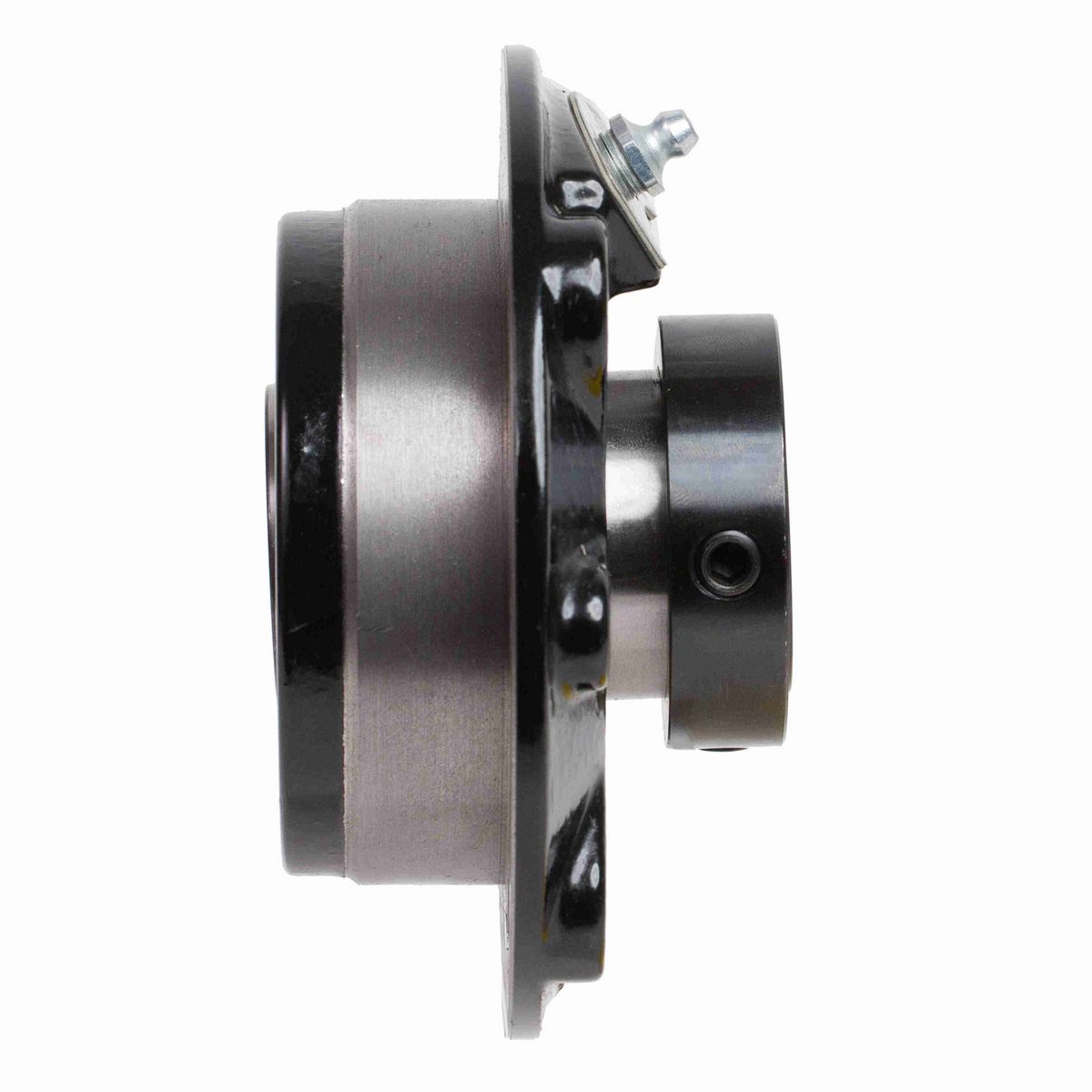

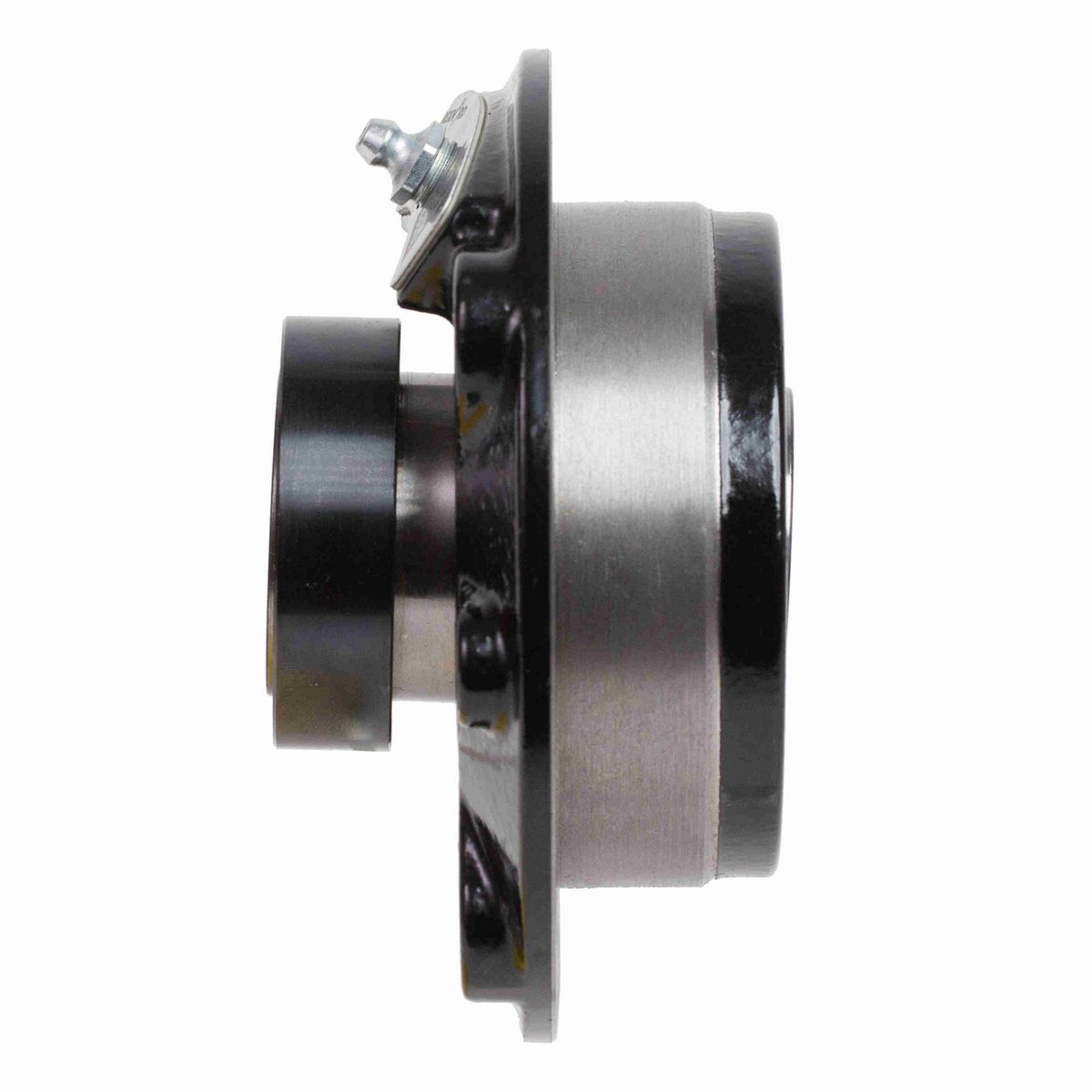

• 3 15/16" shaft size; Cast iron housing; Fixed unit; Setscrew mounting collar; Clearance seal; Exxon Ronex MP grease; Accessories include open cap and closed cap

Dimensions

Pilot Diameter (in)	8.125 in
Overall Height to End Cap (in)	6.7 in
Overall Height (in)	4.64 in
Overall Width (in)	10.88 in
Bolt Size (in)	3/4 in
Foot Height (in)	1.13 in
Housing Height (in)	3.18 in
Overall Length (in)	10.88 in
Bore Diameter (in)	3.9375 in
Housing Outside Diameter (in)	10.88 in
Locking Collar Outside Diameter (in)	5.63 in
Mounting Plate to Collar Face (in)	2.89 in
Pilot Depth (in)	1.47 in
Bolt Spacing (in)	6.625 in
Mounting Surface to End of Housing (in)	1.75 in
Mounting Surface to Cap Face on Backside (in)	3.51 in
Bolt Circle (in)	9.375 in
Housing Cast Face to Outermost Bearing Face (in)	1.46 in
Length Through Bore (in)	4.64 in

Technical Specifications

Static Load Rating (lb)	98,600 lb
Cage Material	Steel
Housing Style	Flange Block
Series	Flanged Cartridge Blocks
Housing Color	Black
Housing Construction	Solid
End Cap	SEE AUX CAP KIT
Fixed/Expansion	Fixed
Shaft Locking Type	Single Set Collar
Misalignment Type	Dynamic
Radial Dynamic Load Capacity (lb)	80,000 lb
Seal Type	Clearance Seal
Rolling Element	Spherical Roller
Housing Type	Flange, Cartridge
Product	FC
Housing Material	Cast Iron
Ability to Relubricate	Yes
Maximum Speed (RPM)	1760 rpm
Setscrew Torque (in-lbs)	1350 in/lbs
Bolt Hole Shape	Round Hole
Available Seal Type	C Clearance Seal; T Triple Lip Seal
Vibration Frequency Fundamental Train	0.007 cps
Lubricant	EXXON RONEX MP STD
Size Code	11
Lube Fitting Type	STRAIGHT AND 90 DEG FITTING
Primary Seal	STEEL CLEARANCE SEAL
Vibration Frequency Inner Ring Defect	0.1638 cps
Housing Coating	POWDER COATED
Vibration Frequency Outer Ring Defect	0.1196 cps
Max Operating Temperature (C)	107 °C
Grease Fitting Thread Size	1/8 NPT
Vibration Frequency Roller Spin	0.0514 cps
Max Operating Temperature (F)	225 °F
Misalignment Capability	±2.0° Misalignment - Dynamic

General Specifications

UPC	782934929564
Weight	33.50 LB
Packaged Length	11.00 IN
Packaged Width	5.00 IN
Packaged Height	10.75 IN
HTC	8483204080
Country of Origin	China
