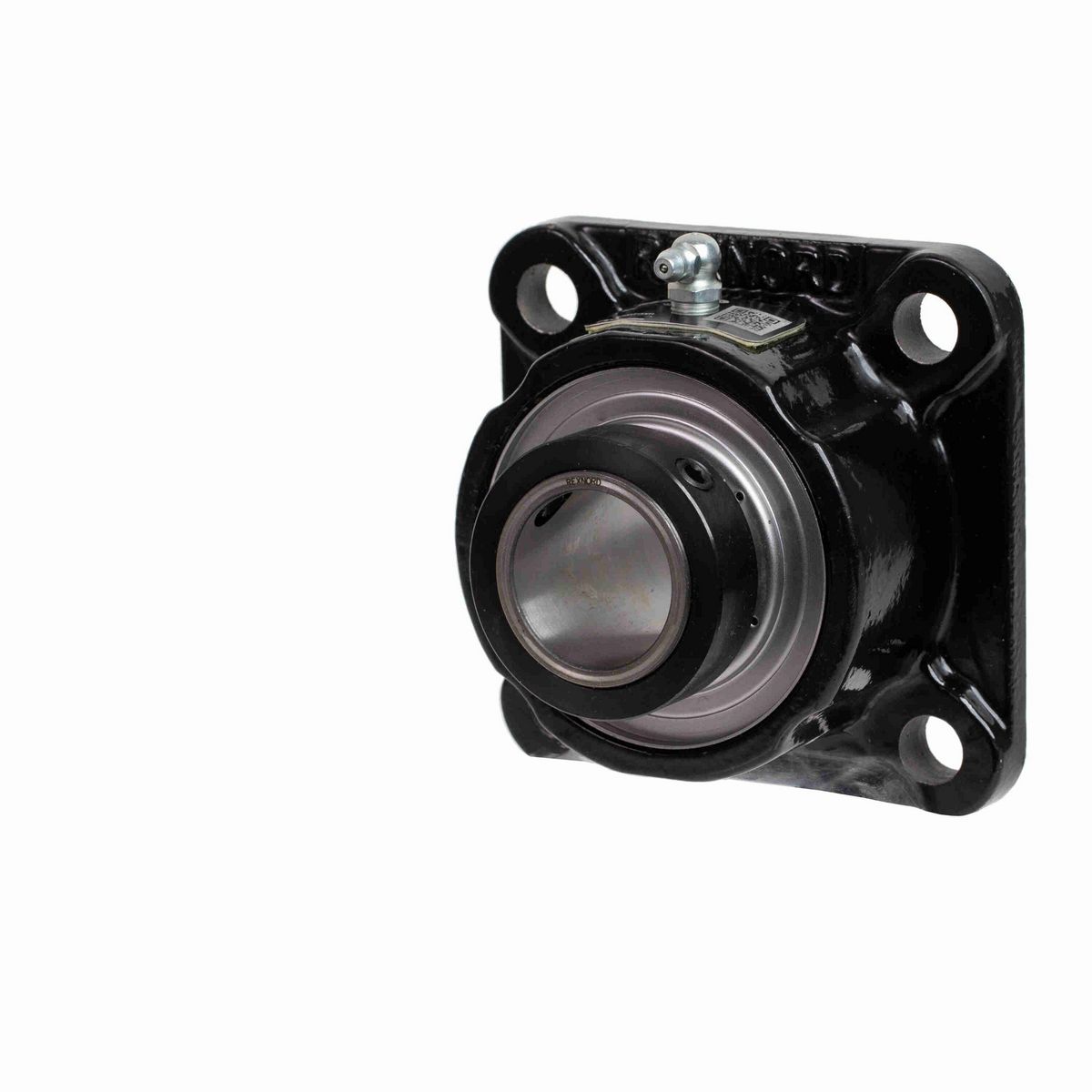

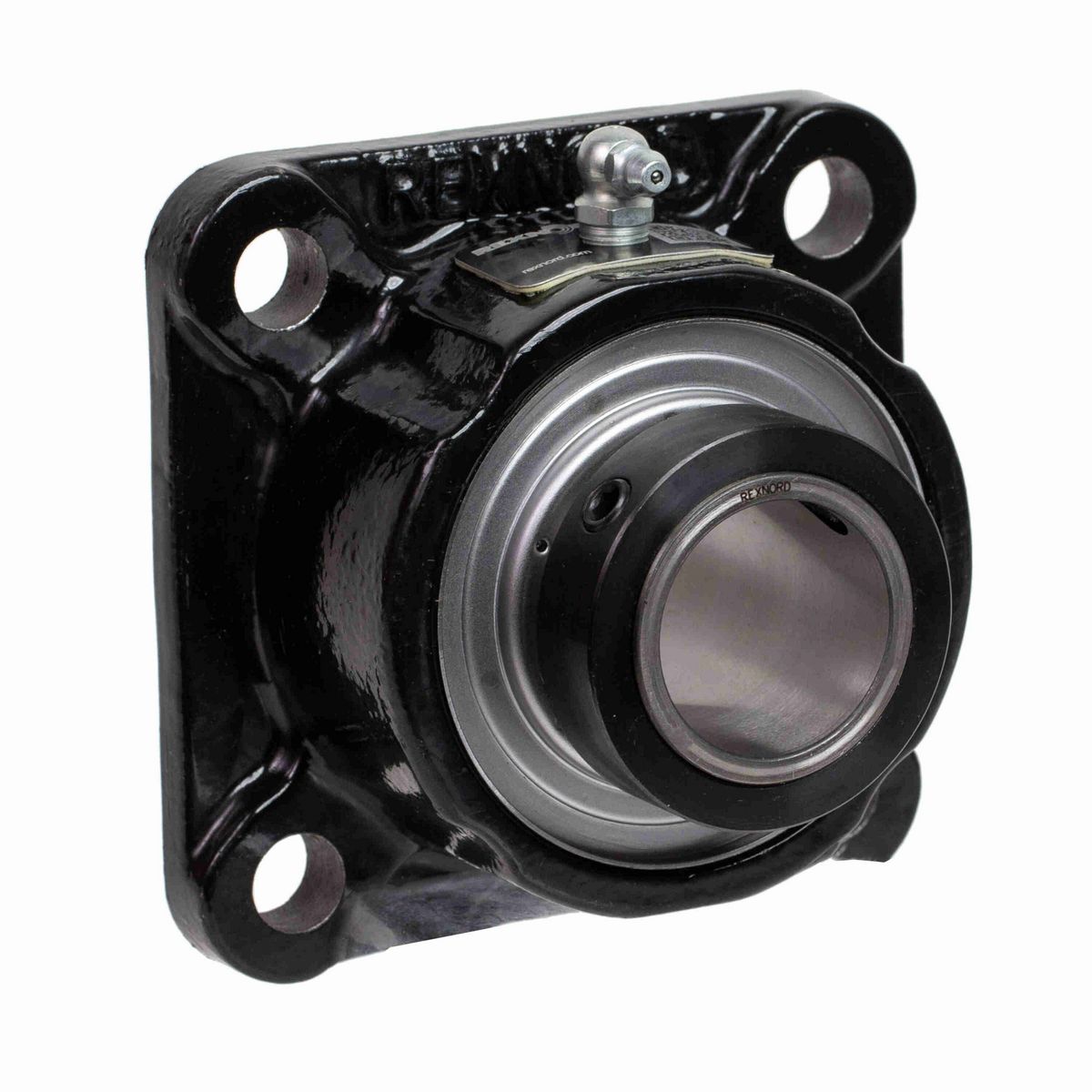

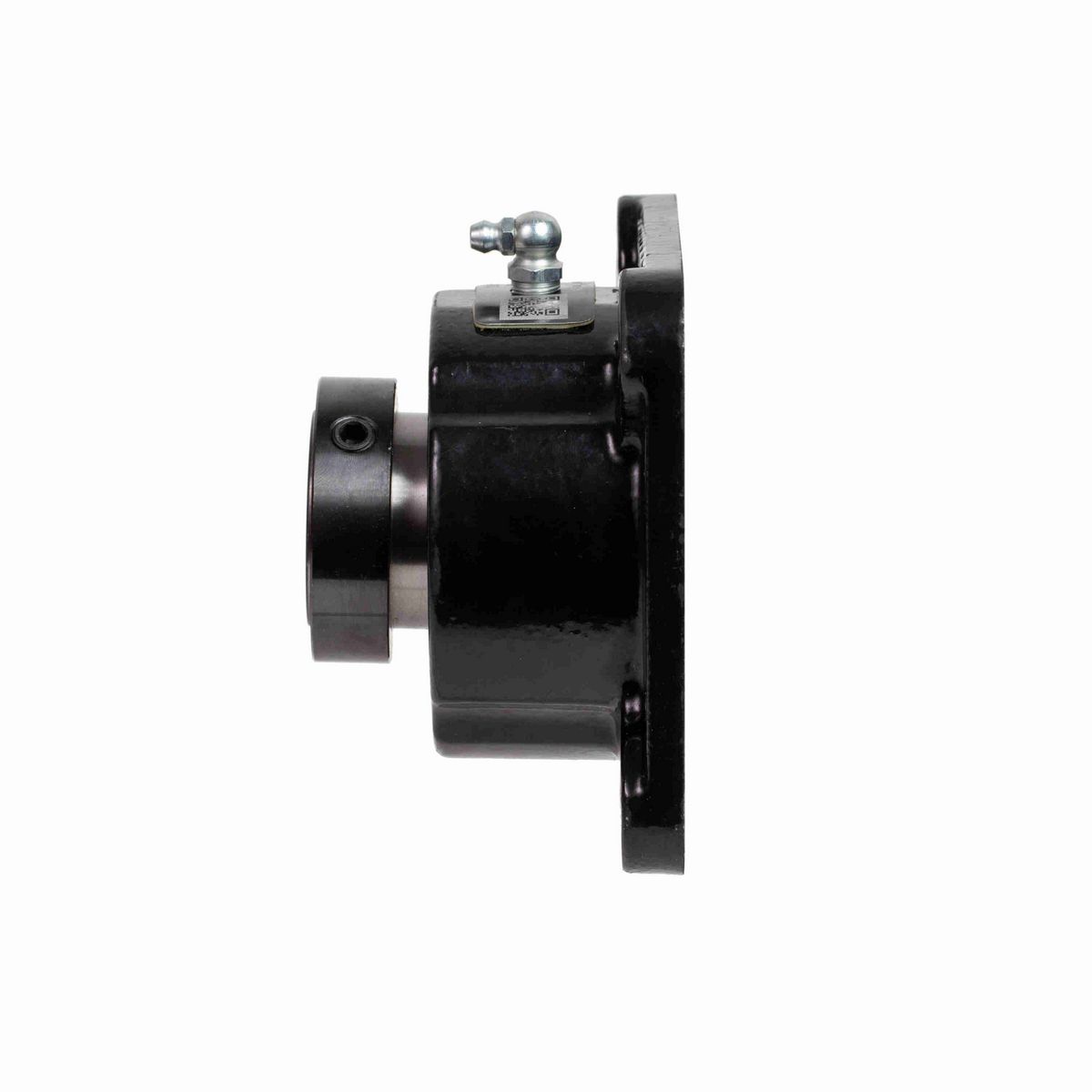

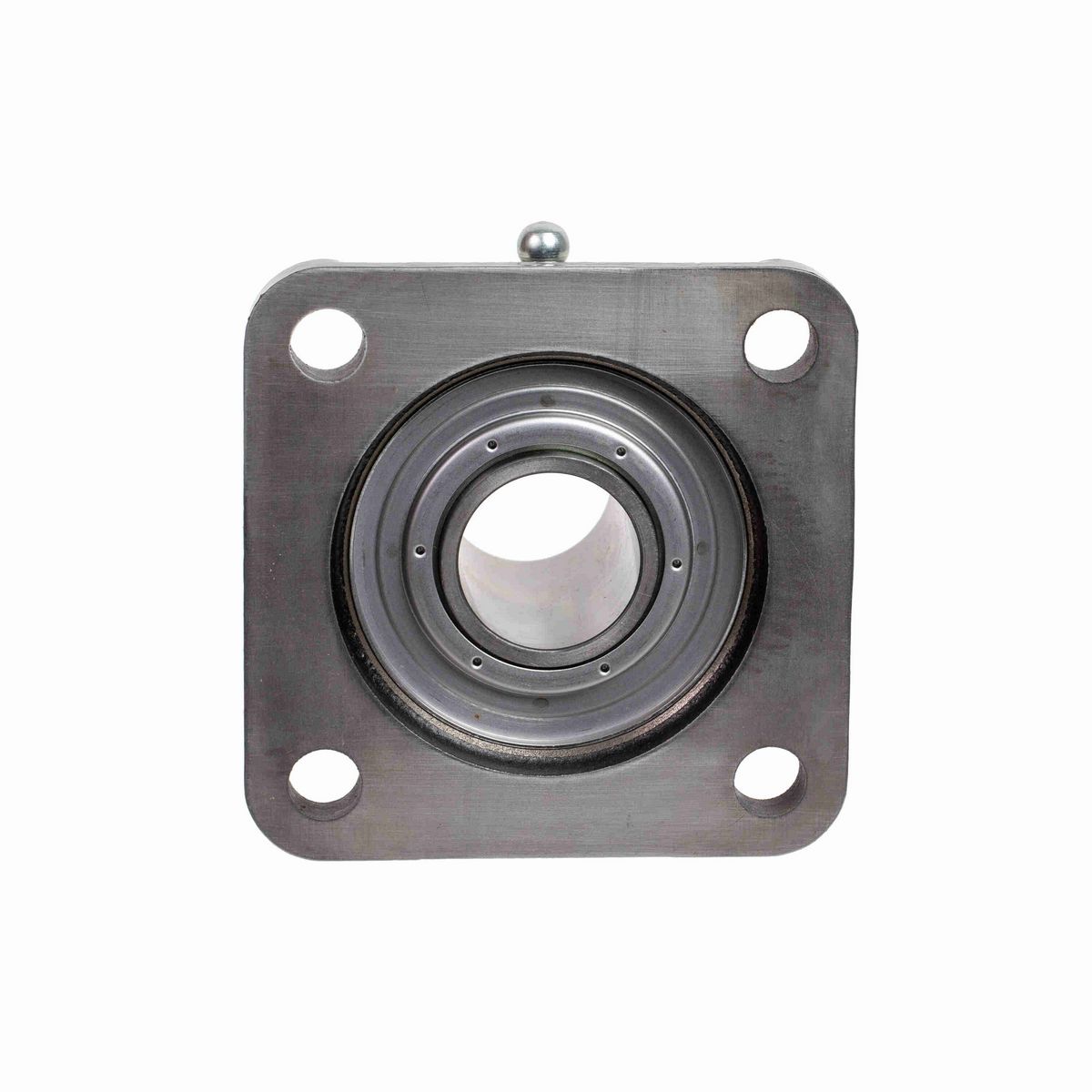

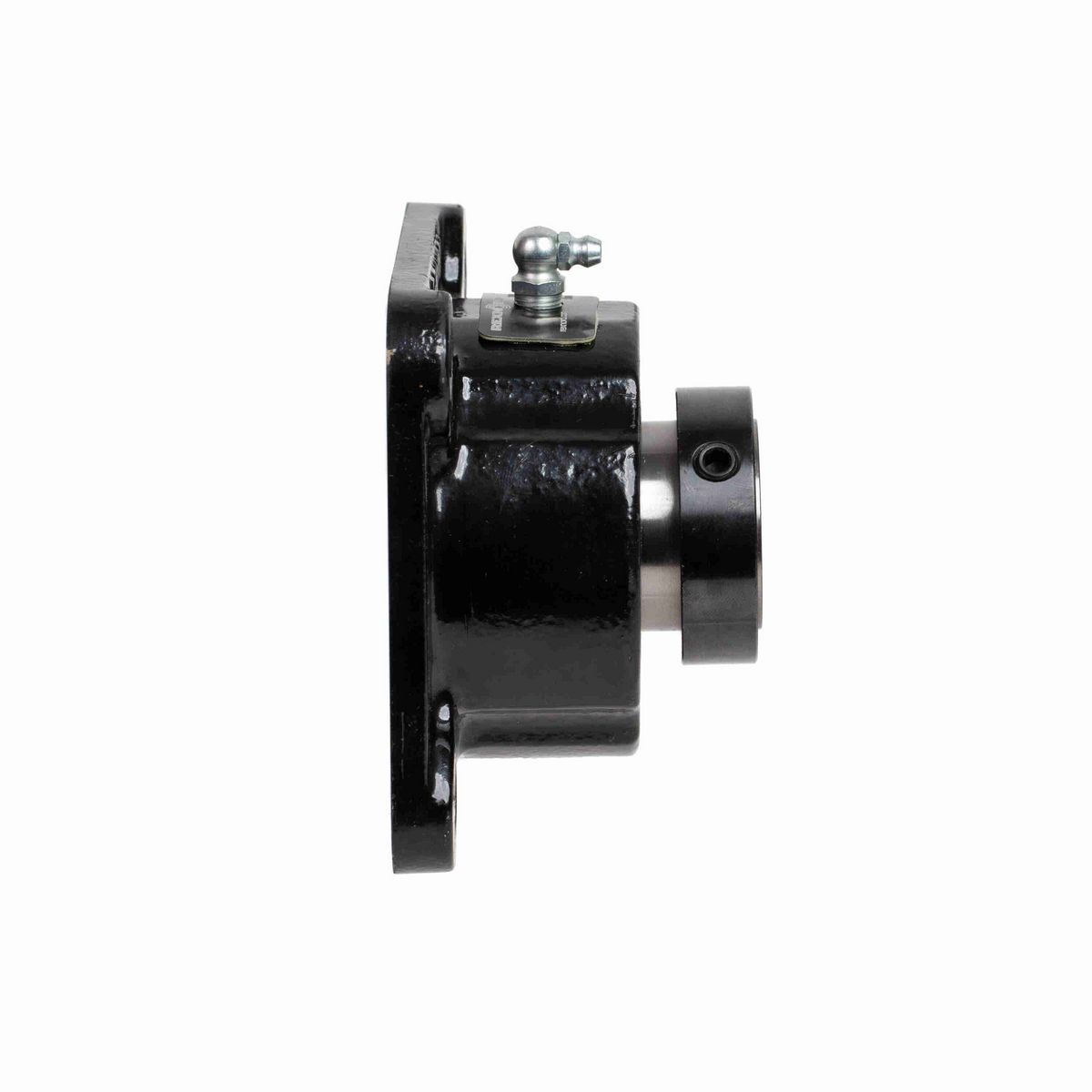

• 3 15/16" shaft size; Cast iron housing; Fixed unit; Setscrew mounting collar; Triple lip seal; Exxon Ronex MP grease; Accessories include open cap and closed cap

Dimensions

Bolt Size (in)	7/8 in
Foot Height (in)	1.06 in
Overall Length (in)	9.25 in
Overall Height to End Cap (in)	5.32 in
Overall Width (in)	9.25 in
Housing Width (in)	9.25 in
Bore Diameter (in)	3.9375 in
Overall Height (in)	5.02 in
Standoff Distance (in)	0.38 in
Locking Collar Outside Diameter (in)	5.63 in
Square Distance Between Bolt Holes (in)	7.6 in
Mounting Surface to Cap Face on Backside (in)	1.38 in
Length Through Bore (in)	4.64 in
Bolt Circle (in)	10.75 in
Inner Ring Outside Diameter (in)	4.561 in
Housing Cast Face to Outermost Bearing Face (in)	1.61 in

Technical Specifications

Shaft Locking Type	Single Set Collar
Series	Flange Blocks
Housing Style	Flange Block
Housing Type	Flange, Four Bolt
Seal Type	Multi-Lip Contact Seal
Rolling Element	Spherical Roller
Product	FB
Fixed/Expansion	Fixed
Cage Material	Steel
Static Load Rating (lb)	98,600 lb
Housing Material	Cast Iron
Misalignment Type	Dynamic
Housing Construction	Solid
End Cap	SEE AUX CAP KIT
Radial Dynamic Load Capacity (lb)	80,000 lb
Maximum Speed (RPM)	1520 rpm
Setscrew Torque (in-lbs)	1350 in/lbs
Available Seal Type	C Clearance Seal; T Triple Lip Seal
Ability to Relubricate	Yes
Lubricant	EXXON RONEX MP STD
Grease Fitting Thread Size	1/8 NPT
Lube Fitting Type	STRAIGHT AND 90 DEG FITTING
Size Code	11
Max Operating Temperature (F)	225 °F
Vibration Frequency Roller Spin	0.0514 cps
Max Operating Temperature (C)	107 °C
Housing Coating	POWDER COATED
Primary Seal	BUNA TRIPLE LIP SEAL
Misalignment Capability	±2.0° Misalignment - Dynamic
Vibration Frequency Fundamental Train	0.007 cps
Vibration Frequency Inner Ring Defect	0.1638 cps
Vibration Frequency Outer Ring Defect	0.1196 cps

General Specifications

UPC	782934930430
Weight	35.08 LB
Packaged Length	9.75 IN
Packaged Width	5.75 IN
Packaged Height	9.75 IN
HTC	8483204080
Country of Origin	China
