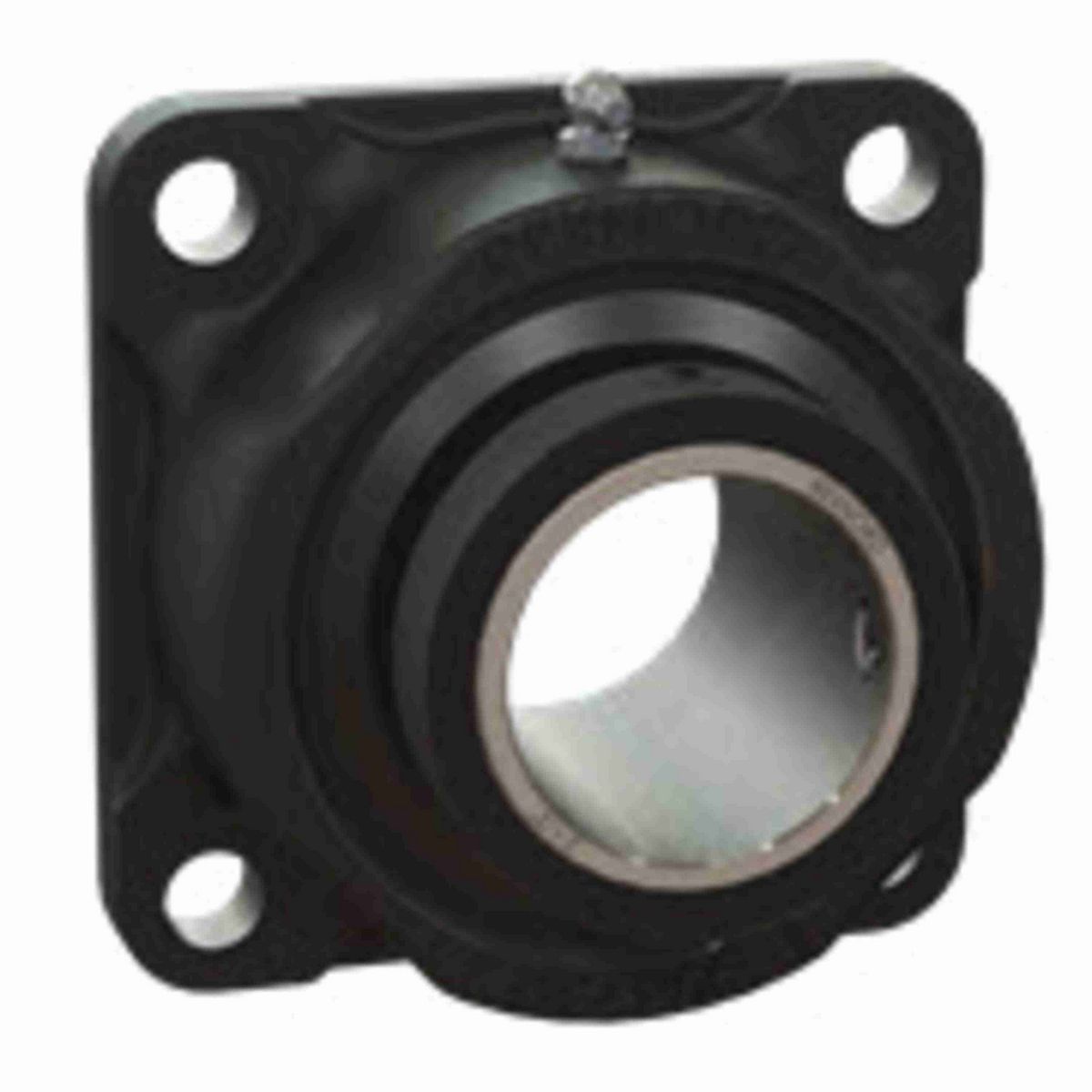

• 2 11/16" shaft size; Cast iron housing; Fixed unit; Setscrew mounting collar; Clearance seal; Exxon Ronex MP grease; Accessories include open cap and closed cap

Dimensions

Overall Height (in)	4.01 in
Overall Length (in)	7.19 in
Foot Height (in)	0.75 in
Overall Width (in)	7.19 in
Bolt Size (in)	3/4 in
Overall Height to End Cap (in)	4.28 in
Housing Width (in)	7.19 in
Bore Diameter (in)	2.6875 in
Locking Collar Outside Diameter (in)	4.04 in
Standoff Distance (in)	0.36 in
Mounting Surface to Cap Face on Backside (in)	1.21 in
Bolt Spacing (in)	5.56 in
Bolt Circle (in)	7.875 in
Length Through Bore (in)	3.65 in
Housing Cast Face to Outermost Bearing Face (in)	1.33 in

Technical Specifications

Product	FB
Radial Dynamic Load Capacity (lb)	41,000 lb
Seal Type	Clearance Seal
Static Load Rating (lb)	48,420 lb
Misalignment Type	Dynamic
End Cap	SEE AUX CAP KIT
Rolling Element	Spherical Roller
Shaft Locking Type	Single Set Collar
Cage Material	Steel
Fixed/Expansion	Fixed
Housing Type	Flange, Four Bolt
Housing Style	Flange Block
Series	Flange Blocks
Housing Material	Cast Iron
Housing Construction	Solid
Available Seal Type	C Clearance Seal; T Triple Lip Seal
Setscrew Torque (in-lbs)	680 in/lbs
Ability to Relubricate	Yes
Maximum Speed (RPM)	2420 rpm
Vibration Frequency Outer Ring Defect	0.1279 cps
Misalignment Capability	±2.0° Misalignment - Dynamic
Vibration Frequency Roller Spin	0.0547 cps
Vibration Frequency Inner Ring Defect	0.1721 cps
Max Operating Temperature (C)	107 °C
Size Code	9
Primary Seal	STEEL CLEARANCE SEAL
Vibration Frequency Fundamental Train	0.0071 cps
Lubricant	EXXON RONEX MP STD
Grease Fitting Thread Size	1/8 NPT
Lube Fitting Type	STRAIGHT AND 90 DEG FITTING
Housing Coating	POWDER COATED
Max Operating Temperature (F)	225 °F

General Specifications

UPC	782934930607
Weight	16.40 LB
Packaged Length	7.13 IN
Packaged Width	6.38 IN
Packaged Height	7.13 IN
HTC	8483204080
Country of Origin	China
