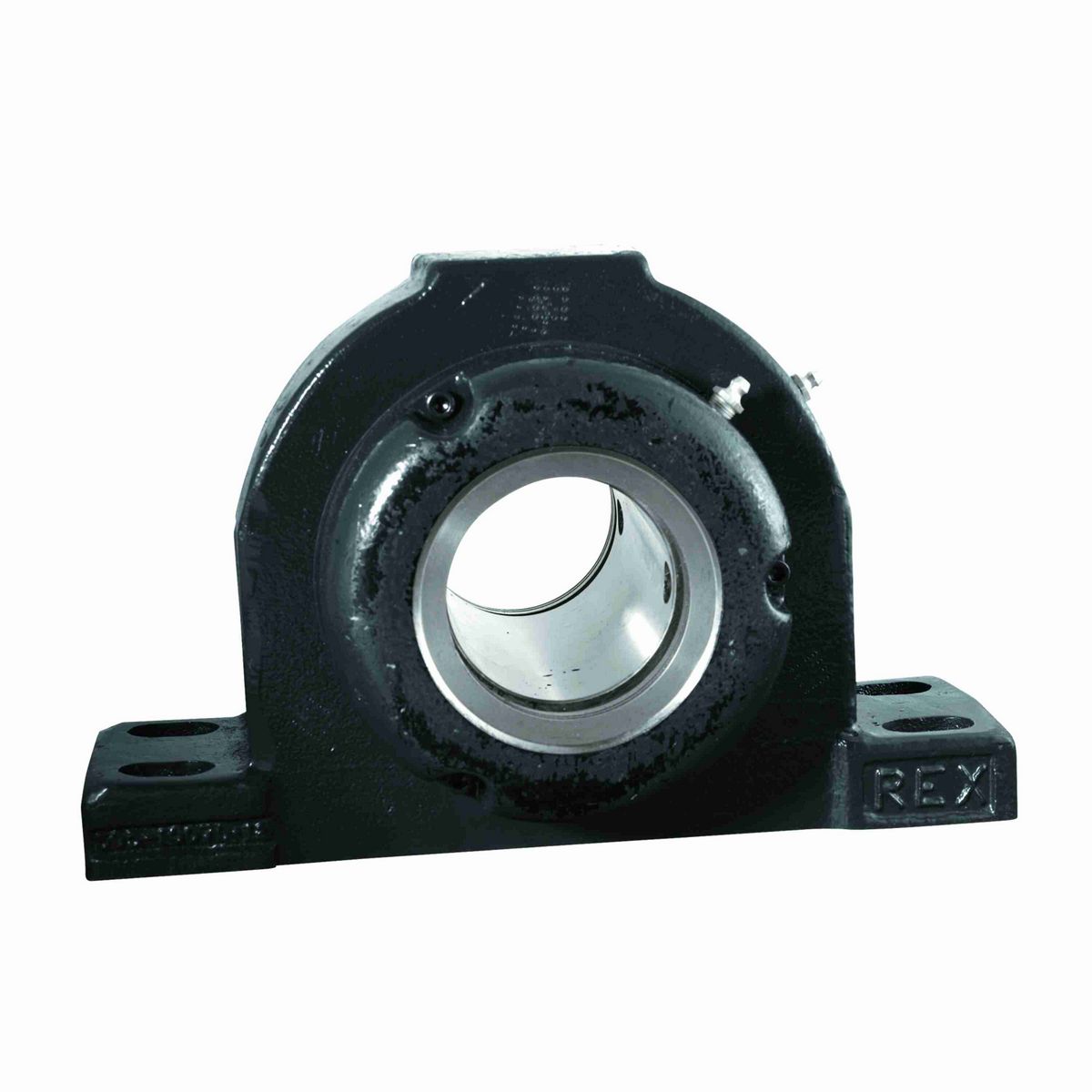

• 1 7/16" shaft size; Cast iron housing; Fixed unit; Setscrew mounting collar; Triple lip seal; Exxon Ronex MP grease; Accessories include open cap and closed cap

Dimensions

Base to Center Height (in)	1.875 in
Slot Length (in)	0.75 in
Foot Height (in)	1.13 in
Base Width (in)	1.95 in
Overall Height (in)	3.85 in
Overall Width (in)	2.71 in
Overall Length (in)	7.3 in
Bore Diameter (in)	1.4375 in
Bolt Size (in)	1/2 in
Locking Collar Outside Diameter (in)	2.3 in
Bolt Spacing Max (in)	5.88 in
Centerline to Outermost Bearing Face (in)	1.83 in
Bolt Spacing Min (in)	5.63 in
Housing Cast Face to Outermost Bearing Face (in)	0.99 in
Length Through Bore (in)	2.71 in

Technical Specifications

Rolling Element	Spherical Roller
Fixed/Expansion	Fixed
Housing Construction	Solid
Cage Material	Steel
Radial Dynamic Load Capacity (lb)	20,000 lb
Series	Solid-housed Pillow Blocks
Housing Color	Black
End Cap	SEE AUX CAP KIT
Misalignment Type	Dynamic
Housing Material	Cast Iron
Seal Type	Multi-Lip Contact Seal
Static Load Rating (lb)	21,360 lb
Product	EP2B
Housing Style	Pillow Block
Housing Type	Pillow Block, Two Bolt, Type E
Shaft Locking Type	Single Set Collar
Ability to Relubricate	Yes
Available Seal Type	C Clearance Seal; T Triple Lip Seal
Maximum Speed (RPM)	3490 rpm
Setscrew Torque (in-lbs)	325 in/lbs
Max Operating Temperature (C)	107 °C
Vibration Frequency Roller Spin	0.0431 cps
Misalignment Capability	±2.0° Misalignment - Dynamic
Lubricant	EXXON RONEX MP STD
Size Code	4
Primary Seal	BUNA TRIPLE LIP SEAL
Max Operating Temperature (F)	225 °F
Vibration Frequency Fundamental Train	0.0068 cps
Grease Fitting Thread Size	1/8 NPT
Vibration Frequency Outer Ring Defect	0.102 cps
Vibration Frequency Inner Ring Defect	0.148 cps
Lube Fitting Type	STRAIGHT AND 90 DEG FITTING
Housing Coating	POWDER COATED

General Specifications

UPC	782934931192
Weight	4.99 LB
Packaged Length	8.50 IN
Packaged Width	3.50 IN
Packaged Height	4.50 IN
HTC	8483308020
Country of Origin	China
