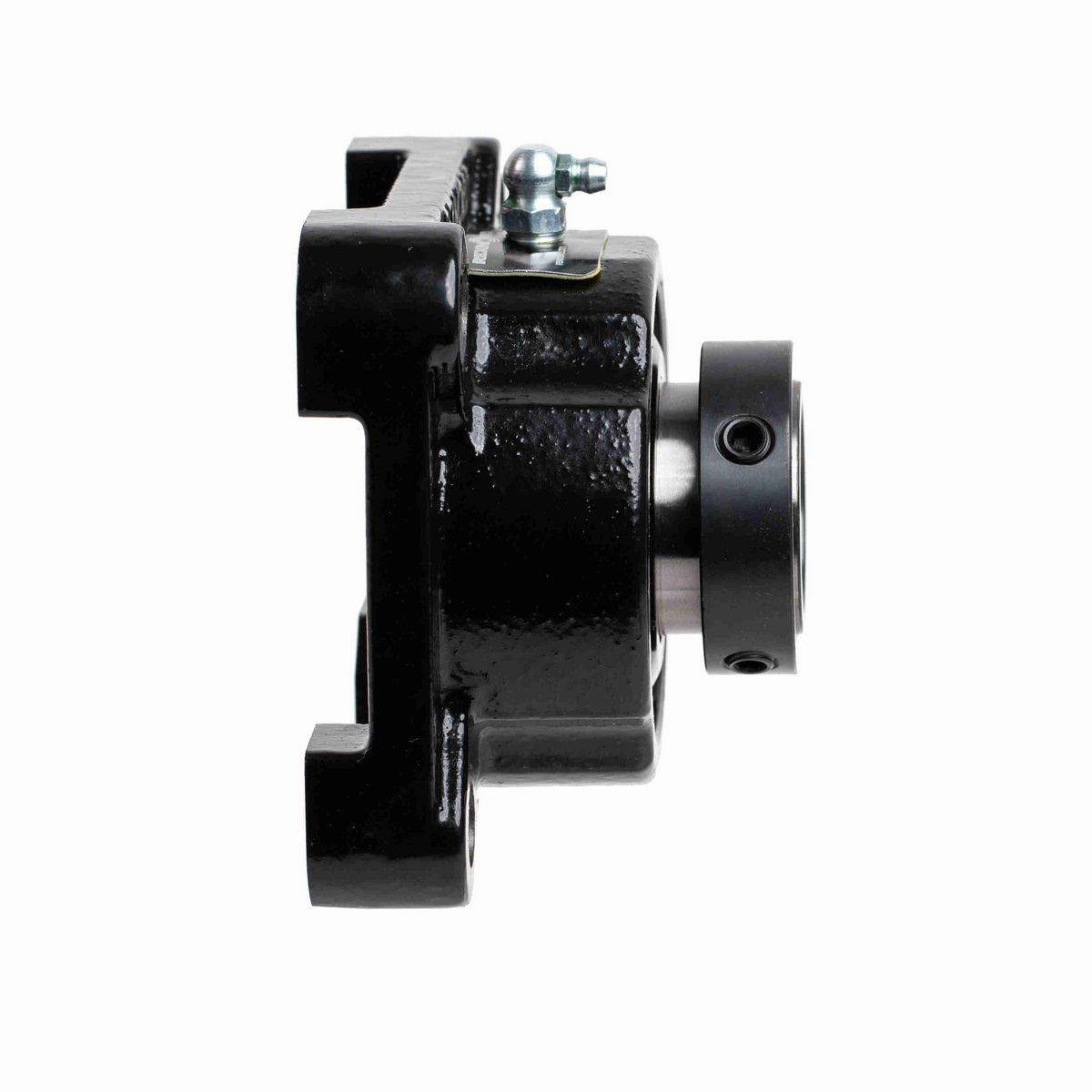

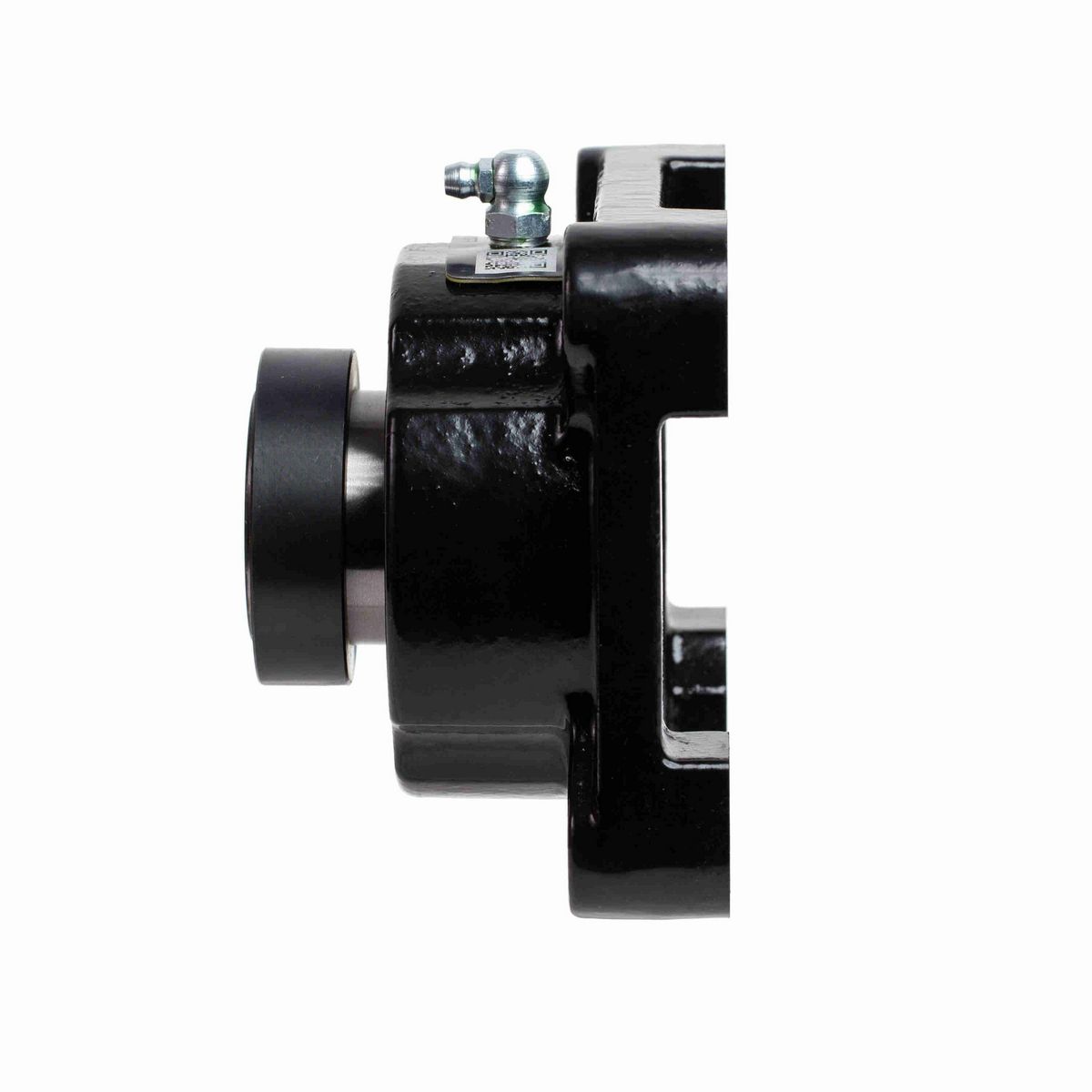

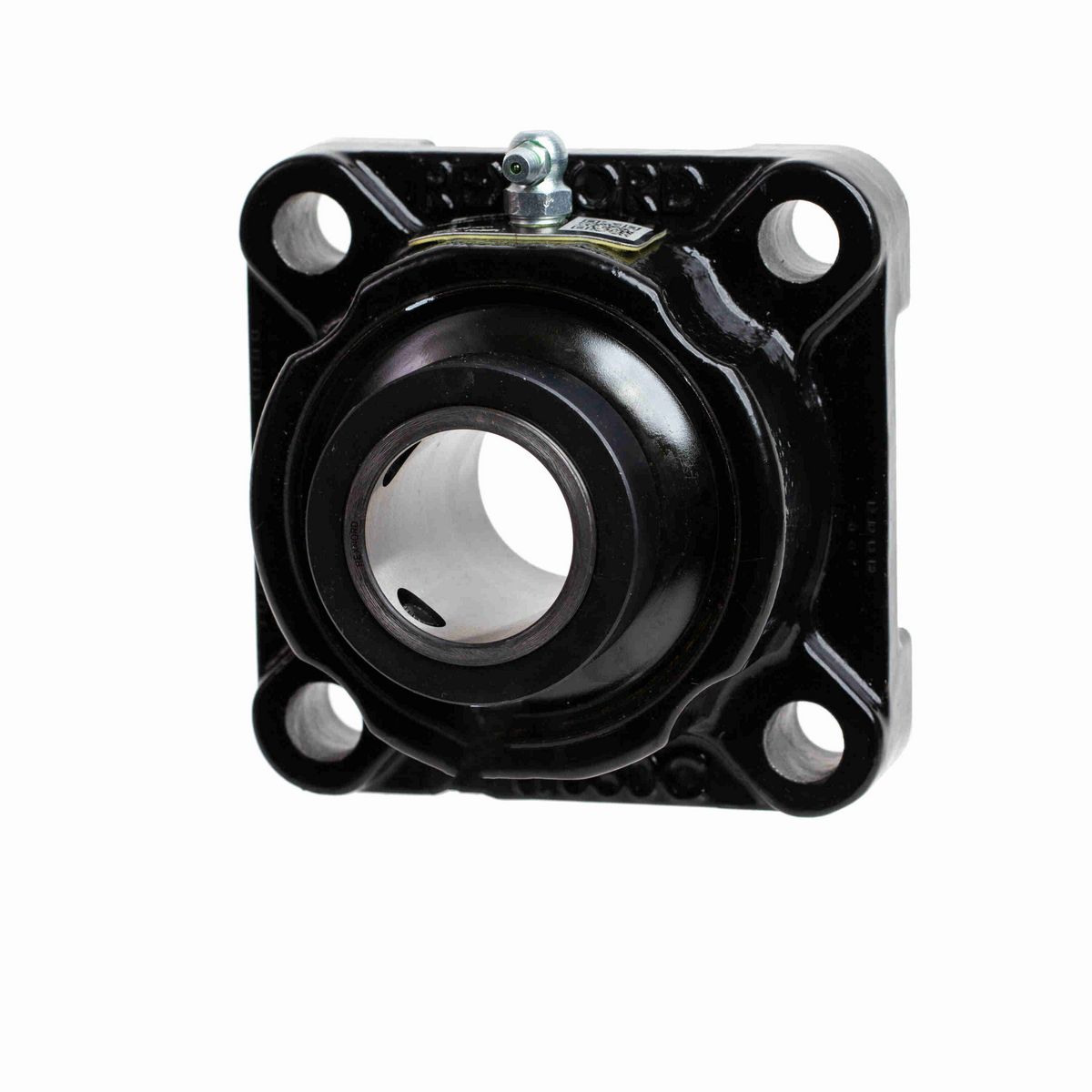

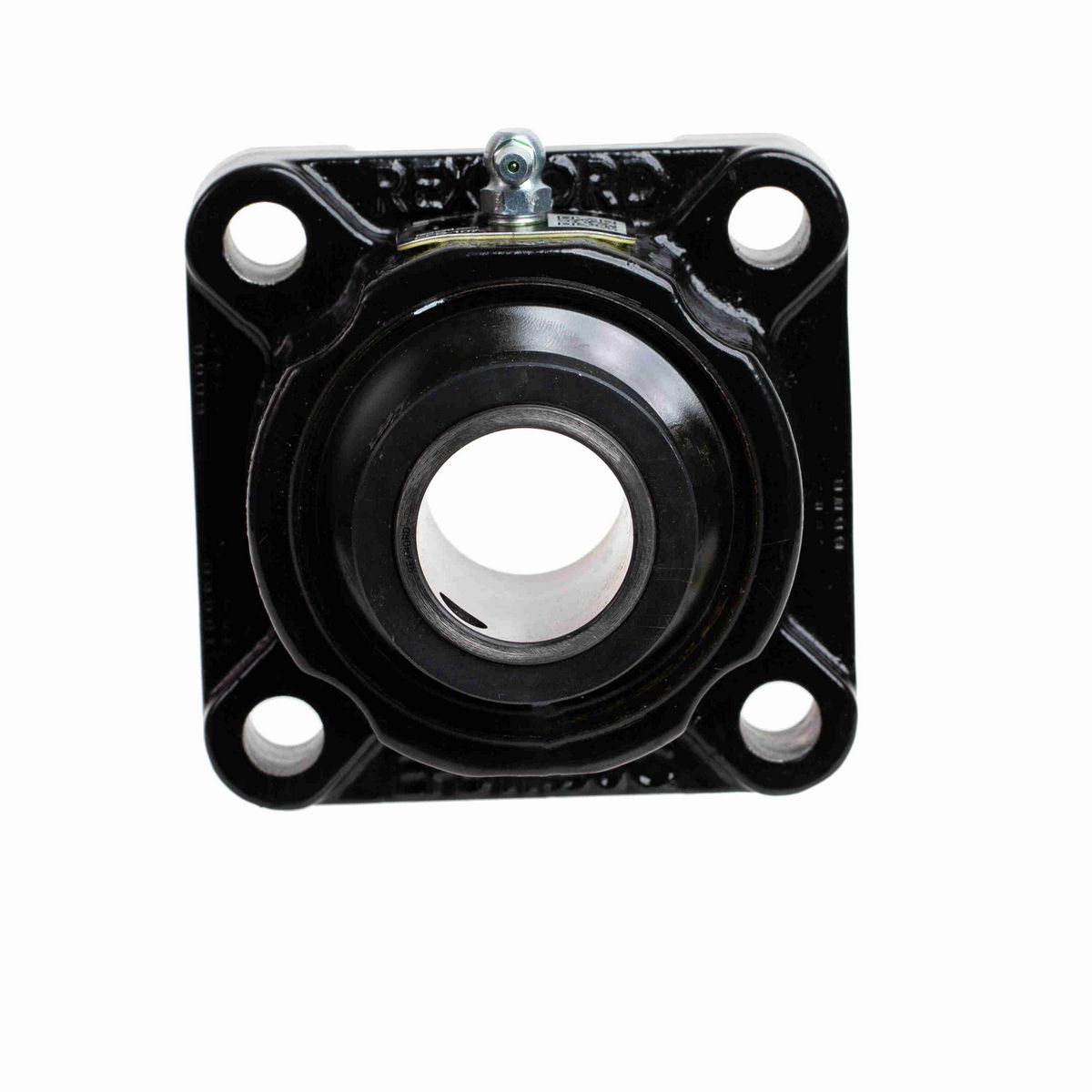

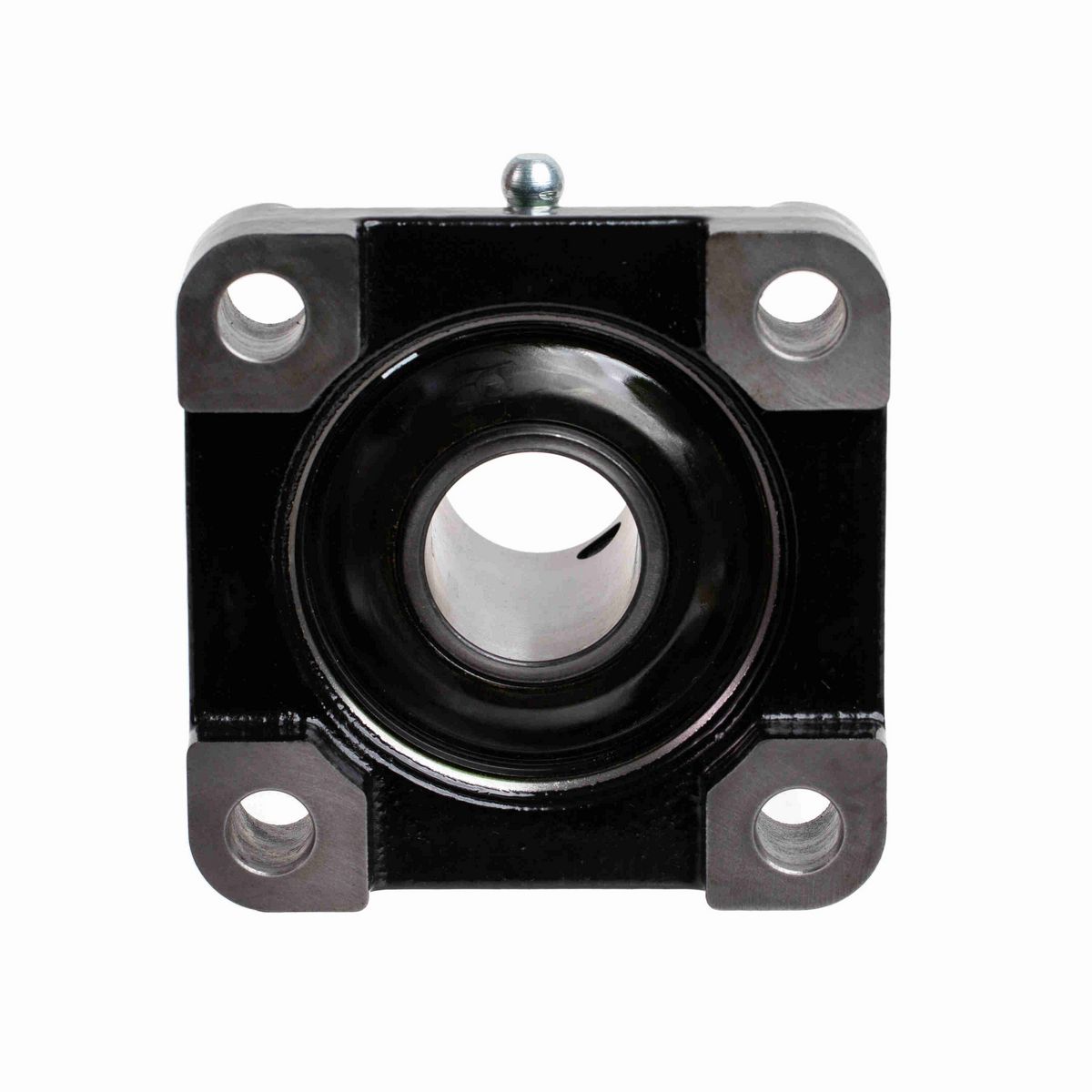

• 2 15/16" shaft size; Cast iron housing; Expansion unit; Setscrew mounting collar; Clearance seal; Exxon Ronex MP grease; Accessories include open cap and closed cap

Dimensions

Foot Height (in)	1.61 in
Overall Height to End Cap (in)	5.01 in
Overall Width (in)	7.75 in
Overall Height (in)	4.74 in
Housing Width (in)	7.75 in
Bolt Size (in)	3/4 in
Bore Diameter (in)	2.9375 in
Overall Length (in)	7.75 in
Locking Collar Outside Diameter (in)	4.04 in
Standoff Distance (in)	1.09 in
Bolt Circle (in)	8.5 in
Mounting Surface to Cap Face on Backside (in)	0.48 in
Bolt Spacing (in)	6 in
Length Through Bore (in)	3.65 in
Housing Cast Face to Outermost Bearing Face (in)	1.33 in
Expansion Capability (in)	0.34 in

Technical Specifications

Radial Dynamic Load Capacity (lb)	41,000 lb
Housing Construction	Solid
Housing Material	Cast Iron
Rolling Element	Spherical Roller
Shaft Locking Type	Single Set Collar
Housing Type	Flange, Four Bolt
Fixed/Expansion	Expansion
End Cap	SEE AUX CAP KIT
Housing Style	Flange Block
Misalignment Type	Dynamic
Static Load Rating (lb)	48,420 lb
Series	Flange Blocks
Product	EFB
Seal Type	Clearance Seal
Cage Material	Steel
Setscrew Torque (in-lbs)	680 in/lbs
Ability to Relubricate	Yes
Maximum Speed (RPM)	2420 rpm
Available Seal Type	C Clearance Seal; T Triple Lip Seal
Lubricant	EXXON RONEX MP STD
Size Code	9
Primary Seal	STEEL CLEARANCE SEAL
Grease Fitting Thread Size	1/8 NPT
Vibration Frequency Fundamental Train	0.0071 cps
Vibration Frequency Roller Spin	0.0547 cps
Max Operating Temperature (F)	225 °F
Lube Fitting Type	STRAIGHT AND 90 DEG FITTING
Misalignment Capability	±2.0° Misalignment - Dynamic
Vibration Frequency Inner Ring Defect	0.1721 cps
Max Operating Temperature (C)	107 °C
Housing Coating	POWDER COATED
Vibration Frequency Outer Ring Defect	0.1279 cps

General Specifications

UPC	782934930102
Weight	20.74 LB
Packaged Length	8.00 IN
Packaged Width	6.13 IN
Packaged Height	8.00 IN
HTC	8483204080
Country of Origin	China
