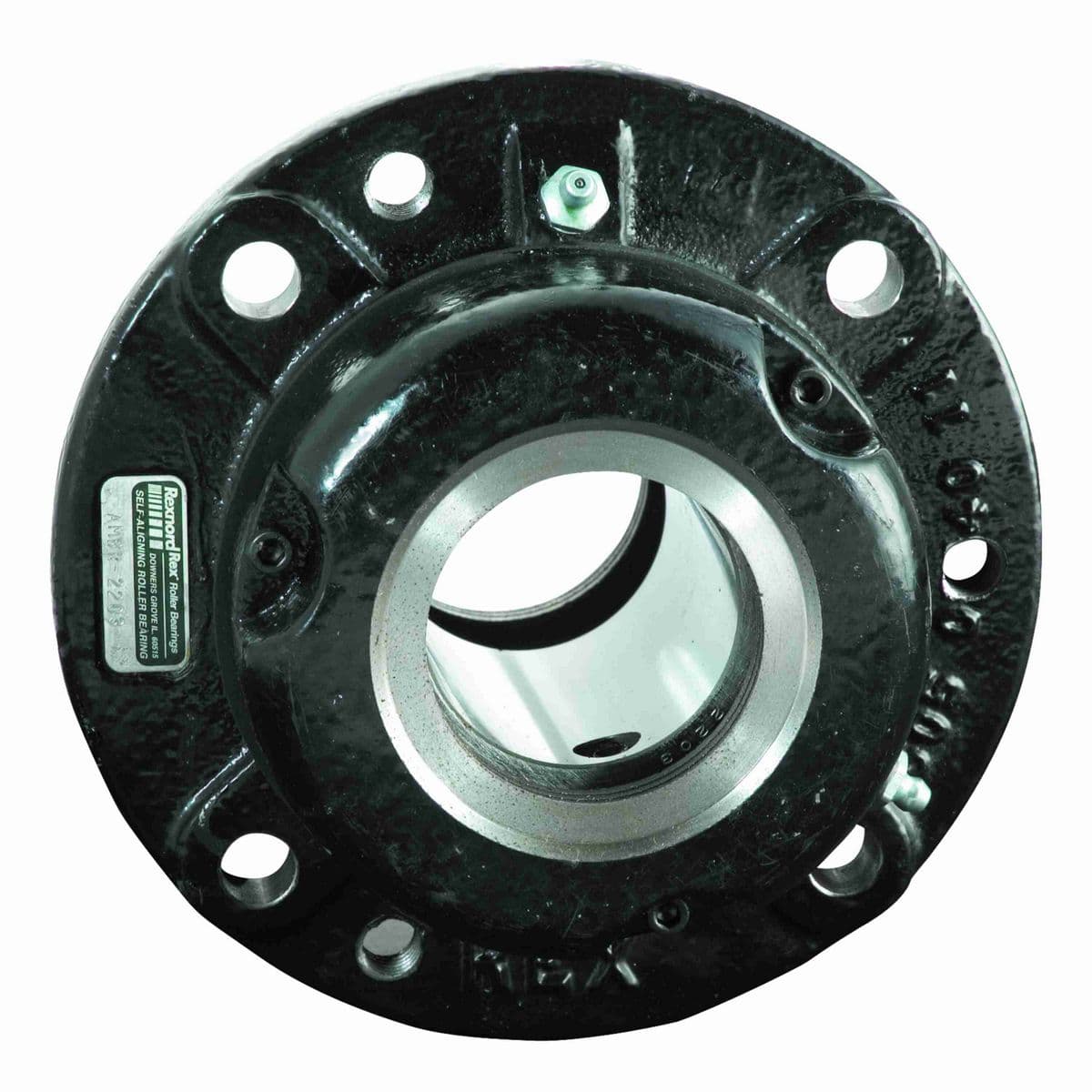

• 60 MM Mounted Spherical Roller Bearing, Fixed Cast Iron 4-Bolt Round Flange Cartridge Block, Single Setscrew Locking Collar, Spring Loaded Heavy Contact Seal, One Open and One Closed Auxiliary Cap

Dimensions

Bolt Size (in)	1/2 in
Bolt Size (mm)	M13 mm
Pilot Diameter (in)	5.5 in
Overall Length (in)	7.63 in
Bore Diameter (mm)	60 mm
Overall Width (in)	7.63 in
Overall Height (in)	3.5 in
Foot Height (in)	0.63 in
Housing Height (in)	2.63 in
Pilot Depth (in)	1 in
Mounting Plate to Collar Face (in)	1.81 in
Locking Collar Outside Diameter (in)	3.56 in
Housing Outside Diameter (in)	7.63 in
Bolt Spacing (in)	4.594 in
Bolt Circle (in)	6.5 in
Housing Cast Face to Outermost Bearing Face (in)	0.88 in
Mounting Surface to End of Housing (in)	1.69 in
Inner Ring Outside Diameter (in)	2.901 in
Length Through Bore (in)	3.5 in

Technical Specifications

Housing Type	Flange, Cartridge
Housing Style	Flange Block
Fixed/Expansion	Fixed
Series	Flanged Cartridge Blocks
Seal Type	Heavy Contact Seal
Housing Material	Cast Iron
Housing Color	Black
Misalignment Type	Dynamic
Housing Construction	Solid
Product	ZBR2000
Rolling Element	Spherical Roller
Static Load Rating (lb)	53,500 lb
Shaft Locking Type	Single Set Collar
Radial Dynamic Load Capacity (lb)	43,240 lb
Cage Material	Engineered Polymer
Radial Clearance	C3 STANDARD
Setscrew Torque (in-lbs)	680 in/lbs
Maximum Speed (RPM)	2000 rpm
Available Seal Type	K Light Contact Lip Seal; M Spring Loaded Heavy Contact Lip Seal (Buna and Viton); Z Clearance Seal; G Triple Lip
Seal Kit	MS8
Bolt Hole Shape	Round Hole
Ability to Relubricate	Yes
Vibration Frequency Outer Ring Defect	0.1376 cps
Vibration Frequency Inner Ring Defect	0.1791 cps
Vibration Frequency Fundamental Train	0.0072 cps
Insert	2060MMU
Max Operating Temperature (F)	225 °F
Vibration Frequency Roller Spin	0.0607 cps
Auxiliary Seals	1 OPEN 1 CLOSED CAP CAST IRON
Lubricant	EXXON RONEX MP STD
Misalignment Capability	±2.0° Misalignment - Dynamic
Locking Device Kit	SC8
Primary Seal	BUNA SPRING LOADED LIP SEAL
Size Code	8
Grease Fitting Thread Size	1/8 NPT
Housing Coating	POWDER COATED
Max Operating Temperature (C)	107 °C

General Specifications

UPC	698210943820
Weight	15.10 LB
Packaged Length	7.13 IN
Packaged Width	6.38 IN
Packaged Height	7.13 IN
HTC	8483204080
